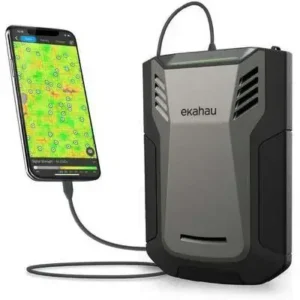

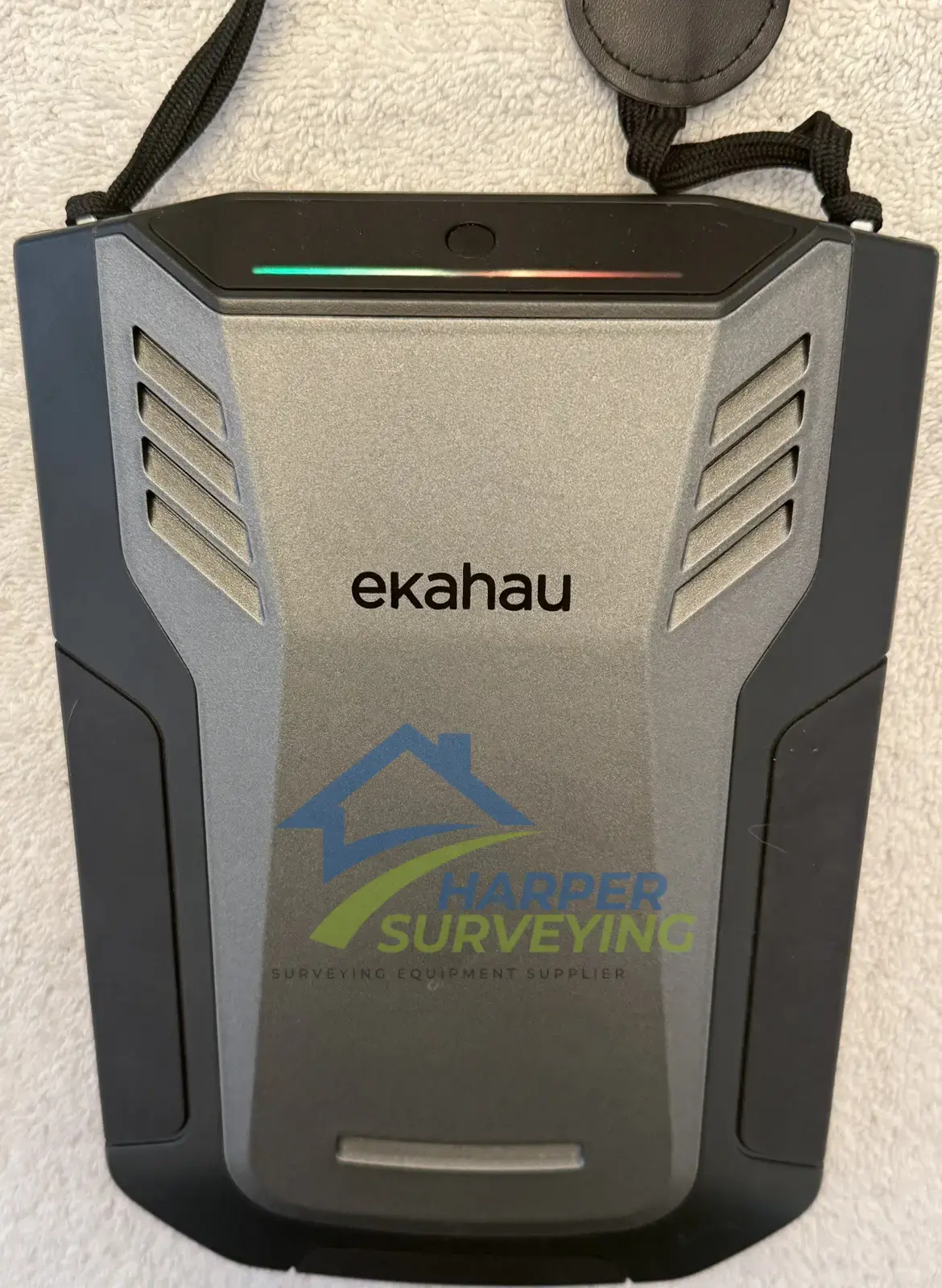

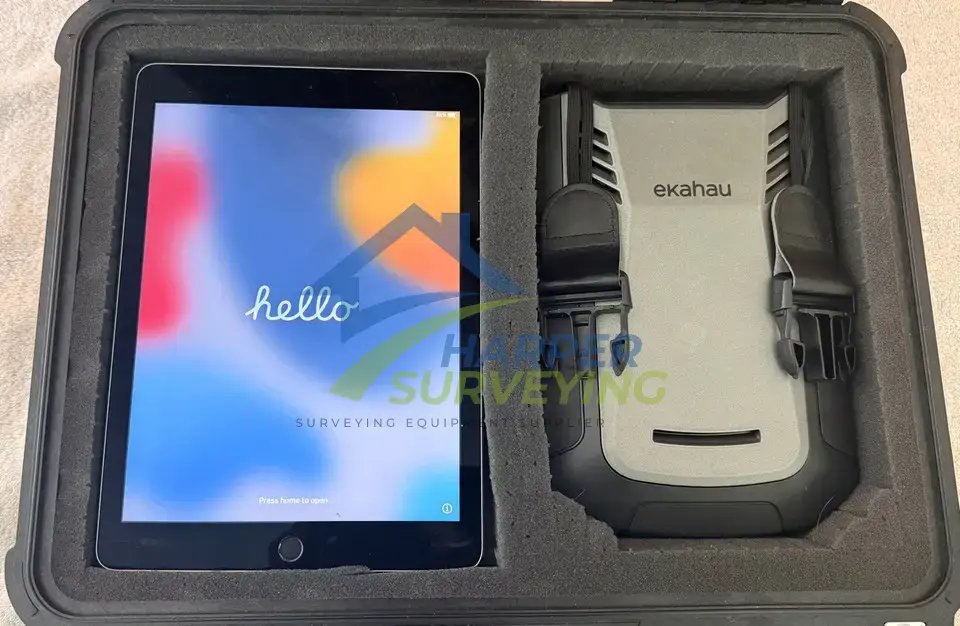

The ultimate Wi-Fi diagnostic and measurement device for wireless professionals. The Ekahau ESK-2 Sidekick 2 Wi-Fi Diagnostic & Measurement provides the most accurate and standardized Wi-Fi surveys of any device. With two enterprise-grade 802.11ac Wi-Fi radios and a top-of-the-line spectrum analyzer, the Ekahau Sidekick leads the industry for advanced precision with 2.4 and 5 GHz Wi-Fi combined with automated interference source detection.
Ekahau ESK-2 Feature
Network
Features 50 sweeps/second spectrum analyzer, 9 wideband 3D antennas, Built-in 120 GB SSD, Whisper-quiet active cooling, Wi-Fi IEEE 802.11 a/b/g/n/ac/ax; full tri-band (2.4 GHz, 5 GHz, 6 GHz )
Media Radio
Product Type Network tester
Tests, Tools and Measurements Cross-talk interference, IEEE 802.11 a/b/g/n/ac/ax discovery, Signal level meter, Spectral noise, Wireless LAN testing
Connectivity
Connectors 24 pin USB type C
Technical
Max Operating Temperature 95 degree Fahrenheit
Max Storage Temperature 140 degree Fahrenheit
Min Operating Temperature 41 degree Fahrenheit
Min Storage Temperature -4 degree Fahrenheit
Power
Battery Chemistry Lithium ion
Output Voltage 20 V
Battery Run Time (Up To) 2 days
Ekahau ESK-2 specification
| Dimensions | 155mm x 226mm x 39mm (7.14” x 8.9” x 1.54”) |
| Weight | 1080g (2.4lbs) |
| Battery | 96.4Wh Li-ion |
| Power Supply | USB-C 20V/3A |
| Operating temperature | +5…+35°C |
| Storage temperature | -20°C ~+60°C |
| Storage | 120GB SSD |
| Hardware warranty | 1 year (3 Year extended warranty available) |

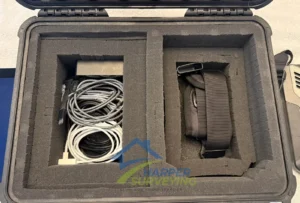

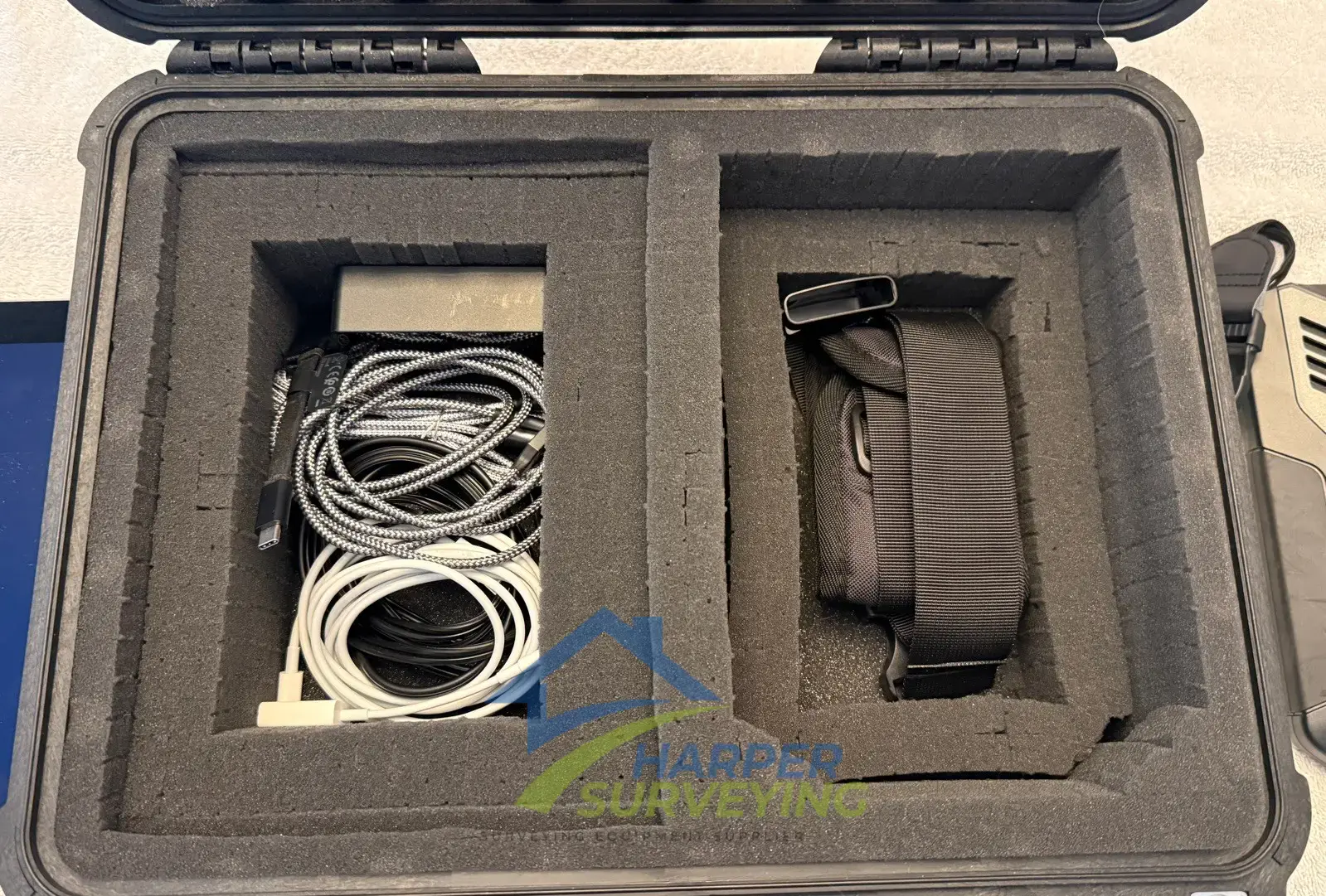

Ekahau ESK-2 Include
- Cables 1 x USB-C to USB-C cable

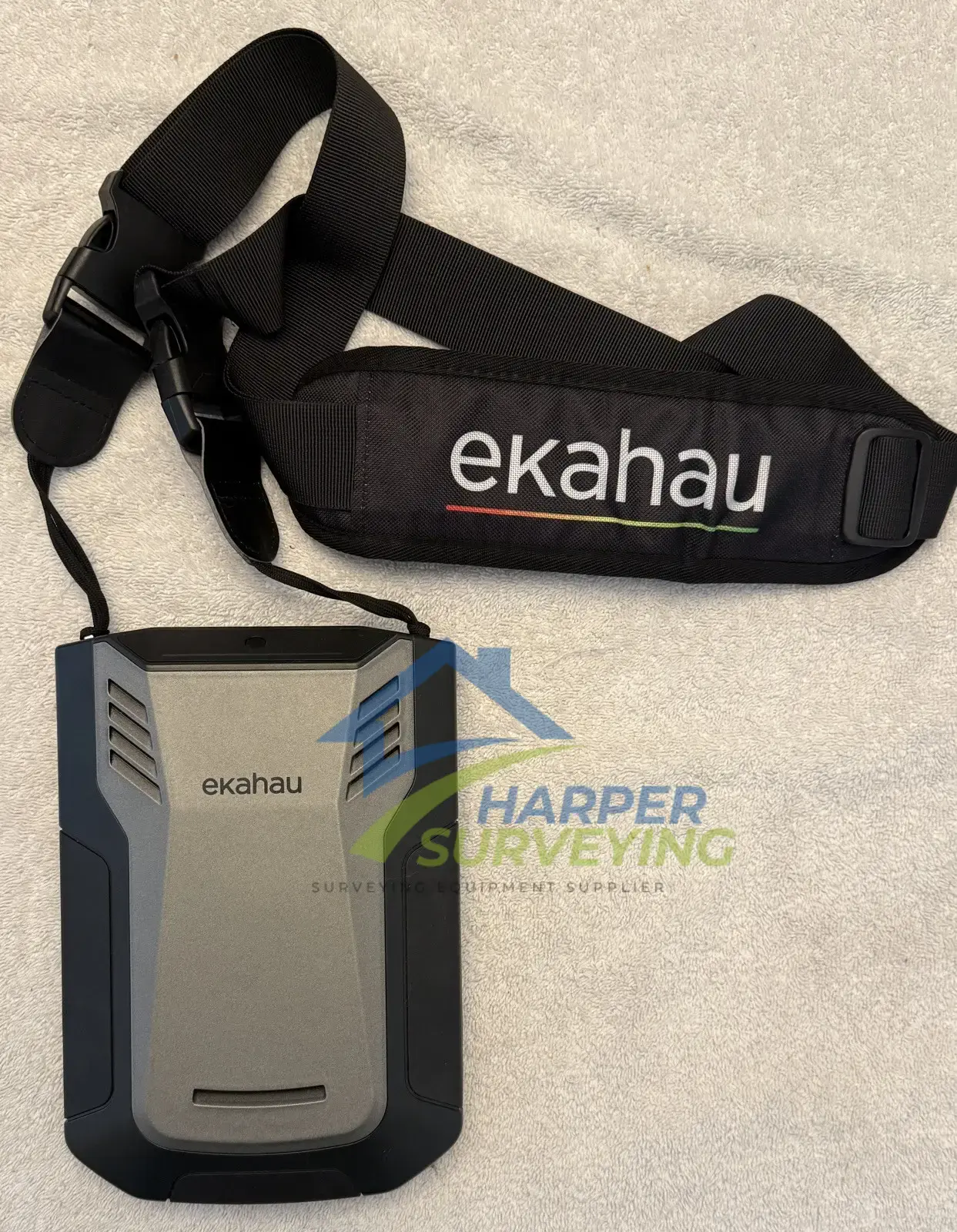

- Messenger strap
- Power adapter
