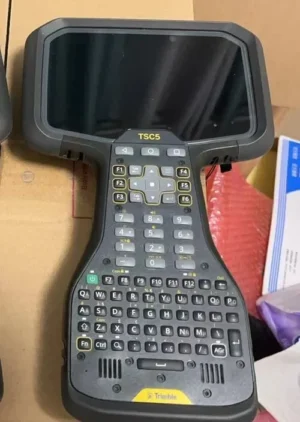

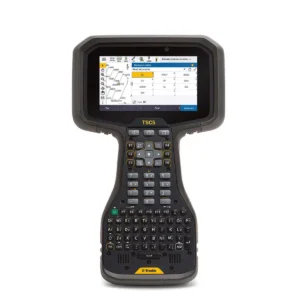

Trimble TSC5 Data Controller is the reliable, modern, sixth-generation field computer that enables you and your team to complete your projects efficiently and accurately, day in and day out. This field calculator with the Android operating system is characterized by a 5 “screen and a complete keyboard with which you can work quickly and efficiently – even when wearing gloves. Robust and yet light, with battery life for a whole working day, the TSC5 is easy to carry and easy to use.
The Trimble TSC5 Data Controller Field surveying powered by the latest version of Trimble Access software, combines exceptional performance and reliability, so you can get your work done efficiently, quickly, and accurately.
Equipped with a 5-inch screen with an alphanumeric keypad, it is easy to carry and easy to use. The Trimble TSC5 Data Controller gives you the perfect combination of high performance and reliability you expect from Trimble for your field data collection.
Optimised for Trimble Access field software, the TSC5 Android based survey controller ensures fast and efficient operation with 2.2GHz processor. Coupled with extended battery life and Military specs with IP65 rating, Trimble TSC5 supports a full day’s work irrespective of the weather conditions. Compatibility with other Trimble external GNSS receivers enhances its cross-platform functionality.
The Trimble TSC5 controller is an Android-based survey controller featuring a five-inch screen and full keyboard—ensuring fast, efficient operation, even while wearing gloves. Rugged yet lightweight, with all-day battery power, the TSC5 is easy to carry and easy to use.
The Trimble TSC5 is a popular data collector designed for field survey and topo data collection. It is an Android-based survey controller with a 5-inch screen and full keyboard, making it easy to use even while wearing gloves.
Trimble controllers give construction surveyors, grade checkers and site engineers total control over their on-site tasks. Designed for construction site operations, the TSC7 and TSC5 offer integrated Wi-Fi and Bluetooth, built-in camera, GPS and long battery life in a lightweight, shock, dust and water resistant package.
Powerful
With its Windows 10 operating system, the TSC7 can run third-party applications as well as Trimble Siteworks Software. You get the processing power of a laptop, in a handheld controller with a large 7” screen.
The Android-based Trimble TSC5 survey controller features a 5-inch screen and full keyboard that ensures fast, efficient operation, even while wearing gloves. Rugged yet lightweight, with all-day battery power, the TSC5 is easy to carry and easy to use for on-site tasks.
Connected
As part of the Trimble Connected Site, Trimble controllers come standard with integrated Wi-Fi capability for instant network access.
- Wirelessly sync with the office to receive GNSS corrections via the internet
- A construction surveyor or grade checker can receive the design model, create new measurements and then send the measurement and stakeout results back to the office for review
- Design changes originating in the office can be sent to the controller so field crews are rapidly updated with current information without leaving the site or the office, dramatically increasing productivity and reducing costs
Rugged
Trimble controllers are water and dust resistant to withstand the toughest weather and jobsite conditions.
- Military-spec, rugged design, engineering and performance
- Designed for operation in all light conditions
- Operate in a wide range of temperatures
Trimble TSC5 is easy to carry and easy to use. Combined with Trimble Access™ software to do precise field data collection, the TSC5 offers the ideal blend of high performance and reliability you expect from Trimble.
- Back-lit international alphanumeric keypad with directional keys
- 12 programmable function keys
- Function, Shift, and AGr key combinations
- Ergonomic design, easy to grip ad carry, less handling fatigue

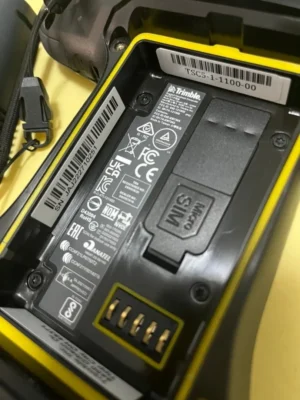

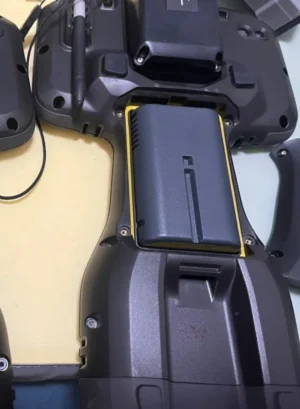

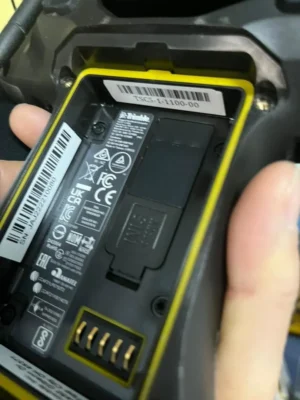

- All-day battery, with user-replaceable battery option
- 5-inch multi-touch screen with finger, stylus, and glove modes
- Bright, anti-glare display, readable in sunlight and low light conditions
- Military spec rugged design, IP65 rated
- Android 10 operating system
- Google Mobile Services certified with access to Google Play
- Optimized for Trimble Access field software (purchase separately or transfer)
Reasons for Popularity
The Trimble TSC5 data collector is popular for several reasons:
- Lighter weight than most other data collectors
- Efficient operation: The full keyboard and 5-inch touchscreen on the Trimble TSC5 ensure fast and efficient operation, which saves time and increases productivity
- Reliable performance: The all-day battery and rugged design of the Trimble TSC5 ensure reliable performance in harsh field conditions
- Customizable: The Android-based operating system of the Trimble TSC5 makes it easy to customize with a wide range of apps, which can be tailored to specific field data collection needs
- Ease of use: The Trimble TSC5 is easy to use, even while wearing gloves, which makes it a popular choice for field data collection
The perfect of performance Trimble TSC5 combination :
- Bright 5 ” anti-glare touchscreen display for any lighting conditions, with a stylus, finger, or gloved control.
- Full alphanumeric backlit keyboard for data entry in the most challenging environments
- 12 physical function keys and their combinations with Shift and AGr speed up your work in the field
- A capacious built-in battery allows you to work all day without interruption. Continuous runtime can be extended with an optional removable battery.
- The PD 2.0 fast charger recharges the battery up to half in just an hour and a half.
- Rugged and reliable design meets IP65 and MIL-STD-810H ratings for use in the toughest field conditions.

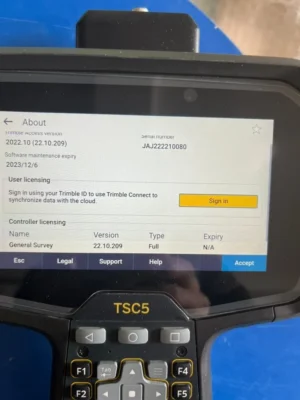

- The controller is optimized to work as efficiently as possible with the Trimble Access field software.
- Supports the most advanced GNSS receivers such as the Trimble R12i and Trimble R12
- Expand capabilities with optional detachable Trimble EMPOWER modules such as a radio modem or sub-meter GNSS receiver
Trimble TSC5 features
- Powerful 8-core Snapdragon 660 processor (2.2 GHz)
- RAM 4 GB and disk 64 GB
- Rear 13MP camera with autofocus and flash
- 4G modem with hotspot function
- 1-watt speakers and noise-canceling microphones
Trimble TSC5 Data Controller is ergonomic design is lightweight, easy to grip, and ideal for rugged environments. The TSC5 is resistant to shock, dust, and water. A brightly lit, anti-glare screen and backlit alphanumeric keypad enable fast, efficient operation in tough conditions, even while wearing gloves.
How is long does the battery last?
At this point, I can not speak from experience, but according to the specs sheet, the Trimble TSC5 Data Controller will last up to 15 hours using internal GPS and backlit. This compares to the TSC3 survey controller pretty good which specs say that it lasts up to 18 hours with GNSS RTK usage. I know this is not apples to apples. But it is promising that it should last a full day of busy surveying.
How about the weight of the TSC5 controller?
Next to the battery life, this is exciting news the Trimble TSC5 Data Controller actually weighs a little less than TSC3. Standing at 934g (2.06 lb), the TSC5 controller is 106g lighter than TSC3. This can be the TSC which we were looking for as a worthy replacement to TSC3.
What are Trimble Empower Modules?
So, as usual, some hardware modules will enable to upgrade of TSC5’s functionality from EM100 GNSS module, which will give a user a GNSS receiver with integrated antenna, to EM120 2.4 GHS Module for use with robotic total stations, to EM110 1D/2D Barcode Imager Module for easy integration with barcode functionality, EM111 1D/2D barcode Imager & USF 902-928 MHz RFID Module – NA[North America] – EU [European Union} for barcode and RFID reader.
| OS: | Android |
| Processor: | Qualcomm SDA660 |
| Memory: | 4GB |
| Memory: | 64GB |
| Expansion: | No |
| Screen: | 5″ 1280x720px, sunlight-readable |
| Touch: | capacitive |
| Keyboard: | Full QWERTY |
| Communication: | 4G LTE, Wi-Fi, Bluetooth |
| Camera: | 13 MP, flash, autofocus |
| Built-in Compass: | There is |
| Built-in GPS: | 2-4 m accuracy, L1 C/A, GPS/ GLONASS/BeiDou/Galileo/QZSS |
| Internal Accelerometer: | There is |
| Battery Duration: | 18 hours |
| Operating temperature: | –30 °C to 60 °C |
| IP Rating: | IP65 |
| Military Standards: | MIL-STD-810H |
| Weight: | 934 g |
| Dimensions: | 287.1mm x 175.6mm x 43.9mm |
Trimble TSC5 Include
- TSC5 Controller w/Quick Release Pole Clamp
- Trimble Access
- Hand Strap
- Shoulder Sling
- TSC5 Carry Case / Protective Pouch
- Pole Mount Bracket
- International AC Power Adapter Charger Kit
- USB Type-A to USB Type-C
- Desktop Hub
- 11-32V DC Vehicle Charger
- Glass Screen Protector
- Capacitive Stylus with Tether
- EM120 2.4GHz Radio Module
