The Leica CS20 controller offers a robust design and high performance, providing the ultimate in control and convenience with complete mobility. Touch screen technology allows you to process data while a stunning 3D view transforms your Leica Viva GNSS and Leica Nova scanning experiences.

Leica CS20 Key Features

• Windows EC7 operating system
• 5“ WVGA colour touch screen

How to use Leica CS20?

complete control and can take your entire office on the go. It provides you with an intuitive user experience and makes your measuring tasks enjoyable.

• Red Dot award-winning product design
• Integrated DISTO™ for accurate electronic distance measuring
• Radio and antenna for long-range robotic total station control

Equipped with the industry-revolutionising field software Leica Captivate, capture and manage complex data with just a simple swipe. You can turn the complex data into the most realistic and workable 3D models.

With easy-to-use apps and familiar touch technology, all forms of measured and design data can be viewed in all dimensions. Leica Captivate spans industries and applications with little more than a simple swipe, regardless of whether you work with GNSS, total stations or both.

Applications

Leica Captivate Base (Measure & Stakeout CS)
Leica Captivate Worksite+ for CS20 (Ref Line / DTM Stake / Volume Calculation)

Support & SW/FW Maintenance

Leica Viva CS (CS20) Basic Customer Care Package (CCP)
Direct Telephone & Email Support
Firmware Updates (Performance Improvements, App Enhancements & New Features)

Works With

CS20 package works with Leica TS15 and TS16 Total Stations and Leica GS07 / GS16 / GS18 GPS systems.

Don’t just see data, experience data

Never before has measurement technology provided such an intuitive experience or simple navigation. Incredibly easy software, instruments you trust, help that is only a click away – these combine to form an all-encompassing solution for your most challenging demands.

Leica Captivate is the new software for the renowned Leica Nova and Viva measurement instruments. With familiar apps and touch technology, you can now capture and manage complex data with little more than a simple swipe.

Dominant performance through seamless integration

The next generation of Leica Viva and Nova measuring instruments become the world’s first self-learning total stations and MultiStation with Leica Captivate. Transforming the Leica Viva GNSS experience, this engaging software joins ultimate GNSS receiver innovation with an industry-first 3D user immersion. Leica Captivate modernises the Leica Nova scanning experience, for the first time merging the overlay of measured points, 3D models and point clouds into a single view.

Infinitely bridging the field to the office

While Leica Captivate captures and models data in the field, Leica Infinity processes the information back in the office. A smooth data transfer ensures the project stays on track. Leica Captivate and Leica Infinity work in conjunction to join previous survey data and edit projects faster and more efficiently.

Tough and Robust

High protection IP68
Awarded an Honourable Mention in the Red Dot Awards: Product Design
Expansion pack allows future modules to be used

Large Screen

5“ WVGA colour touch screen

Processor & Operating Systems

TI OMAP4430 1GHz Dual-core ARM® Cortex™-A9 MPCore™
Windows EC7

Integrated Peripherals

Fully-integrated radio and antenna for long range robotic total station control
4G modem, WLAN and Bluetooth®
5MP camera and flash
Compass, tilt and accelerometer

3D Viewer

Zoom, pan, orbit and window
Live stream video overlay (from imaging total stations)
Full data interaction

Easy to use Interface

Great design
Swipe to choose jobs and apps
Customisable home-screen
Transitions and animations

Leica Active Assist

Expert help, always by your side

Imagine being in the field and coming across a problem that prevents you from finishing the job. You call your local support engineer but have trouble explaining your exact problem.

By simply pressing a button in the field software, you can activate Active Assist, and your local support engineer can securely access your device and see exactly what you see. By pressing the buttons for you, your support engineer can guide you back to full productivity within minutes. You can continue with confidence to complete the survey, and know if the problem ever arises again, you can solve it yourself after being guided step-by-step through a solution.

Handheld controllers connecting to the internet

With an integrated WiFi and 4G module (GSM/GPRS/UMTS), your Leica CS20 easily connects directly to the internet to enable Active Assist.

The Leica LTE CS20 ruggedized WinEC7 field controller features an integrated UMTS/LTE Cellular Modem, Long-Range Bluetooth, and Leica Captivate software.

The Leica CS20 controller provides the ultimate in control and convenience with complete mobility. Touch screen technology allows for comfortable and quick data processing while a stunning 3D view transforms your Leica Viva GNSS and Leica Nova scanning experiences.

The new Leica Captivate CS20 controller gives you complete control of your entire office on the go. Through the simplicity of touch, management of complex data is made extraordinarily enjoyable and actionable.

PURPOSE-BUILT

Designed for surveying professionals, this controller is optimised for all measuring and stakeout tasks with Leica Captivate. The intuitive layout and ergonomic form make it comfortable to hold and operate, enhancing productivity and accuracy on the job site.

5″ SCREEN

With a built-in 5-inch high-resolution screen, this field controller offers a clear and detailed display for all surveying data.The screen’s visibility in bright sunlight makes it ideal for use in the field with Leica Captivate apps.

LONG-RANGE BLUETOOTH

The CS20 features an internal, fully integrated long-range Bluetooth module and antenna, making it possible to work over extended distances with your total stations. Work longer from the same total station setup so you can measure more points in less time.

RUGGED

The rugged CS20 is designed for field use and can withstanding bumps, knocks, and harsh weather conditions day after day. The durability and reliability of the CS20 ensures it functions whenever

Leica CS20 Field Controller Specifications

• Operating system – Windows EC7
• Processor – TI OMAP4430 1GHz Dual-core ARM® Cortex™-A9 MPCore™
• Memory (RAM) – 2 GB
• Internal storage (Max) – 4 GB
• Screen size (Diagonal) & orientation (Primary) – 5“ (127mm), Landscape, sunlight-readable
• Screen resolution & type – 800 x 480 WVGA, Colour TFT
• Size (length x width x depth) – 284mm x 150mm x 49mm
• Batteries – 11.1V, 2.8Ah Li-Ion
• Battery life – 8 hours
• Dust / Water resistance – IP68
• Shock resistance – 1.2m (4 ft) / MIL-STD-810F, Method 514.5 – Cat24
• Operation temperature – -30°C to +60°C
• Storage temperature – -40°C to +80°C
• Military standard (MIL.-STD) – 810F
• Keypad type – QWERTY keypad
• Number of keys – 67

Leica CS20 Include

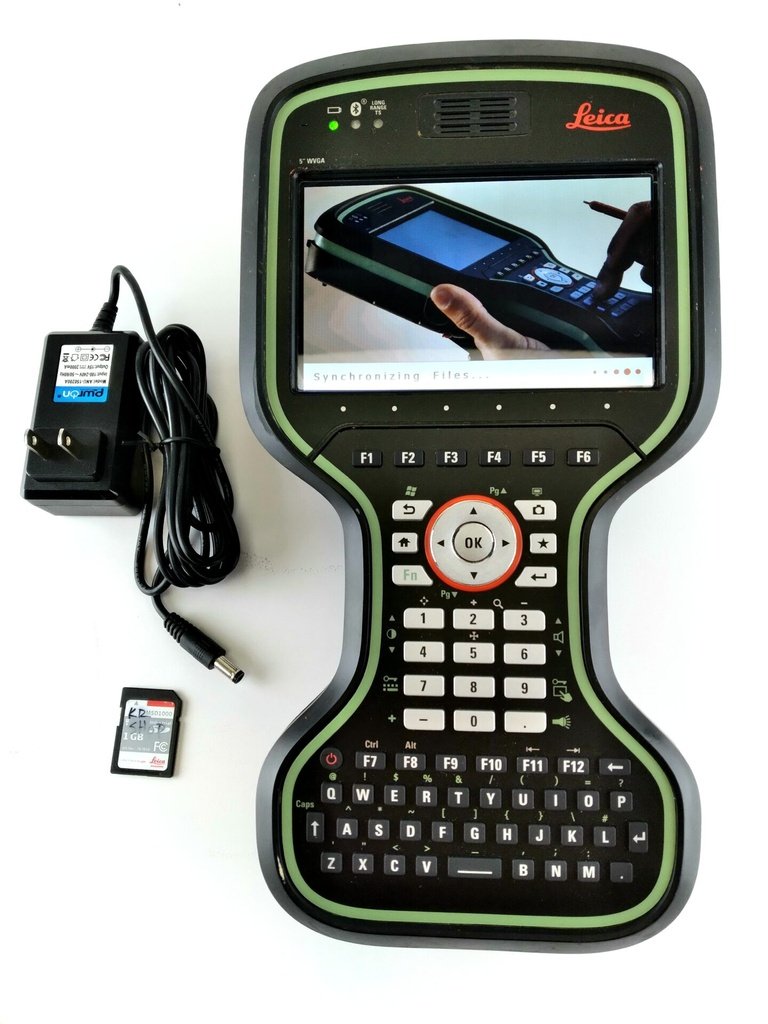

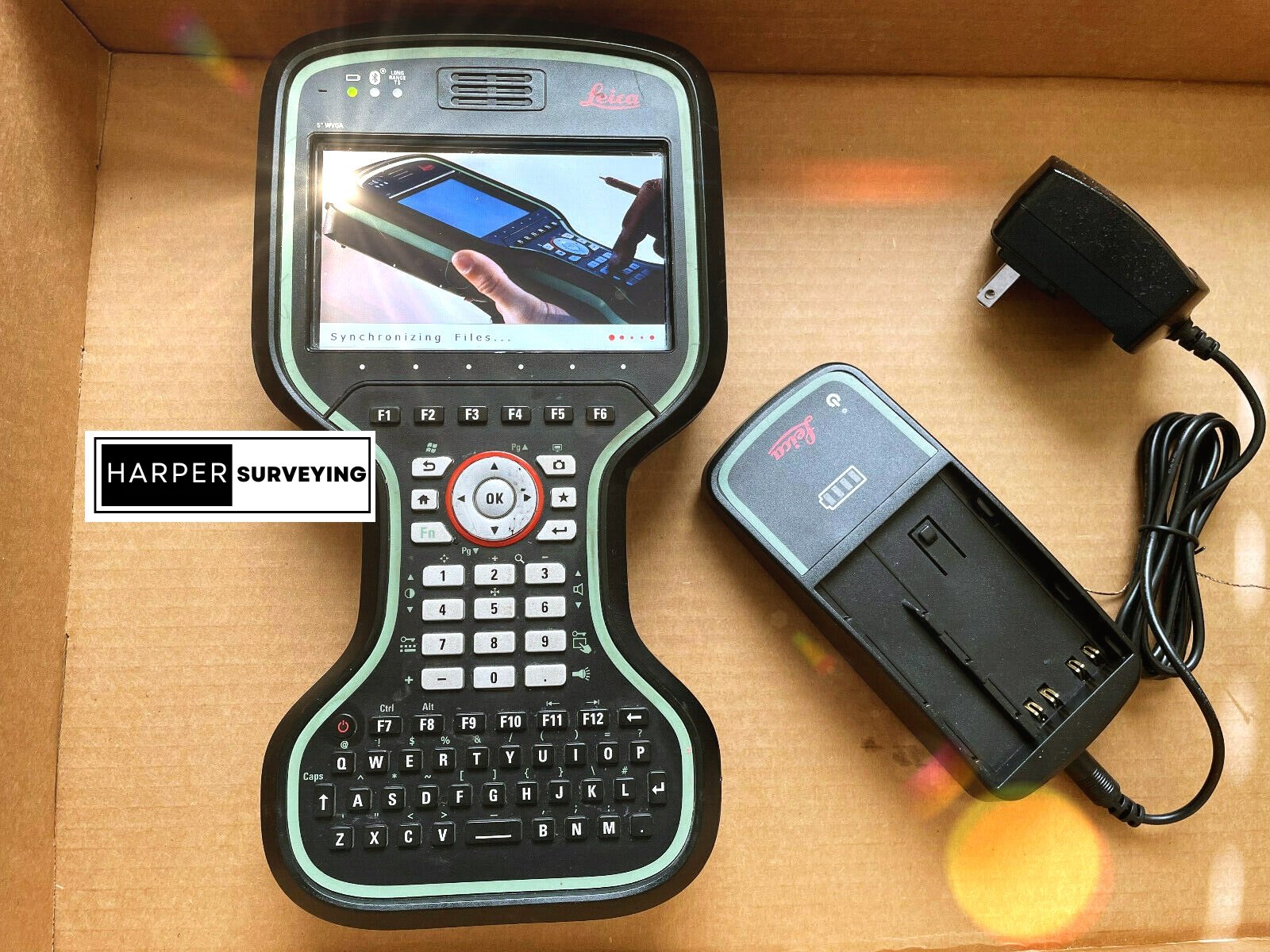

• Leica CS20 Field Controller
• 2 x GEB311
• SD Card
• GHT63
• GHT62
• GKL341 4 Slot Battery Charger
