The Trimble R980 GNSS system unlocks peak accuracy and connectivity with proven Trimble GNSS performance, now more powerful than ever before. Trimble ProPoint GNSS technology ensures robust data capture even in tough environments, while high-performance Trimble Inertial Platform™ (Trimble TIP™) IMU-based tilt compensation keeps you focused on the job at hand.
Augmenting the advanced capabilities of Trimble’s industry-proven R12i, the Trimble R980 is the culmination of GNSS evolution. Engineered to excel in strenuous environments, the R980 system utilizes a comprehensive range of enhanced connectivity features, providing unmatched performance that ensures accuracy.
Integrated with IMU-tilt compensation, worldwide 4G accessibility, and robust data capturing, the R980 is the optimized solution for meeting the most rigorous surveying standards, irrespective of geographical constraints.
Productive
- Trimble® Inertial Platform™ (TIP™)technology. Calibration-free IMU-based tilt compensation for topo measurements and stakeout.
- Trimble ProPoint® GNSS positioning engine. Engineered for improved accuracy and productivity in challenging GNSS conditions.
- Trimble CenterPoint® RTX corrections for RTK level accuracy worldwide via satellite or internet.
Connected
- Integrated 450 MHz or dual-band 450/900 MHz UHF transceiver.
- Integrated worldwide 4G LTE modem.
- Internet base station and remote receiver control capabilities.
- Bluetooth® and Wi-Fi® data connectivity.
Trusted
- Trimble TIP integrity monitoring.
- Trimble xFill® correction outage technology.
- Trimble IonoGuard™ technology for mitigation of ionospheric GNSS signal disruptions.
- Military-spec rugged design and IP‑67 rating.
- Lithium ion battery with built-in status indicator.
Trimble R980 Key Features
- Trimble ProPoint GNSS positioning engine
- Worldwide 4G LTE modem
- Calibration-free IMU-based tilt compensation with Trimble Inertial Platform
- Military-spec rugged design and IP-67 rating
- Trimble IonoGuard for ionospheric GNSS signal disruption mitigation
- 1-2 cm RTK accuracy and corrections via Trimble CenterPoint
- 450 MHz or dual-band 450/900 MHz UHF transceiver
- Trimble EVEREST Plus
- Internet base station and remote receiver control capabilities
- Bluetooth and wi-fi data connectivity
- Trimble xFill correction outage technology
- Lithium-ion battery with built-in status indicator
- Track all current constellations and signals via Trimble Maxwell 7
- Updated configuration
Trimble R980 performance
- Superior GNSS Performance: Delivers accurate results even in challenging GNSS environments.
- Flexible Connectivity: Supports various connectivity options for seamless data transfer.
- Rapid Workflows: Robust IMU-based tilt compensation eliminates the need for precise pole leveling, accelerating field work.
Trimble R980 Specifications
- Real-time kinematic precision: 8 mm H/15 mm V
- TIP positioning performance: RTK +5mm + 0.4mm/° tilt
- CenterPoint® RTX precision: 2 cm H/3 cm V
- Dual-band UHF radio: 450/900 MHz
- Cellular modem: 4G LTE
- Lightweight & compact: 1.13 kg / 11.9 cm x 13.6 cm

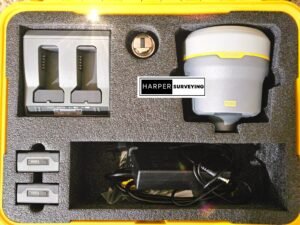

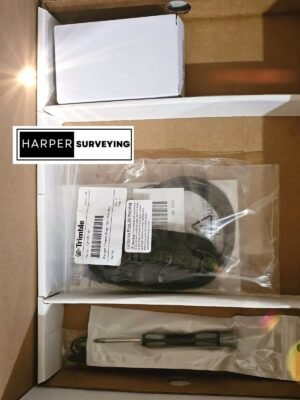

What’s in the Box:
- FRU
- Transport case TSC7/TSC5/T100
- UHF antenna for radio versions
battery (x2) - Office USB data/power cable
- USB data download dongle
- Quick release adapter
- Quick Start Guide, WEE statement, warranty
card, and accessory card
