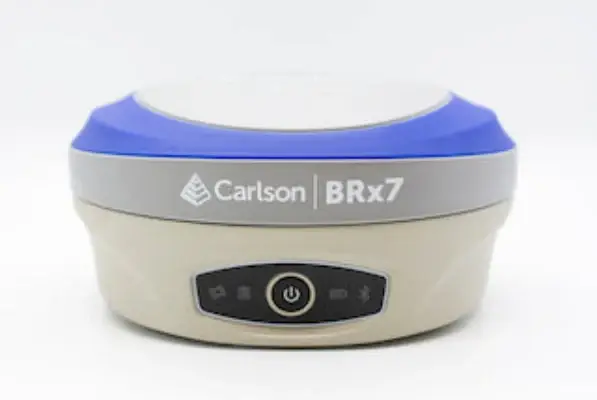

The Carlson BRx7 RTK GNSS Receiver provides reliable operation and high accuracy with the possibility of compensating the angle of inclination of the milestone, the receiver has a compact and durable case. Thanks to many wireless communication ports and an open interface, the receiver can be used in various modes of operation.
The Carlson BRx7 provides state-of-the-art RTK performance when receiving fixes from a static base station or a network of RTK stations. The BRx7 allows you to receive RTK corrections via radio, cellular modem, Wi-Fi, Bluetooth, or a serial connection. The BRx7 provides centimeter-level accuracy with near-instant initialization and the highest reliability in challenging environmental conditions.
The Carlson BRx7 features patented SureFix® technology to provide accurate information on the quality of RTK solutions, improving the accuracy and availability of RTK determinations. The built-in Web User Interface (WebUI) can be used to monitor, manage the status and operation of the receiver, as well as to update the BRx7 firmware and its activations. The BRx7 is immune to magnetic interference and supports technologies such as Athena and Atlas® (subscription required).
The Carlson BRx7 GPS receiver can be used as a precise network rover with your regional VRS, NTRIP, CORS network, or set up as a base and rover with Carlson Listen Listen. The Carlson BRx7 GPS features multiple wireless connectivity options, robust IMU tilt feature, and enables RTK corrections to be received over UHF/Spread Spectrum radio, cell modem, Wi-Fi, or Bluetooth.
The Carlson BRx7 utilizes dual RTK engine performance when receiving RTK corrections from a static base station or RTK network correction system. It delivers sub-centimeter, survey-grade accuracy with instantaneous initialization time and cutting edge results in challenging environments, including dense canopy and urban canyons.
Carlson BRx7 Specification
Receiver Type:
Multi-Frequency GPS, GLONASS, BeiDou,
Galileo, QZSS, IRNSS, and Atlas L-band
Signals Received:
GPS L1CA/L1P/L1C/L2P/L2C/L5
GLONASS G1/G2/G3, P1/P2 BeiDou B1i/B2i/B3i/B10C/B2A/B2B/ACEBOC GALILEO E1BC/E5a/E5b/E6BC/ALTBOC
QZSS L1CA/L2C/L5/L1C/LEX IRNSS L5 Atlas
Channels:
800+
RTK Formats:
RTCM2.1, RTCM2.3, RTCM3.0, RTCM3.1, RTCM3.2 including MSM, CMR, CMR+
Recording lntervals:
Selectable from 1, 2, 4, 5, 10 Hz (20 Hz or 50 Hz optional)
L-Band Receiver Specifications
Receiver Type:
Single Channel
Frequency Range:
1525 to 1560 MHz
Sensitivity:
-130 dBm
Channel Spacing:
5.0 kHz
Satellite Selection:
Manual and Automatic
Reacquisition Time:
15 seconds (typical)
Carlson BRx7 Accessories
- GPS rover pole
- GPS quick release bipod
- GPS quick release tripod
- Carlson Listen Listen RTK correction service (annual subscription service)
- Carlson SkyNET RTN correction network (annual subscription service)
