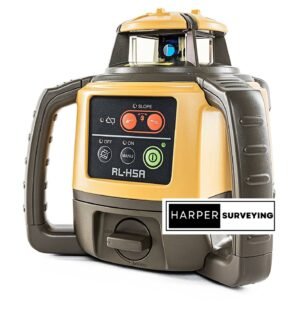

Topcon RL-H5A Self-Leveling Rotary Grade Laser Level

The Topcon RL-H5A  rotating laser level is an accurate, reliable, multi-purpose construction laser produced by Topcon Laser. Designed to power through the most challenging conditions, the RL-H5A is a construction laser level that won’t let you down. Ideal for a broad scope of applications such as grading, drainage, site set-up, excavation, concreting, earthworks and general construction, the Topcon RL-H5A laser is incredibly versatile

RL-H5A is the Next Generation Self-Leveling Construction Laser; With great distance and high-accuracy; Long-range operation (800 m); Smart long-range receiver; Simple, intuitive manual slope capability; ±10 Arc second horizontal accuracy; Laser product 2.4mW and class IIIa. Warning: This product can expose you to chemicals which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm.

Topcon RL-H5A is a perfect choice for general construction, agricultural leveling and manual slope tasks. Topcon  RL-H5A sets the new standards for all general construction leveling work.  With high-speed self-leveling, there’s no leveling screws! No bubble vials! Just turn it on, and in seconds you’re working.  Just as easy as setting up the  RL-H5A has a manual slope function, which allows you to match existing single slopes up to 5 degrees, while the cross-axis self-leveling provides out of level protection for the opposite axis.  Accurate, stable and reliable, the RL-H5A is ideal for longer range measurements across your entire site.

The RL-H5A transmitter sends a continuous self-leveled 360-degree laser reference over your entire work area, allowing you to work longer from each setup with greater accuracy. Its high-power 2.4mW diode means you have a 2,600′ diameter working range making it a great reference for machine mounted receivers. Topcon RL-H5A is able to withstand even the roughest use.

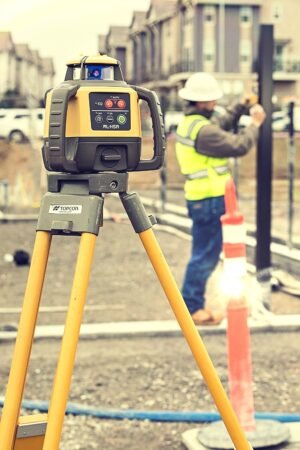

 RL-H5A is ideal for slope applications such as excavating, pipe laying, septic systems, sloped pads and fields, embankments, and drainage. As a flat laser, it can be used for checking grade, elevation settings, foundations, footings, and concrete forms. The waterproof housing of the RL-H5A ensures maximum productivity anytime, anywhere. RL-H5A laser levels are covered by Topcon’s 5 year guarantee against defects in parts and/or workmanship for a period of 5 years. Topcon understands the demands you put on your professional equipment With great distance and high-accuracy, the RL-H5 Series is simple to use for checking elevations.

With electronic self-leveling, you press the power button and go right to work in seconds. If the RL-H5A gets disturbed on the job it relevels itself automatically. The self-leveling motors are accurate to ±10 arc seconds. Need to shoot elevations up to 400 m from your laser? No problem — this instrument instrument has the power and range to cover a 800 m diameter job site.

The RL-H5A gives you up to 60 hours of continuous usage with Ni-MH rechargeable batteries or 100 hours with (4) D cell alkaline batteries. With the IP66 rating, the RL-H5A is “job site tough” and can withstand dust, a sudden shower and even torrential rainfall.

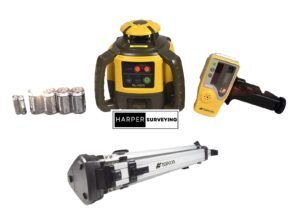

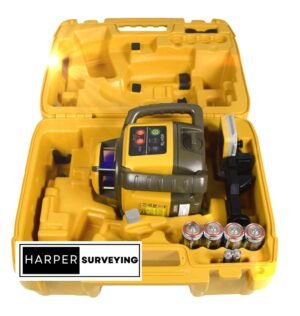

Topcon RL-H5A Kit Components

• RL-H5A laser (rechargeable version)
• LS-80X laser detector
• Sensor holder
• Batteries (Ni-MH Rechargeable)
• Carry case

Topcon RL-H5A Feature

• Long-range operation (800 m)
  • Smart long-range receiver
  • Simple, intuitive manual
  slope capability
  • ±10 Arc second horizontal
  accuracy
  • ±5 Degrees self-leveling range
  • Up to 60 hours battery life
  • 5 years warranty

Technical Details Topcon RL-H5A Specification

Topcon RL-H5A brochure

Topcon RL-H5A Manufacturer Information
