The Rugby 610 features a rotation speed of 600 rotations per minute. Also, it comes with a clear LED indicator for a clear battery and function display. This Leica rotating laser uses the Class 2, 635-nanometer, visible red laser.

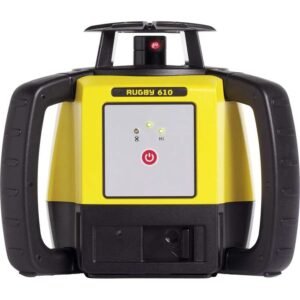

The Leica Rugby 610 Rotary Laser Level is an easy-to-use laser that is self-leveling within ±5 degrees in a horizontal fashion. It features a range up to 2,000 feet with the use of a laser receiver and provides an accuracy of ±3/32 inch at 100 feet. Featuring a one-button operation, it is perfect for site preparation, grade checking, formwork verticality, concrete pouring, formwork leveling, and other similar jobs.
Having an IP67 rating, the Leica Rugby 610 is dustproof and water resistant. Made from a co-molded rubber and high-impact plastic, it can withstand the harshest weather conditions. Also, it includes robust grab handles for easy grip. The Rugby 610 can run up to 40 hours with Li-ion batteries and up to 60 hours with Alkaline batteries. As an additional feature, it comes with a 5/8-11 thread for easy attachment on compatible tripods.
The Leica Rugby 610 Rotary Laser Level is the one of the easiest to use lasers on the market with its easy single button operation. Never again will you have worry about mistakes because mistakes are not possible with this laser. This self-leveling laser is ready to go when you are. Simply put it on your tripod, press the button, and start working!
Extend the range of your work with a Leica Rod Eye Receiver. The Rod Eye Basic gives you working diameter of 500 m (1.650 ft). If you need a larger diameter, the Rod Eye 140 has a working diameter of 600 m (2.000 ft). Guaranteeing that no matter how large or small your job, you will have what you need to work quickly and accurately!
The Rubgy 610 works great for both indoor and outdoor use. The highly visible 635 nm laser makes the beam very easy to see with the naked eye. The outstanding performance of the Rod Eyes guarantee that no matter how bright the sun is, outdoor use is easy and highly accurate.
With its exceedingly resilient housing, never again will you have to worry about your laser being damaged or destroyed by a knocked over tripod. Its completely sealed construction gives you piece of mind keeping out all dust and water. No longer will you have to deal with the inaccuracies cause by dust or water getting on the laser or glass.
With the free included PROTECT by Leica Geosystems care package, you will receive a three year warranty, any and all repairs and replacements that are needed due to a manufacturing defect are completely free of charge!
Get right to work
Whether it is concrete pouring, formwork levelling, transferring or checking of heights, the Leica Rugby 610 rotary laser level offers increased productivity combined with the ultimate ease of use. One button interface makes the operation of laser extremely easy and absolutely fool proof. No training and no preparation is required – get right to work.
Extended working range and battery life
The Rugby 610 rotating laser delivers great performance with the Rod Eye Basic receiver. If needed, the operating range can be extended to 600 m with the Rod Eye 140 and the Rod Eye 160 digital receivers. The Rugby 610 comes in package with the long-lasting and quickly charging Li-Ion battery for even longer operating times.
Your dependable partner on a jobsite
Assuring high reliability and no downtime, the Rugby 610 professional laser is sealed to the water and dust protection standard (IP 67) which stands for complete protection against dust and withstanding of water immersion up to 1 m. The rubber over mould handles offer great protection and easy grip handles. Fit, fast, tough – Rugby 610 represents it all. In addition, PROTECT by Leica Geosystems grants customers with Lifetime Manufacturer’s Warranty and three year No Cost* period for the Rugby 610 laser level.
Rugby 610 Feature
- Up to 2,000 feet range with laser receiver
- Horizontal self-leveling within ±5 degrees
- ±3/32 inch accuracy at 100 feet
- One-button operation
- Rotation speed: 600 RPM (10 RPS)
- LED indicator
- Class 2 635-nm visible red laser
- Robust grab handles
- IP67 dust and water resistant
- Up to 60-hour battery life
- 5/8-11 tripod thread
Overview for the Leica Rugby 610 Rotary Laser Level
The Leica Rugby 610 rotary laser level 6008612 is an easy-to-use, one-button self-leveling laser for all general construction applications. It has an accuracy of 3/32 inch at 100 feet and can be used with your choice of Rod Eye laser detectors for up to a 2,000-foot range.
Automatic Leveling
Self-leveling within ±5 degrees, the Leica Rugby 610 can perform all horizontal leveling tasks indoors or out and is great for concrete and form work.

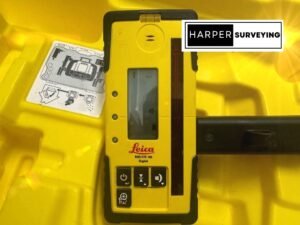

Leica Rod Eye 120 Laser Detector
With the included Leica Rod Eye 120 Laser Detector, you can use your Rugby 610 up to 1,650 feet. This laser receiver has two accuracy settings – fine and coarse for different job requirements. It also has two clear LCD displays on the front and back, five-arrow display channels, as well as two settings for audio indication.
Along with a mounting bracket and bubble vial, this Leica laser level detector also has a protective overmold, IP66 rating for dust and water protection, a 1-year warranty, and 50-hour battery life with a 9V battery.
Optional Leica Rod Eye 140 Laser Detector
With the included Leica Rod Eye 140 Classic Laser Detector, you can use your Rugby 610 up to 2,000 feet. This laser receiver has three accuracy settings – fine, medium, and coarse for different job requirements. It also has two large LCD displays on the front and back and three LED indicators for position reference, anti-strobe protection, 11 display channels, and two settings for audio indication.
Along with a mounting bracket and bubble vial, this Leica laser detector also has a protective overmold, IP66 rating for dust and water protection, a 3-year warranty, and 50-hour battery life with two AA batteries.
Easy to Use and Durable
With an IP67 dust and water-resistant rating, easy-to-grip overmold protection handles, one-touch operation, and clear LED indicators, this fully automatic self-leveling laser is easy to use.
With the included alkaline battery pack, you can use your laser level for up to 60 hours. It can also be charged with Leica’s advanced solar charger (not included).
Rugby 610 Specification
| Dimensions | 212 × 239 × 192 mm | ||
| Weight | 2.38 kg / 5.2 lbs | ||
| Functionality | Self-levelling horizontal, one button laser | ||
| Product type | General construction | ||
| Laser class | Class 2 | ||
| Laser type | 635 nm (visible) | ||
| Measured at 20°C (horizontal / vertical) | ± 2.2 mm at 30 m (3/32″ at 100 ft) | ||
| Rotation – RPS | 10 | ||
| Range (diameter) – Basic | 500 m (1.650 ft) | ||
| Range (diameter) – RE140/160 | 600 m (2.000 ft) | ||
| Li-Ion batt. / hours operation | 40+ | ||
| Alkaline batt. / hours operation | 60+ | ||
| Working temperature range | –10 to +50 °C (14 to +122 °F) | ||
| Storage temperature range | –20 to +70 °C (–4 to +158 °F) | ||
| Seal (both excluding and including battery pack) | IP67 | ||
| Warranty | 3 years no cost (see PROTECT by Leica Geosystems policy for life time coverage | ||

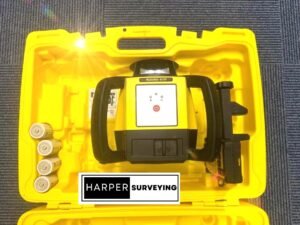

Rugby 610 included
- 1) Leica Rugby 610 Rotary Laser Level
- (1) Detector mounting bracket
- (1) Hard carrying case
- (1) User manual
- Receiver: Rod-Eye 120 or Rod-Eye 140
- Battery: Alkaline or Li-Ion Rechargeable
