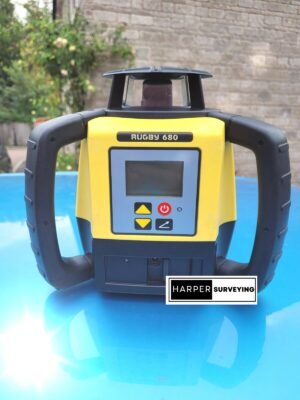

The Leica Rugby 680 is designed as a general semi-automatic construction grade laser. Made simple for indoor and outdoor levelling or grading tasks and built specifically for general contractors. This laser system can perform single and dual grading tasks quickly and reliably.
The Leica Rugby 680 has the most powerful rotary laser beam in the Rugby series. When coupled with the Rod Eye 120 the range is 2,950 ft (900m). When coupled with the Rod Eye 140, the range is well over half a mile at 3,600 ft (1,100m).
Leica Rugby 680 Feature
Semi-automatic dial-in grade lasers
Bring simplicity to construction applications with the Leica Rugby 680 and 670 semi-automatic grade lasers. Designed for contractors who do mostly flat work but occasionally need to create single or dual slopes, Rugby 680 and 670 construction lasers are easy to use and effective in all leveling and grading tasks.
Slopes done easily

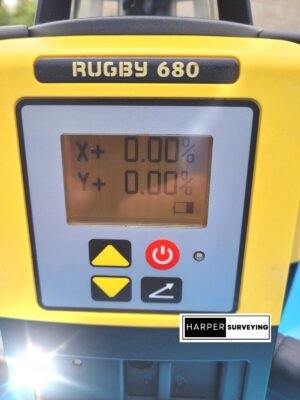

Easily perform leveling and slope applications with the semi-automatic Leica Rugby 680 and 670 dual and single grade lasers. Their simple user interface, four-button menu, and digital display allow quick and convenient dial-in grade for increased productivity and efficiency on site.
Accurate performance throughout the day
Eliminate costly errors and downtime coming from temperature changes on the job site. The Smart Slope function of the Rugby 680 and 670 continuously monitors temperature changes over time. This unique functionality assures accuracy and solid laser performance over the course of the day.
Leica Rugby 680 Applications
- Grading and excavation
- Site preparation
- Road, runway, and landfill construction
- Agricultural land levelling and drainage
- General construction vertical alignment such as anchor bolt and concrete form alignment
- Sports fields, tennis courts, driveways and landscaping
- Concrete pouring and levelling
- Formwork levelling
- Foundation setting
- Footing construction
Leica Rugby 680 Technical Specifications
- Functions: Self-leveling, horizontal dial-in grade in dual axis
- Laser Class: Class 1
- Laser Type: 635 nm (red), 520nm (green)
- Accuracy: ± 1/16” at 100ft (1.5mm at 30m)
- Self-Leveling Range: ± 5°
- Grade Range: ± 8%
- Smart Slope Function: Automatic Temperature Adjustment
- Rotation: 600 rpm
- Max Range: 2,950ft / 900m (Rod Eye 120), 3,600 ft / 1,100m (Rod Eye 140)
- Operation Time (Alkaline Battery): 60 hrs
- Operation Time (Li-ion Battery): 40 hrs
- Working Temperature: -4 to +122° F ( -20 to +50° C)
- Protection: IP67
- Warranty: 5 years, no cost

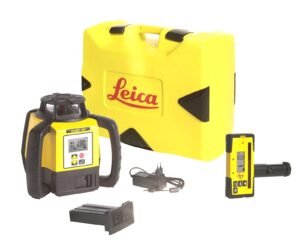

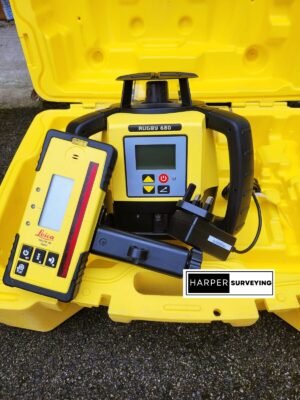

Leica Rugby 680 include
- Leica 680 Rotary Laser
- Laser Receiver (Rod Eye 120 or 140)
- Alkaline Batteries
- User Manual

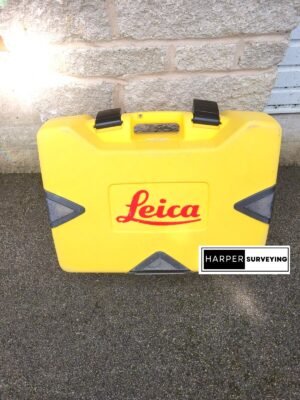

- Hard Carry Case
