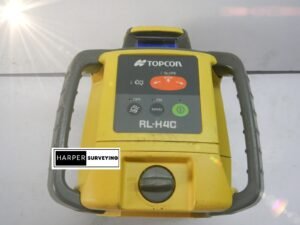

Topcon RL-H4C Self Leveling Construction Laser sets a new industry standard for general construction lasers. It has IP66 protection against dust and water and its large dual handles make carrying and setting up easy. 100 hours with the four D alkaline batteries, or 60 hours with Ni-MH rechargeable battery. The RL-H4C has a number of industry-leading features, including ±10 arc-seconds horizontal accuracy and ±5 degrees self-levelling range
Topcon’s RL-H4C auto-leveling laser combines precision, versatility and value in one job site tough package. Its super-fast self-leveling motors are accurate to +/-10 arch seconds meaning whether you’re checking grade or setting batter boards you’re going to be accurate the first time. Its high-power 2.4mW diode means you have a 2,600ft. (800m) diameter working radius making it a great reference for machine mounted receivers. All of these features plus optional dry, rechargeable battery operation makes the RL-H4C more than twice the laser offered by anyone else.
- Simple, intuitive manual slope match capability with automatic cross axis self-leveling
- Fast, automatic self-leveling
- Ruggedized construction with dual handles and IP66 water-resistant housing
- NEW LS-80L Long-Distance laser sensor
- Up to 100 hours of production from dry or rechargeable batteries
- Automatic height of instrument alert (HI alert)
- Optimally focused beam provides long 2,600ft. (800m) operating radius
- Machine control compatible
- 10 arc second accuracy
- Universal rod clamp for LS series sensor
- New ruggedized carrying case that fits standard package plusextra LS sensor and LS-B10 machine mounted laser sensor.*
- Extra LS sensor and LS-B10 sold separately.
Topcon RL-H4C Key Features
- Long Range Operation (400M)
- Touch IP66 Construction Rating
- New Dual Handle Design
- New SMart Long Range Laser Receiver
- ±10 Arc-Seconds Horizontal Accuracy
- ±5 Degrees Self-Leveling RangeMulti-Purpose Laser
Grading, excavating and general constructino projects are perfect applications for the RL-H4C with the added “Slope Matching” feature you can work on and also check grade on all your flat and slope work. The 635nm visible beam means it can even be used for interior alignment applications from setting pier and decking, to wall and even cabinet alignment.Easy To Use
With electronic self leveling you hit the power button and go right to work in seconds. If your RL-H4C gets disturbed on the job it relevels itself automatically. Its super-fast self-leveling motors are accurate to +/-10 arch seconds.Long Range Operation
Need to shoot elevations up to 1,300 feet from your laser? No problem. This instrument has the power and range to cover a 2,600ft. diameter jobsite.
Topcon RL-H4C Specifications
| Working Range (Diameter) | 800m (2,620ft.) w/LS-80L Sensor |
| Horizontal Accuracy | ±10″ (±1.5mm@30m, ±1/16in.@100ft.) |
| Self-Leveling Range | ±5 |
| Slope | Singel-Axis, Manual Slope Matching |
| Laser Source | Red Laser Diode, 635nm (Visible) |
| Laser Class | CDRH (FDA) Class IIIA/IEC Class 3R |
| Rotation Speed | 600rpm |
| Hi Alert | Warning on both of RL-H4C and laser sensors |
| Low Battery Warning | Warning on both of RL-H4C |
| Dust and Water Protection | IP66 (IEC 60529) |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
| Demension | 177(L) x 196(W) x 217(H)mm 7.0(L) x 7.7(#) x 8.5(H)in.) |

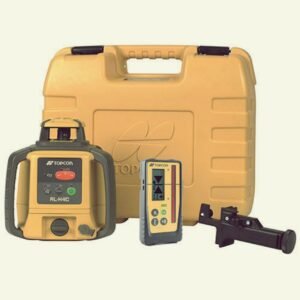

Topcon RL-H4C Included
- Topcon RL-H4C Self Leveling Laser [ID- X3270-L/T*]
- Topcon LS-80L Laser Receiver Sensor [ID- X3271-L/T*]
- Topcon Receiver Rod Clamp Holder-6

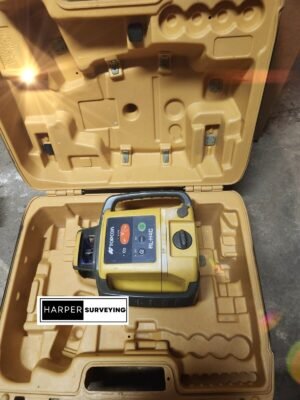

- Hard Carrying Case
- Rod clamp
- DB-74 Battery holder
- AC/DC converter (5)
- Recharchageable Ni-MH battery pack
- AA batteries
- User manual
Topcon RL-H4C accessories
- Heavy duty dual lock Aluminium Tripod flat or dome top
- 3 Meter Staff
- 5 Meter Staff
- 7 Meter Staff
- Rechargeable battery kit
