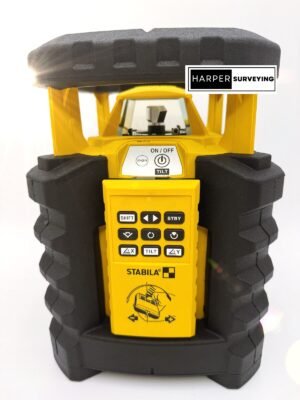

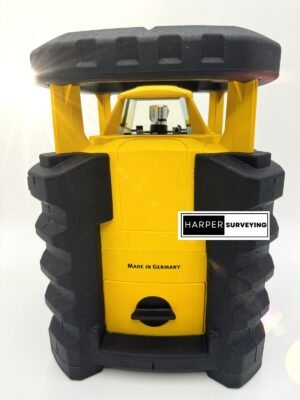

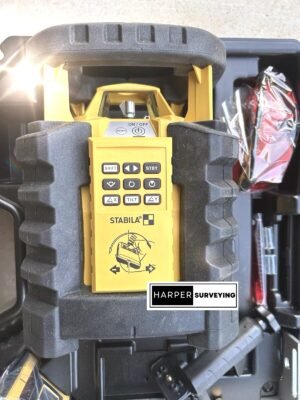

The Stabila LAR 350 Dual-Slope Rotary Laser is a fully-automatic and motor-driven rotating laser that allows horizontal self-leveling within ±5 degrees. Ideal for bricklaying, metal construction, landscaping, and pipeline installation, it offers manual vertical alignment function and inclination setting in two axes up to ±5 degrees. It has a working range of up to 2,624 feet and an accuracy of ±1/8 inch at 50 feet, making it useful for both interior and exterior applications.
This Stabila LAR 350 utilizes the innovative Motion Control to enable the operator to control the laser functions by turning the remote control. It features Scan function for working directly on the visible laser beam and Section mode that limits the laser in a defined area. The LAR 350 is equipped with the LED Assist system to easily monitor the laser even from a distance, ensuring reliable operation and safe use at all times.
The Stabila LAR 350 is powered by two 1.5-volt D-cell alkaline batteries and operates for up to 80 hours. With IP65 protection class, it is water-proof and dust-resistant to withstand the harsh job site conditions. It also comes with the patented Stabila Protector System that protects it against drops of up to six feet. For quick and hassle-free attachment to a tripod, it has standard 5/8-11 threading.
Stabila LAR 350 Dual-Slope Rotary Laser Key feature
- Diameter range of 2,624 ft.
- Accuracy of ±1/8 inch at 50 feet
- Dual-axis inclination up to ±5 degrees
- Self-leveling within ±5 degrees
- Manual vertical alignment function
- Extreme drop protection up to 6 ft.
- Rated IP65 housing
- Battery life up to 80 hours
- Scan function and Section mode
- Innovative Motion Control
- Fully-automatic and motor-driven
- LED Assist system for ease of use
- Powered by 2 D-cell alkaline batteries (1.5 V)
- 5/8-11 thread for tripod connection
You can control the LAR 350 in no time at all with the remote control. The built-in sensor detects your hand movements and transmits them to the rotation laser. Discover a multitude of ground-breaking technologies and functions. Thanks to the integrated protection systems, nothing gets in the way of this laser – not even falls, rain or dust. A strong measurement package for professionals with responsibility. Typically STABILA – because precision is the crucial factor.
Stabila LAR 350 Dual-Slope Rotary Laser Specification
- Tough 2-axis inclination laser for best performance on construction sites
- Fully automatic, motor-driven rotation laser for horizontal and vertical applications as well as manual inclination in two axes
- Innovative MOTION CONTROL – quick, reliable and convenient laser operation by rotating the remote control
- DUAL SLOPE inclination function – inclination setting of up to 5° on two axes
- SCAN function for working directly on the visible laser line
- SECTION MODE – working area which can be limited as required in rotation mode. The laser beam is only emitted in a defined area
- LED ASSIST system – for easy operation and safety in the workplace. Integrated LEDs indicate, for example, which axis is currently tilted or is being tilted
- MANUAL ALIGNMENT function – pivoting an axis in vertical operation
- Patented STABILA PROTECTOR system – perfect protection, even when the laser is dropped from a tripod at a height of up to 1.80 m
- Waterproof and dustproof in accordance with protection class IP 65
- Working area with a diameter of up to 800 m
- Includes: Laser, Batteries, DeTech Receiver w/ Clamp, Motion Control Remote, Fixed Head Tripod, Elevation Rod, Target Plate, Laser Glasses, Manual, Hard Case
Application
- In bricklaying – creating the levelling layer
- In reinforced concrete construction –concreting foundations or constructing batter boards
- In metal construction – aligning and positioning steel beams in industrial building construction
- In gardening and landscaping work – laying out garden areas, paths and paving
- In carpentry and wood construction – attaching façade cladding
- In civil engineering and pipeline construction – installing pipelines
| MPN | 05700TR |
| Laser Class | 2 |
| Output | < 1 mW |
| Laser wavelength | 635 nm |
| Self-levelling range +/- | 5° |
| Levelling accuracy +/- | 0.10 mm/m |
| Diameter of working area for set receiver | m |
| Operating life | 80 h |
| Battery type | D |
| Protection class | IP 65 |
| Tripod connection | 5/8″ |

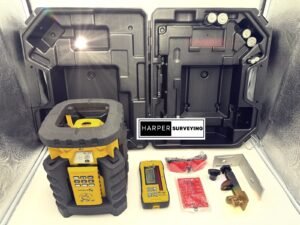

Stabila LAR 350 Dual-Slope Rotary Laser include
- Stabila LAR 350 Dual-Slope Rotary Laser
- REC 300 Digital Receiver
- RC-LAR350 Remote Control

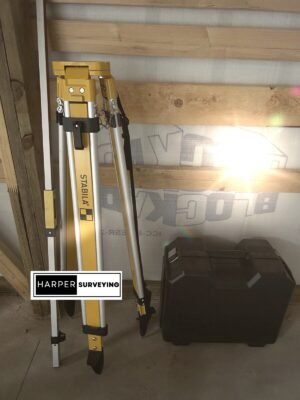

- Tripod
- Elevation Rod
- 90° Angle Mount
- Laser Goggles
- Target Plate
- 2x D Alkaline Batteries (1.5 V)
- 4x AA Alkaline Batteries (1.5 V)

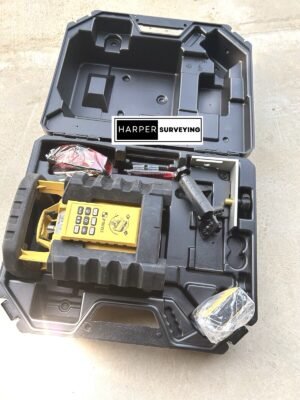

- Hard Carrying Case
- 3-Year Manufacturer’s Warranty
