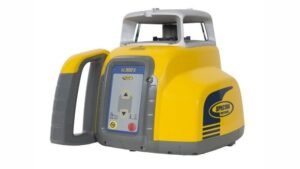

The Spectra Precision LL300S Rotary Laser Levels provides accurate horizontal laser reference up to 2,600 feet away. It features single-axis slope mode and a simple keypad for easy grade matching. Ideal for excavations, estimating cut and fills, and general elevation control, this rotary laser also has a highly rugged design allowing operation even in harsh job sites.
The Spectra Precision LL300S is self-leveling horizontally within ±5 degrees and has an accuracy of ±1/16 inch per 100 feet. For improved precision, the single-axis slope mode allows grade matching whilst the cross axis remains self-leveled.
The Spectra LL300S laser level has an out-of-level alert function that shuts off the unit if it is knocked out of place to prevent inaccurate readings. It also has a 5/8 x 11 thread that allows contractors to mount the laser horizontally or vertically to a tripod. Works up to 330 feet, the optional Spectra RC402N remote control makes slope matching on the LL300S laser a single person operation. This remote controller also features an illuminated LCD screen that shows leveling indicators.
Designed for durability and reliability, the Spectra Precision LL300S has a metal sunshade that offers superior drop and weather protection. The IP66 protection rating allows construction professionals to use the rotary laser in dusty environments or heavy rain. It can also withstand drops of up to three feet onto concrete and tripod tip-overs up to five feet. Using four D-cell alkaline batteries, the LL300S works up to 60 hours or approximately 47 hours with the optional rechargeable NiMH batteries.
The automatic, self-leveling Spectra Precision® LL300S Laser Level is the most rugged laser level available, tough enough to handle a wide variety of general and concrete construction applications. Even in harsh jobsite conditions, the LL300S delivers consistently reliable and accurate performance, enabling you to work faster and smarter.
The rugged LL300S laser can withstand drops of up to three feet (one meter) onto concrete and tripod tipovers up to five feet (1.5 meters). This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.
The LL300S laser’s self-leveling capability and optional RC402N radio remote control result in outstanding accuracy and ease of use. Since the LL300S laser levels itself when turned on, setup is easy with fewer controls to deal with. The arrow buttons at the laser offer easy grade matching with a controlled slope setup using the HI-alert function. The optional RC402N radio remote control makes slope matching to a single person operation.
Spectra Precision LL300S Key Features
- Automatic self-leveling
- Accuracy 1/16 inch @ 100 ft (1.5mm @ 30 m)
- Working range of 2,600 ft (800 m) diameter
- Simple keypad for easy grade matching
- Height of Instrument Alert – unit stops rotating when jarred to avoid erroneous readings
- Long range Radio remote control (optional)

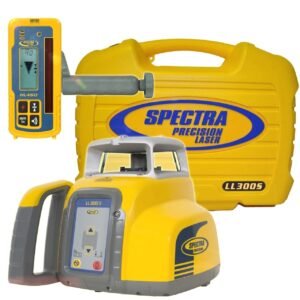

- Complete kit available and fits in one case with tripod and grade rod
- Extremely durable and portable
- 5 Year warranty
Spectra Precision LL300S User Benefits
- Complete leveling crew in a case – carrying case securely holds all components, tripod and grade rod (valid for the complete system kit)
- Easy to transport, easy to carry, easy to store
- Energy-efficient design offers long battery life
- Highly durable construction enables the LL300S to survive a drop up to 3 feet (1 m) onto concrete
- Radio remote control offers access to all laser function from every jobsite place
The Spectra Precision® LL300S Laser Level features a rugged design with a metal sunshade that provides superior drop and weather protection (IP66). Designed for durability and reliability, the IP66 protection rating allows the Spectra Precision® LL300S to be operated in adverse environmental conditions, such as heavy rain. Mud and concrete can be washed off with a hose. The LL300S can withstand drops of up to 3 feet (1 meter) onto concrete and tripod tip-over up to 5 feet (1.5 meters), resulting in reduced downtime and lower repair costs.
The LL300S is easy to use: turn it on, it levels, it spins. With the addition of the arrow buttons on the transmitter, grade matching can be performed whilst the other axis remains self levelled. The new, optional, RC402N long range (330 ft (100 m)) radio remote control makes slope matching a single person operation.
Spectra Precision LL300S Specifications
- BrandSpectra Precision
- Accuracy±1/16 in at 100 ft (±1.5 mm at 30 m)
- Battery LifeRechargeable – 47 hours, Alkaline – 60 hours, Rechargeable – 47 hours, Alkaline – 60 hours
- Battery Type4 x D-cell NiMH or alkaline batteries
- ColourYellow
- CompensatorElectronic self-leveling
- EDM AccuracyLaser Accuracy: ±1/16 in at 100 ft (±1.5 mm at 30 m). Operating Range: 2,600 ft (800 m) diameter.
- Grade Capablemanual
- IP RatingIP66
- Laser ColourRed
- Operating Temperature-20°C to 50°C, -4 °F to 122 °F (-20 °C to 50 °C)
- Prism Max Range2,600 ft (800 m) diameter, 800 m diameter
- Range2,600 ft (800 m) diameter
- Rotation Speed600 RPM
- Warranty 5 Years
What’s In The Box:
- (1) LL300S laser
- (1) HL450 receiver
- (1) Jobsite-tough Carrying Case case
- (8) NiMH Rechargeable
- Aluminum Tripod
- Alkaline or NiMH Rechargeable Battery
