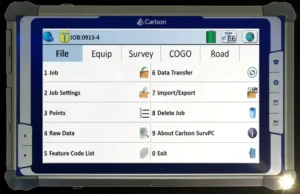

The Carlson RT5 is a tough Windows data collector. It is made for surveying, stake-out, construction layout, and GIS mapping. It comes with Carlson SurvPC, a Windows data collection program. Optionally, the RT5 can run SurvPC with esri OEM for use in the field. With 8GB of RAM, 256 GB of storage, you can collect and analyze your data quicker than ever before.
The Carlson RT5 Rugged Tablet Data Collector is made for land surveying and mapping. It is also used for stakeout, construction layout, GIS mapping, and BIM modeling. This tablet runs on Carlson SurvPC 7 data collection software.
You have various web map overlays available including; Esri® OEM, Web Map Overlays and/or NGS Survey Benchmark importing for use in the field. You can use Field to Finish to import and export dwg, dgn, dxf, dtm, and landxml files. This works directly on the RT5 tablet. It helps make your project workflows easier and saves time in the office and field.
Carlson RT5 Features
PERFORMANCE
• Powerful Windows 10 for office-to-field use
• Plenty of memory – 8 GB RAM & 256 GB flash storage
EXPANDABLE BATTERY
• All-day battery runs 10+ hours for minimal downtime
• Optional 15+ hour battery
• 5-minute hot swap
READY FOR ANYTHING
• Operates in extreme temperatures from 14F to 122F (-10° C to 50° C)
• Long Range Bluetooth®, Dual-band Wi-Fi®, USB 3.0 connectivity
• 4G LTE
FIELD-TESTED RUGGED
• Protection for your data
• Dustproof & water resistant (IP65 rating)
• Designed to MIL-STD-810G for ultra-ruggedness
• 2-year warranty
HIGH-VISIBILITY DISPLAY
• Large, 8-inch display for easy viewing
• 800 nits (cd2/M) brightness provides extraordinary visibility
• Capacitive touch screen with digital pen support
Carlson RT5 Specification
PROCESSOR
• Quad-core Intel® Pentium Silver processor
OPERATING SYSTEM
• Microsoft® Windows 10 IoT Enterprise
• Multiple languages supported (English, French, Spanish, German, Portuguese)
MEMORY AND DATA STORAGE
• 8 GB RAM
• 256 GB flash storage
• User-accessible smart card reader
GRAPHICS
• Intel® HD Graphics
DISPLAY
• Active viewing area: 8” (203 mm)
• Resolution: WXGA (1280 x 800)
• High-visibility backlit LCD for sunlight viewability
• Portrait or landscape orientation with automatic screen rotation
TOUCH SCREEN
• Projected capacitive multi-touch interface for use with gloves, small tip stylus, and in wet conditions
PHYSICAL KEYS
• LED backlight adjustment keys
• Windows/home key
• Power button
• 2 trigger buttons
• 4 programmable buttons
PORTS
• USB 3.0 x 1
• 3.5 mm audio jack
• USB Type-C power input jack
• Built-in speaker
BATTERY
• Removable Li-Ion battery, 5400mAh
• Operates 10+ hours on one charge
• Hot-swappable, easily changeable in field
• Optimized for strong performance in cold temperatures
• Excellent lifecycle performance
• Optional 8000mAh battery for 15+ hours of operation
PHYSICAL
• Size: 6.1 x 9.4 x 1.3 in (155 x 238 x 33 mm)
• Weight: 2.58 lbs (1.17 kg)
• Durable, shock-resistant design
• Easy-to-grip, impact-absorbing, overmolded bumpers
• Lightweight and ergonomic design
WIRELESS CONNECTIVITY
• Long Range Bluetooth® (tested to 1,500’/450 m)
• Wi-Fi· 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz
• 4G LTE (CELL models)
OTHER FEATURES
• TPM (Trusted Platform Module) v2.0
CERTIFICATIONS AND STANDARDS
• IEC 62368-1
• FCC Class B
• CE Marking (applicable EMC, R&TTE, and LVD directives)
• RoHS Compliant
• Industry Canada
• HERO (Hazard of Electromagnetic Radiation to Ordnance) certified
FIELD-TESTED RUGGED
• IP65 for dust and water resistance
• Operating Temperature: 14 F to 122 F (10° C to 50° C)
• Storage temperature: -4 F to 140 F (-20° C to 60° C)
• MIL-STD-810G for shock and vibration protection
WARRANTY
• 3 Years Warranty
• Service Plans Available

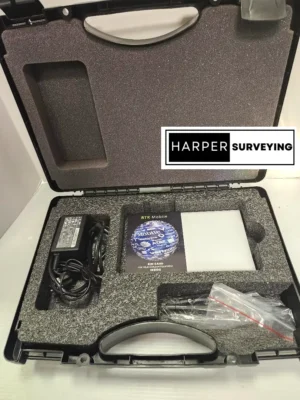

STANDARD ACCESSORIES
• Standard removable battery
• AC wall charger
• Quick Start Guide
• Hand strap
