The Trimble S6 DR 300+ Robotic Total Station 2″ provides the power and flexibility required by today’s Surveying Professionals. With the industry’s most advanced technology and available feature set, the Trimble S6 Total Station will meet the changing needs of your business, allowing your investment to go further.
Powerful And Flexible
The Trimble® S6 Total Station provides the power and flexibility required by today’s Surveying Professionals. With the industry’s most advanced technology and available feature set, the Trimble S6 Total Station will meet the changing needs of your business, allowing your investment to go further.
Trimble Vision Technology
Now available with optional Trimble VISION™ technology, the Trimble S6 gives you the power to see everything the instrument sees without a trip back to the tripod. Direct your survey with live video images on the controller. Now you are free to capture measurements, to prism or reflectorless surfaces, remotely, and with point-and-click efficiency.
The on-board camera integrates surveyed data with the live scene images, so you can verify the work that you’ve done before leaving the job site. Calibrated photo documentation provides customers with deliverables they know they can trust.
Trimble DR Plus Technology
Trimble DR Plus™ range measurement technology provides extended range of Direct Reflex measurement without a prism to exceptionally long range distances. Hard-to-reach or unsafe targets are no obstacle to the Trimble S6. Trimble DR Plus, combined with MagDrive™, creates unmatched capability for quick and safe measurements, without compromising on accuracy.
Magdrive Servo Technology
The Trimble S6 Total Station redefines surveying instrument performance with unsurpassed integration of servos, angle sensors and measurement technology. The instrument’s advanced error compensation provides fast, accurate measurement every time. With smooth, silent MagDrive servo motors, the Trimble S6 offers exceptional speed.
Trimble Surepoint Accuracy Assurance
The Trimble S6 Total Station aims and stays on target through windy weather, vibrations, handling, and sinkage. Trimble SurePoint™ technology enables the Trimble S6 to actively correct for unwanted movement ensuring accurate pointing and measurement every time. Reduce aiming error, avoid costly re-measurement and be confident in your results with Trimble SurePoint.
With its exclusive MultiTrack™ technology and Target ID capabilities, surveyors can choose the type of target, passive or active, that best suits the jobsite conditions and be confident that they will find and lock to the correct target.
Eliminate Search Time With GPS Search
With GPS Search the Trimble S6 locks onto a prism in just seconds. Using a consumer grade GPS card with Bluetooth receiver or your survey grade GNSS in a Trimble I.S. rover configuration, GPS Search uses GPS positioning at the robotic rod to locate or reacquire targets rapidly. With GPS Search, waiting for target search becomes a thing of the past.
Integrated Surveying
Put the equipment in your truck or van to the best possible use by combining your GNSS with your robotic rod into a Trimble I.S. Rover™. In clear sky, enjoy the high productivity of GNSS measurements. In obstructed areas, Trimble Access seamlessly switches to optical measurements. Or collect both GNSS and optical data simultaneously for redundant results. With the Trimble I.S. Rover, you have the freedom to use the best tool for the jobsite conditions, optimizing your productivity.
Trimble S6 DR 300+ Features
- Everything you need to perform efficient surveying jobs
- Reliable servo drives based on MagDrive™ electro-magnetic technology
- Trimble Direct Reflex (DR) technology enables measurement without a prism on almost any type of surface
- Choose Servo and Autolock with integrated control unit, or full Robotic instrument with handheld Trimble TSC3 controller
- Dependability backed by world-class training, service and support
Trimble S6 DR 300+ Specifications
| Performance | |||
| Angle measurement | |||
| Sensor type | Absolute encoder with diametrical reading | ||
| Accuracy (Standard deviation based on DIN 18723) | 3″ (1.0 mgon) | ||
| Angle Display (least count) | 0.1″ (0.01 mgon) | ||
| Automatic level compensator | |||
| Type | Centered dual-axis | ||
| Accuracy | 0.5″ (0.15 mgon) | ||
| Range | ± 5.4′ (±100 mgon) | ||
| Distance measurement | |||
| Accuracy (RMSE) | |||
| Prism mode Standard | 2 mm + 2 ppm (0.0065 ft + 2 ppm) | ||
| Standard deviation according to ISO17123-4 | 1 mm + 2 ppm (0.003 ft + 2 ppm) | ||
| Tracking | 4 mm + 2 ppm (0.013 ft + 2 ppm) | ||
| DR mode | |||
| Standard | 2 mm + 2 ppm (0.0065 ft + 2 ppm) | ||
| Tracking | 4 mm + 2 ppm (0.013 ft + 2 ppm) | ||
| Measuring time | |||
| Prism mode | |||
| Standard | 1.2 sec | ||
| Tracking | 0.4 sec | ||
| DR mode | |||
| Standard | 1–5 sec | ||
| Tracking | 0.4 sec | ||
| Range Prism mode (under standard clear conditions) | |||
| 1 prism | 2500 m (8202 ft) | ||
| 1 prism Long Range mode | 5500 m (18,044 ft) (max. range) | ||
| Shortest range | 0.2 m (0.65 ft) | ||
| DR mode | Good (Good visibility, low ambient light) | Normal (Normal visibility, moderate sunlight, some heat shimmer) | Difficult (Haze, object in direct sunlight, turbulence) |
| white card (90% reflective) | 1,300 m (4,265 ft) | 1,300 m (4,265 ft) | 1,200 m (3,937 ft) |
| Gray card (18% reflective) | 600 m (1,969 ft) | 600 m (1,969 ft) | 550 m (1,804 ft) |
| Shortest range | 1 m (3.28 ft) | ||
| DR Ranges (typically) | |||
| Concrete | 600 m–800 m (1968–2624 ft) | ||
| Wood construction | 400 m–800 m (1312–2624 ft) | ||
| Metal construction | 400 m–500 m (1312–1640 ft) | ||
| Light rock | 400 m–600 m (1312–1968 ft) | ||
| Dark rock | 300 m–400 m (984–1312 ft) | ||
| Reflective foil 20 mm | 1000 m (3280 ft) | ||
| DR Extended Range Mode | |||
| White Card (90% reflective) | 2000 m–2200 m | ||
| Gray Card (18% reflective) | 900 m–1000 m | ||
| Accuracy | 10 mm + 2 ppm (0.033 ft + 2 ppm) | ||
| Camera | |||
| Chip | Color Digital Image Sensor | ||
| Resolution | 2048 x 1536 pixels | ||
| Focal length | 23 mm (0.07 ft) | ||
| Depth of field | 3 m to infinity (9.84 ft to infinity) | ||
| Field of view | 16.5° x 12.3° (18.3 gon x 13.7 gon) | ||
| Digital zoom | 4-step (1x, 2x, 4x, 8x) | ||
| Exposure | Automatic | ||
| Brightness | User-definable | ||
| Contrast | User-definable | ||
| Image storage | Up to 2048 x 1536 pixels | ||
| File format | JPEG | ||
| EDM Specifications | |||
| Light source | Pulsed laserdiode 905 nm, Laser class 1 | ||
| Laser pointer coaxial (standard) | Laser class 2 | ||
| Beam divergence | |||
| Horizontal | 4 cm/100 m (0.13 ft/328 ft) | ||
| Vertical | 8 cm/100 m (0.26 ft/328 ft) | ||
| Atmospheric correction | –130 ppm to 160 ppm continuously | ||
| Leveling | |||
| Circular level in tribrach | 8’/2 mm (8’/0.007 ft) | ||
| Servo system | MagDrive servo technology, integrated servo/angle sensor electromagnetic direct drive | ||
| Rotation speed | 115 degrees/sec (128 gon/sec) | ||
| Rotation time Face 1 to Face 2 | 2.6 sec | ||
| Positioning time 180 degrees (200 gon) | 2.6 sec | ||
| Clamps and slow motions | Servo-driven, endless fine adjustment | ||
| Centering | |||
| Centering system | Trimble 3-pin | ||
| Optical plummet | Built-in optical plummet | ||
| Magnification/shortest focusing distance | 2.3×/0.5 m–infinity (1.6 ft–infinity) | ||
| Telescope | |||
| Magnification | 30× | ||
| Aperture | 40 mm (1.57 in) | ||
| Field of view at 100 m (328 ft) | 2.6 m at 100 m (8.5 ft at 328 ft) | ||
| Shortest focusing distance | 1.5 m (4.92 ft)–infinity | ||
| Illuminated crosshair | Variable (10 steps) | ||
| Tracklight built in | Not available in all models | ||
| Operating temperature | –20 ºC to +50 ºC (–4 ºF to +122 ºF) | ||
| Dust and water proofing | IP55 | ||
| Humidity | 100% condensing | ||
| Power supply | |||
| Internal battery | Rechargeable Li-Ion battery 11.1 V, 5.0 Ah | ||
| Operating time | |||
| One internal battery | Approx. 6.5 hours | ||
| Three internal batteries in multi-battery adapter | Approx. 20 hours | ||
| Robotic holder with one internal battery | 13.5 hours | ||
| Operating time for video robotic | |||
| One battery | 5.5 hours | ||
| Three batteries in multi-battery adapter | 17 hours | ||
| Weight | |||
| Instrument (servo/Autolock) | 5.15 kg (11.35 lb) | ||
| Instrument (Robotic) | 5.25 kg (11.57 lb) | ||
| Trimble CU controller | 0.4 kg (0.88 lb) | ||
| Tribrach | 0.7 kg (1.54 lb) | ||
| Internal battery | 0.35 kg (0.77 lb) | ||
| Trunnion axis height | 196 mm (7.71 in) | ||
| Communication | USB, Serial, Bluetooth® | ||
| Robotic Surveying | |||
| Autolock and Robotic Range | |||
| Passive prisms | 500 m–700 m (1,640–2,297 ft) | ||
| Trimble MultiTrack Target | 800 m (2,625 ft) | ||
| Autolock pointing precision at 200 m (656 ft) (Standard deviation) | |||
| Passive prisms | <2 mm (0.007 ft) | ||
| Trimble MultiTrack Target | 800 m (2,625 ft) | ||
| Autolock pointing precision at 200 m (656 ft) (Standard deviation) | |||
| Passive prisms | <2 mm (0.007 ft) | ||
| Trimble MultiTrack Target | <2 mm (0.007 ft) | ||
| Shortest search distance | 0.2 m (0.65 ft) | ||
| Type of radio internal/external | 2.4 GHz frequency-hopping, spread-sprectrum radios | ||
| Search time (typical) | 2–10 sec | ||

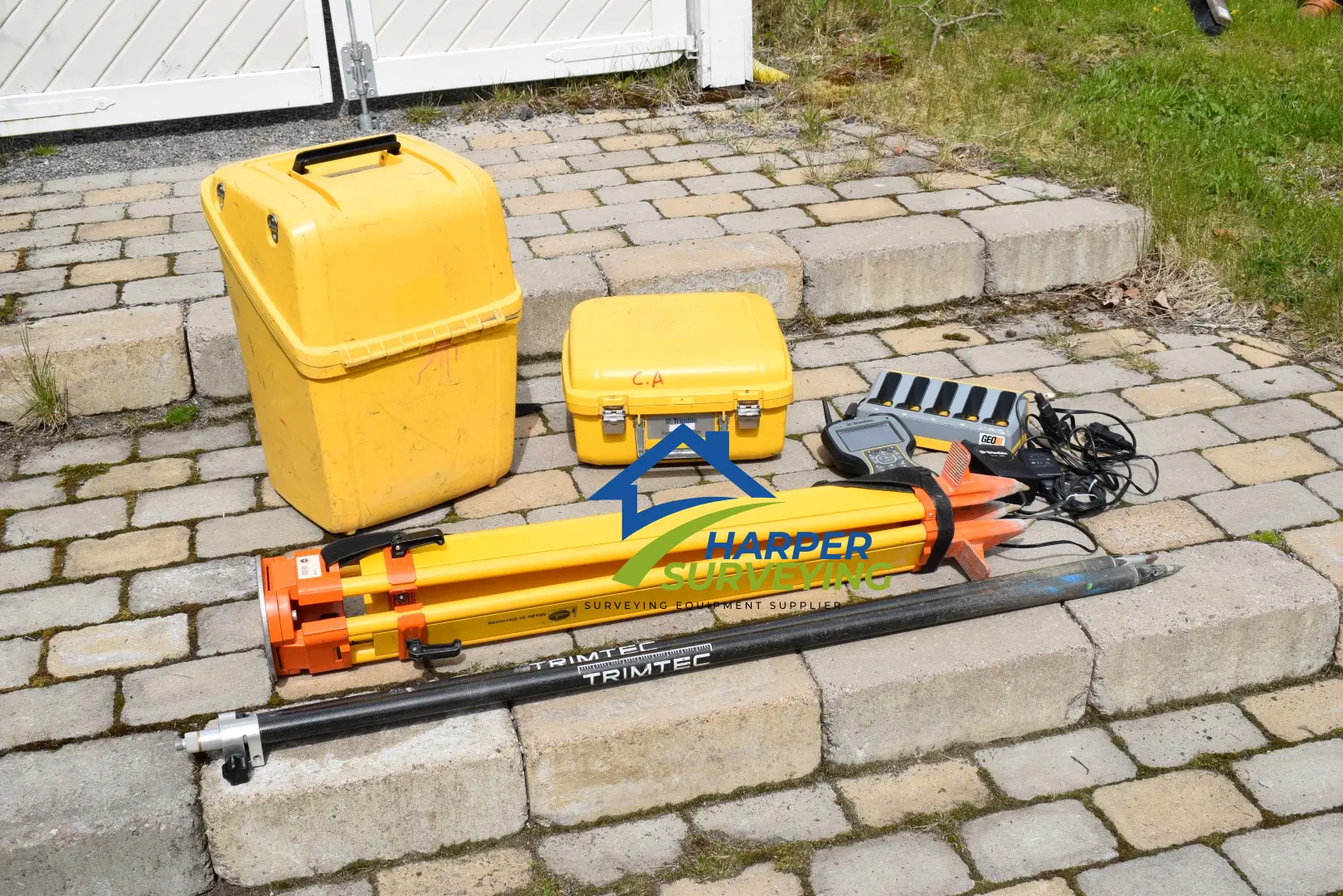

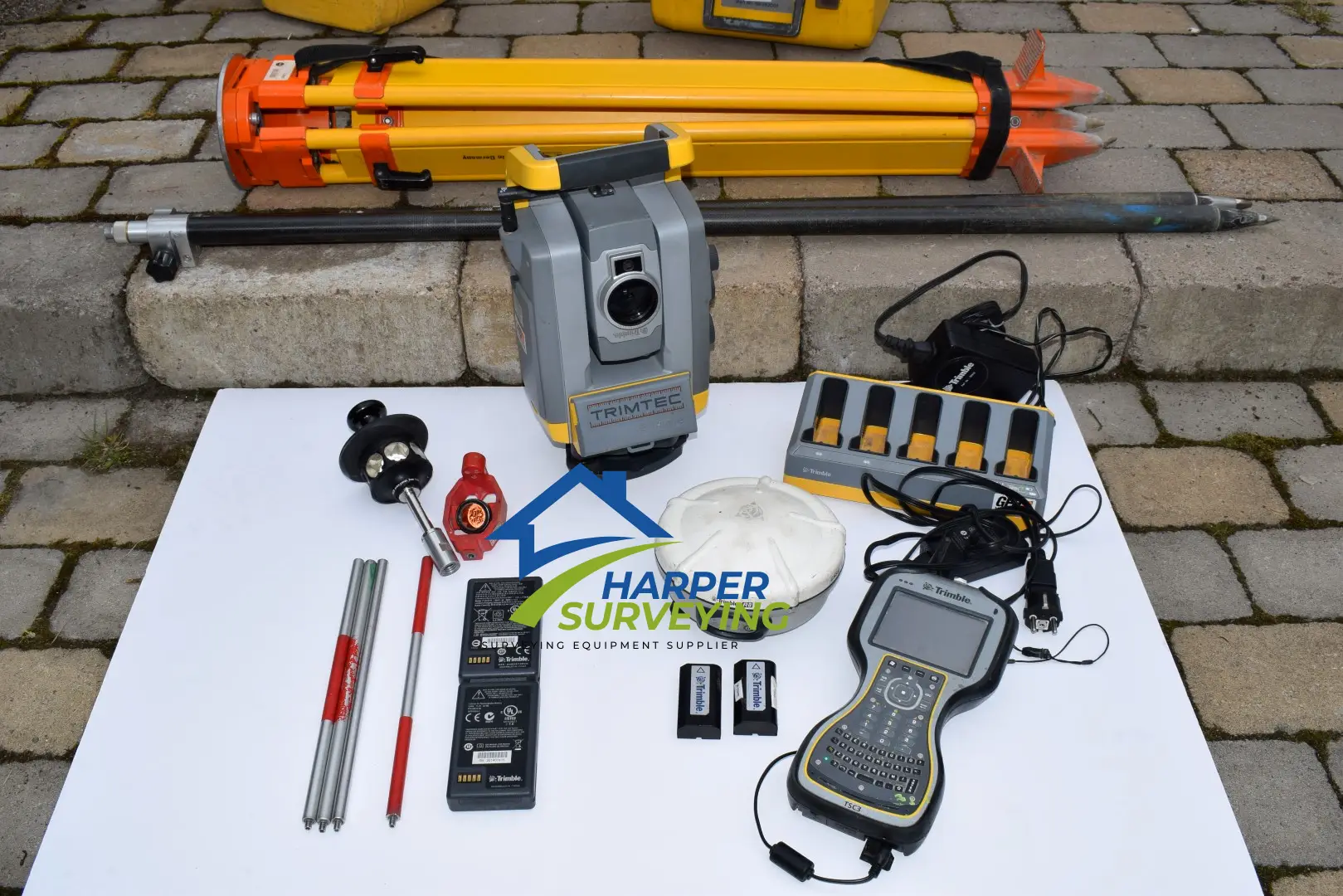

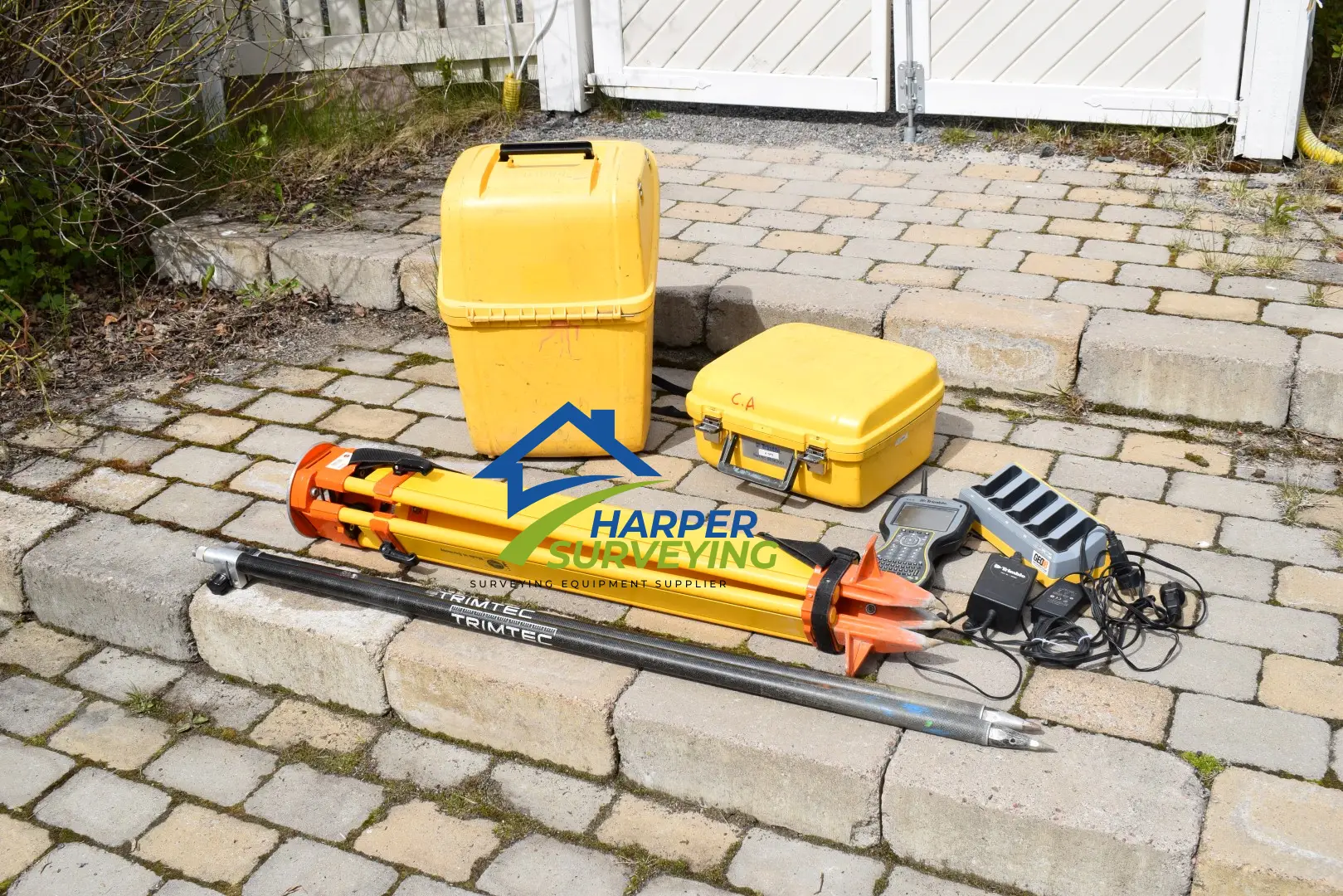

Trimble S6 DR 300+ Include

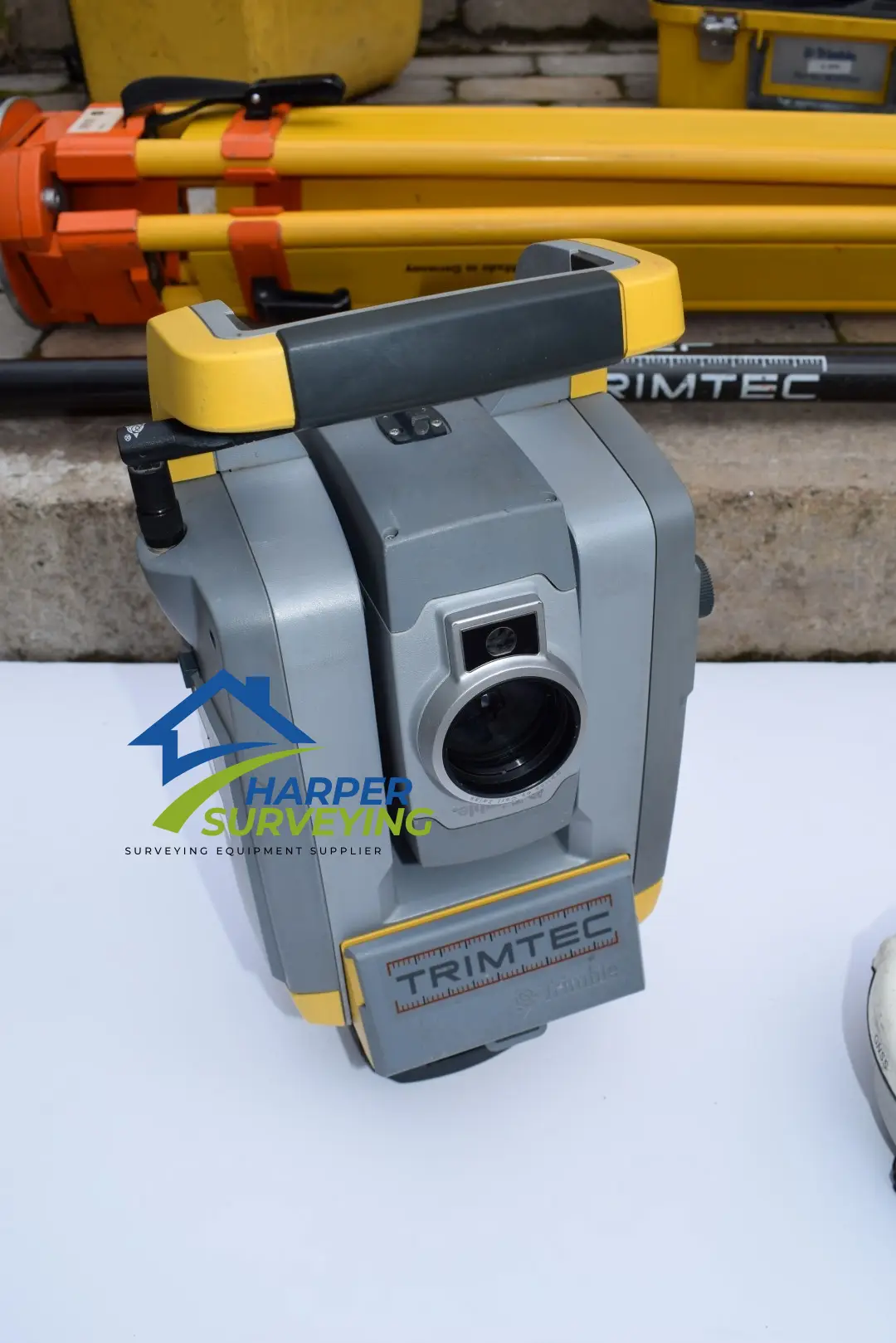

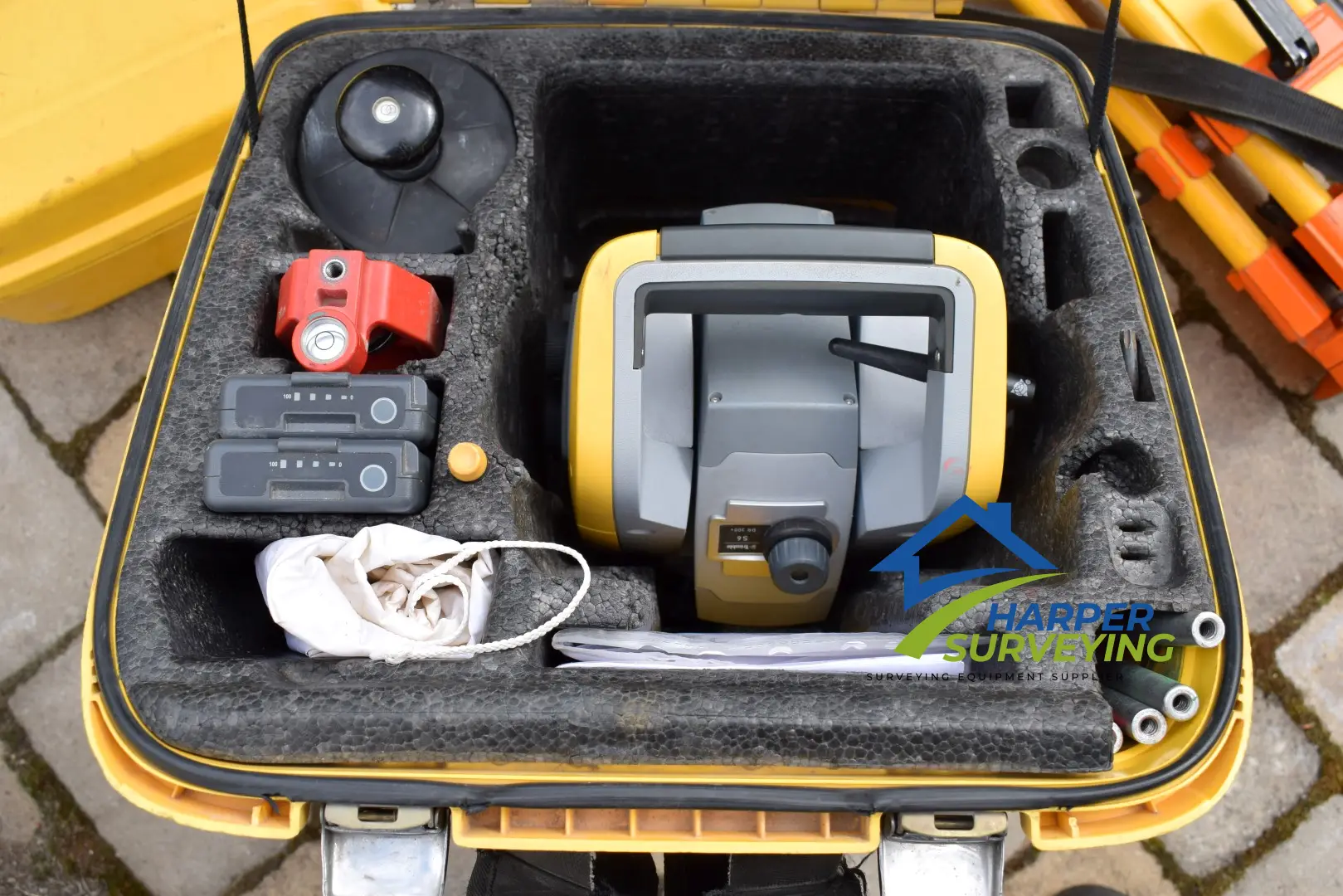

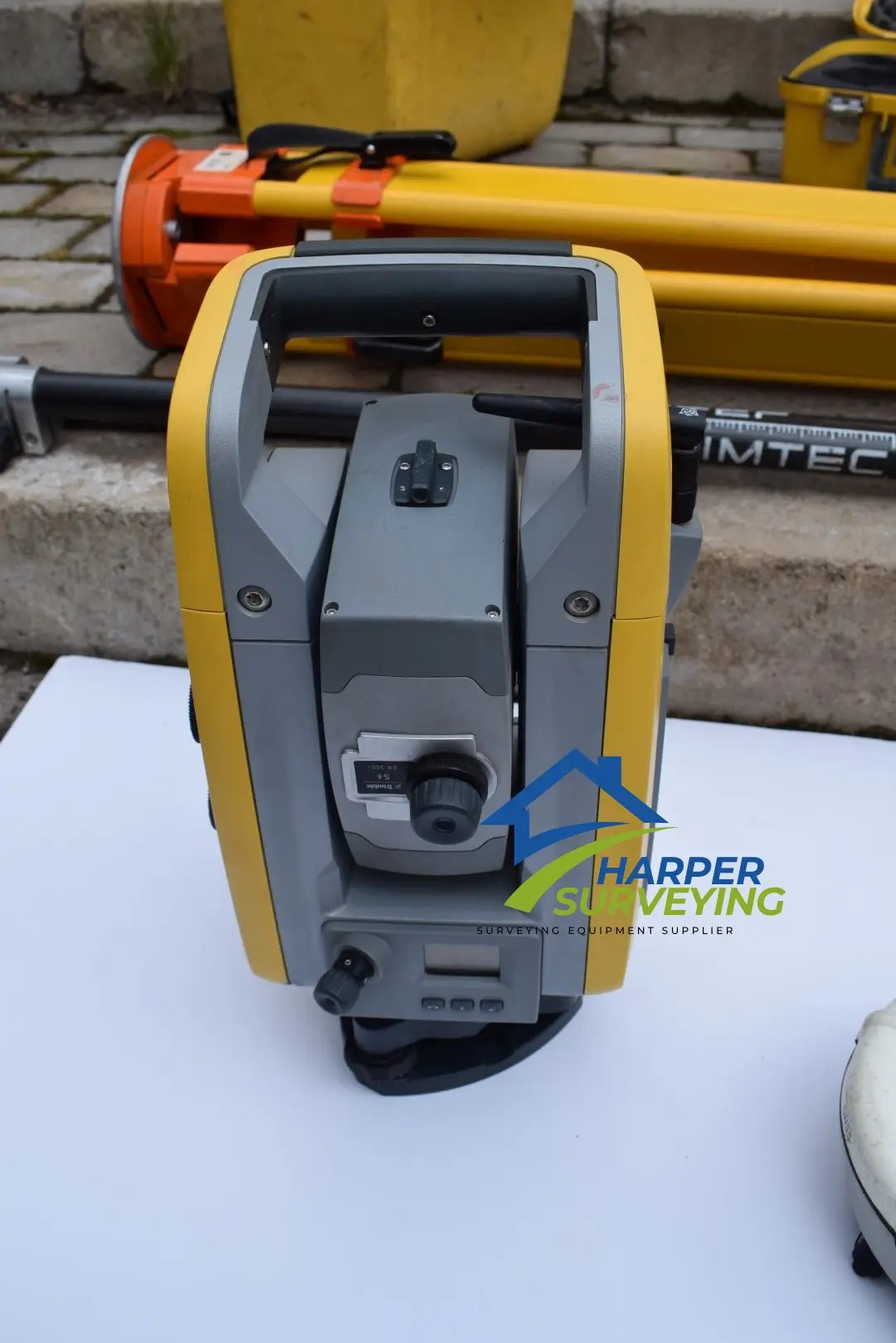

- Trimble S6 Total Station (S/N: 92712944)

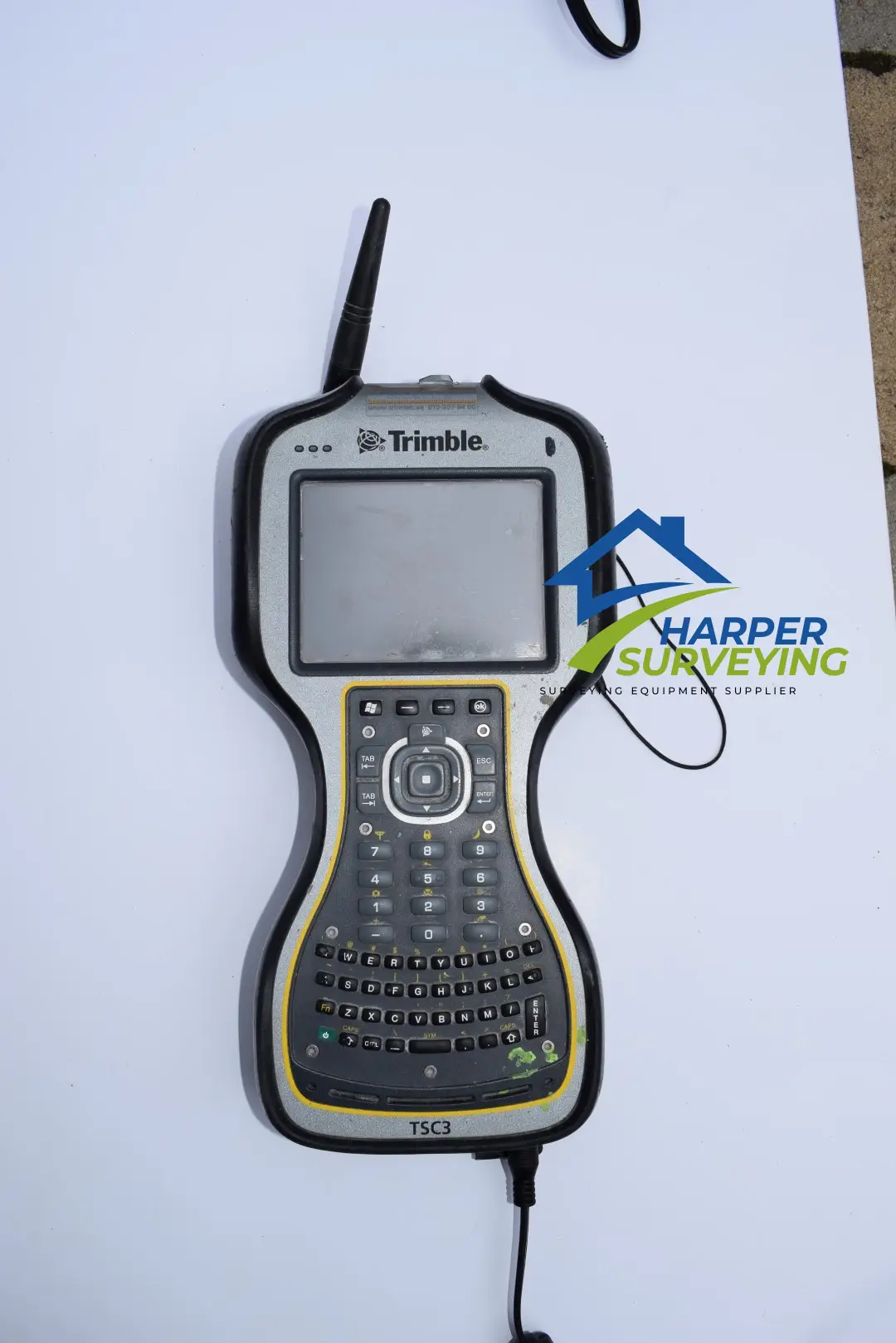

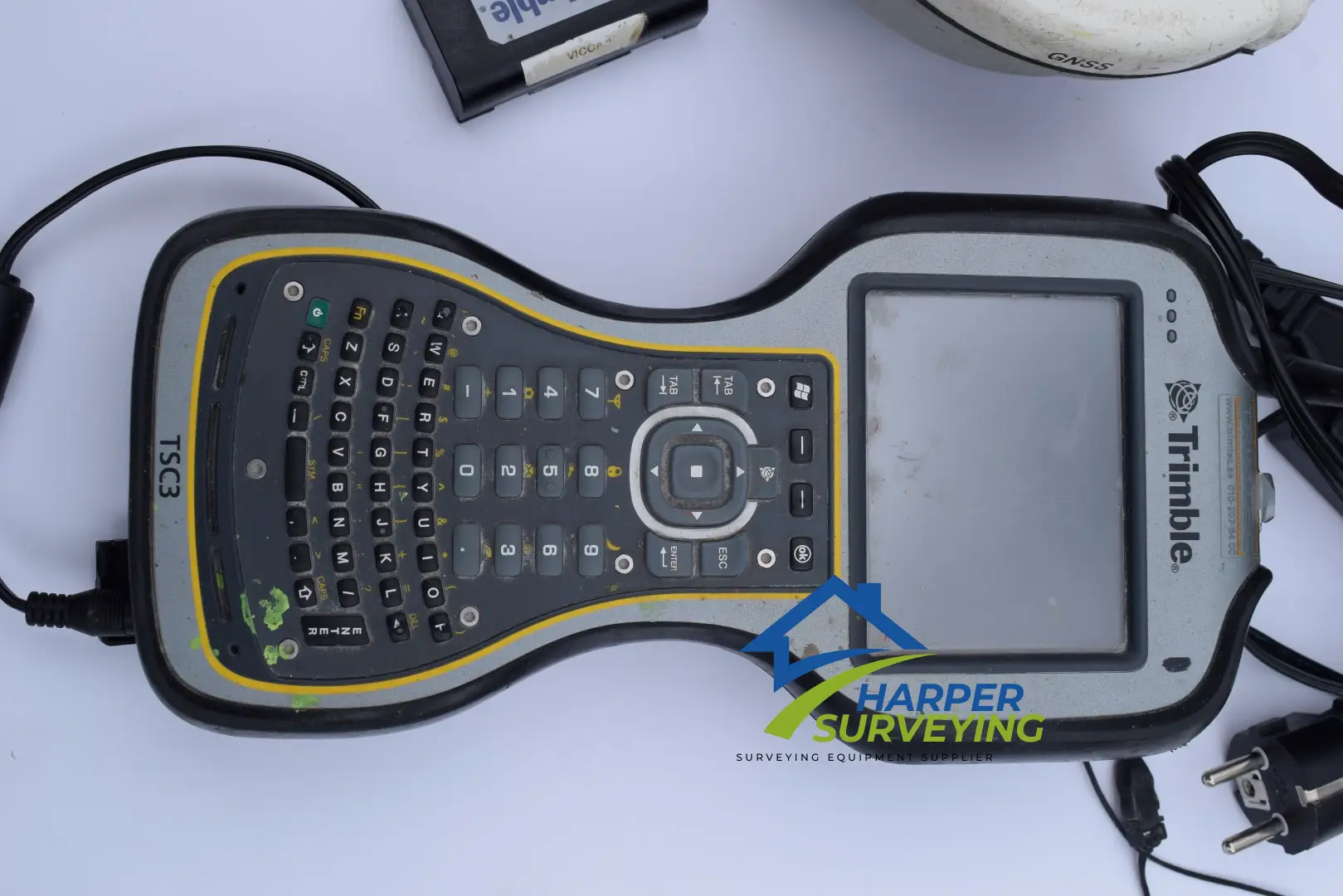

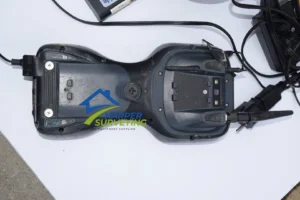

- Trimble TCU Controller

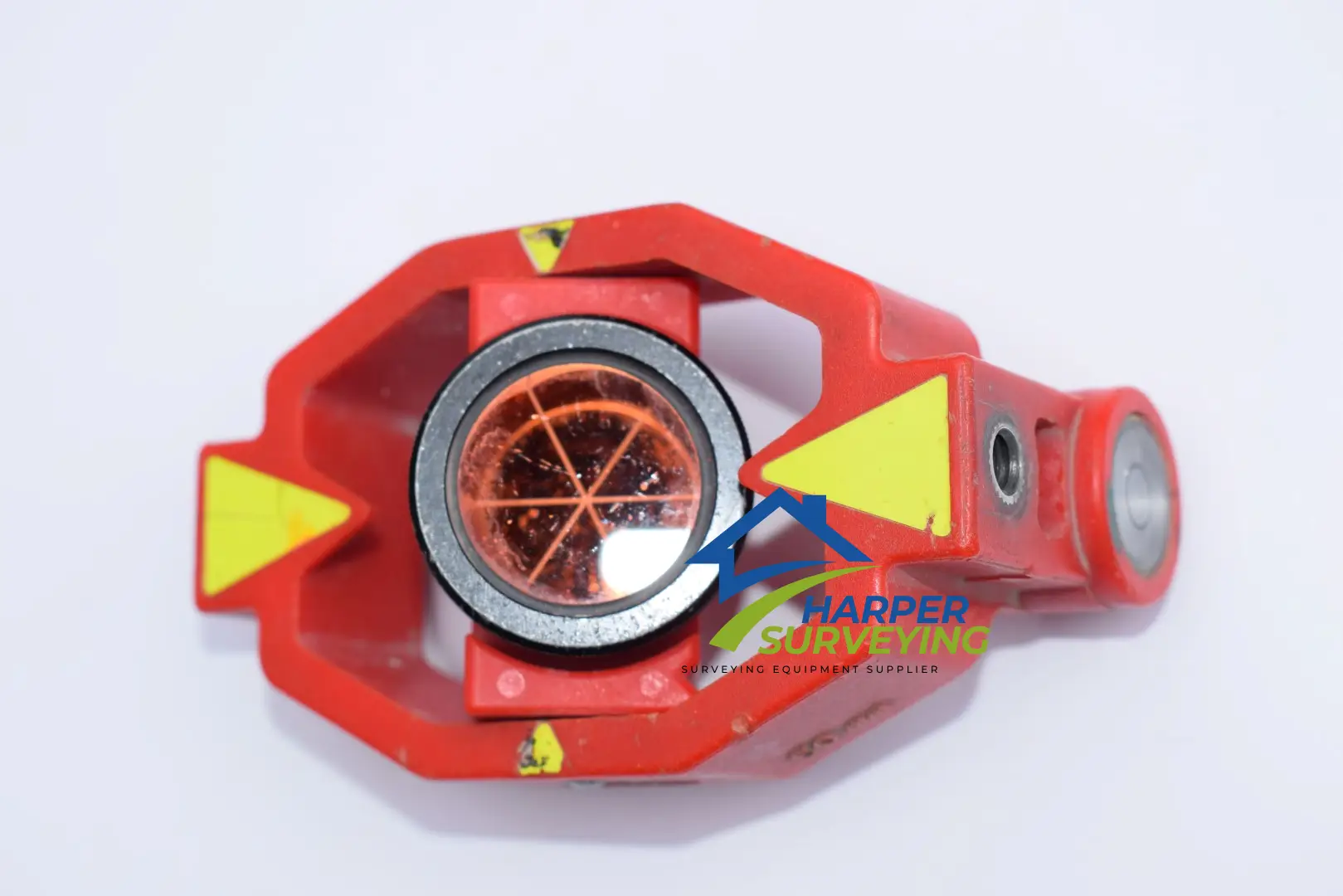

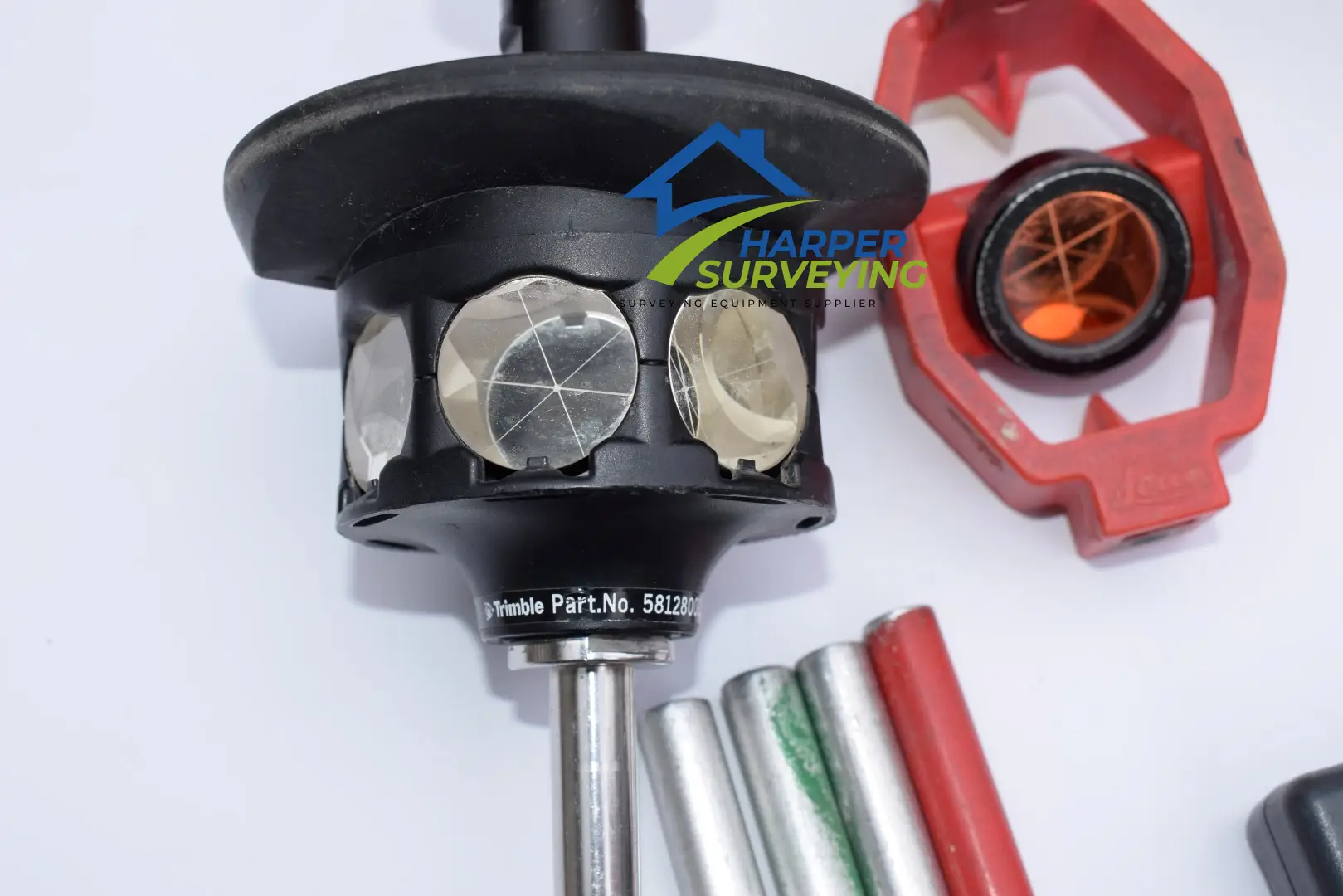

- Trimble 360 degree prism
- Trimble IR receiver for prism.
- Docking station for CU controller

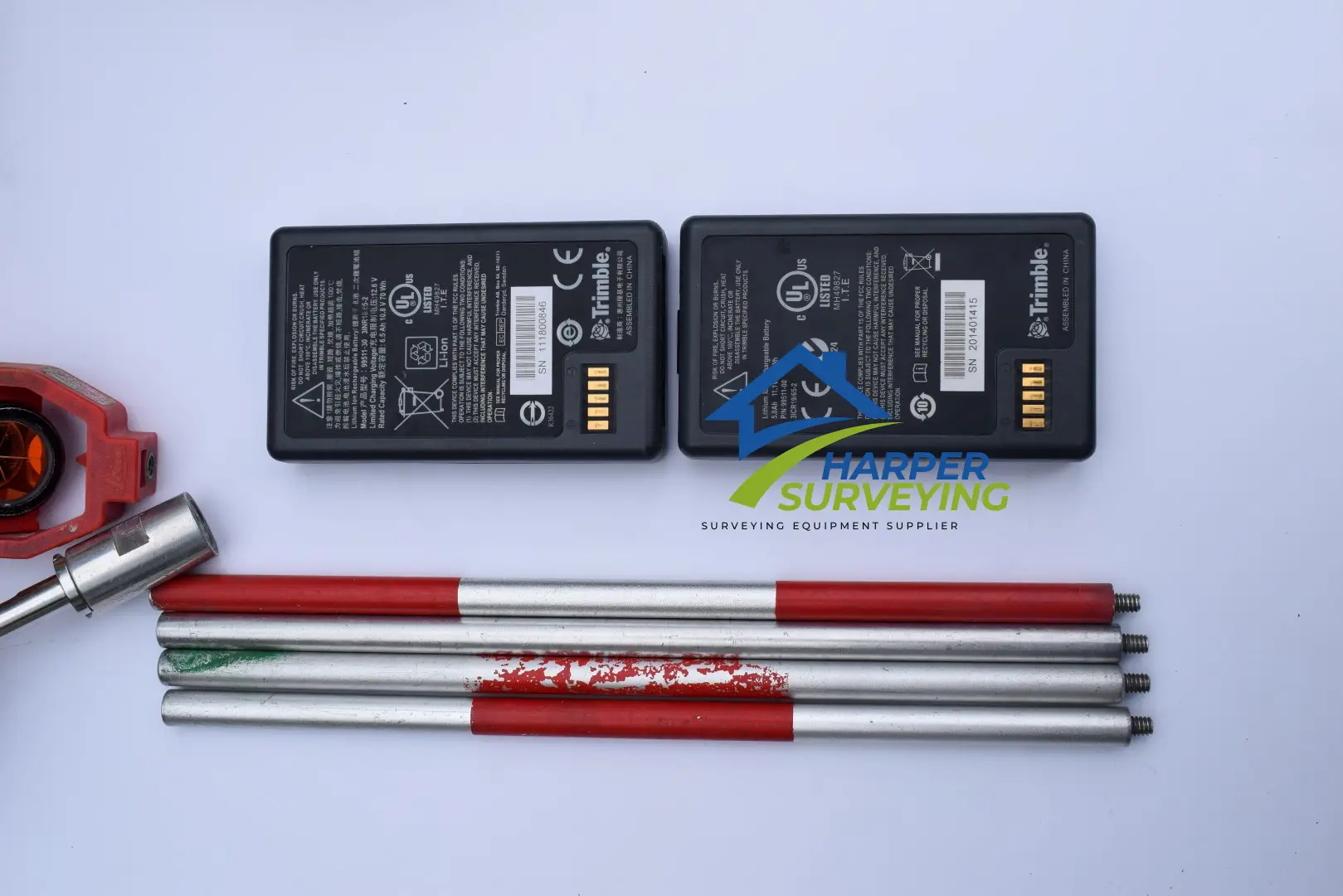

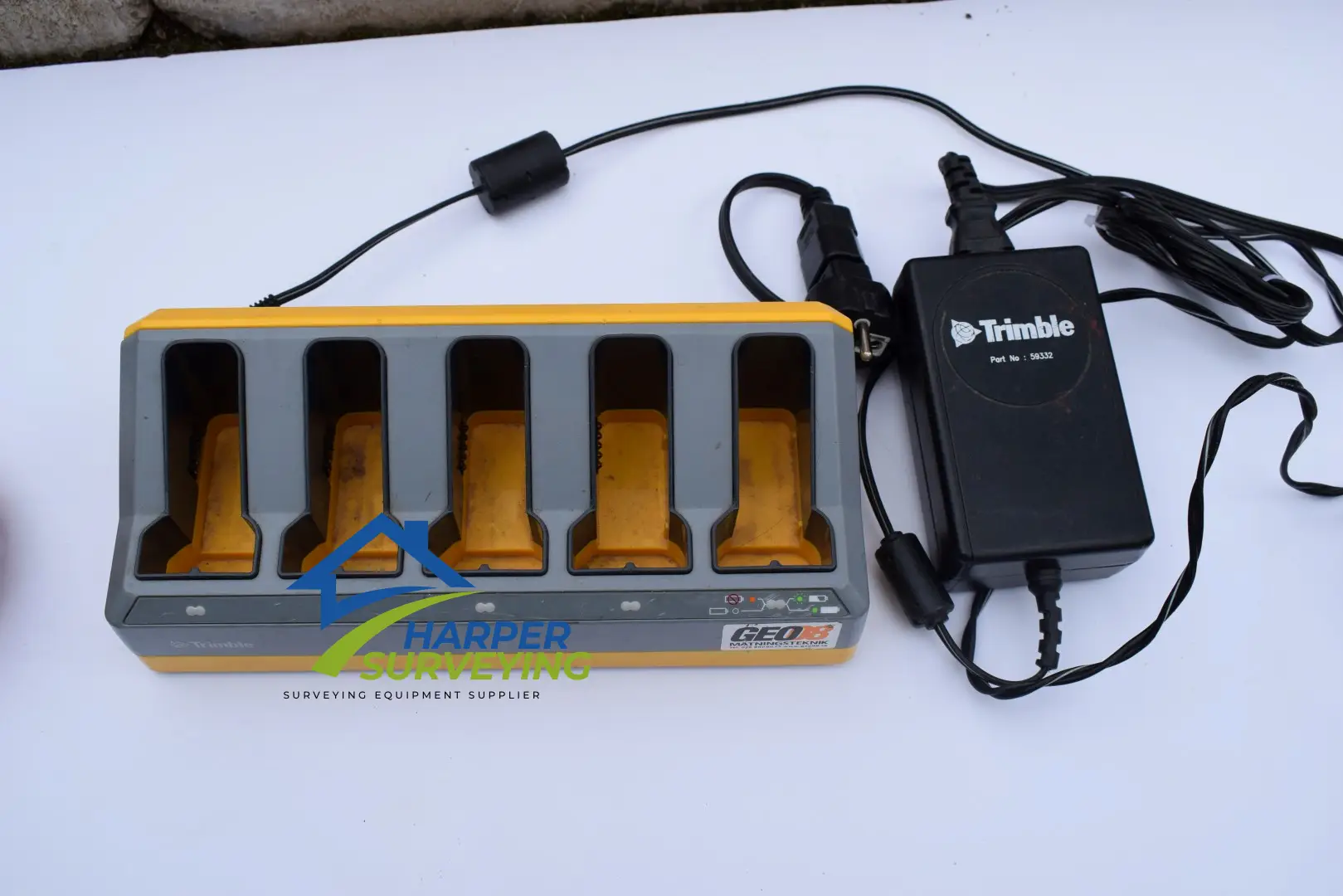

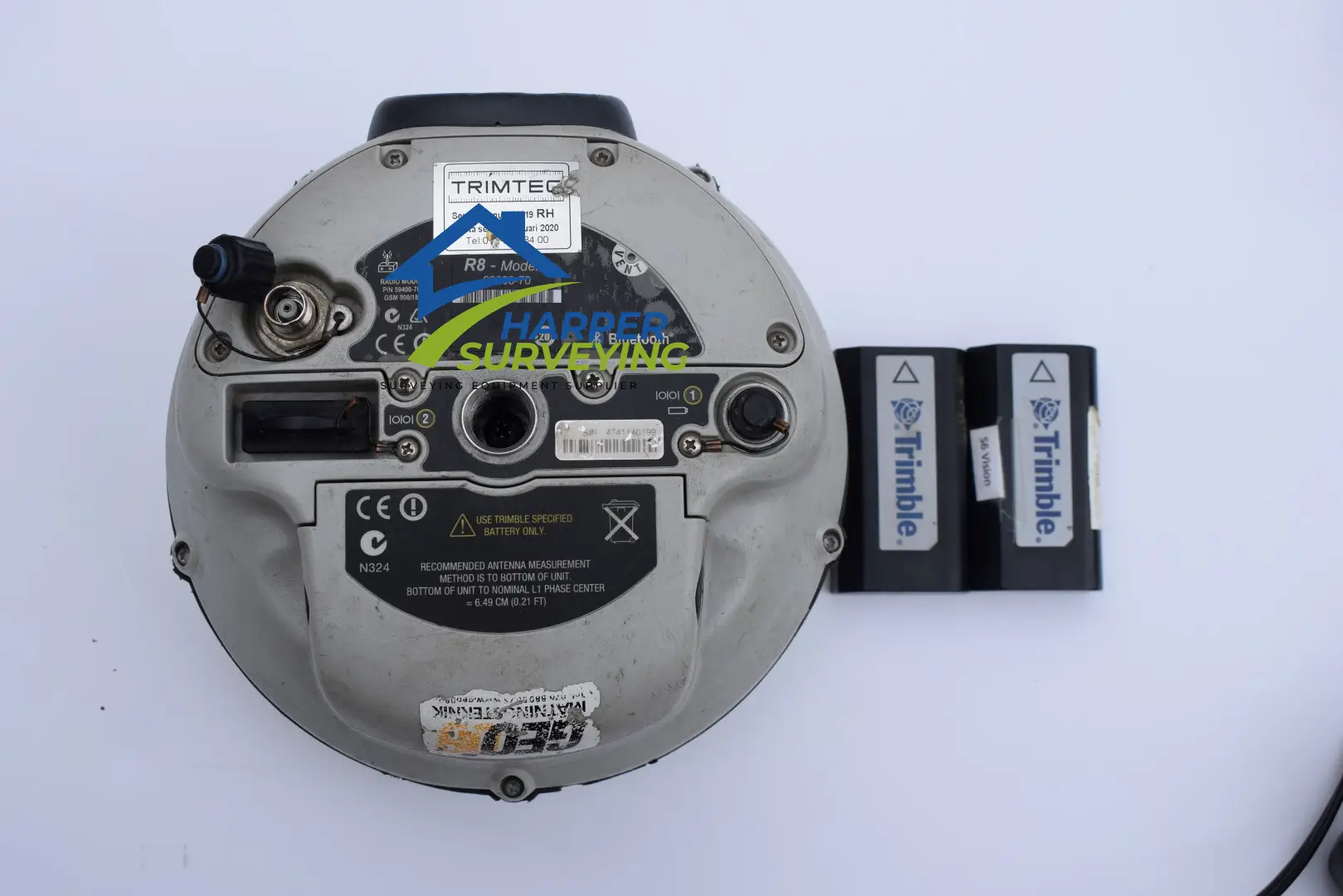

- 2 x batteries for S6 total station.

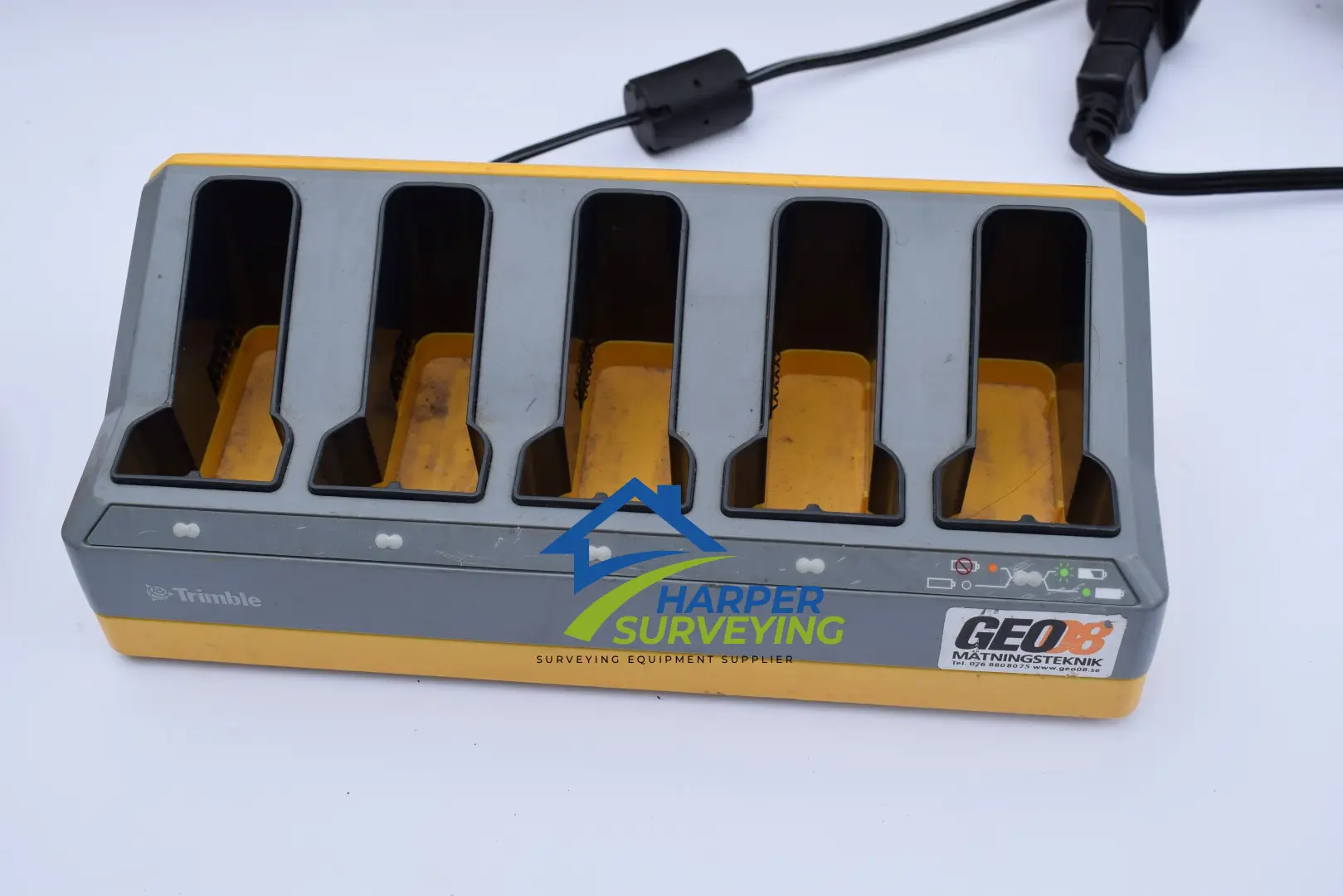

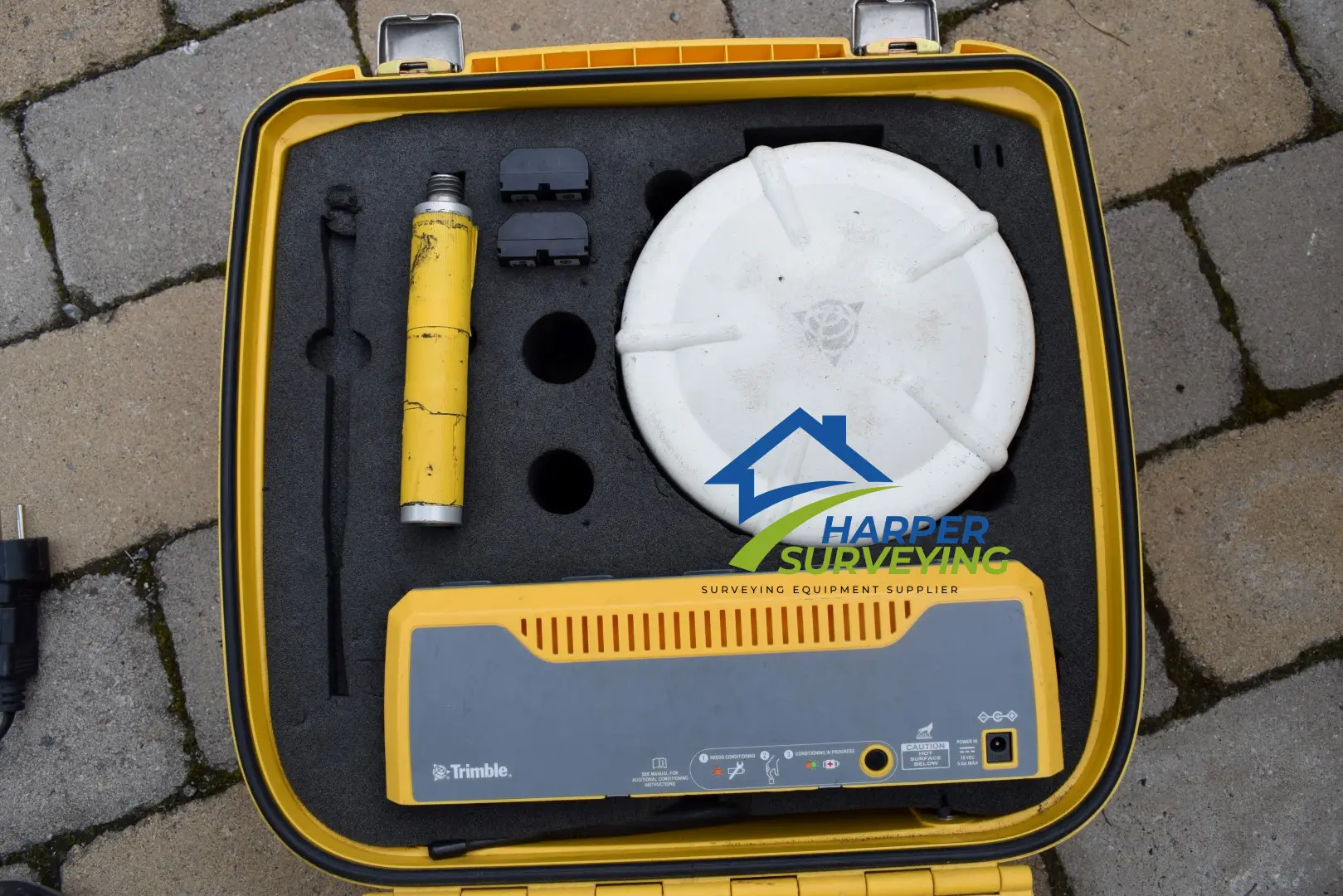

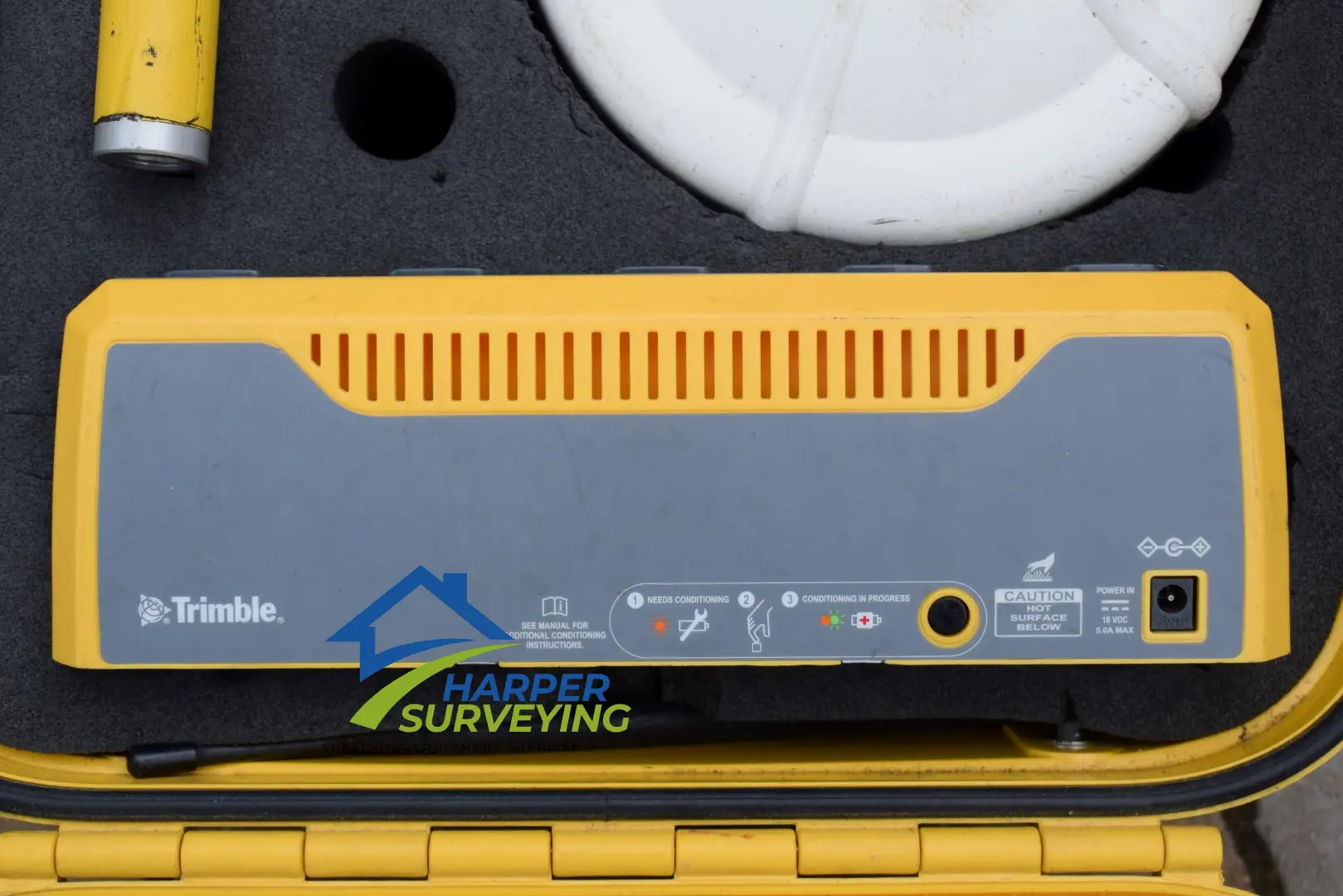

- Battery charger
- Data cables.
- Pole mount.
