The Trimble MS975 GPS/GNSS Smart Antenna Base Station delivers high-precision positioning and enhanced RTK performance for construction, excavation and grading applications.
The Trimble MS975 produces the very best tracking to provide centimetre level accuracy on aerial, land and marine applications. Designed for fast-satellite re-initialization, it ensures reliable operation even near obstructions.
Supporting GPS, L2C, GLONASS, Galileo, BeiDou, and SBAS systems (WAAS, EGNOS, MSAS, QZSS), it provides superior satellite tracking with 200 channels across 44 satellites. Its rugged, full sealed chassis, single-cable connector, and quick-release mounting bracket ensure durability and easy installation in demanding environments. With real-time operational LED indicators and TCP/IP capability, the MS975 is an industry-leading GPS receiver for precision machine control, optimising productivity on every job site.
Trimble MS975 Features
- An advanced RTK engine for faster initialization times when satellite lock is lost and enhanced performance near obstructions
- Support for the GPS modernized L2C and the planned L5 signals
- Support for GLONASS, Galileo, BeiDou
- Support for SBAS systems (including: WAAS, EGNOS, MSAS, QZSS)
- Single, rugged chassis or cab mountable unit – GPS antenna, receiver and isolation system
- 3 LED indicators that provide instant operational feedback
- Single cable connector (high cycle count connector)
- 100% sealed housing
- Meets EU Restriction on Hazardous Substance (RoHS) directives
- TCP/IP capable using a serial PPP connection

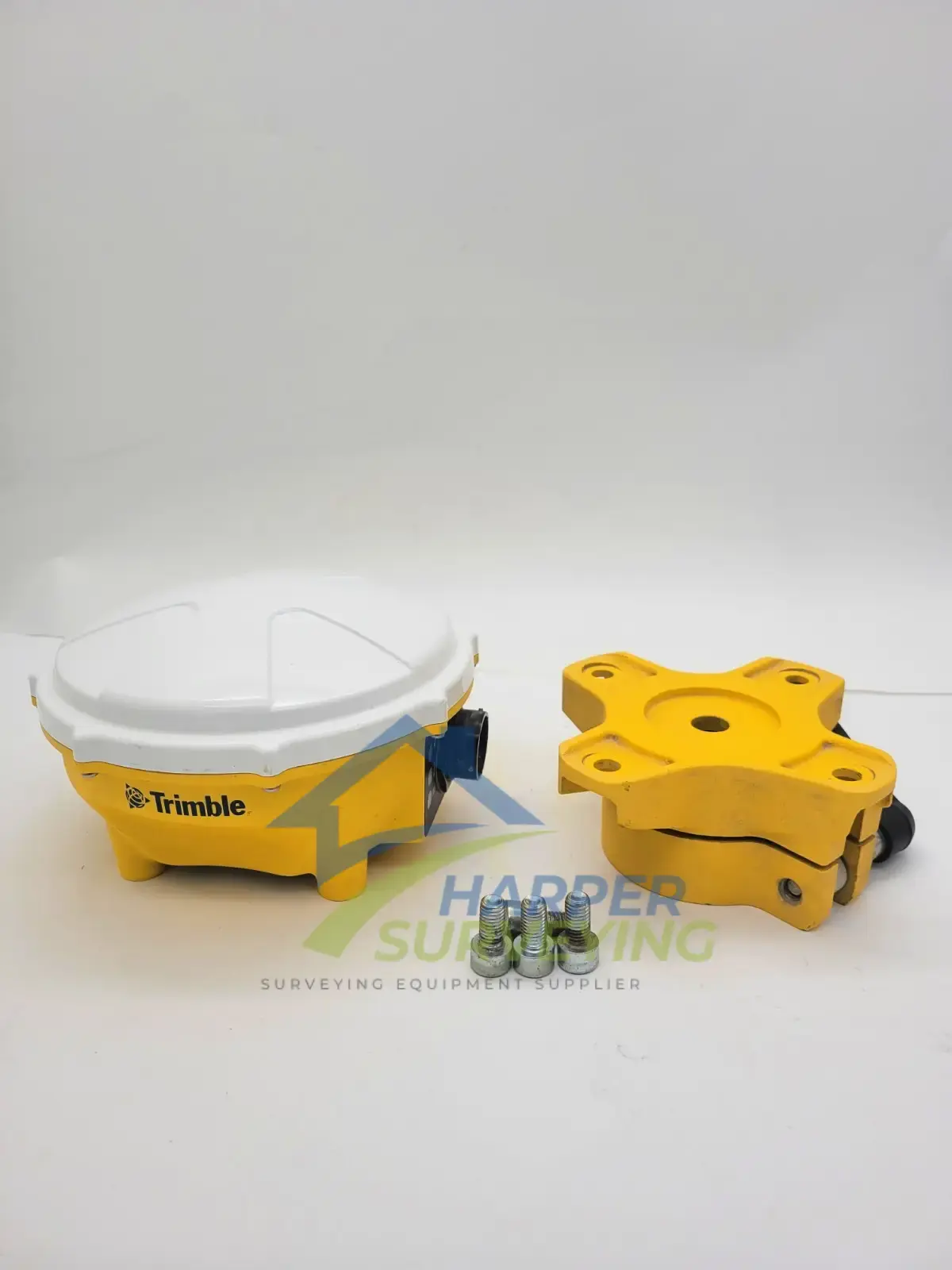

- An easy to use removable mounting bracket with quick release adjustment ratchet
Trimble MS975 Specifications
| Performance | |
| Tracking & performance: | Tracks up to 44 Satellites with 220 Tracking Channels: • GPS: L1C/A, L2C, L2E (Trimble Method for tracking L2P), and L5 Code with Full Cycle Carrier • SBAS: L1C/A and L5 (for WAAS, EGNOS, MSAS and QZSS) • Fully operational during P-code encryption • Upgradeable to GLONASS: L1C/A, L2C/A, and L2P Code with Full Cycle Carrier • Upgradeable to Galileo: L1 CBOC, E5A, E5B & E5AltBOC8 • Upgradeable to BeiDou: B1, B2 |
| Measurements | • Advanced Trimble® Maxwell™ 6 Custom GPS chip Trimble R-Track™ technology for tracking the new L2C Civil Signal, L5 Signal for GPS modernization and GLONASS • High-precision multiple correlator for L1, L2 and L5 pseudorange measurements • Unfiltered, unsmoothed pseudo-range measurements data for low noise, low multi-path error, low time domain correlation and high dynamic response • Very low noise L1, L2 and L5 carrier phase measurements with <1mm precision in a 1 Hz bandwidth • L1, L2 and L5 Signal-to-Noise ratios reported in dB-Hz • Proven Trimble low elevation tracking technology |
| Code differential positioning | Horizontal: 0.25m + 1 ppm RMS (0.8 ft + 1 ppm RMS) Vertical: 0.50 m + 1 ppm RMS (1.6 ft + 1 ppm RMS) |
| Real Time Kinematic (RTK) positioning | Horizontal: 8 mm + 0.5 ppm RMS (0.032 ft + 0.5 ppm) Vertical: 15 mm + 0.5 ppm RMS (0.05 ft + 0.5 ppm) |
| Initilization time | Typically < 10 seconds + 0.5 times baseline length in km, up to 30 km (Regular RTK operation with base station) |
| Initilization reliability | Typically > 99.9% |
| Physical | |
| Size: | 118.9 mm x 190 mm x 194.6 mm |
| Weight | 1.83 kg |
| Mounting | Mast mounting bracket |

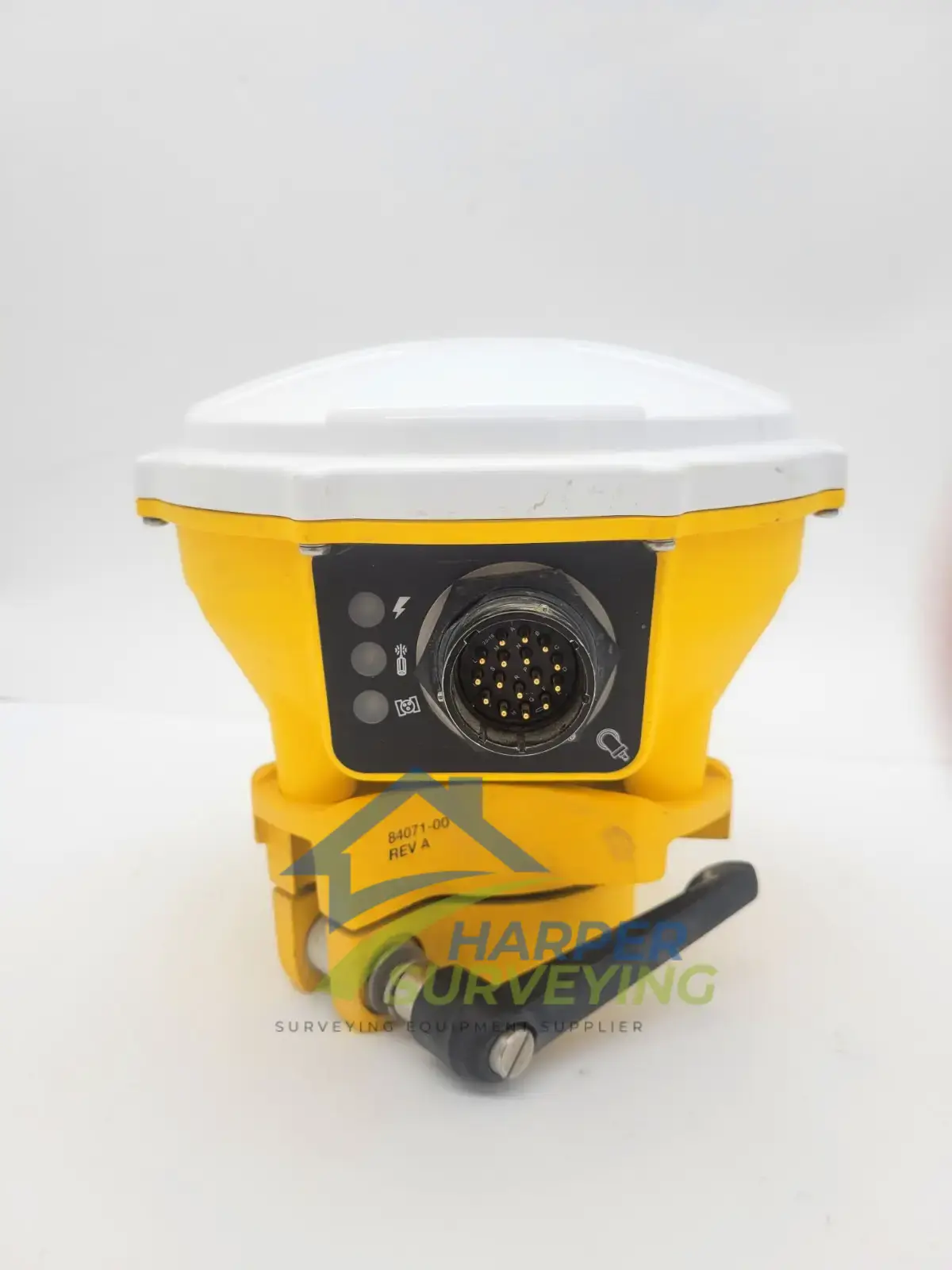

| Network connector | 16 pin Amphenol bayonet, sealed |
| Indicators | 3 Yellow LEDs Upper: DC Power Middle: GPS correction signal status Lower: GPS Signal status |
| Environmental | |
| Operating temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage temperature | -50°C to +85°C (-67°F to +185°F) |
| Humidity | Waterproof, 100% fully sealed |
| Sealing | +/- 5 psi sealing |
| Shock – Survival | 75 Gs, 6 milliseconds duration, 3 shocks in each of the three mutually perpendicular axes |
| Shock – Operating | 40 Gs 10 milliseconds duration |
| Vibration | 15.3 gRMS |
| EMC | EN13309:2000, CE Mark, RCM |
| Technical | |
| Electrical Input voltage | 9 to 32 VDC |
| Electrical input power | 18W maximum 5W nominal |
| Control interface | J1939 CAN network (two buses) RS-232 Serial (two ports) |
| Reverse voltage protection | Yes |
| Load dump protection | Yes |
Trimble MS975 Includes

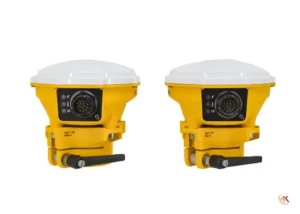

2 – Trimble MS975 Smart Antenna Heads

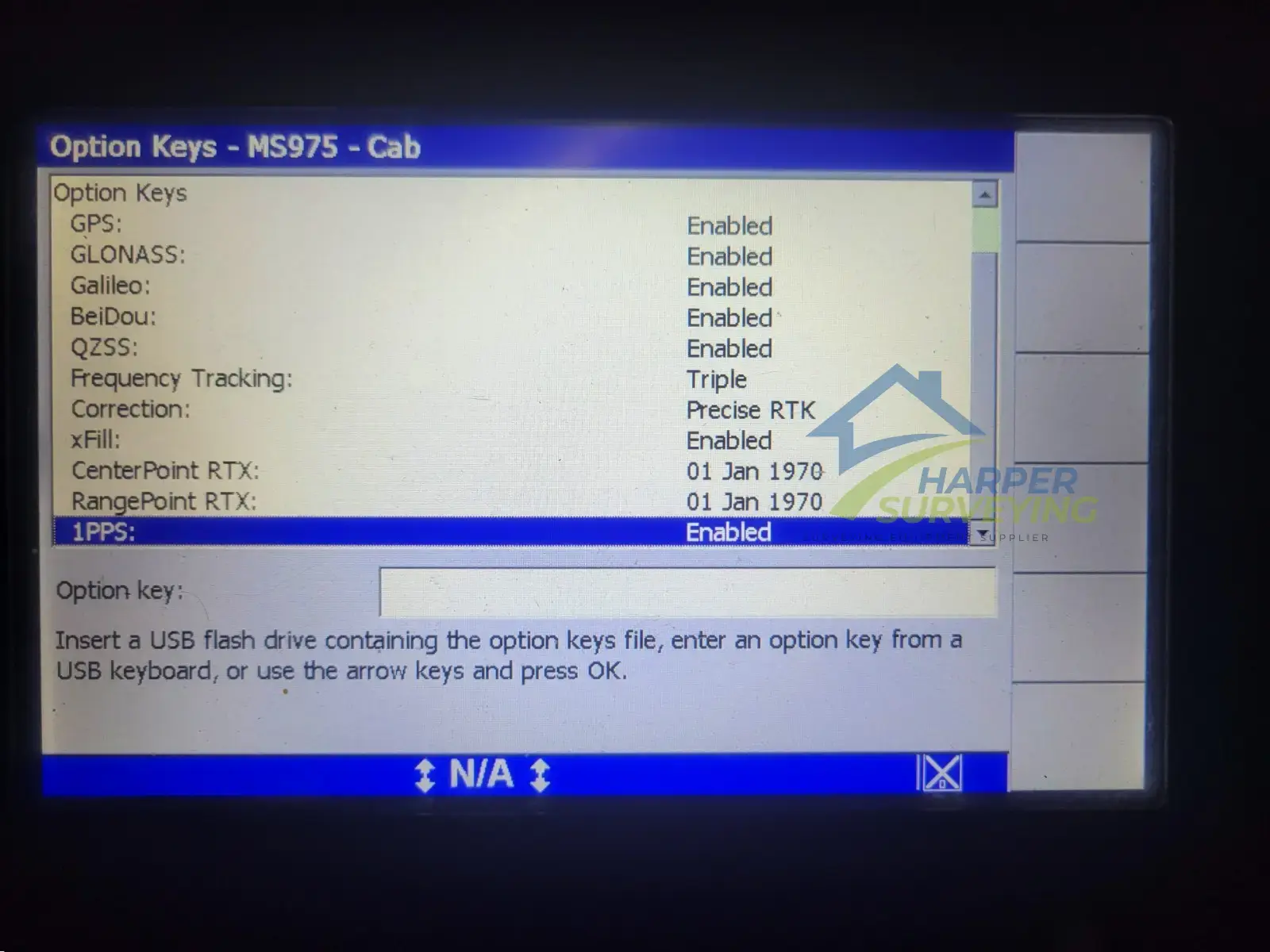

– GPS, GNSS, QZSS, and Precision RTK Enabled
1 – Hard Transport Case
