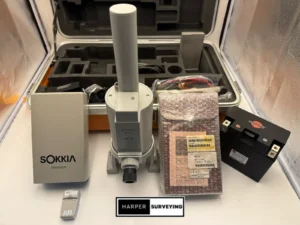

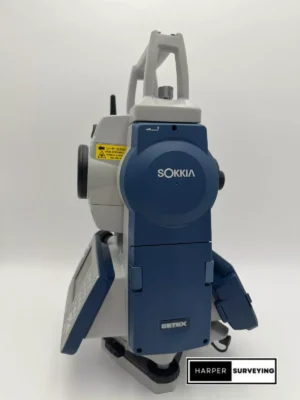

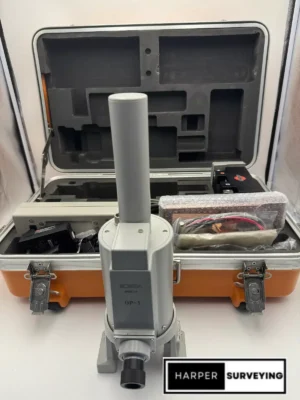

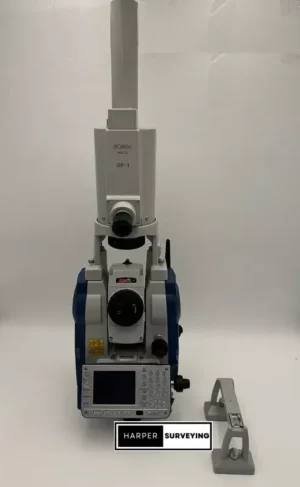

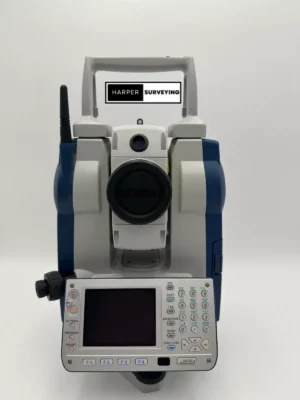

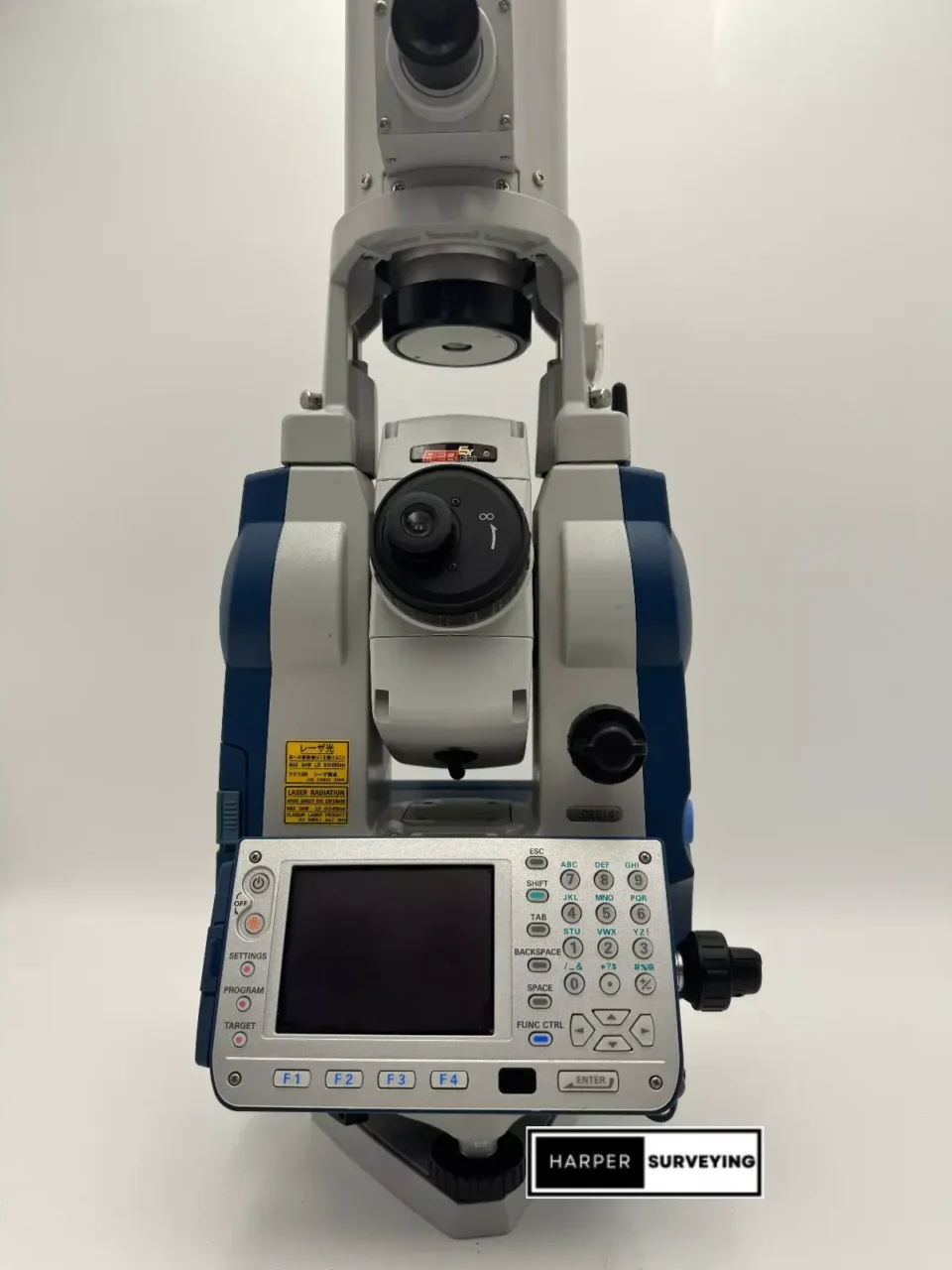

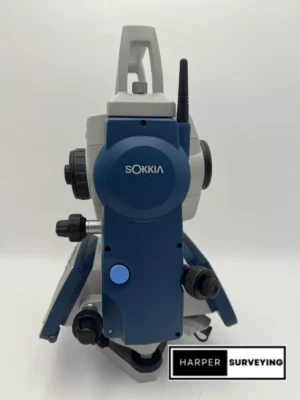

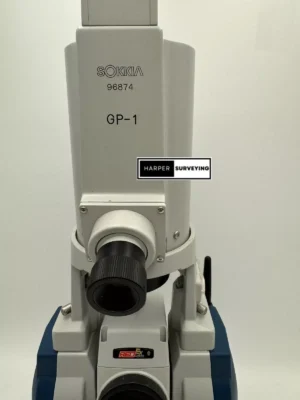

The SOKKIA GP1 Gyro Station is a state-of-the-art surveying tool that combines the precision of a gyroscope
with advanced GNSS technology. Designed for professional surveyors and engineers, this instrument provides
highly accurate measurements and reliable performance in a variety of challenging environments.
The gyro system integrated within the GP1 allows for precise orientation and azimuth determination, essential for
projects requiring exact alignment. Its high accuracy and robust design make it an indispensable tool for geodetic
and engineering surveys. The user-friendly interface ensures efficient operation, while the advanced data
management capabilities facilitate seamless data handling and transfer.
Whether used for large-scale construction projects or detailed geodetic surveys, the SOKKIA GP1 Gyro Station
delivers the accuracy and reliability needed to meet the demands of modern surveying and engineering tasks.
The SOKKIA GP1 Gyro Station is a precision surveying instrument designed for geodetic and engineering applications.
SOKKIA GP1 Key Features:
- Gyro System:
– Integrates a gyroscope for high-precision angle measurement and orientation determination.
– Useful for accurate north-seeking and azimuth determination.
- High Accuracy:
– Offers exceptional angular accuracy, making it suitable for tasks requiring precise alignment and positioning.
– Accuracy specifications typically meet or exceed industry standards for geodetic instruments.
- Integrated GNSS:
– Equipped with a GNSS (Global Navigation Satellite System) receiver for enhanced positioning capabilities.
– Allows for real-time kinematic (RTK) positioning and high-precision coordinates.
- User-Friendly Interface:
– Features an intuitive interface with a large display for easy reading and operation.
– Menu-driven user interface for quick setup and measurement.
- Robust Design:
– Built to withstand harsh field conditions, including dust, water, and temperature extremes.
– Rugged construction ensures long-lasting durability and reliability.
- Data Management:
– Offers advanced data storage and management capabilities.
– Allows for easy data transfer to external devices via USB or other connectivity options.
- Versatility:
– Suitable for a wide range of applications, including construction, mining, and infrastructure projects.
– Can be used for tasks such as tunnel alignment, bridge construction, and monitoring structural deformations.
SOKKIA GP1 Gyro Station specifications :
Specifications:
- Gyro Module:
– Gyro Typ: Precision gyroscope for high-accuracy orientation
– Gyro Accuracy: Typically within 10″ to 15″ (seconds of arc)
– North-seeking Time: Less than 10 minutes depending on the environment
GNSS Receiver:
– Receiver Type: Multi-frequency GNSS receiver
– Supported GNSS Systems: GPS, GLONASS, Galileo, BeiDou
– Positioning Accuracy:
– Static: Horizontal ±3mm + 0.1ppm, Vertical ±3.5mm + 0.4ppm
– RTK: Horizontal ±8mm + 1ppm, Vertical ±15mm + 1ppm
Total Station:
– Angular Accuracy: 1″ (1 second of arc)
– Distance Measurement:
– Prism Mode: Up to 5,000 meters with a single prism
– Reflectorless Mode: Up to 1,000 meters
– Distance Accuracy:
– Prism Mode : ±(2mm + 2ppm x D)
– Reflectorless Mode**: ±(3mm + 2ppm x D)
Display and Interface:
– Display: Dual-color touch screen, high resolution
– User Interface: Intuitive menu-driven software
– Data Storage: Internal memory, expandable via USB
– Communication: USB, Bluetooth, Wi-Fi
Power Supply:
– Battery Type: Rechargeable Li-ion battery
– Battery Life: Approximately 8 hours of continuous use
– Charging Time: Approximately 4 hours
Environmental Specifications:
– Operating Temperature: -20°C to +50°C (-4°F to +122°F)
– Storage Temperature: -30°C to +70°C (-22°F to +158°F)
– Dust and Water Protection**: IP65 rated
Physical Characteristics:
– Dimensions: Approx. 375 mm (H) x 205 mm (W) x 185 mm (D)
– Weight: Approx. 7.2 kg (including battery and tribrach)
Additional Features:
– Tilt Compensation : Dual-axis tilt sensor
– Compensator Range: ±6′
– Electronic BubbleFor accurate leveling
– Laser PlummetVisible laser for precise setup over a point
These specifications ensure that the SOKKIA GP1 Gyro Station provides the precision, reliability, and functionality required for a wide range of surveying and geodetic applications.
