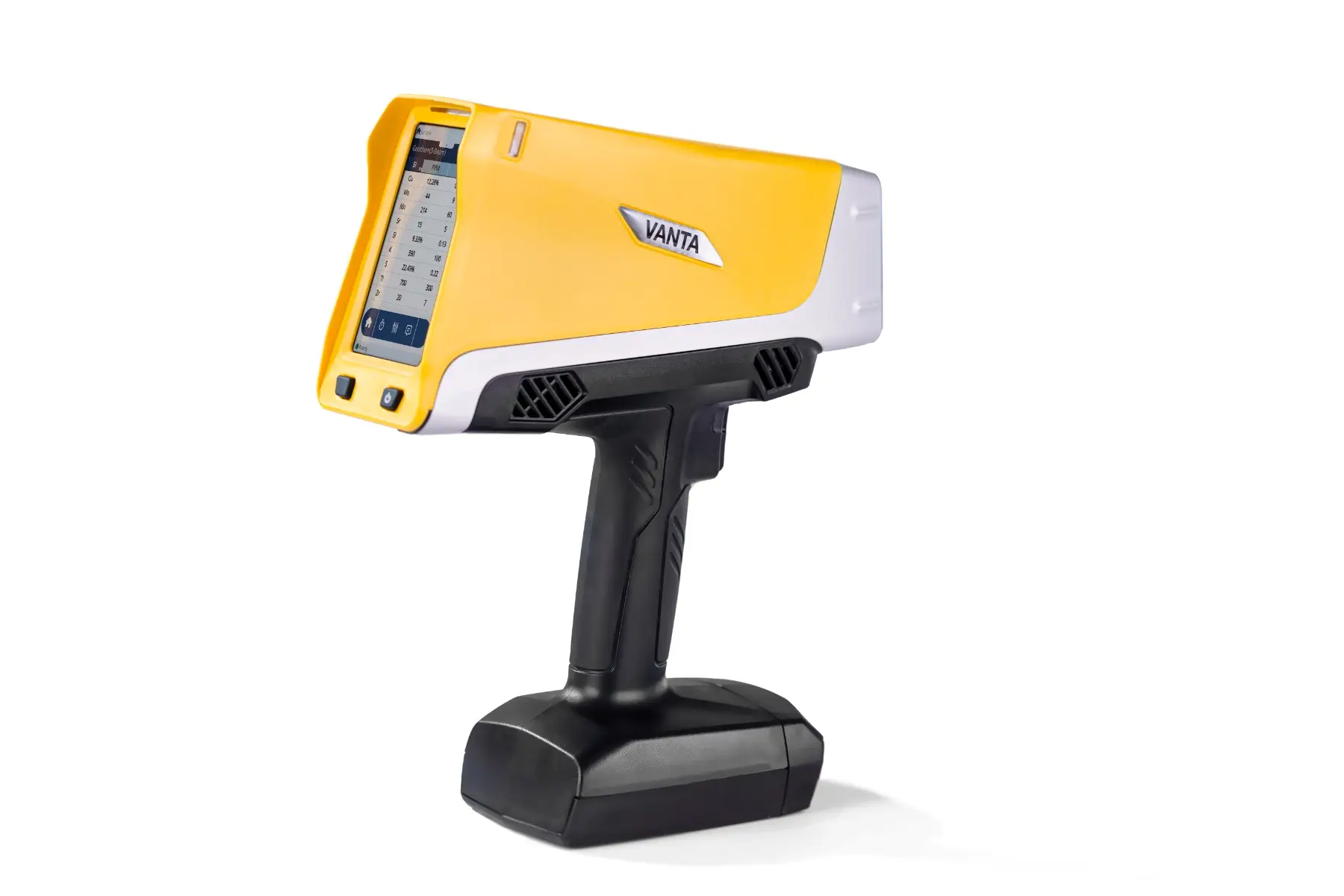

The Olympus Evident Vanta Max Handheld XRF Analyzer offers the series’ highest analytical capabilities for robust applications, including mineral exploration, academic research, soil testing, and environmental analysis. For rare earth element detection, the Vanta Max 55 kV tungsten tube model provides geologists and exploration teams with the enhanced sensitivity they need.
Olympus Evident Vanta Max Feature
- Highest analytical capabilities
- Robust analysis
- Mining exploration
- Mineral analysis
- Soil testing
- Environmental analysis
Olympus Evident Vanta Max Benefit
Comfortable and Rugged for All-Day XRF Testing
With an enhanced ergonomic design, Vanta handheld XRF analyzers are a productive tool for extended use in the field and lab. Combined with their proven ruggedness and ease of use, Vanta analyzers can increase uptime in the toughest environments.
Balanced handle minimizes hand fatigue
Secure and comfortable grip for all-day testing
Built to pass a 4-foot drop test (MIL-STD-810G)
IP54 rated for resistance to water and dust
Standard 3-year warranty protects your investment
Productive XRF Analysis Workflow
Designed with the technician in mind, the Vanta analyzer simplifies handheld XRF testing from start to finish to maximize user throughput. Work efficiently using a modern, intuitive interface and browser-based software option.
– Review, share, and manage XRF results on a PC, tablet, or smartphone with an optional wireless connection for seamless data integration
– Benefit from the latest features instantly thanks to automatic software updates
– Enhanced application support with the option to add custom analytical capabilities
– Access our Evident Connect cloud for seamless data and fleet management
Trusted Portable XRF Technology
Vanta handheld XRF analyzers are used by thousands of customers around the world in diverse applications. Building on proven performance, Vanta Max and Core analyzers provide precision and accuracy for portable XRF analysis.
– Vanta series’ proprietary Axon Technology™ uses ultra-low-noise electronics, enabling a higher X-ray count rate for fast, accurate, and repeatable results
– Axon Technology provides remarkable test-to-test and instrument-to-instrument repeatability, so your first test is the same as your last test no matter what instrument you use.
Optimized for Your Workflow
Vanta handheld XRF analyzers have a variety of features so that you can customize and adapt your analyzer to fit your specific workflow. The analyzer’s software makes it simple to customize the device in the way that you want. Innovative software features enable you to get the most out of your analyzer for a fast return on investment.
Software Features That Deliver Fast ROI
Vanta handheld XRF analyzers feature innovative software features designed to maximize their capabilities.
– SmartSort: automatically lengthens or shortens test time based on the material to save time; obtain aluminum grade results in as little as one second
– Grade match messaging: real-time and/or pop-up messages with familiar trade or grade names or special handling instructions to reduce user training and increase efficiency
– Nominal value: automatically identifies the likely presence of elements invisible to XRF based on grade specifications
– Residual library: set a maximum tolerated concentration for residual elements in grade families
– On-screen grade comparison: compare close grades side-by-side to know which alloy is the best match with nominal and residual values
– Empirical Mode for advanced analysis
Connected and Cloud Capable
Wi-Fi and Bluetooth: connect to our Evident Cloud or other devices with Wi-Fi® and Bluetooth.
Embedded GPS: pair test results with precise GPS coordinates to document and map the location of elements
Streamlined reporting: combine GPS data, XRF test results, and images from the optional 5-megapixel panoramic camera for inclusive archiving and streamlined reporting.
Customizable for Efficient Fleet Management
Vanta analyzers are designed to enable efficient fleet management in conjunction with Vanta Desktop PC software.
– Customizable UI: set up the interface the way you want to maximize throughput and efficiency.
– Favorites: choose what tests or features appear on the analyzer’s home screen.
– Username and password: managers can create unique usernames and passwords for each user.
– Push custom setups: easily transfer custom setups and specifications to your entire analyzer fleet.
– Simple data export: data are quickly and easily exported via a USB flash drive, wireless LAN, or Bluetooth.
Olympus Evident Vanta Max Application
Core Applications in Mining
Exploration Drilling
- Screen and prioritize samples for lab analysis
- Identify mineralized zones early in the campaign
Grade Control
- Define ore/waste boundaries with precision
- Optimize blasting and excavation strategies
Environmental Monitoring
- Analyze tailings, soils, and water for heavy metal contamination
Field Mapping
- Generate real-time lithogeochemical maps to guide future drilling
Geochemistry-Optimized Configurations
- Optional geochemical calibration packages available
- Soil Foot and sample cups for consistent, repeatable analysis
(See Accessories for more information about the Soil Foot.)
Standard Mining Kit Includes:
- Vanta Max™ Analyzer with Mining+ Geochem calibration
- Rugged IP65 case
- Field calibration check standard
- 2x batteries and charger
Olympus Evident Vanta Max Specifications
|
Olympus Evident Vanta Max Software
In addition to providing elemental measurements in seconds, Vanta Max handheld XRF analyzers’ innovative features maximize the efficiency and efficacy of your data analysis and reporting workflow.
Seamless Workflow and Data Management
- Empirical Mode for advanced analysis
- Embedded GPS: Enables GPS tagging of every analysis for easy mapping
- Wireless connectivity: Bluetooth®, Wi-Fi®, and USB for instant data transfer to the Evident Connect cloud or other devices
- Visual geospatial trends: Compatible with geographic information system (GIS) and 3D-mine modeling software, the Vanta Max analyzer supports identifying mineralization zones more effectively.
- Streamlined reporting: Combine GPS data, XRF test results, and images from the optional 13-megapixel panoramic camera for inclusive archiving and streamlined reporting
