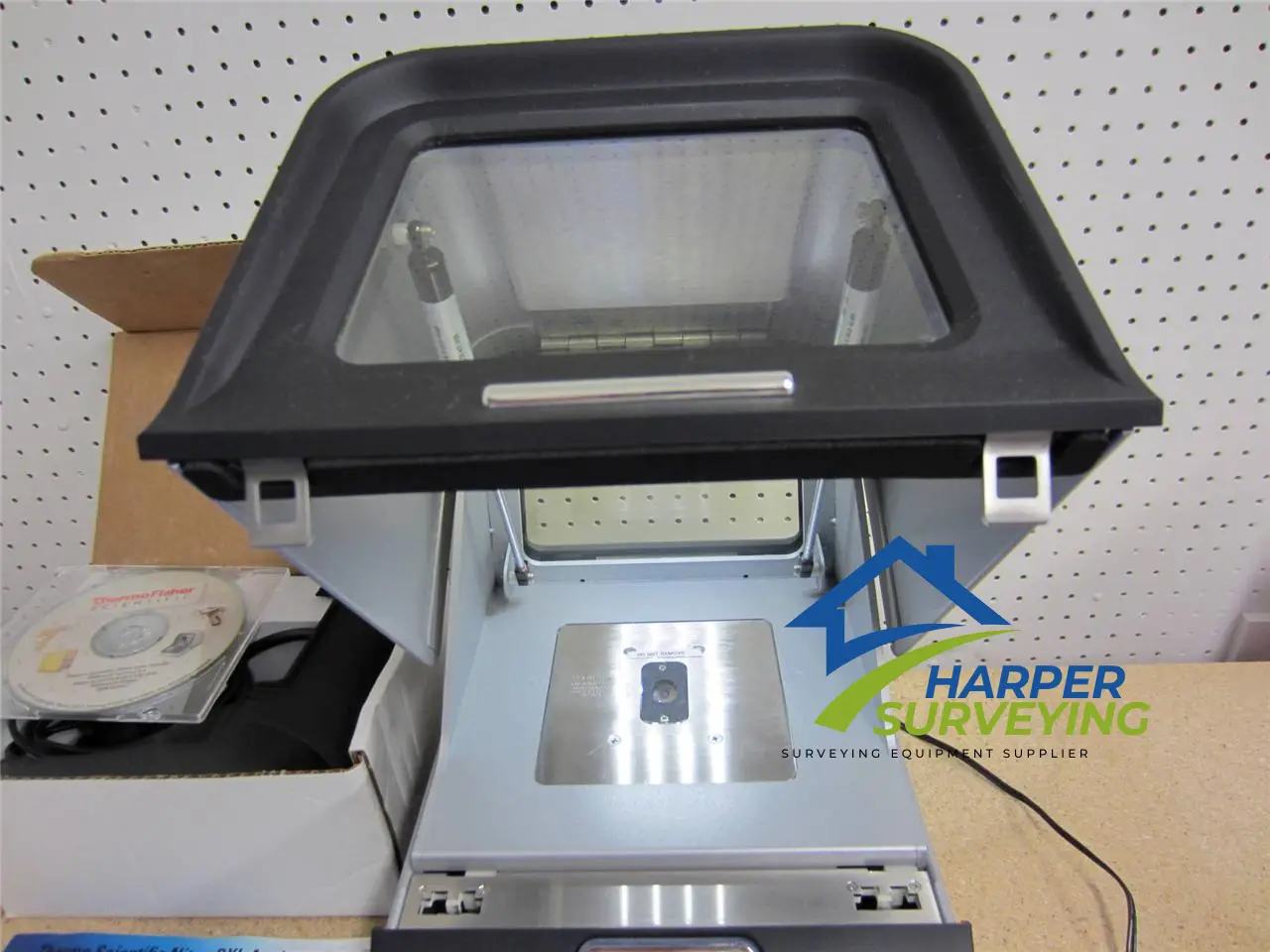

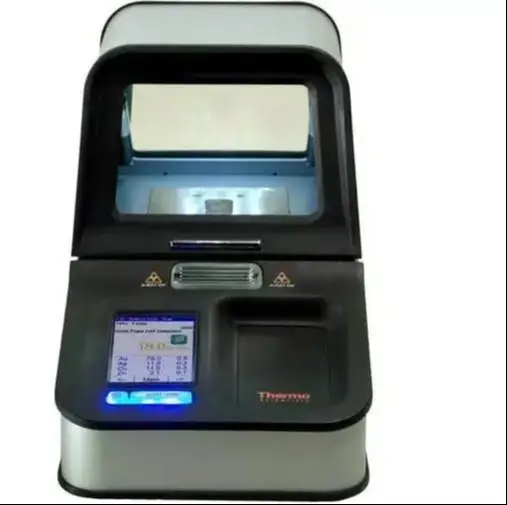

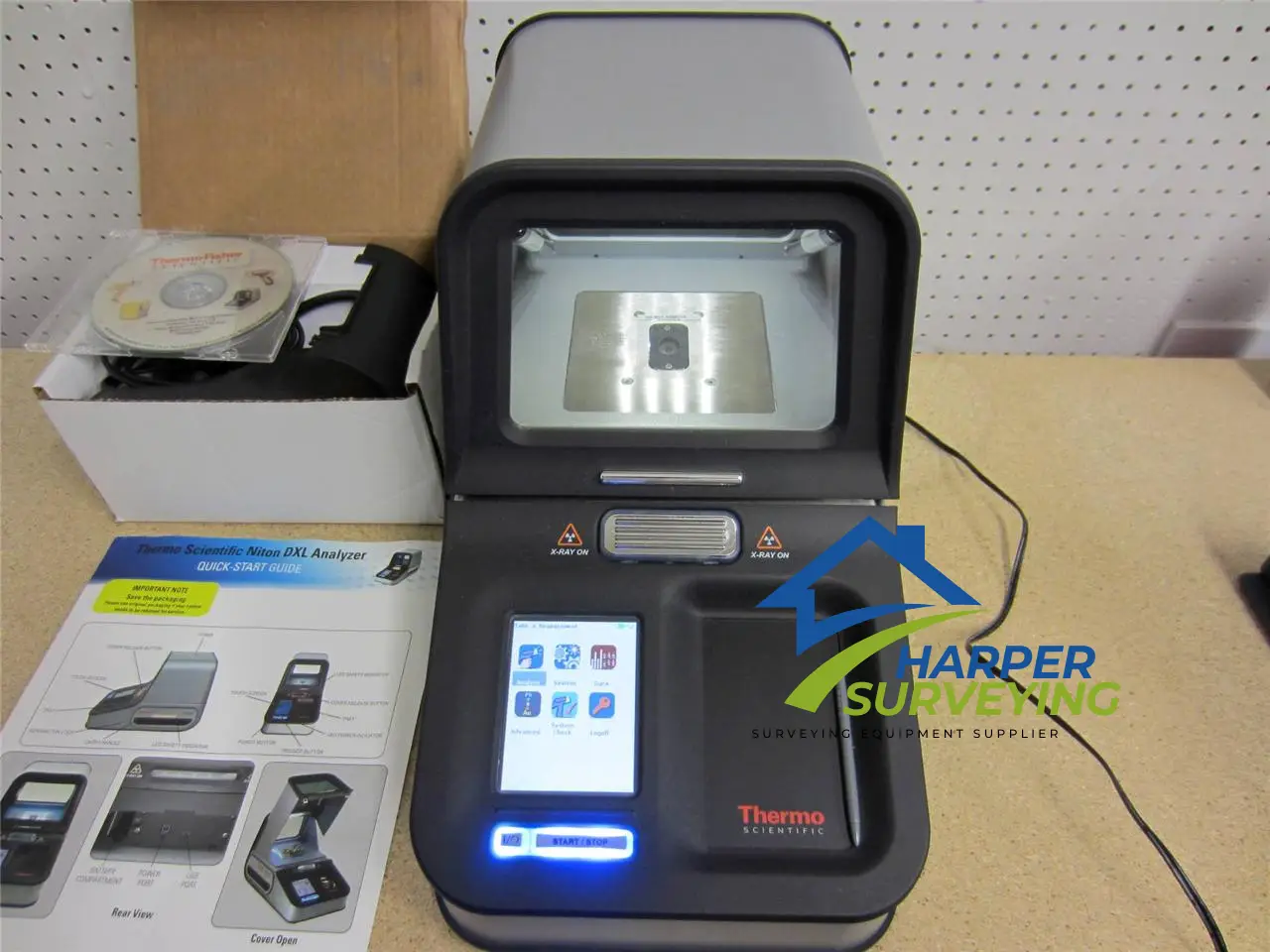

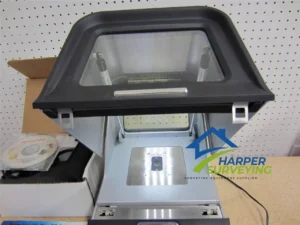

The Niton DXL Precious Metal Analyzer lab delivers fast and accurate XRF-based precious metal analysis results in an elegantly designed system. Whether you are a retail jeweler, pawn shop, jewelry manufacturer, or otherwise involved in the business of buying and recycling scrap jewelry, you can take advantage of superior performance in a compact footprint – confident that your operations are backed by the world leader in serving science and pioneer in portable XRF technology.
Be absolutely sure of the value of the precious metals you buy and sell with a fast, simple nondestructive solution for gold analysis. Quickly distinguish between gold plating and solid gold and determine the accurate karat (K) weight of gold jewelry with the Thermo Scientific Niton DXL Precious Metal Analyzer. Designed specifically for countertop use in retail environments, Niton DXL Precious Metal Analyzer, with Thermo Scientific AuDIT gold-plating detection technology, delivers fast, reliable results for gold testing and metal analysis with just the push of a button.
Niton DXL Precious FEATURE
| Applications | Non-destructive method to test the purity and chemistry of precious metals |
| Data Memory | 64MB internal system memory/ 128MB internal user storage |
| Data Storage | Internal >10,000 readings with spectra |
| Data Transfer | USB |
| Description | Niton DXL Precious Metal Analyzer |
| Detector Type | High-performance Si-PIN semiconductor |
| Display Type | Color touch-screen display |
| Item Description | Niton DXL Precious Metal Analyzer |
| Height (English) | 10.4 in. |
| Height (Metric) | 265 mm |
| Length (English) | 15.6 in. |
| Length (Metric) | 396 mm |
| Width (English) | 8.1 in. |
| Width (Metric) | 206 mm |
| Length (English) Chamber | 6.9 in. |
| Length (Metric) Chamber | 172 mm |
| Height (English) Chamber | 5.2 in. |
| Height (Metric) Chamber | 133 mm |
| Width (English) Chamber | 7.2 in. |
| Width (Metric) Chamber | 184 mm |
| Optional Accessories | 3mm small-spot focus feature; Additional battery pack; External battery charger; Locking shielded carrying case |
| Power Consumption | 80µA |
| Security Features | Password-protected user security |
| Standard Accessories | One 7.2V 4-cell lithium-ion battery pack (charges in the instrument while on external power); 110/220V AC adapter; USB PC connection cable; Thermo Scientific™ Niton Data Transfer (NDT™) PC software; 8mm measurement area; Internal CCD camera for precise sample positioning; Adhesive Tack for stabilization of samples; Spare puncture-resistant x-ray windows |
| Tube Type | Ag anode 45kV maximum, 80µA maximum |
| Tube Voltage | 45kV |
| Weight (English) | 17 lb. |
| Weight (Metric) | 7.7 kg |
| Voltage | 45 kV |
| System Electronics | 400MHz ARM 11 CPU; 300MHz dedicated DSP; 80MHz ASICS DSP for signal processing; 4096 channel MCA; |
| Data Entry | Touch-screen keyboard, user-programmable pick lists |
| Licensing | Varies by region. Contact your local distributor. |
| Dimensions (L x W x H) | 15.6 x 8.1 x 10.4 in. (396 x 206 x 265 mm) |
| Certifications/Compliance | CE, RoHS |
| Unit Size | Each |
Niton DXL Specifications
Weight : 17 lbs (7.7kg)
Outside Dimensions : 15.6 d x 8.1 w x 10.4 h in. (396 x 206 x 265 mm)
Test Chamber Dimensions : 6.9 d x 7.2 w x 5.2 h in. (172 x 184 x 133 mm)
Tube : Ag anode 45 kV maximum, 80 μA maximum
Detector : High-performance Si-PIN semiconductor
System Electronics : 400 MHz ARM 11 CPU
300 MHz dedicated DSP
80 MHz ASICS DSP for signal processing
4096 channel MCA
64 MB internal system memory/ 128 MB internal user storage
Display : Color touch-screen display
Standard Analytical Range : 21 elements including all precious metals
Data Storage Internal : >10,000 readings with spectra
Data Transfer : USB
Security : Password-protected user security
Data Entry : Touch-screen keyboard
User-programmable pick lists
Licensing/Registration : Varies by region. Contact your local distributor.
Compliance : CE, RoHS
Niton DXL includes
– Niton DXL unit
– One 7.2V 4-cell lithium-ion battery pack (charges in the instrument while on external power)
– 110/220V AC adapter
– USB PC connection cable Niton Data Transfer (NDT™) PC software
– 8 mm measurement area
– Internal CCD camera for precise sample positioning
– Adhesive Tack for stabilization of samples
– Spare puncture-resistant x-ray windows
– 3 mm small-spot focus feature
– Additional battery pack
– External battery charger
– Locking shielded carrying case
