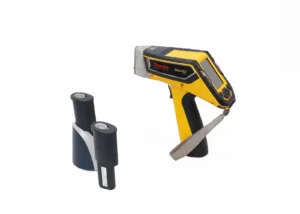

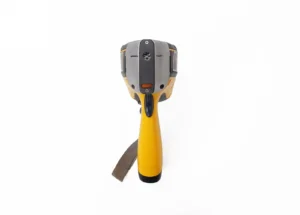

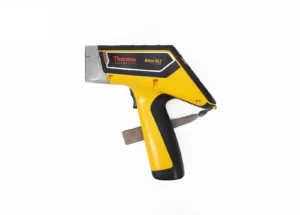

Thermo Scientific Niton XL2 XFR Analyzer

SKU: Niton XL2 XFR Analyzer

$3,000.00

With the value leading Thermo Scientific Niton XL2 XFR Analyzer, you don’t have to sacrifice performance to get a lightweight, rugged, handheld analyzer perfectly matched for most testing applications.

In stock

Product Description

Get fast, accurate metal alloy verification for manufacturing quality assurance with the Thermo Scientific™ Niton™ XL2 Analyzer. Featuring a standard integrated camera for accurate positioning of the analysis area, the XL2 Analyzer provides immediate, nondestructive elemental analysis of alloy materials from titanium to nickel as well as tramp and trace element analysis. Lightweight, rugged handheld Niton XL2 Analyzers are well suited for a growing list of applications including scrap metal identification, mining and exploration, and lead screening for consumer and electronic goods.

With the value leading Thermo Scientific Niton XL2 XFR Analyzer, you don’t have to sacrifice performance to get a lightweight, rugged, handheld analyzer perfectly matched for most testing applications.

  • Point and shoot simplicity- very easy to use even by nontechnical personnel.
  • Rugged design for real-world industrial environments.
  • Nondestructive analysis with near instantaneous results.
  • Sealed against moisture and dust.
  • Ergonomically designed.
  • Daylight-readable icons.
  • Standard analytical range of up to 30 elements from sulfur to uranium.
  • Color, touch-screen display.
  • Integrated camera

Connectivity

Standard Thermo Scientific™ Niton Data Transfer (NDT™) PC software suite allows you to set operator permissions, generate custom reports, print certificates of analysis, or remotely monitor, and operate the instrument hands-free from your PC.

Integrated USB and Bluetooth™ communications provide direct data transfer to your PC or networked storage device. Optional accessories include Bluetooth barcode reader, Bluetooth printer, and Bluetooth GPS.

Niton XL2 XFR Analyzer Specifications

ApplicationsElemental Analysis

Available Analytical ModesVaries by application:Alloy Modes: Metal Alloy, Electronics Alloy, Precious MetalsBulk Modes: Mining, SoilPlastic Modes: RoHS Plastics, Toy and Consumer Goods Plastics,TestAll™, Painted ProductsCustom Modes: Upon request (based on application feasibility)

Data Memory64 MB internal system memory/128 MB internal user storage

Data StorageInternal >10,000 readings with spectra

Data TransferUSB, Bluetooth and RS-232 serial communication

DescriptionNiton XL2 XRF Analyzer

Detector TypeHigh-performance Semiconductor

Display TypeFixed angle, color, touch-screen display

Item DescriptionNiton XL2 XRF Analyzer

Height (English)4 in.

Height (Metric)100 mm

Length (English)10.25 in.

Length (Metric)256 mm

Width (English)11 in.

Width (Metric)275 mm

Optional AccessoriesPortable test stand; Stationary (bench-top) stand; Mobile test stand; Welding mask; Soil testing guard

Power Consumption100µA

Security FeaturesPassword-protected user security

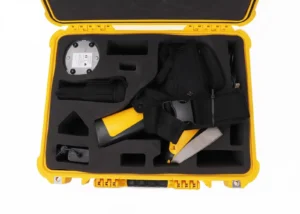

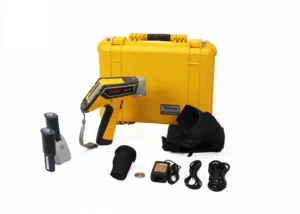

Standard AccessoriesIntegrated camera; Locking shielded carrying case; Shielded belt holster; Two 6-cell lithium-ion battery packs; 110/220VAC battery charger/AC adaptor; PC connection cables (USB and RS-232); Thermo Scientific™ Niton Data Transfer (NDT™) PC software; Safety lanyard; Check samples/standards

Tube TypeAg anode 45 kV maximum, 80µA maximum

Weight (English)3.0 lb., 5.8 oz.

Weight (Metric)1.53 kg

Voltage45 kV

System Electronics400 MHz ARM 11 CPU, 300 MHz dedicated DSP, 80 MHz ASICS DSP for signal processing

Data EntryTouch-screen keyboard, user-programmable pick lists

LicensingVaries by region. Contact your local distributor.

Dimensions (L x W x H)10.25 x 11 x 4 in. (256 x 275 x 100 mm)

Operating SystemOwnership

Certifications/ComplianceCE, RoHS

IP RatingIP54 (splash and dust proof)

Max. Power2W

Unit SizeEach



Reference

Niton XL2 XFR Analyzer SpecSheet
