Handheld, lightweight, and easy to use, the ZEB Revo RT allows you to rapidly build highly accurate 3D models within minutes, while on the move.
The complete solution that allows you to start mapping the world around you today with any WiFi-enabled device. Scan, visualize, and process simultaneously, as you walk
The GeoSLAM ZEB-REVO RT is a lightweight, handheld 3D mobile laser scanner designed for rapid mapping in complex indoor or underground environments without GPS. It features real-time, on-the-go data processing via SLAM technology, capturing 43,000 points per second with a 30m range and ~6mm relative accuracy, allowing users to visualize scans instantly.
GeoSLAM ZEB-REVO RT Key Features and Benefits:

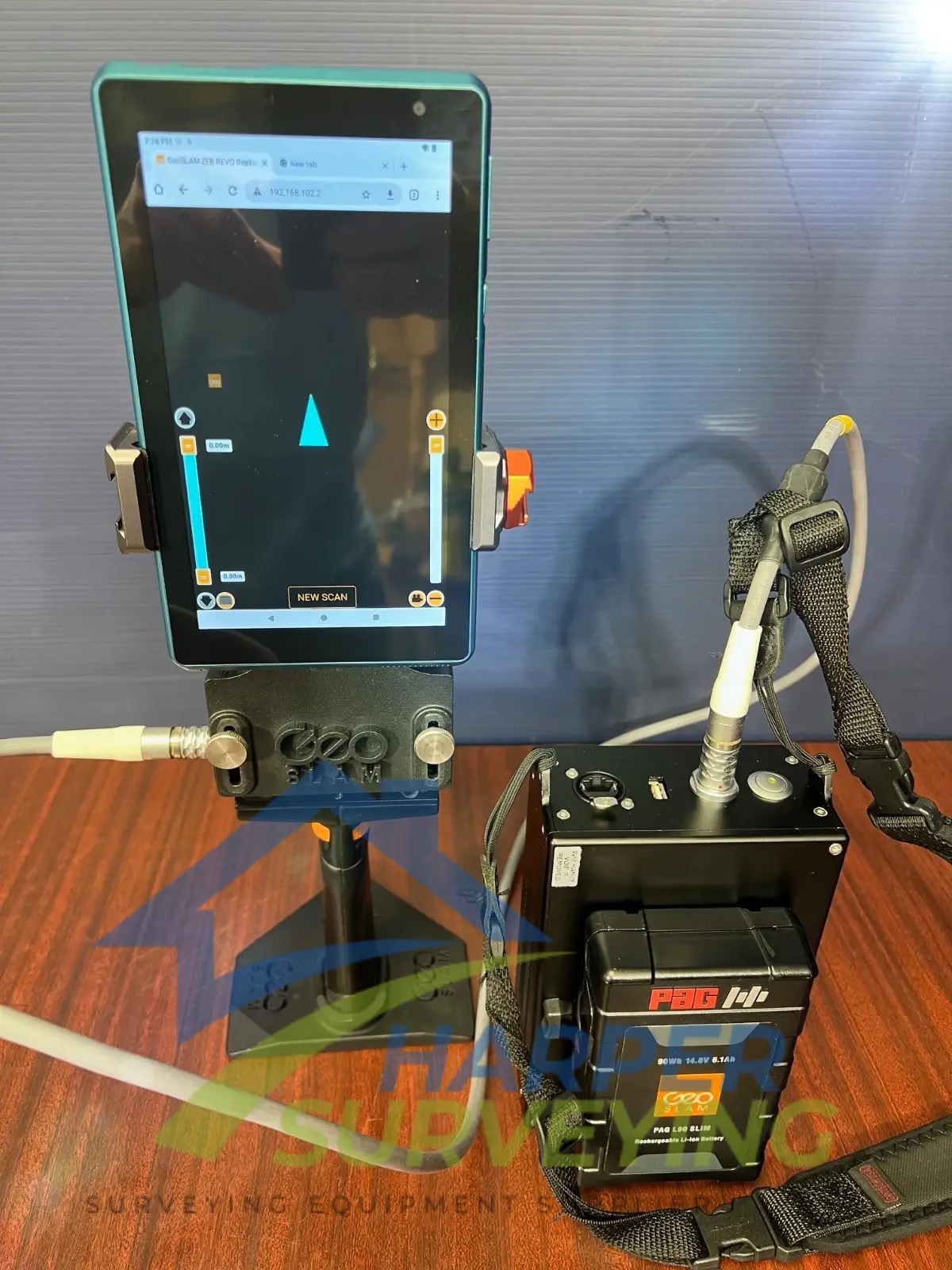

- Real-Time Visualization: The “RT” (Real-Time) mode enables simultaneous data capture and processing, allowing immediate visualization of the point cloud on a smartphone or tablet to ensure full coverage before leaving the site.
- SLAM Technology: Uses sophisticated Simultaneous Location and Mapping algorithms, perfect for environments with no GNSS coverage (underground, forests, indoors).
- High Speed & Accuracy: Captures 43,000 points/second with a 30-meter range. It delivers survey-grade relative accuracy of up to 6mm.
- Rapid Scanning: Ideal for quick, walk-through surveys—a 3-story building can be scanned in about 30 minutes.

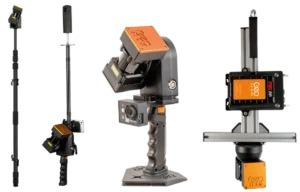

- Versatile Deployment: While handheld, it can be mounted on drones, robots, or poles for difficult-to-reach areas, such as ceiling voids.
- Rugged Design: Features an IP54 rating, designed for harsh, dirty, or dusty environments
Components and Workflow
- Components: Consists of the revolving Revo scanner head and a data logger. An optional ZEB-CAM can be added to capture, colorize, and sync video with the 3D point cloud.
- Software: Compatible with GeoSLAM Hub and Draw software for automatic point cloud registration and 2D/3D modeling (generating CAD-ready data, floor plans, and cross-sections).
Common Applications
- Architectural & Construction: As-built surveys and 3D modeling.
- Mining & Tunnelling: Mapping narrow and confined underground spaces.
- Facility Management: Quick documentation of industrial facilities and depots.
Powered by the smartest SLAM
With one button operation, you’ll be up and running fast – capturing survey-grade data in minutes.
Process a point cloud quickly using our intelligent point cloud processing platform, GeoSLAM Hub.
GeoSLAM data is compatible with software that works for you with universal file formats (LAZ/LAS/PLY/TXT/e57).

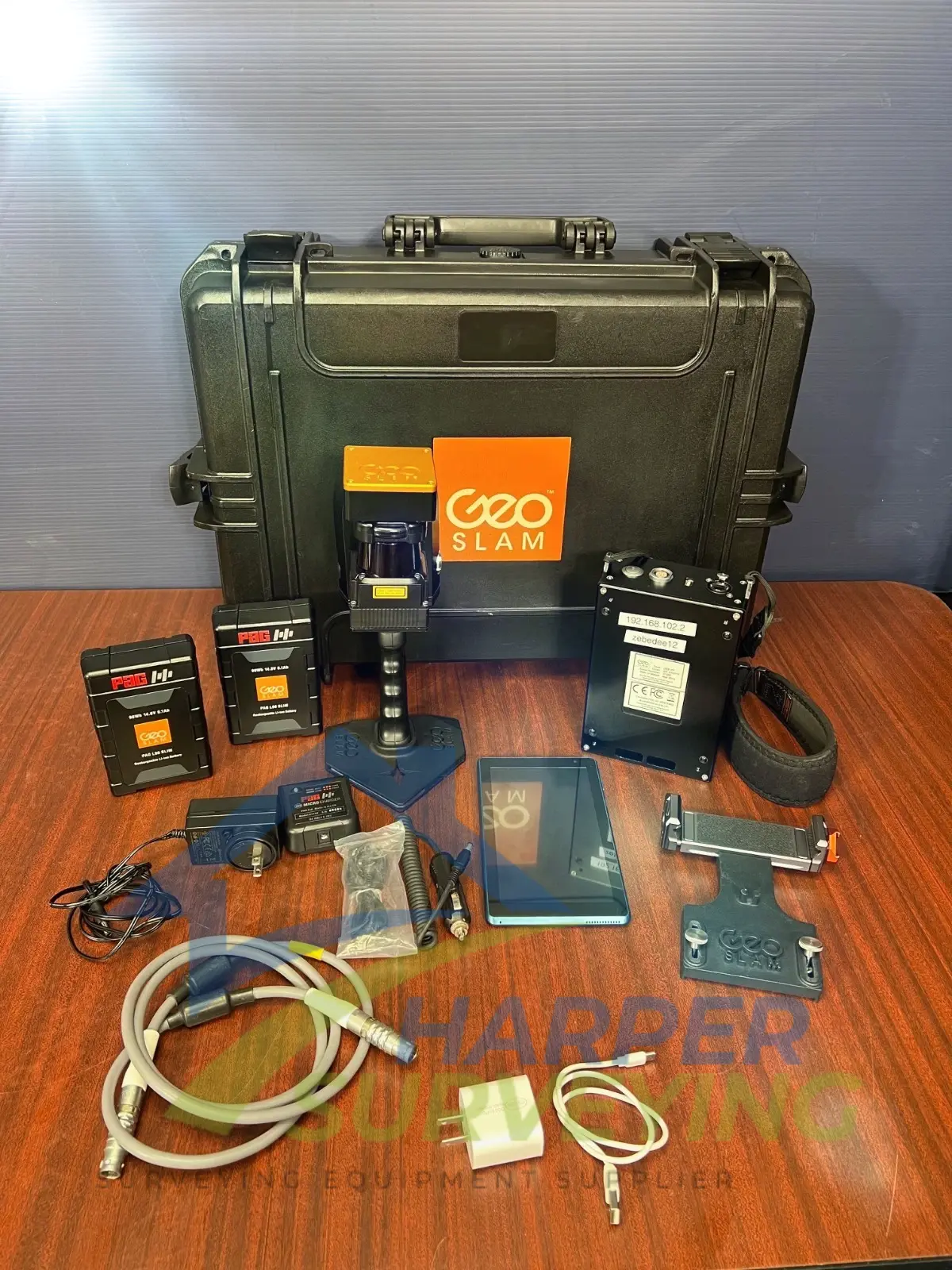

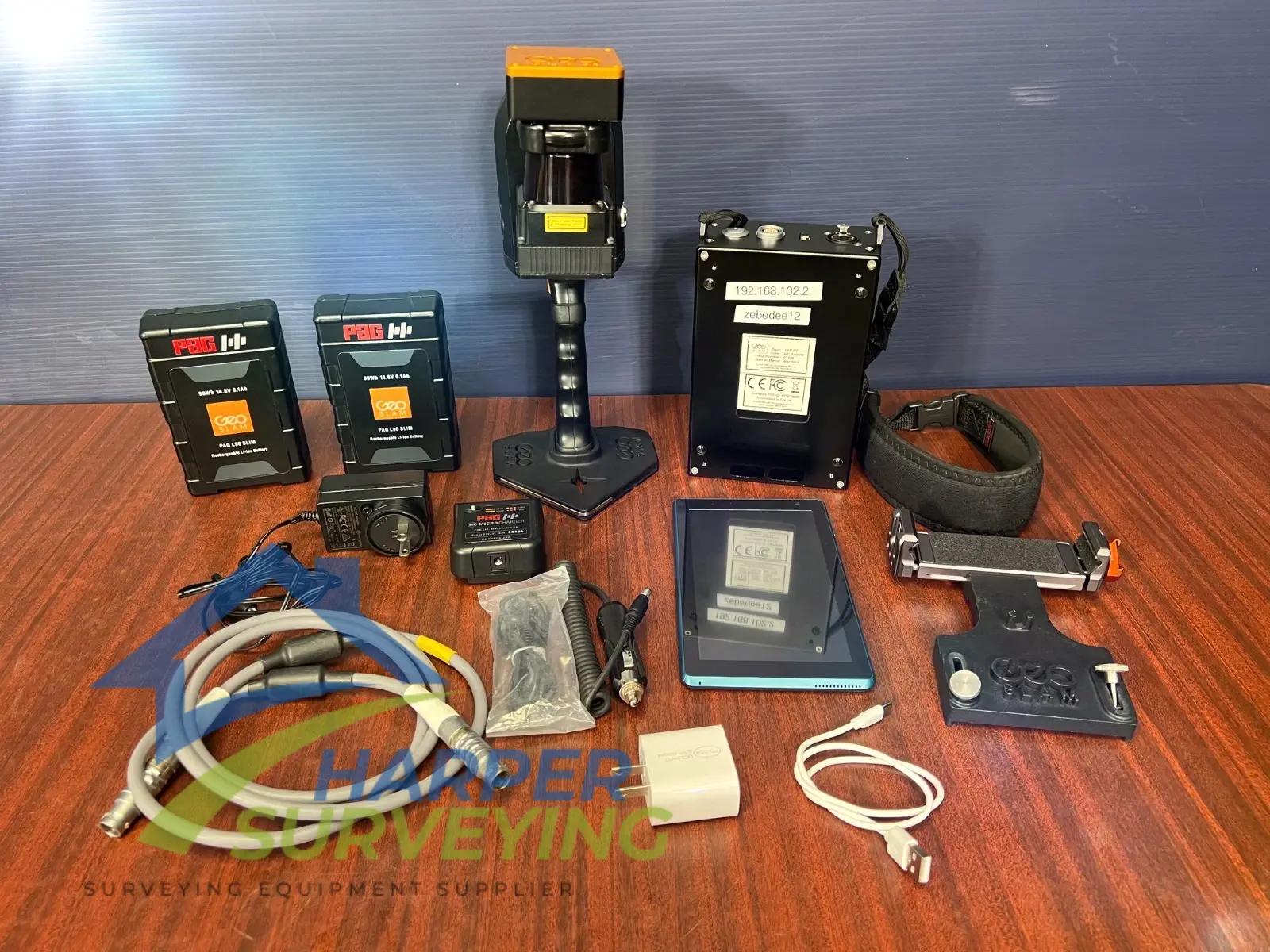

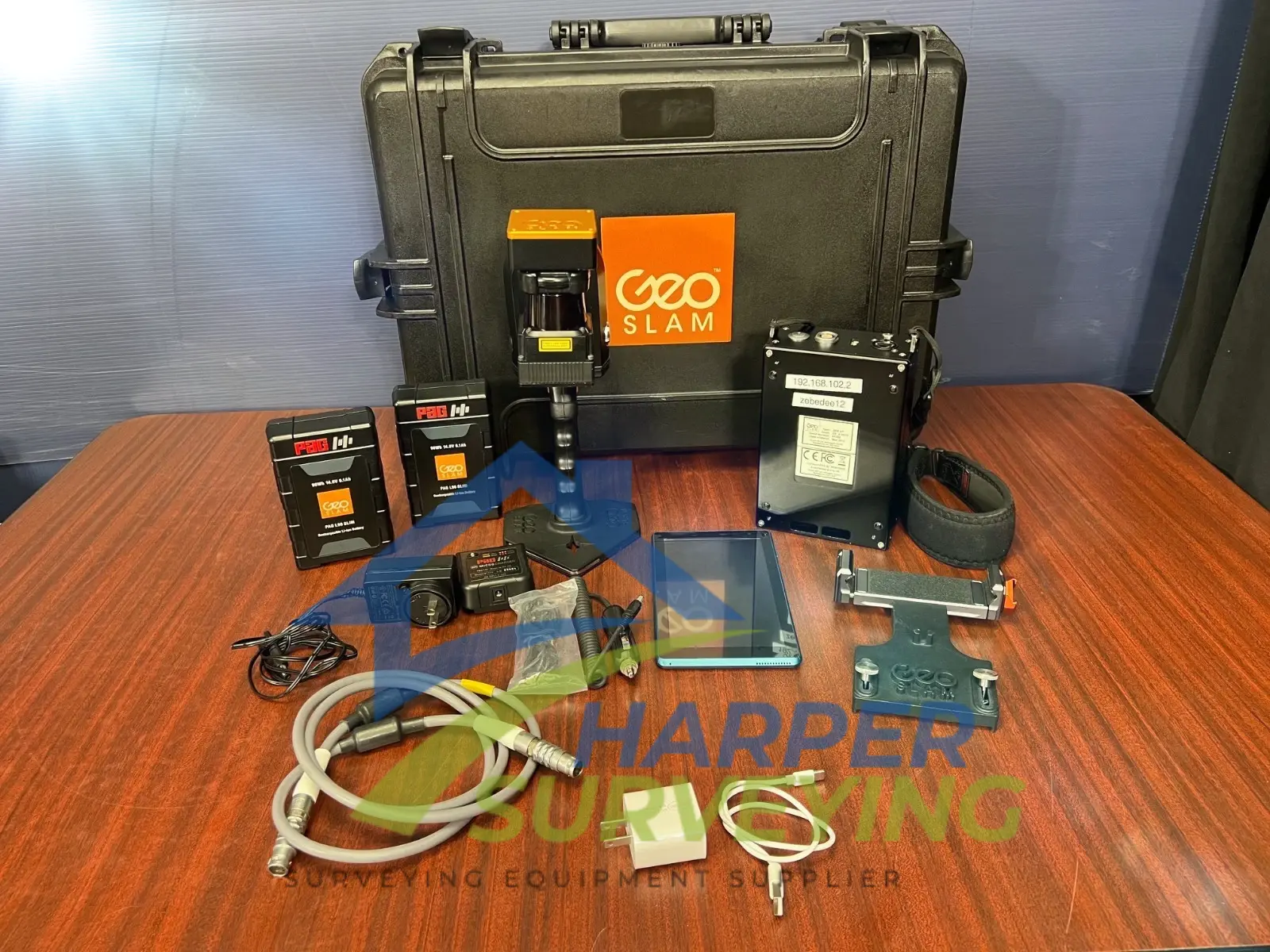

Includes:

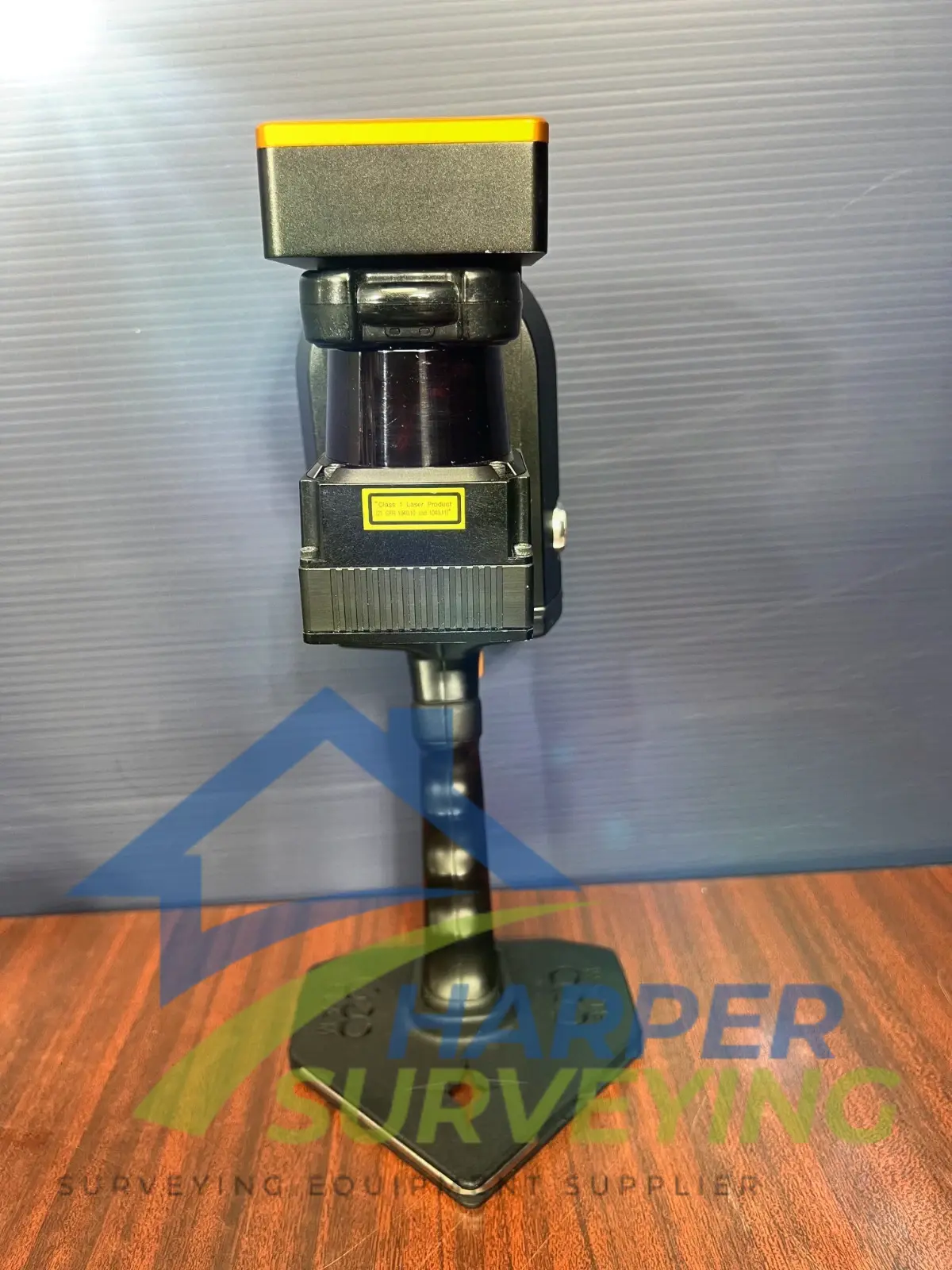

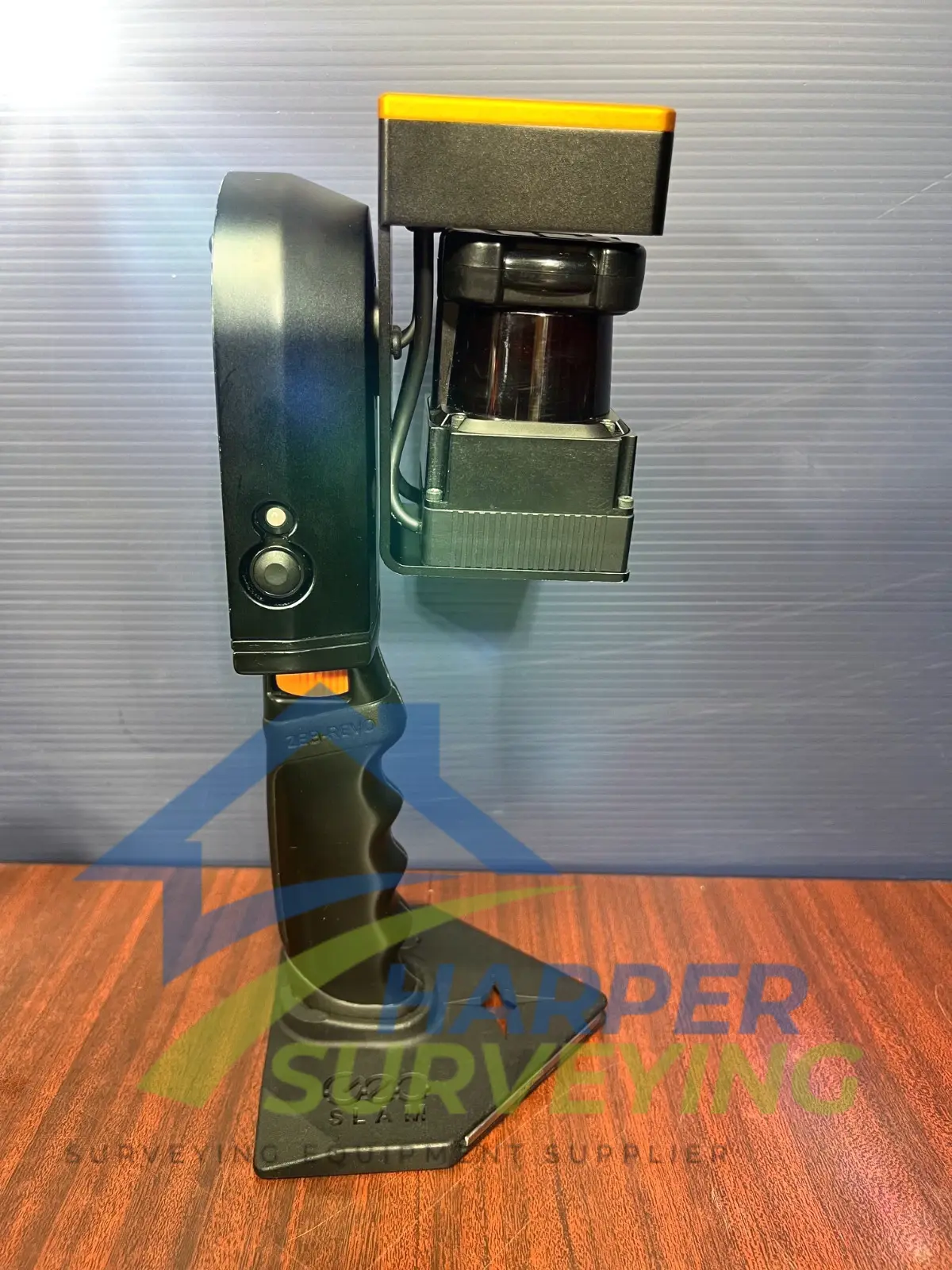

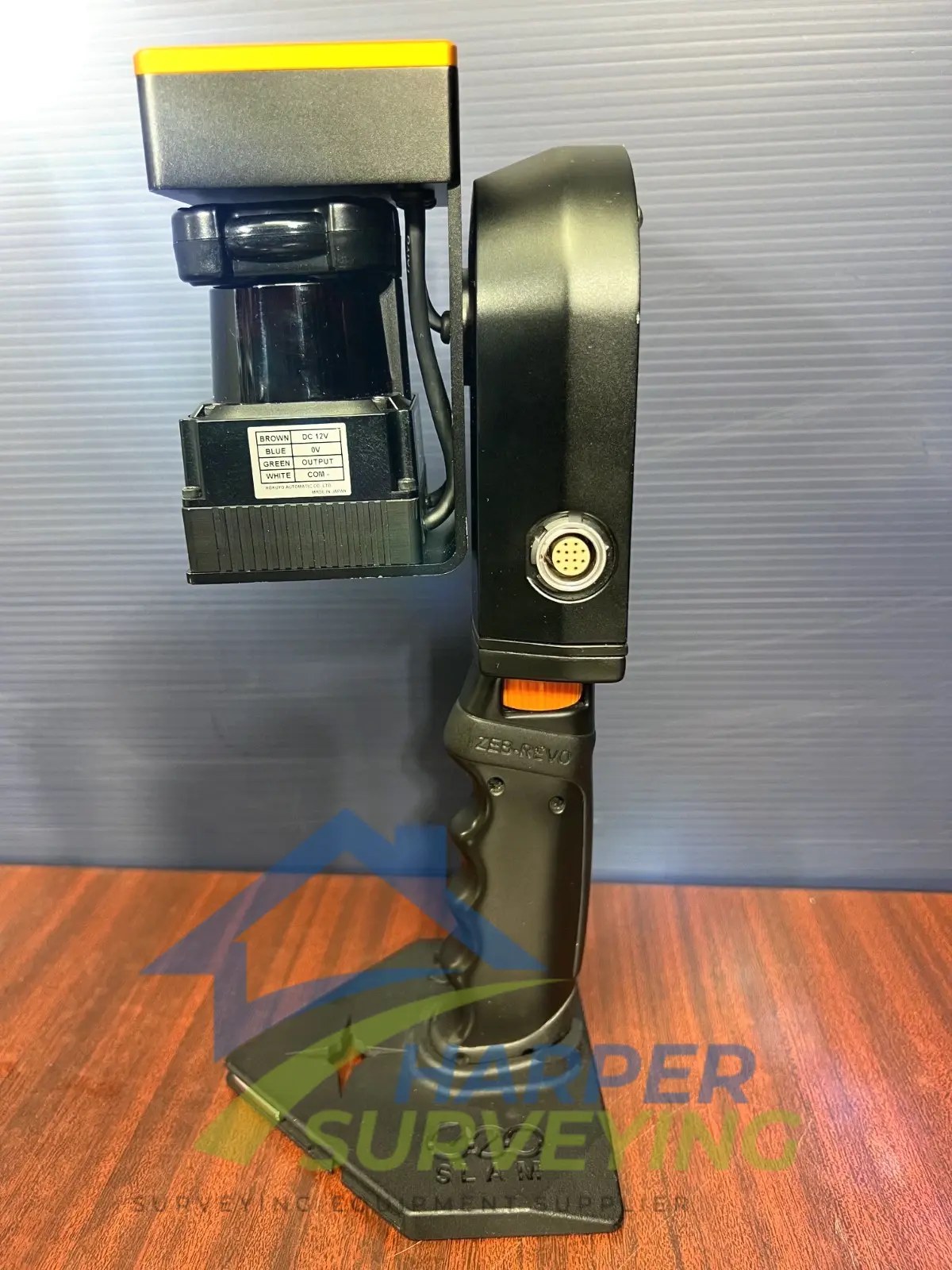

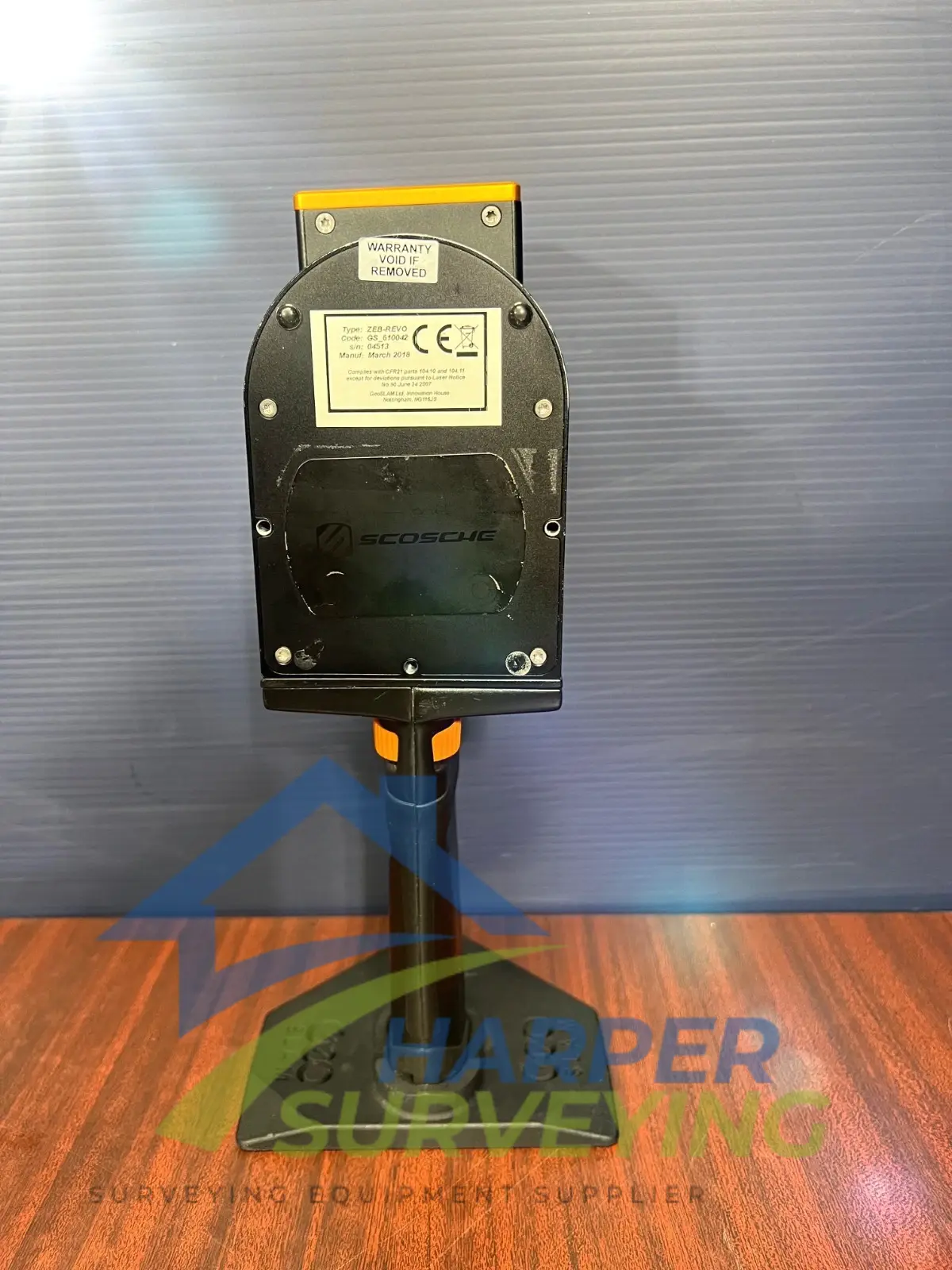

- Geoslam ZEB-REVO handheld laser scanner

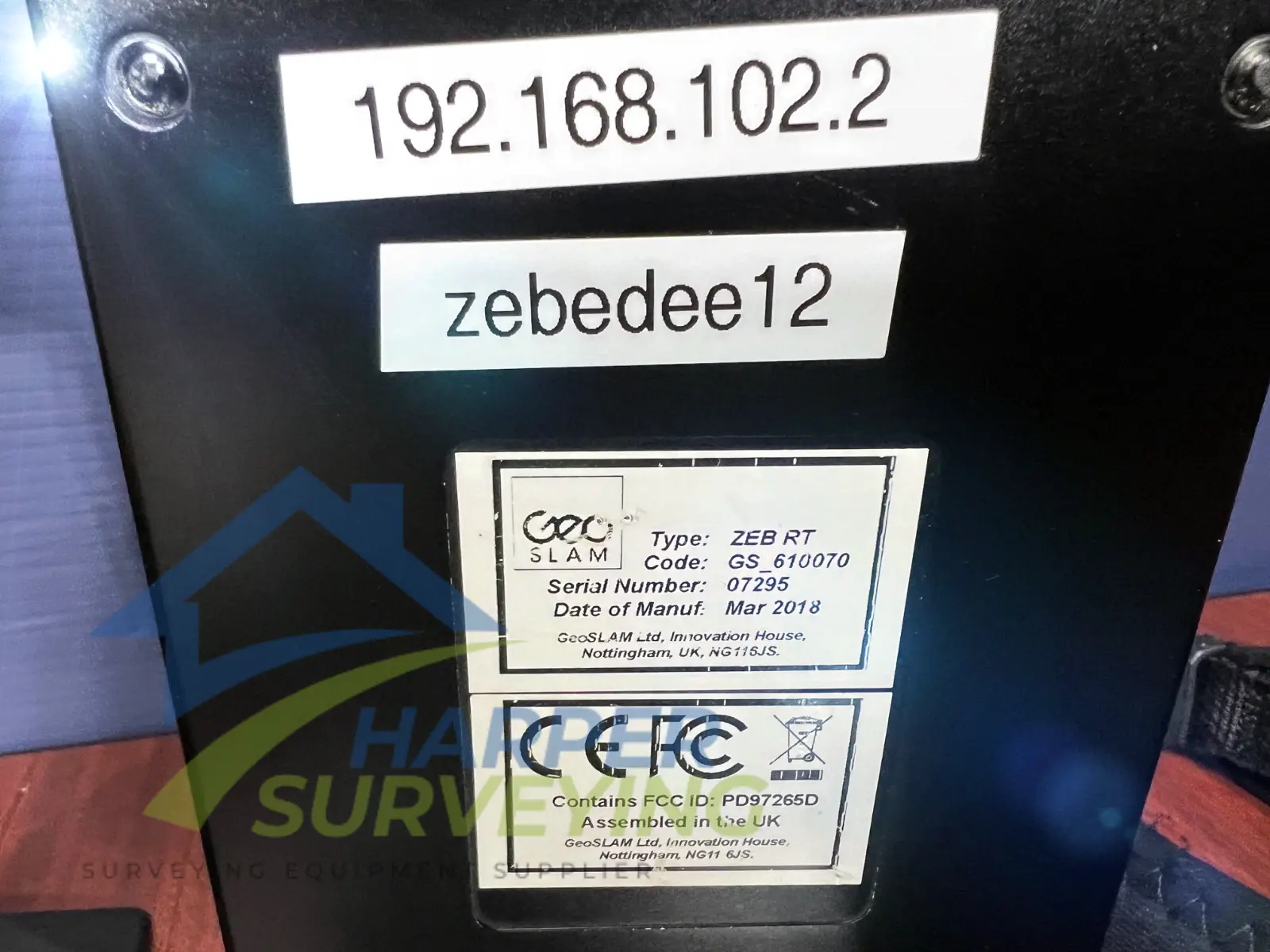

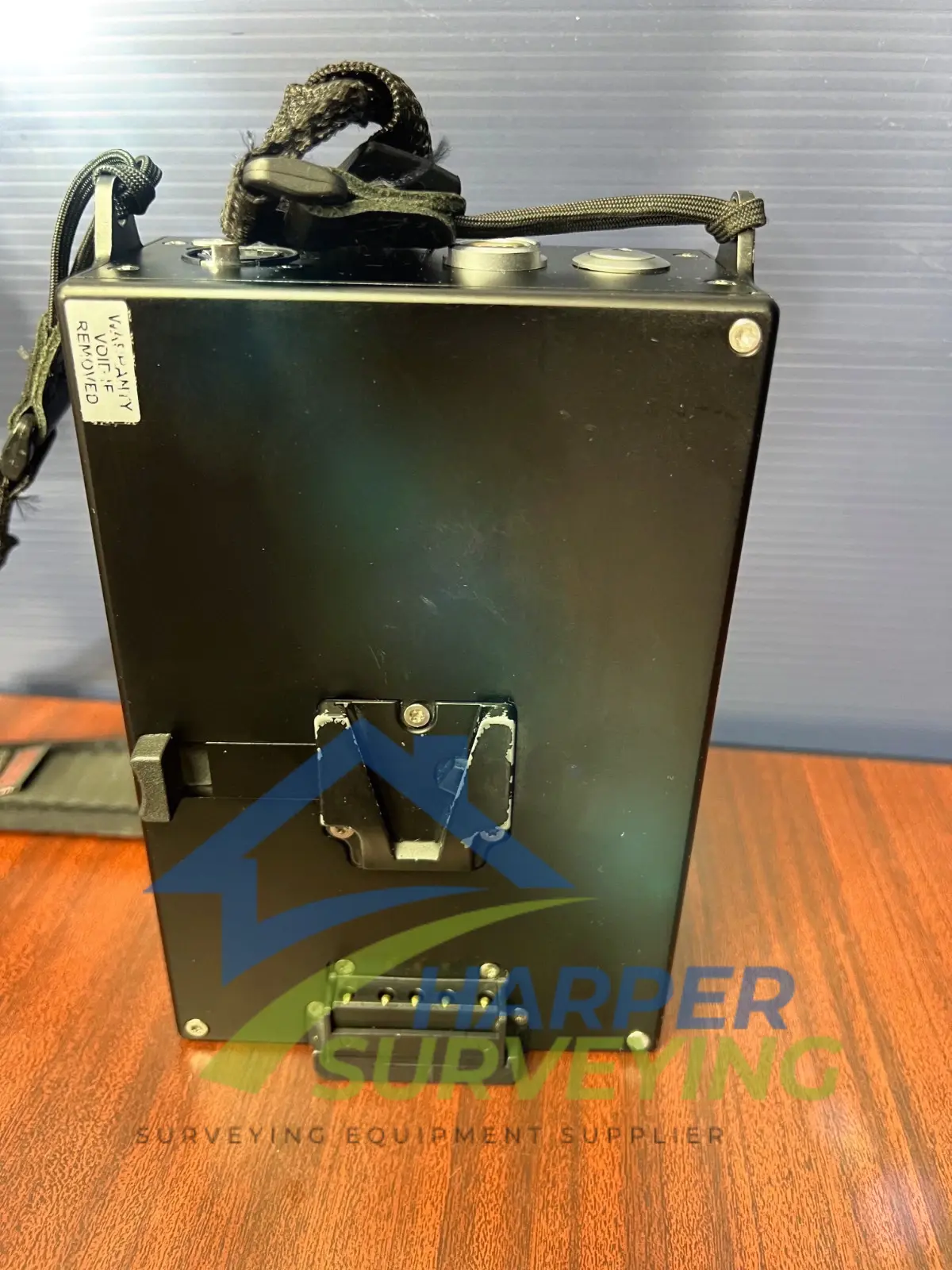

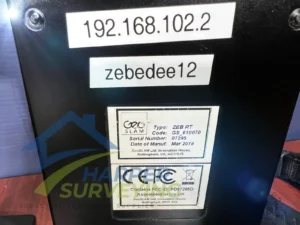

- Geoslam ZEB-REVO RT Processing Unit

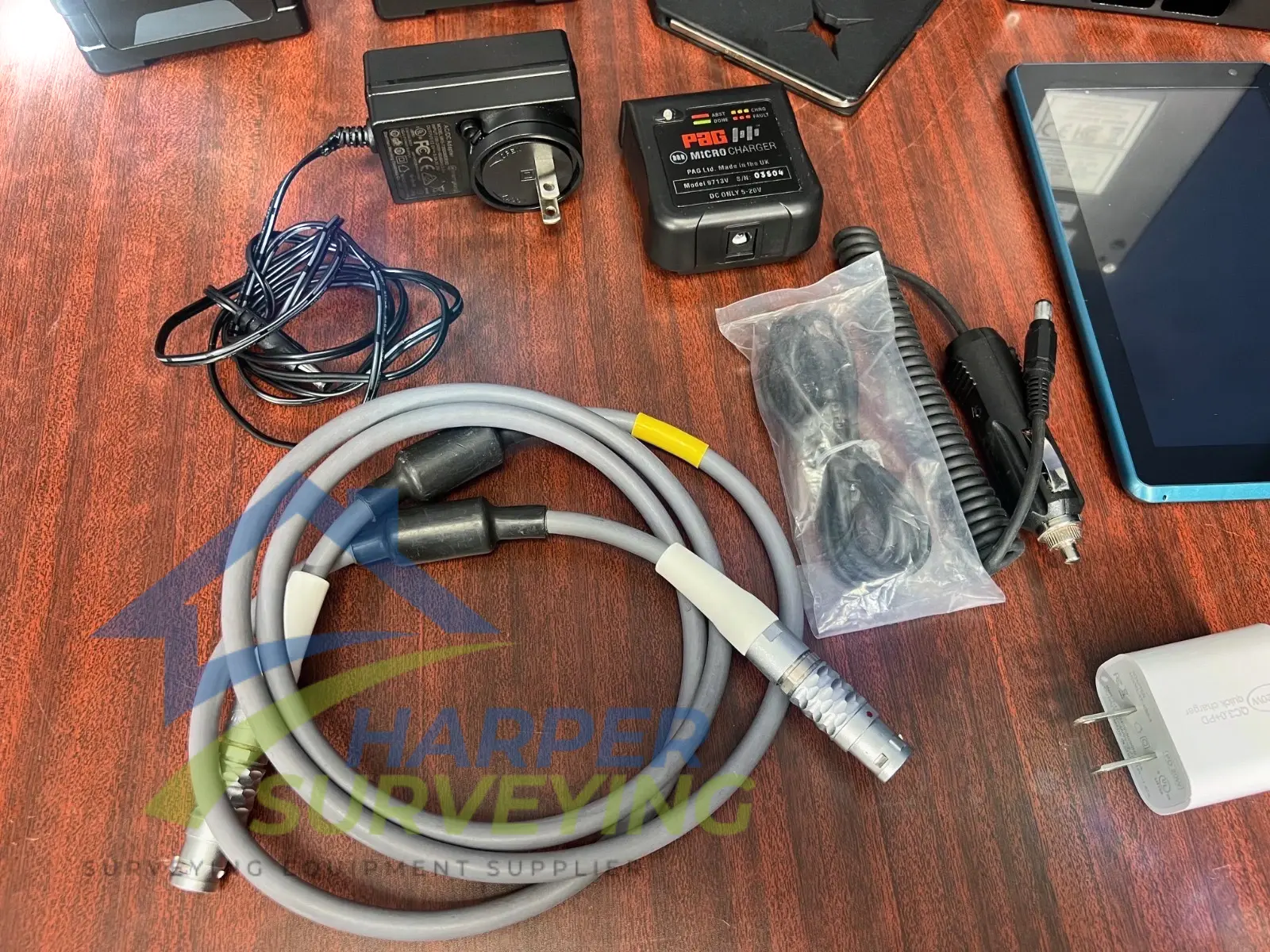

- Geoslam ZEB REVO main cable

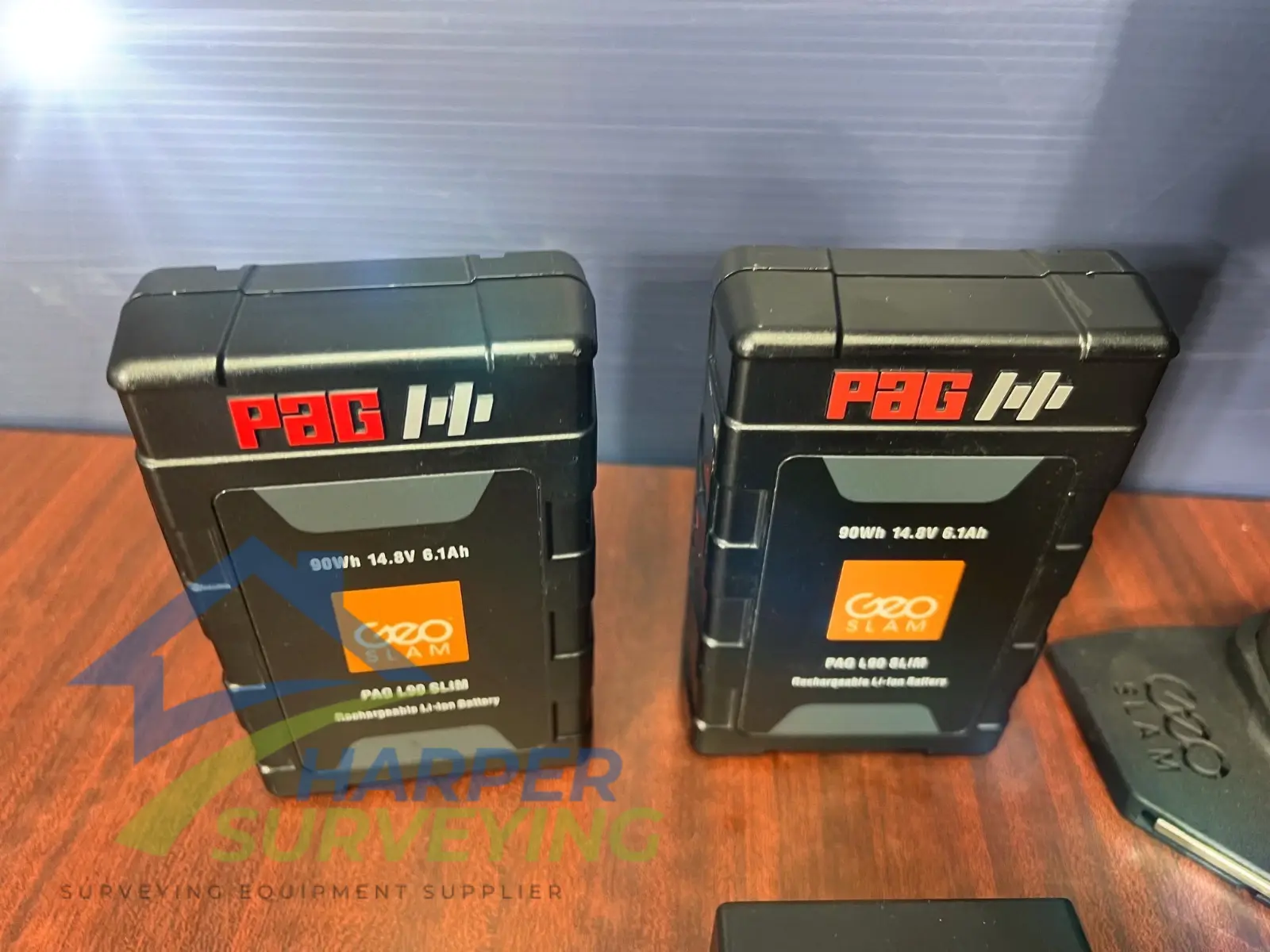

- ZEB-REVO RT battery
- ZEB-REVO RT battery charger
- MUS_40_1_5 Shoulder strap
- RS_832-347 Ethernet cable
- ZEB-CAM cable (compatible with RT Processing Unit)

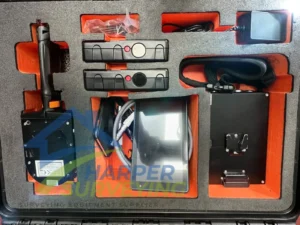

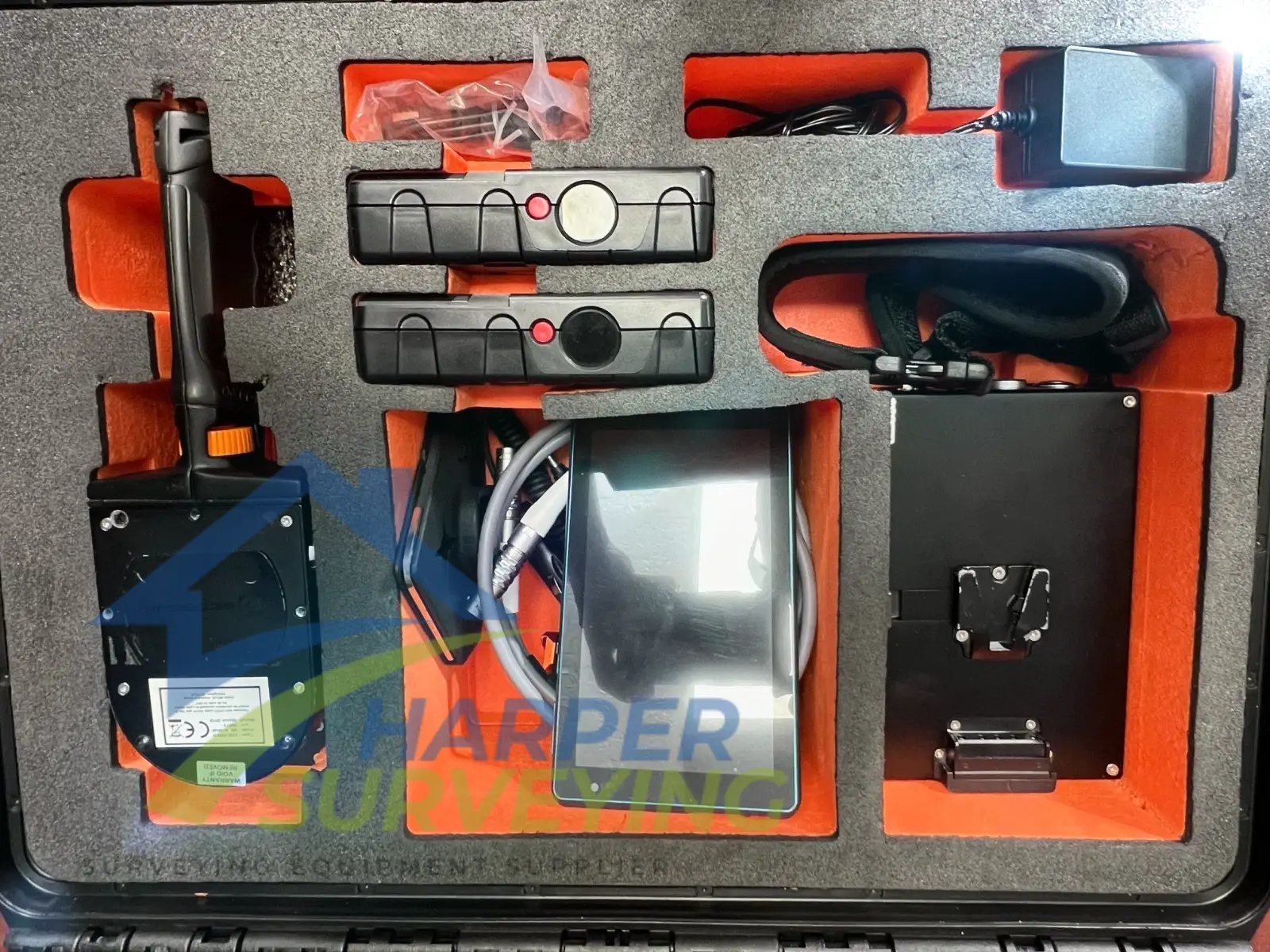

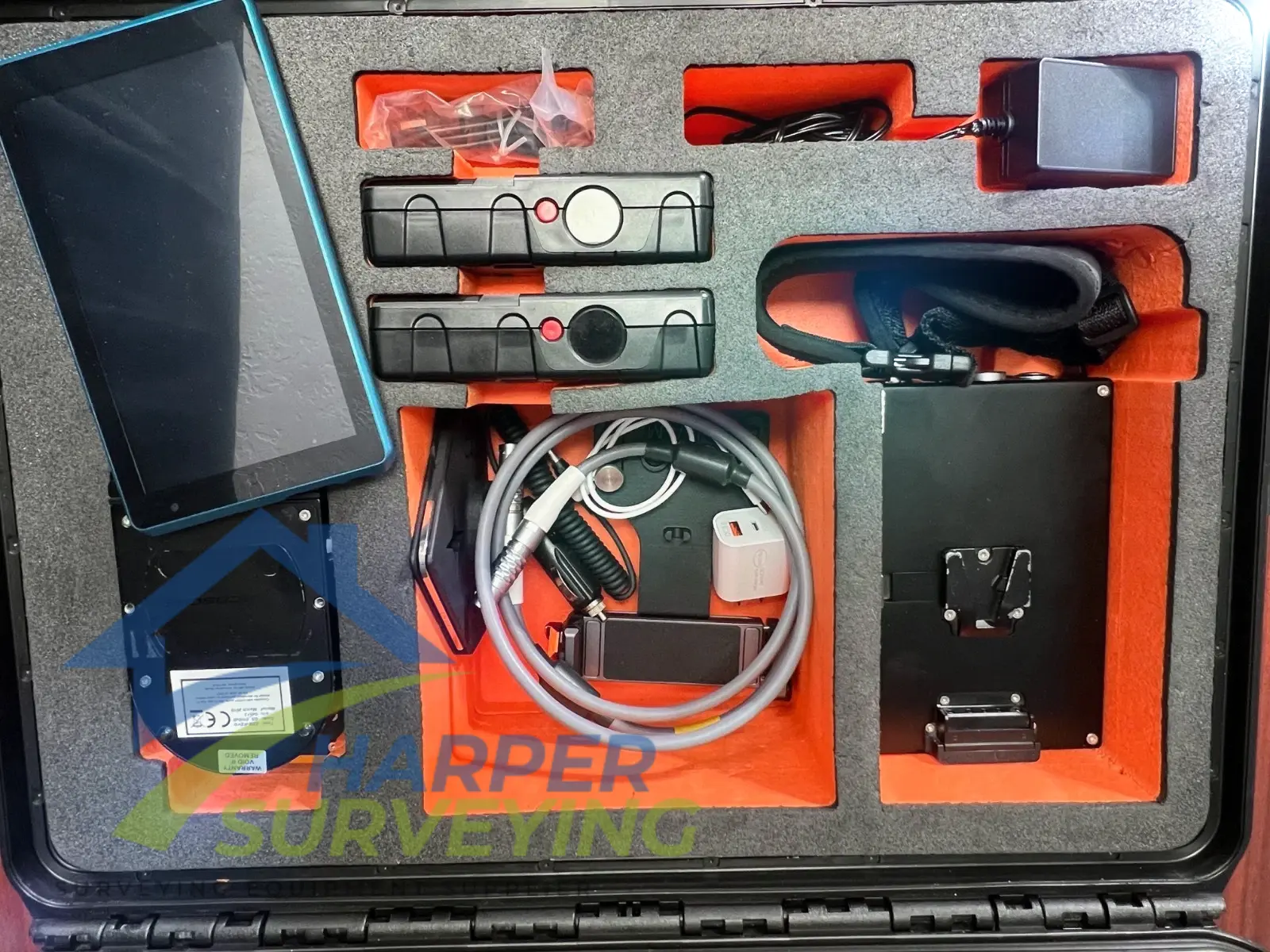

- Heavy Duty Carry Case
- GeoSLAM HUB license dongle and USB memory sticK

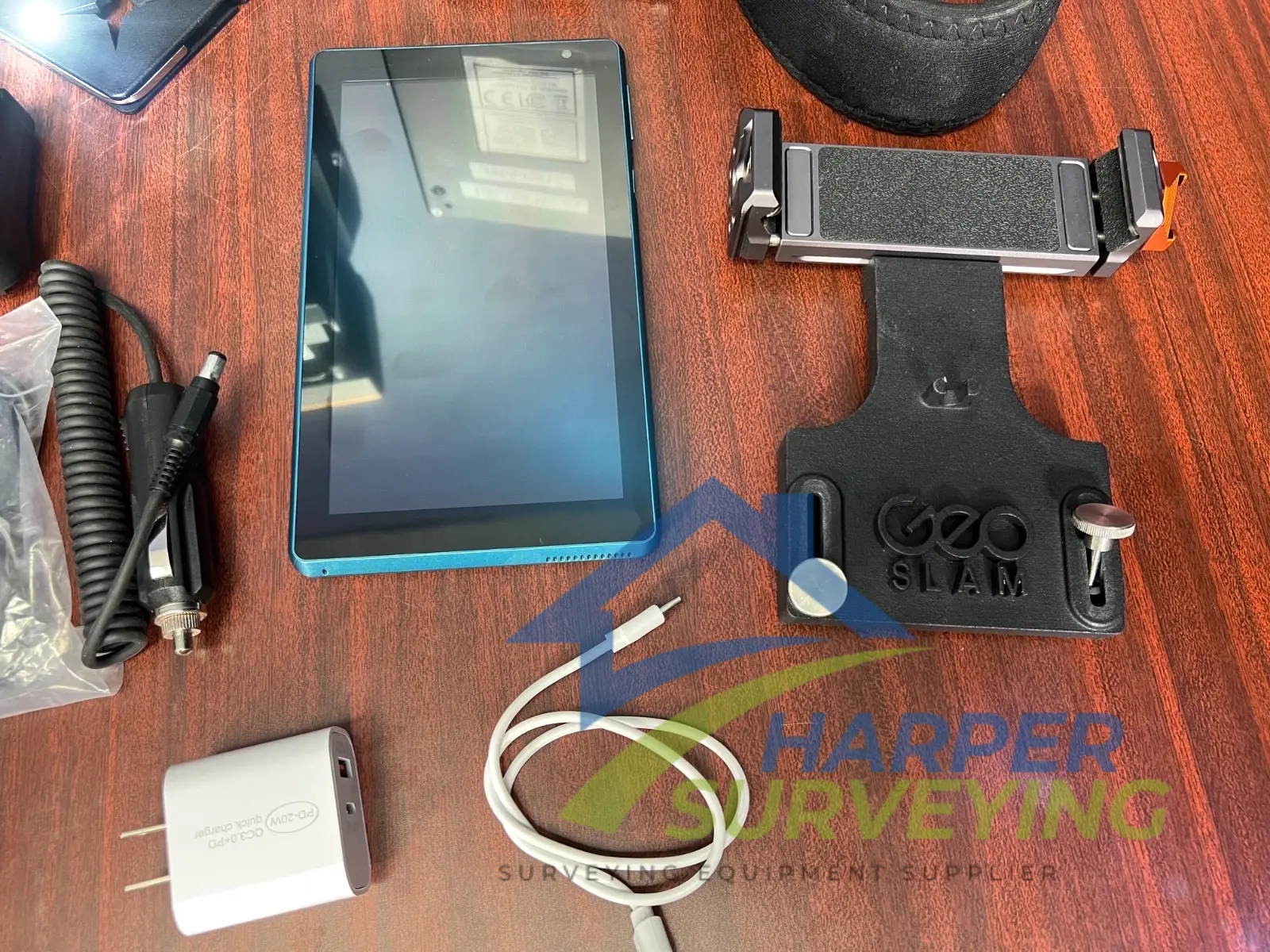

- Magnetic mount for tablet or cell phone
- Backpak
- 14.8V Battery charger
- ZEB Main cable (1.5m length)
- Ethernet cable (1.5m length)
- Android Phone for viewing real time (model may vary dependent on availability)
- USB memory stick
- Reference base
- Phone holder
- GeoSLAM Connect and GeoSLAM Care come STANDARD with every ZEB scanner
- GeoSLAM Connect software (Not Included with Open Box Products)
- 3-year hardware warranty when a valid GeoSLAM Care package is in place
