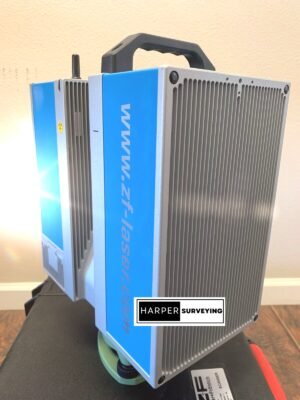

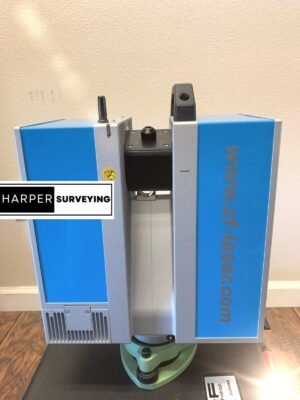

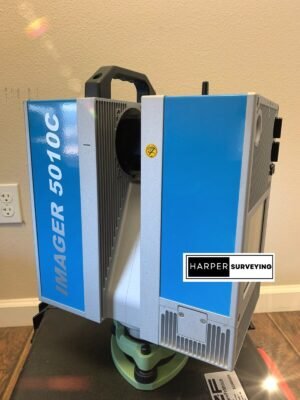

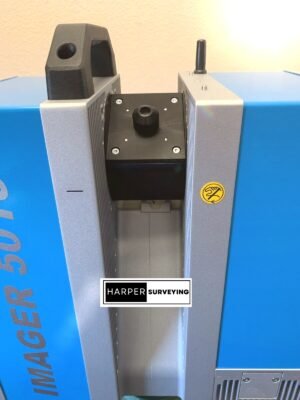

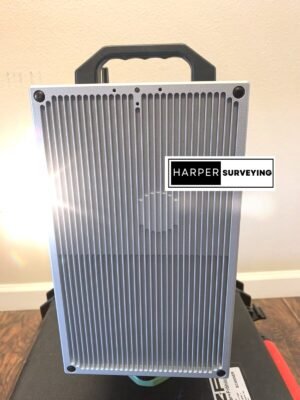

The Z+F IMAGER 5010C is a compact high-speed phase-based laser scanner with integrated HDR-camera, great precision, range and spherical fi eld of view. The unique stand-alone concept with integrated battery and color display with touch screen, as well as a digital dynamiccompensator and a laser plummet enable very fl exible use in real environments.
The terrestrial Z+F IMAGER 5010C sets new standards for laserscanner.
The integrated camera allows combining brilliant colours with high-resolution scan data. HDR-technology guarantees perfect illumination in all parts of the scene.
As an enhancement to the very successful 3D scanner series Z+F IMAGER, the advantages of the new camera are combined with the outstanding features of the Z+F IMAGER 5010. As the fastest laser-scanner with over 1 million points per second, the instrument allows to acquire data over an enormous distance, which, so far, could only be achieved with pulse scanners.
The Z+F IMAGER 5010C is a high-speed, phase-based 3D laser scanner renowned for its precision, efficiency, and integrated high-dynamic-range (HDR) imaging capabilities.
Key Features Z+F Imager 5010C 3D Laser Scanner
Measurement Speed
Captures up to 1,016,027 pixels per second, positioning it among the fastest 3D laser scanners available.
Range
Nominal range of 187 meters, enabling effective use in various terrestrial scanning scenarios.
Field of View: Vertical field of 320° and horizontal field of 360°, ensuring comprehensive area coverage.
Integrated HDR Camera
Equipped with a low-noise CMOS color camera that captures high-resolution, parallax-free color data. The HDR technology combines multiple exposures to produce images with enhanced dynamic range, resulting in more lifelike color representation.
Stand-Alone Operation

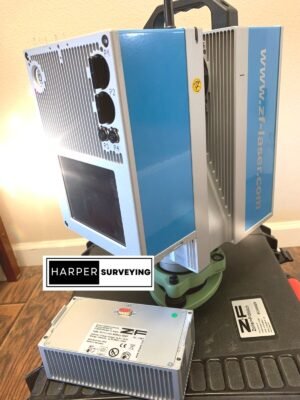

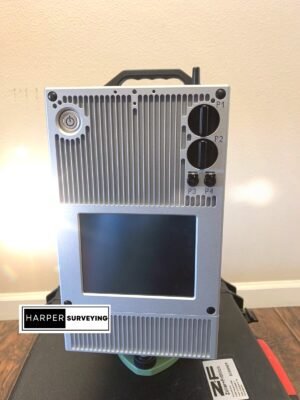

Features an integrated battery and a 5.7-inch color touch screen, allowing for independent operation without the need for external devices.Scan data can be stored on the internal 64 GB flash card or on two removable 32 GB USB flash drives.
Dynamic Compensator and Laser Plummet
Includes a digital dynamic compensator for correcting angular tilt during scanning and a laser plummet for precise positioning over known coordinates
Compact and Lightweight Design
Measuring 170 x 286 x 395 mm and weighing 9.8 kg, the scanner is portable and easy to handle, making it suitable for various field applications.
Applications
The Z+F IMAGER 5010C is versatile and can be employed in numerous fields, including:
Architecture and Construction:
For detailed condition assessments and planning of building projects.
Industrial Plant Documentation:
Capturing precise 3D data of facilities for maintenance and redesign purposes.
Cultural Heritage Preservation:
Documenting historical sites and artifacts with high accuracy.
Forensics and Accident Reconstruction:
Providing accurate measurements of crime and accident scenes for analysis and evidence preservation.
Overall, the Z+F IMAGER 5010C stands out for its speed, precision, and integrated imaging capabilities, making it a reliable tool for professionals requiring high-quality 3D data acquisition.
Zoller + Fröhlich, Germany, presented the Z+F IMAGER 5010C, one of the fastest terrestrial 3D laser scanners, at Intergeo 2012 in Hanover, Germany. The device includes a fully integrated HDR camera (i-Cam), a low-noise CMOS colour camera, integrated into the rotor, well-protected against environmental influences. In order to achieve a perfect image quality, even under difficult lighting conditions, the camera provides full HDR
panoramic images of up to 80 Mpixel per scan.
One focus is to always provide realistic panoramas. At each position, several images with different exposure times are taken (bracketing). The HDR image is generated from an exposure series, and therefore more lifelike than a single recorded image with only one
exposure time.
While scanning the user only selects the Z+F i-Cam. No further adjustments have to be made.
The scans are colourised within the software Z+F LaserControl. A special HDR method has been developed for the Z+F i-Cam. With method yields a high dynamic-range-image directly from the input images. To colourise one panoramic laserscan, 42 HDR images are generated and stitched to a complete HDR panorama. HDR image processing and colour mapping to laserscans are performed fully automatically for the entire project in batch processing.
The Z+F IMAGER 5010C is one of the most reliable and stable 3D laser scanners on the market. In addition to its high accuracy, the surveying system is characterized by its HDR camera, which captures high-resolution and parallax-free color data.
HDR offers a solution to display homogenous colour information.
Therefore serveral pictures of the same scene are taken with different exposure times, including intentional underexposed and overexposed pictures, in order to capture every contrast area correctly. Even those areas which would be underexposed are captured. After this process all pictures are merged into one high dynamic range picture, displaying an ideal result. HDR is not a new technology, but Z+F is the first manufacturer to integrate this capturing technique into a 3D laser scanner.
Z+F Imager 5010C 3D Laser Scanner benefits
Integrated calibrated camera
Best balanced colour imagery through
Z+F High Dynamic Range Technology
80 Mpixel full panorama generation
Extreme high speed laser sensor
Total eyesafety guaranteed by laser class 1
IP 53 conformity: dust & water resistant
The HDR picture is being generated in the Z+F Laser Control software and combined with the point cloud automatically. Compared to the manual method, Z+F’s HDR procedure does not require any previous knowledge in the field of photography, e.g. about aperture and exposure time, and allows a simple and quick 3D documentation of the surrounding area.
The integrated CMOS color camera is enormously low in noise. The lens is optimally tuned to the camera to produce high-quality images, even in the most challenging lighting conditions. With a maximum measurement rate of 1,016,027 pixels/sec, the Z+F IMAGER 5010C is one of the fastest 3D laser scanners on the market. Due to the wavelength, the device has a nominal range of 187 m. This range allows to use the scanner efficiently in almost all terrestrial applications.

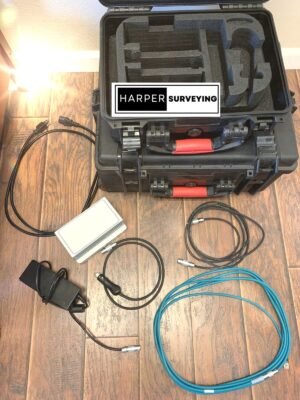

Z+F Imager 5010C 3D Laser Scanner includes
1 x Z + F IMAGER 5010C:
– With integrated HDR color camera;
– With dynamic compensator.
– one week of scanner training in the central office of Z + F. External training is possible with additional fees.
-3 years warranty;
– 1 calibration in the first one year after dispatch;
– Standard hardware support (validity: one year from the date of shipment):
– Minor and major firmware updates;
– Support by e-mail or telephone at regular Z + F hours;
– Analysis of problems and errors by phone and / or e-mail.

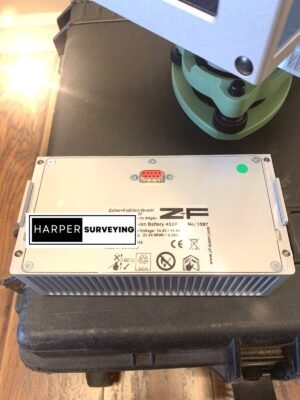

2 x 5010 rechargeable lithium-ion batteries;
1 x Embassy;
2 x USB modules with 32 GB each;
1 x 100-240 V ++ power cord (plugs available: Schuko, CH, USA, UK);

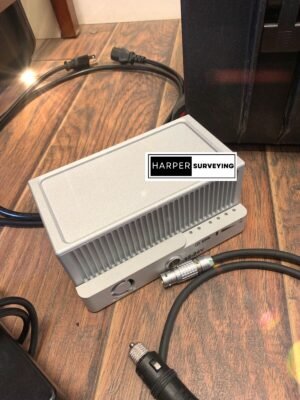

1 x 5010 battery charger + 12 V connection cable;
1 x 2.5 m extension cable;
1 x 5 m Ethernet cable;
1 x Cleaning set;
1 x Manual Z + F IMAGER 5010C English;

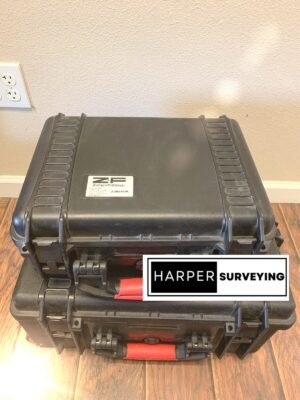

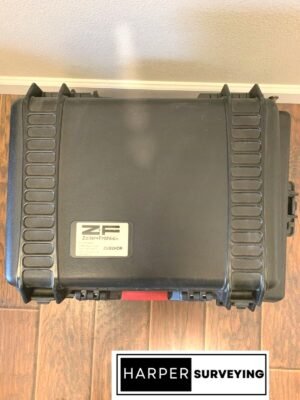

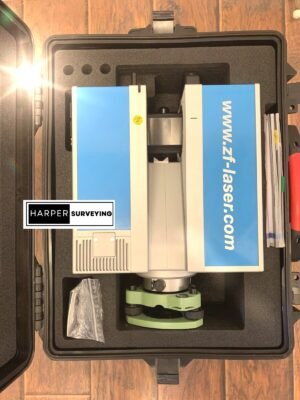

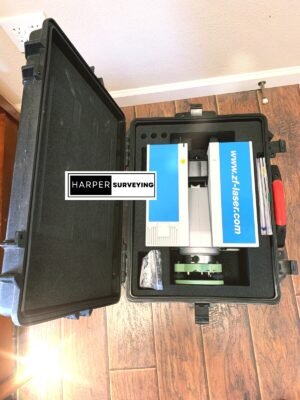

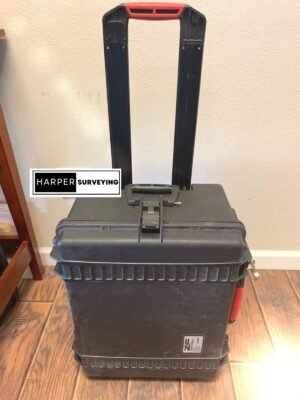

1 x Transport case (trolley) for Z + F IMAGER 5010C;

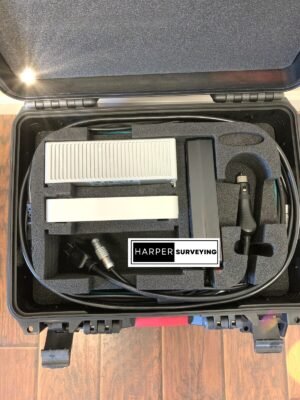

1 x Carrying case for accessories Z + F IMAGER 5010C;
1 x Dongle for Z + F LaserControl;
– USB software package: LaserControl Z + F elements;
– Z + F IMAGER 5010C digital documentation.
