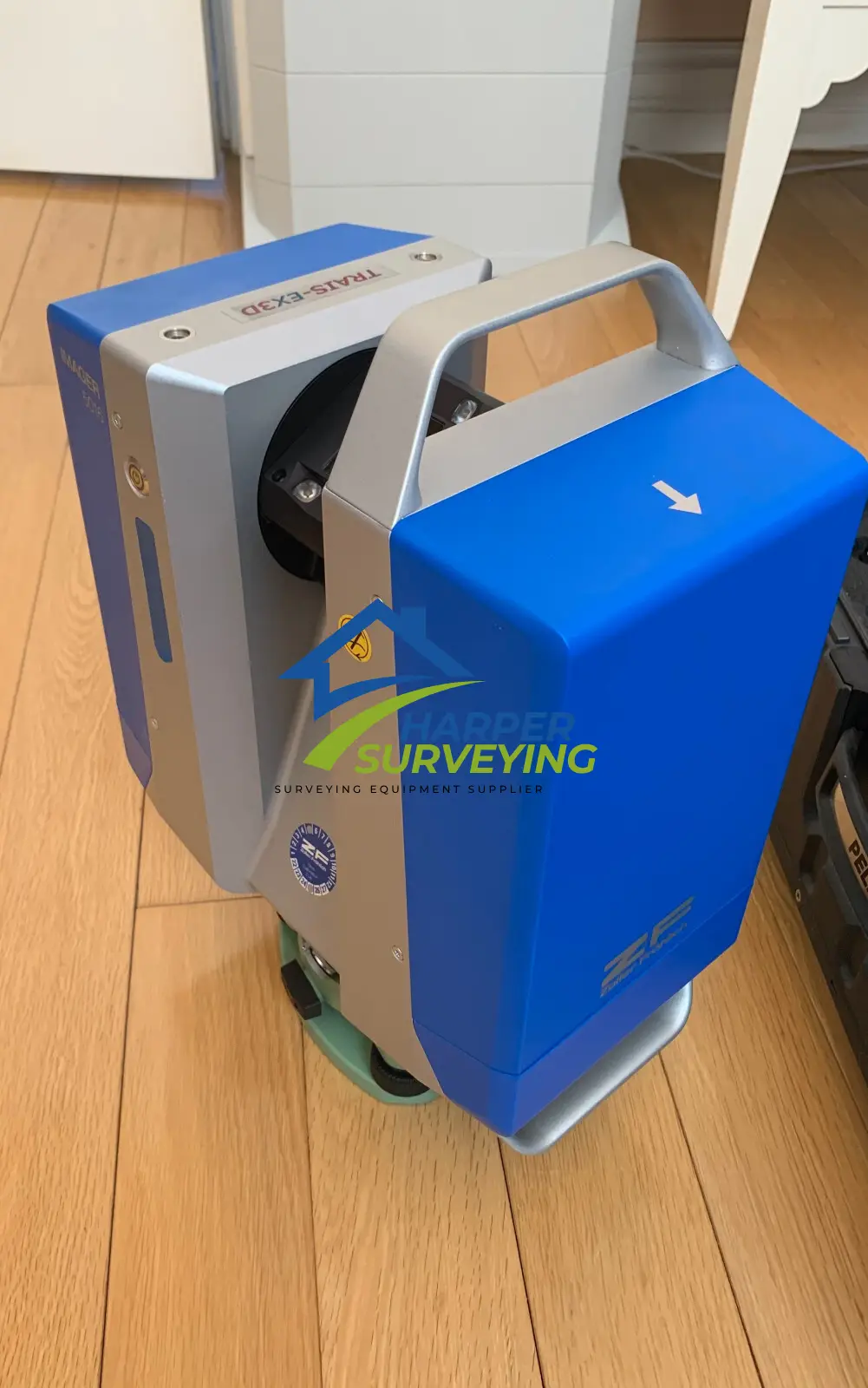

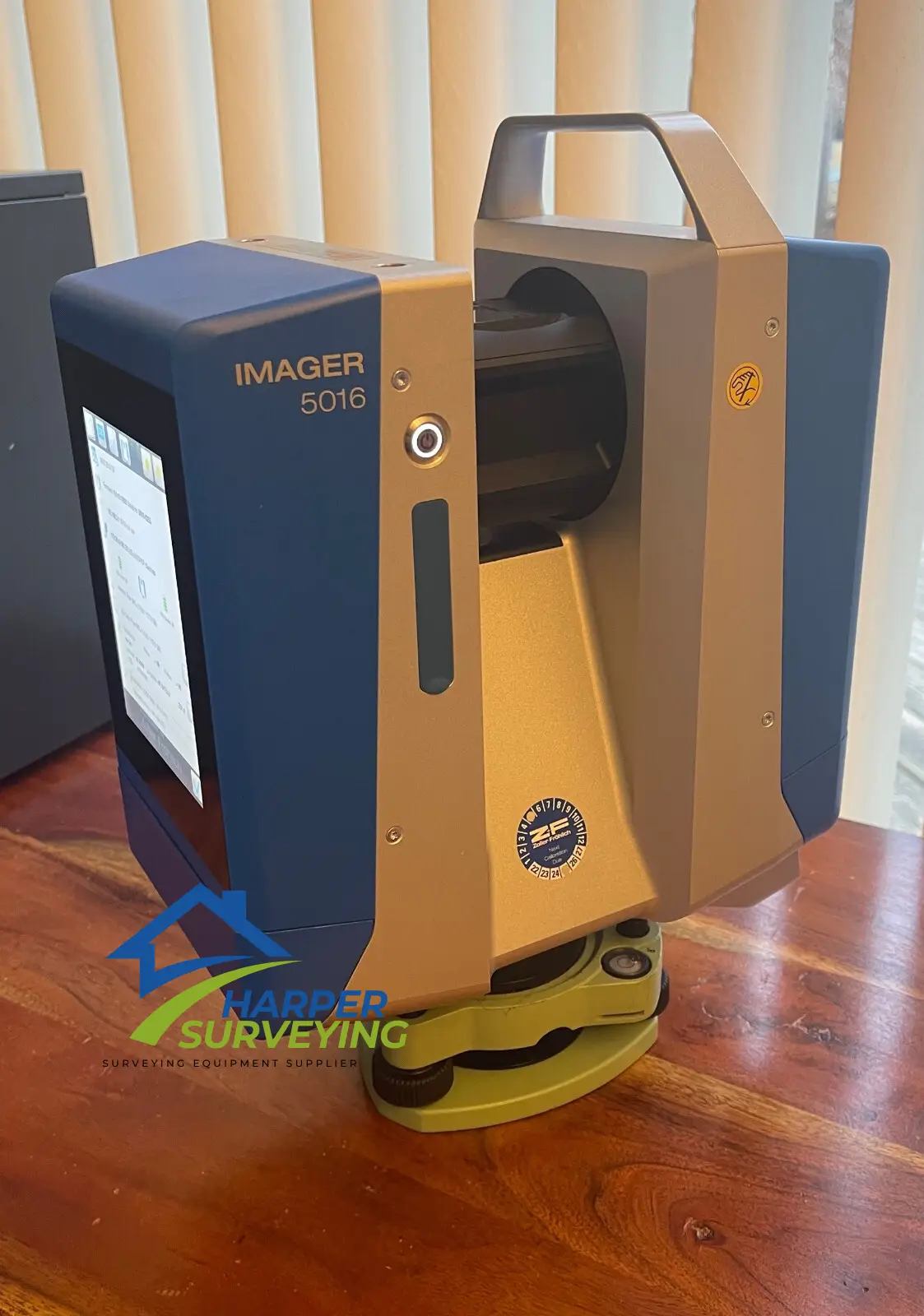

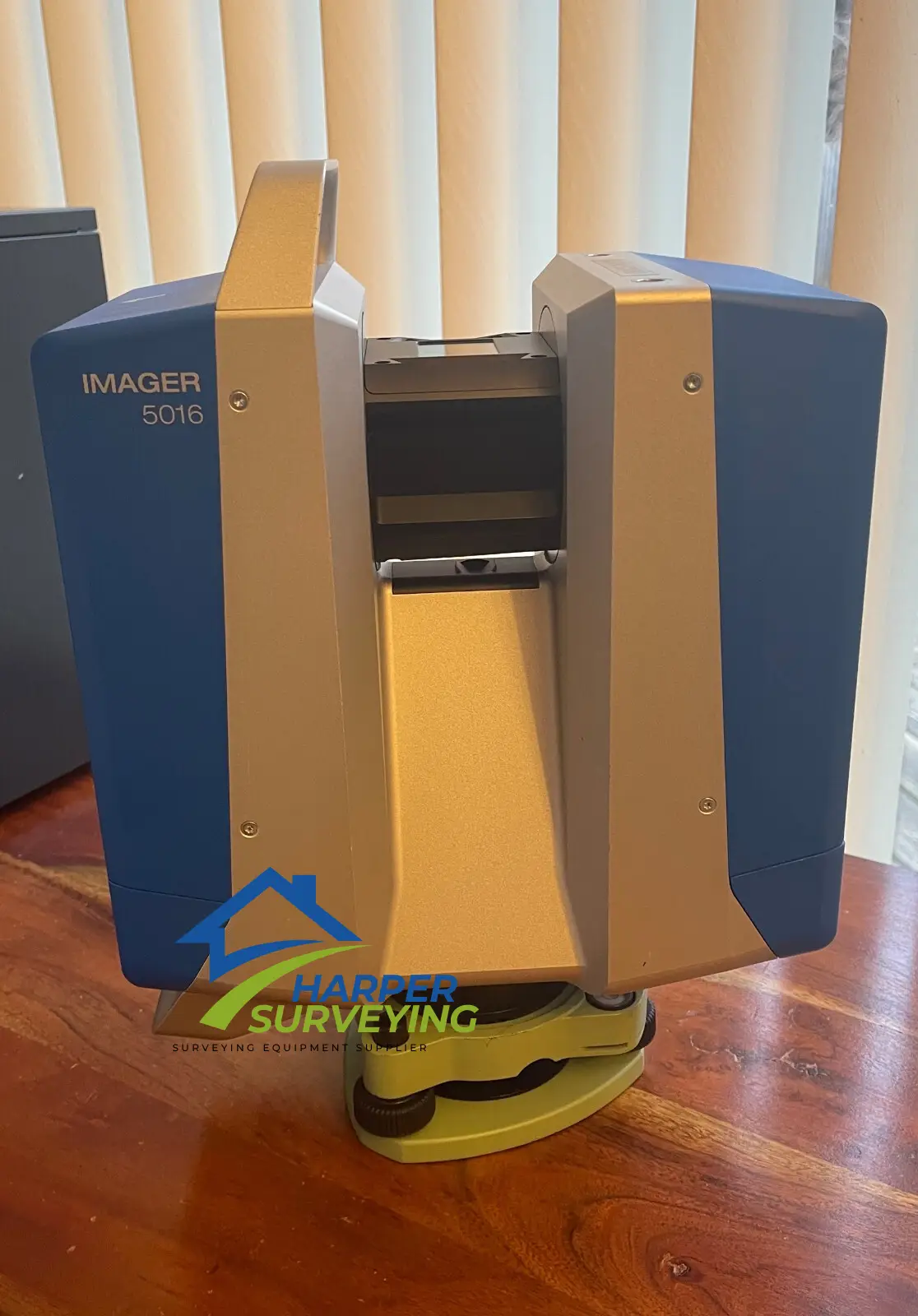

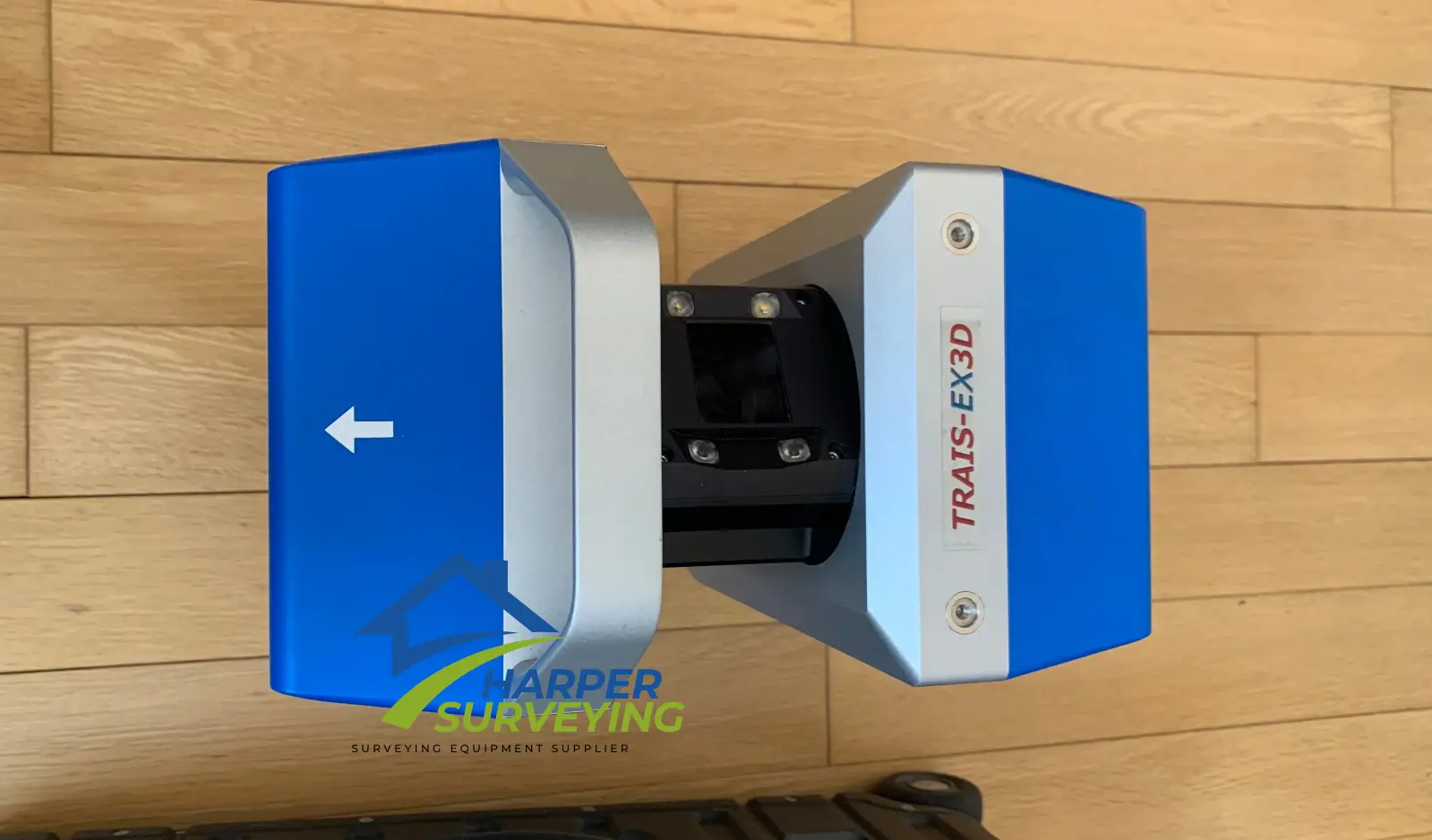

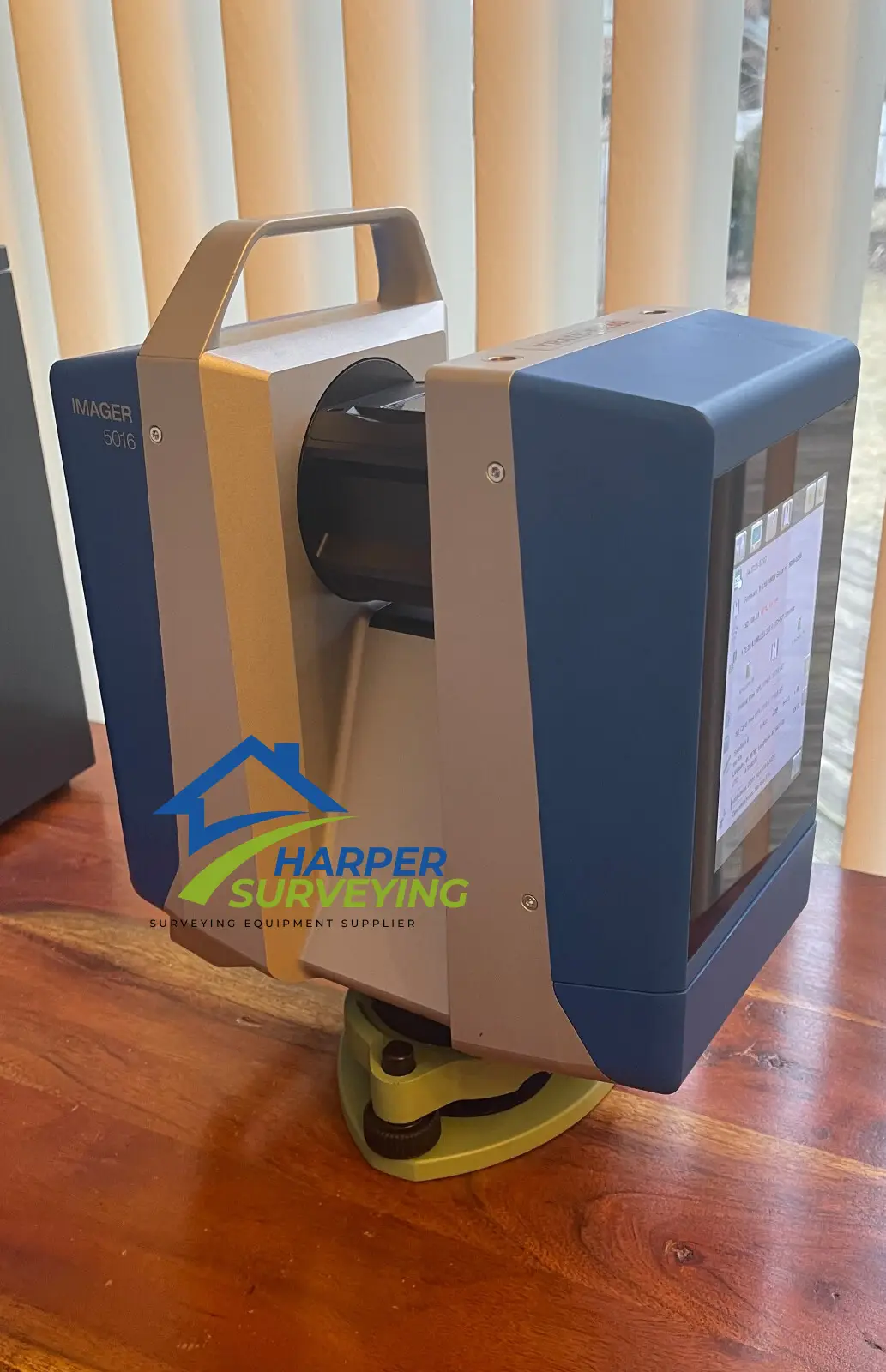

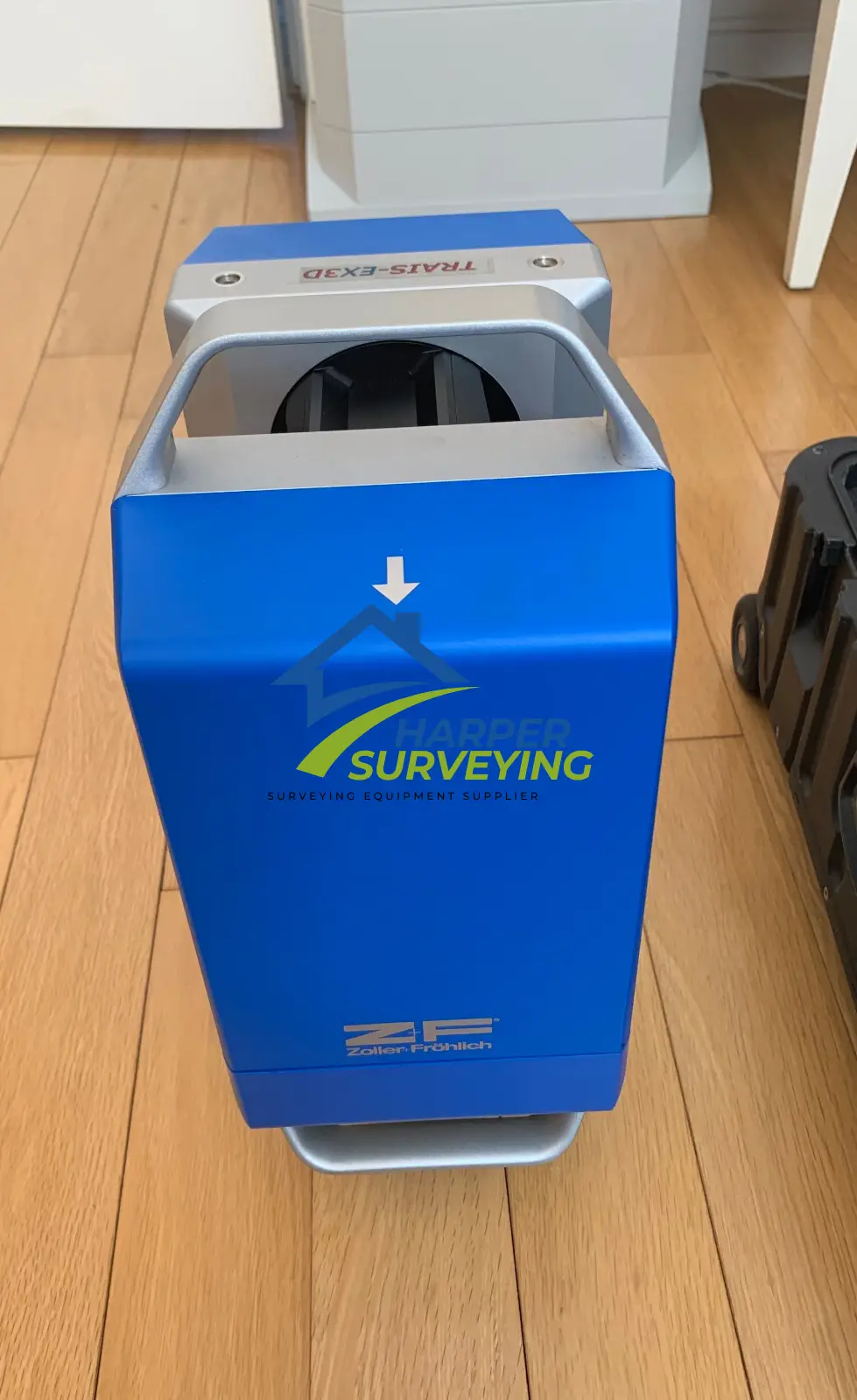

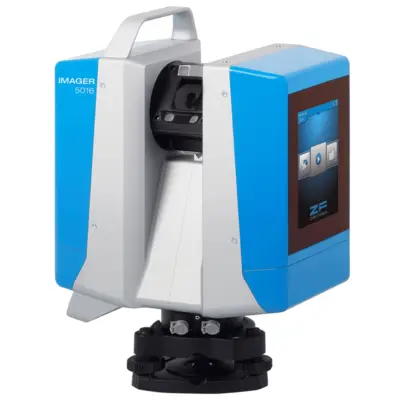

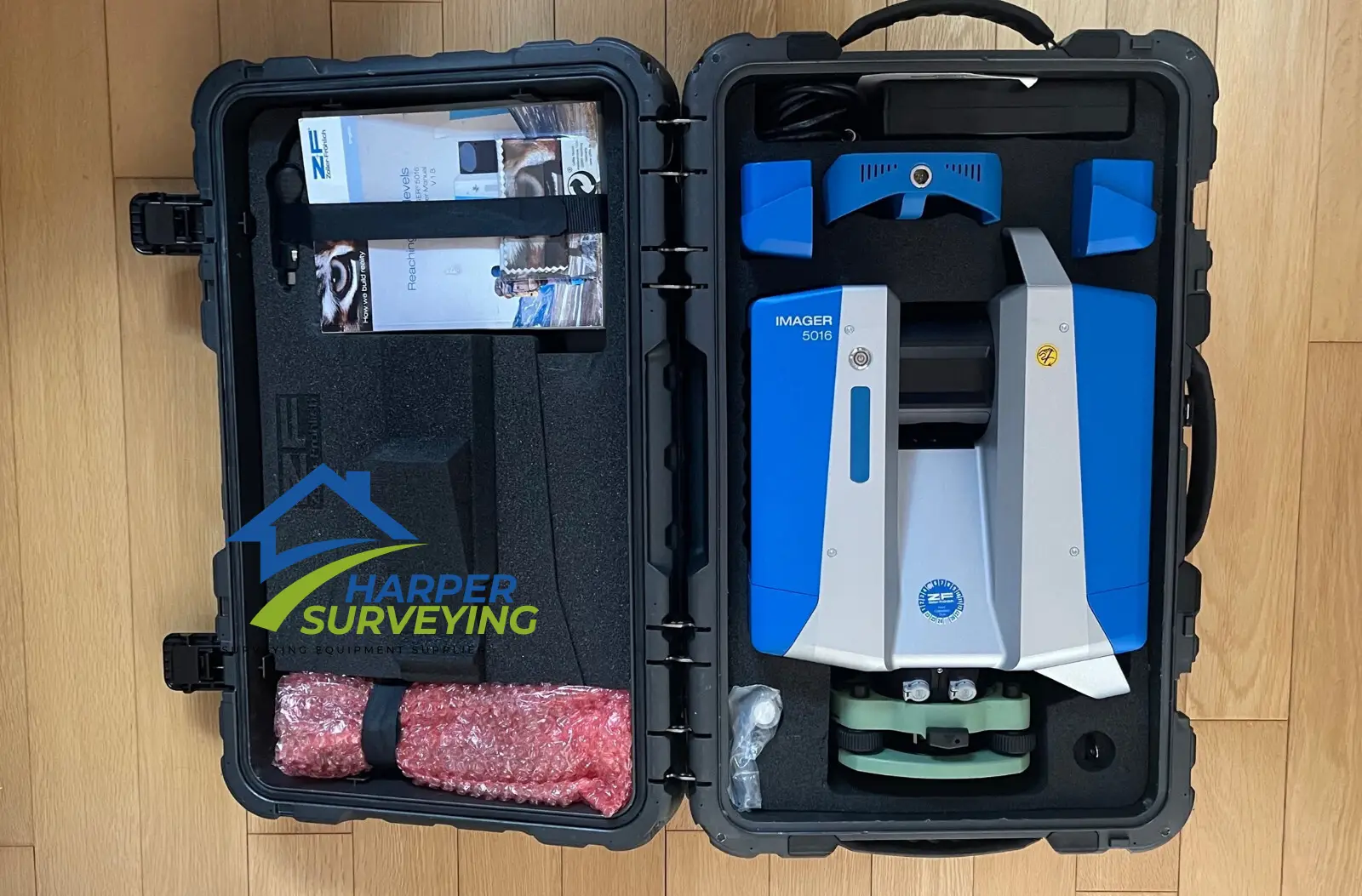

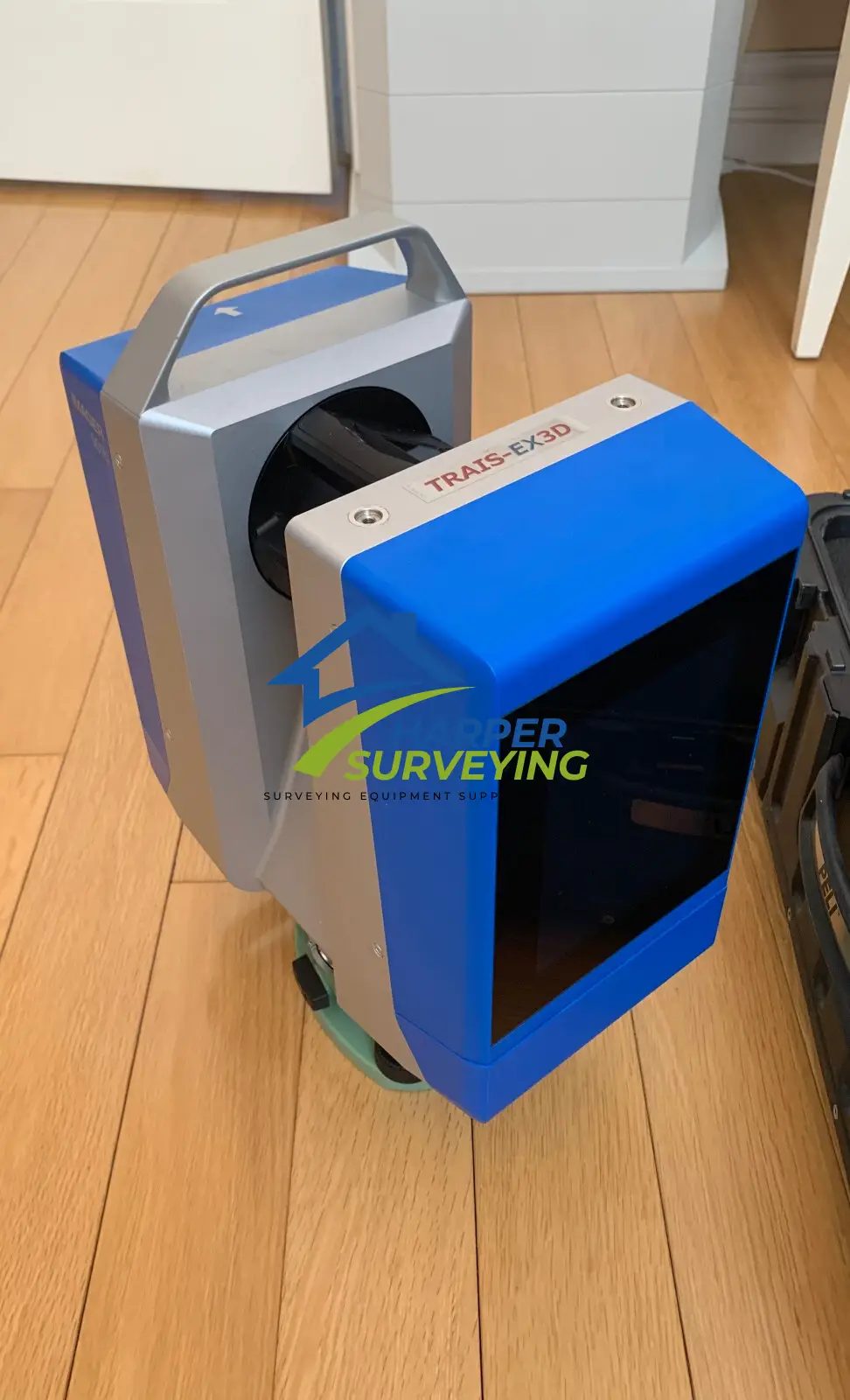

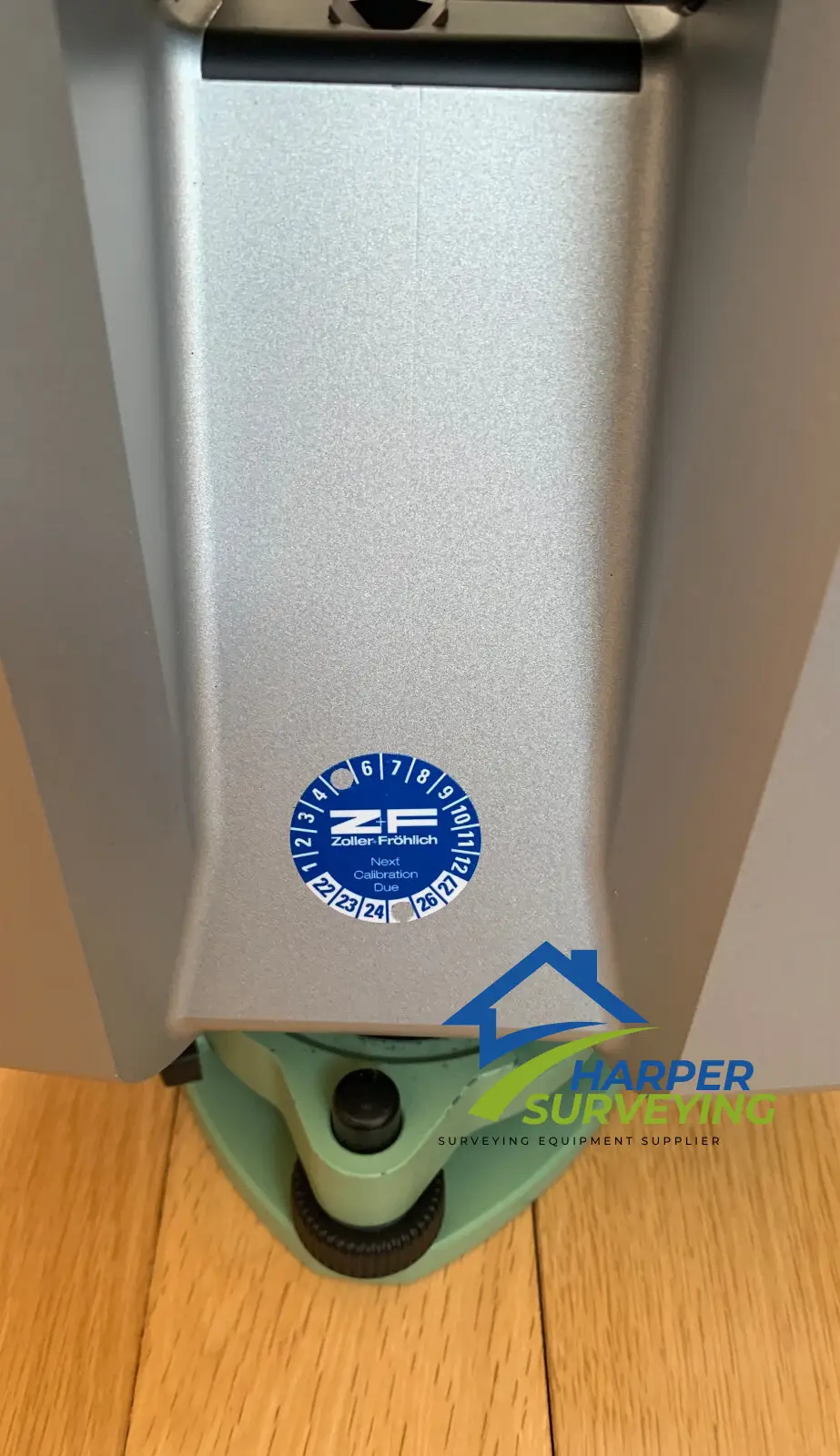

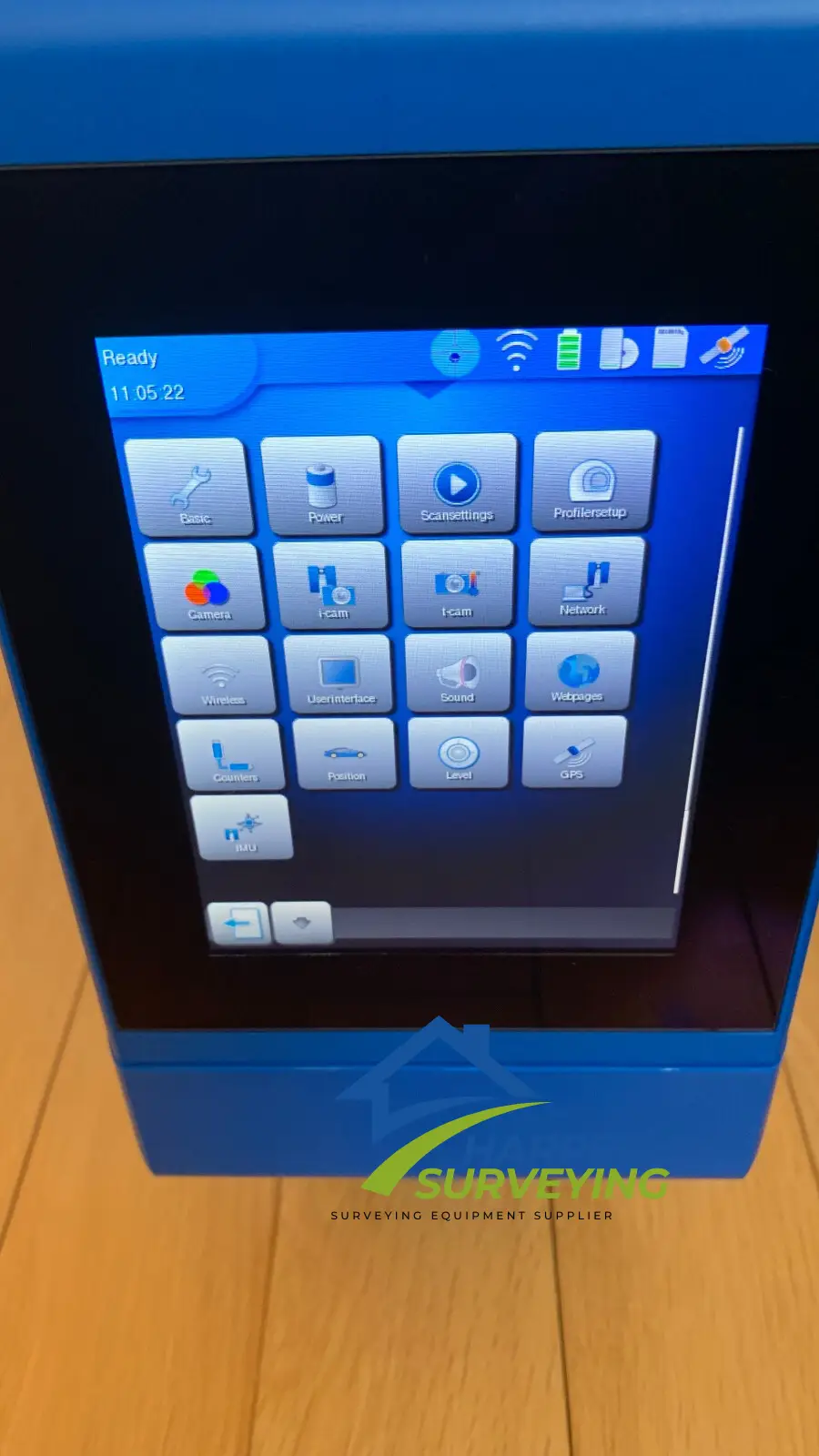

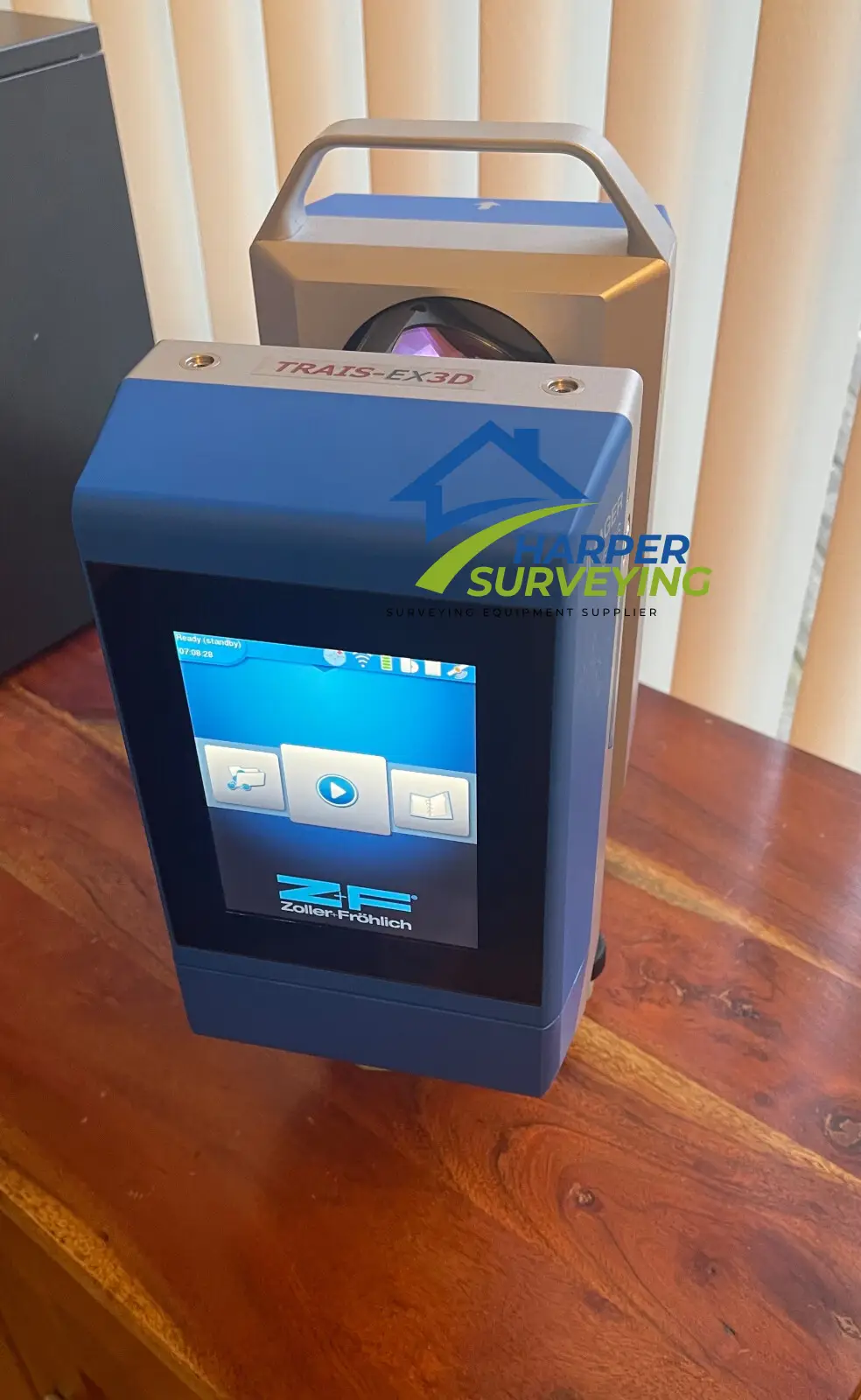

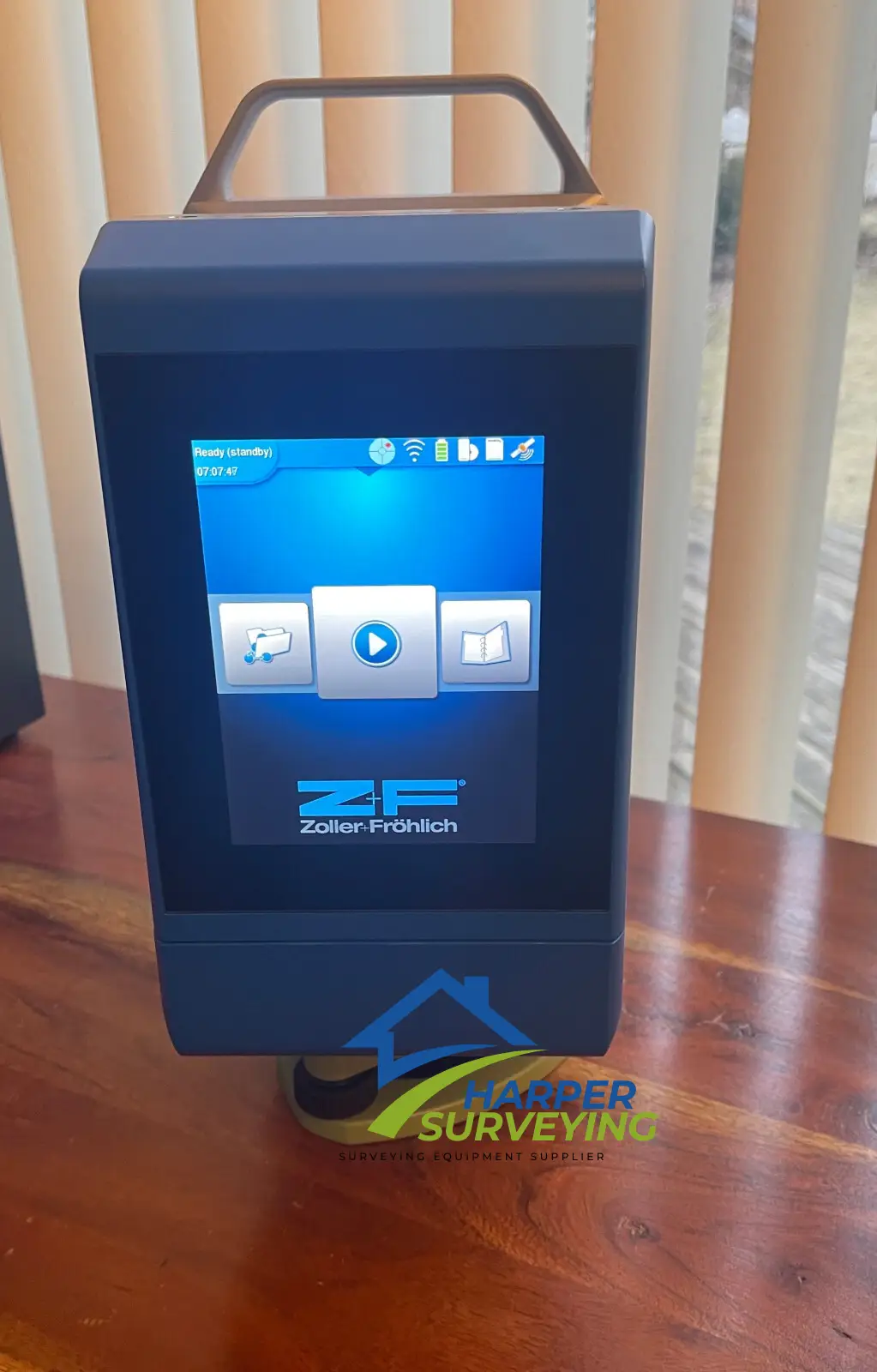

The Z+F IMAGER 5016, 3D Laser Scanner – Zoller + Fröhlich combines compact and lightweight design with state-of-the-art 3D laser scanning surveyor technology – allowing the user to reach new levels. It’s equipped with an integrated HDR camera, internal lighting and positioning system.
All components of the terrestrial Z+F IMAGER 5016 have been further developed and adjusted to the new design, resulting in even better scanning results and a more efficient workflow. With feature A, which stands for Advanced, the 5016 receives twice as high scan rate of up to 2.187 million pixels/second and more options for leveling the scanner. If the dynamic compensator is deactivated or the tilt is outside the defined range, the tilt is detected by the IMU of the Z+F IMAGER 5016A
Due to innovative developments, the maximum range of the new terrestrial 3D laser scanner Z+F IMAGER® 5016 has been extended to up to 365 m – thus establishing new opportunities and applications. The maximum measurement rate of more than 1 Mio. points/sec. guarantees highly accurate results even with long distances.
Its 360° x 320° field-of-view assures great coverage of the scanned area, reducing the number of scan positions necessary to a minimum.
The scanner is classified as „eye-safe“ according to laser class 1 and can therefore be used in public areas without any restrictions.
The terrestrial laser scanner Z+F IMAGER® 5016 is equipped with an integrated positioning system, which allows the automatic registration in the field, with or without targets. All preprocessing tasks can be taken care on the fly, increasing efficiency. Please read the ”real-time registration” section of this brochure for more information. In addition, the scanner comes with an integrated HDR camera, which allows the user to quickly capture colour information – even in challenging lighting conditions
Z+F IMAGER 5016 Feature
- Very high scan rate
The Z+F IMAGER® 5016A measures 2.187 million pixel / second.
- Optimized leveling
The IMU integrated in the scanner enhanced leveling.
- High accuracy of navigation
In the course of the IMU expansion, the accuracy of the scanner navigation itself has also been significantly improved and with it the accuracy of the automatic registration.
· Fast image capture
Recording color information is indispensable for many applications. The image acquisition (80MPixel) takes only 2 minutes with the Z + F IMAGER® 5016.
· Integrated LED spots
The new HDR camera of the Z + F IMAGER® 5016 is equipped with LED spots which provides additional flexibility. No external light sources are required to take the pictures in a dark environment.
· Internal memory and data transfer
The scanner has internal storage capacities of 128 GB. Data can be transferred quickly via the SD card slot, Ethernet connection or WiFi. The WiFi works according to the 802.11a / n / g standard and frequency range 2.4GHz / 5 GHz.
Z+F IMAGER 5016 Specification
- blue workflowCompatible with the Z+F FlexScan
Compatible with the Z+F TopCam
Real-time registration on-site
Data and target verification
Multi-scanner support
IMU optimized levelingLaser systemLaser class: 1
Beam diameter / divergence: ~ 3.5 mm @ 1m / ~ 0.3 mrad (1/e2, half angle)
Measurement range: 0.3 m … 365 m (ambiguity interval)
Range resolution: 0.1 mm
Data acquisition rate: Max. 2.187 million pixel/sec.
Linearity error: ≤ 1 mm + 10 ppm/m
Range noise: 0.25 mm rms
HDR camera
Type: HDR, automatic, up to 11 exposures
Recording time: approx. 2 min, parallax free
Focus area: 1m – ∞
Panorama resolution: ca. 80 MPixel
Illumination system: integrated LED spotlights, 700 lm
Deflection unit

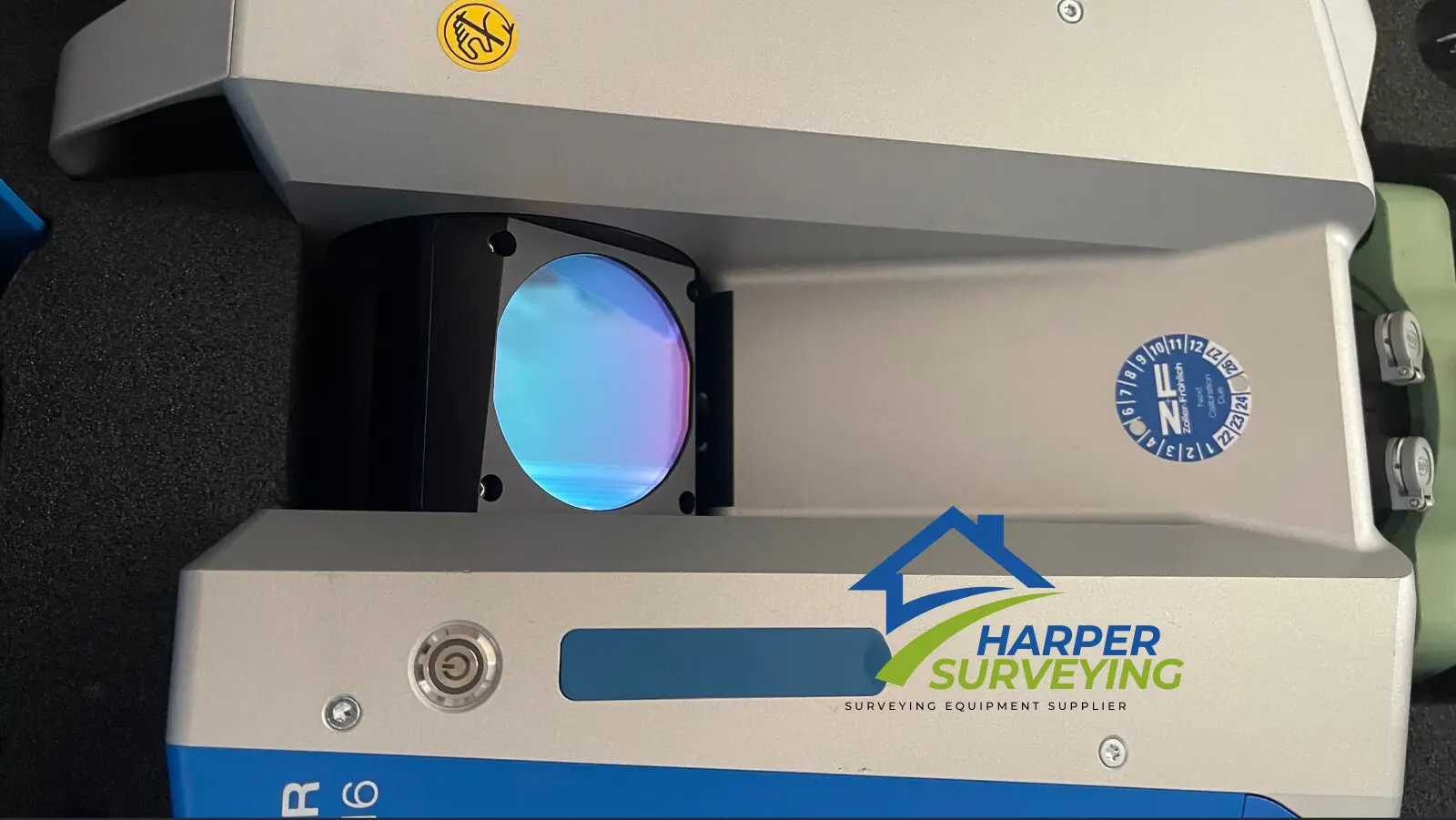

Deflection system: completely encapsulated rotating mirror with integrated HDR camera and LED spots
Vertical field of view: 320°
Horizontal field of view: 360°
Angular resolution, vertical: 0.00026° (0.93 arcsec)
Angular resolution, horizontal: 0.00018° (0.65 arcsec)
Vertical accuracy: 0.004° (14.4 arcsec) rms
Horizontal accuracy: 0.004° (14.4 arcsec) rms
Rotation speed: max. 55 rps (3,280 rpm)
