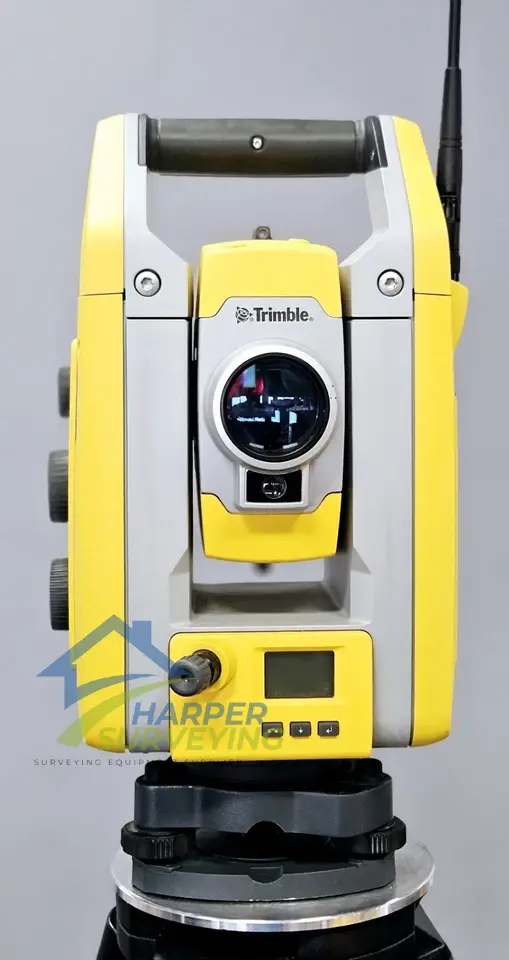

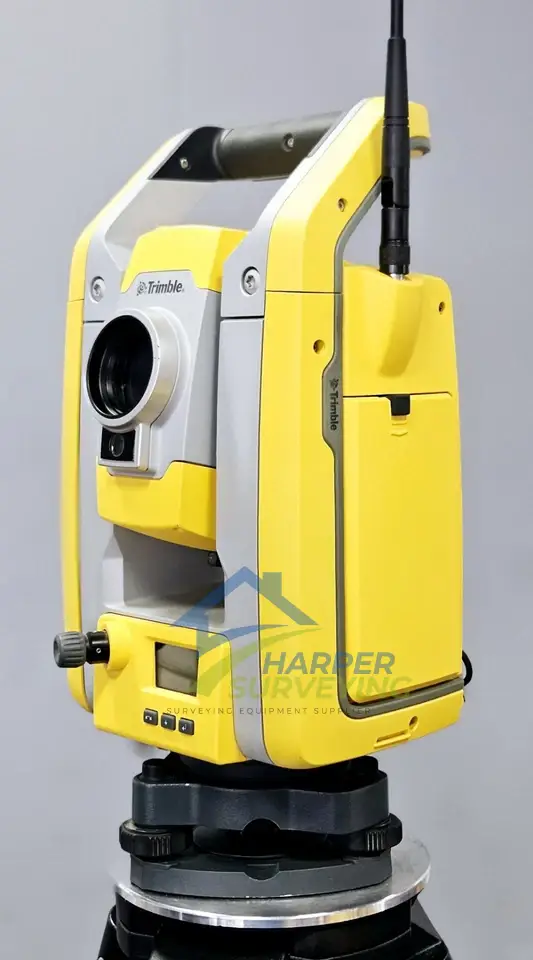

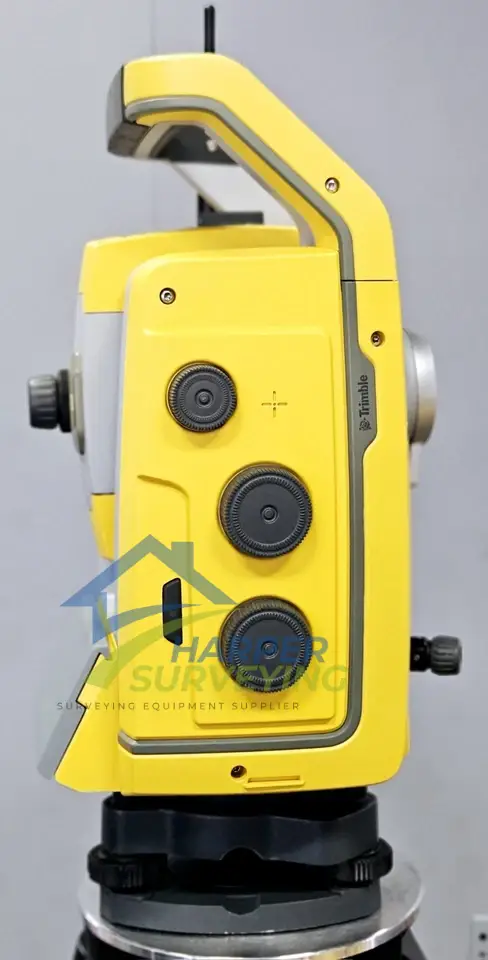

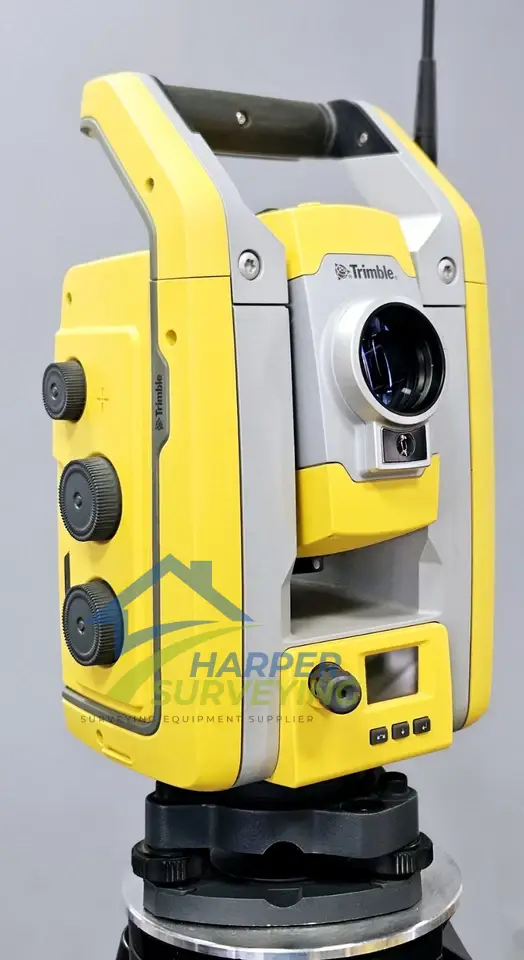

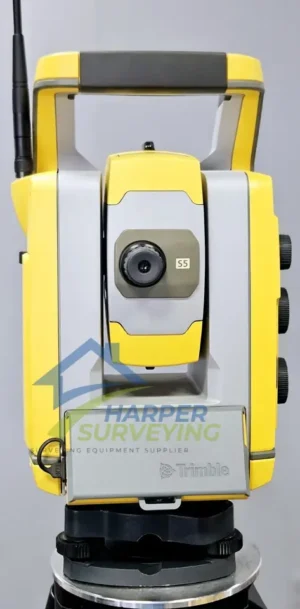

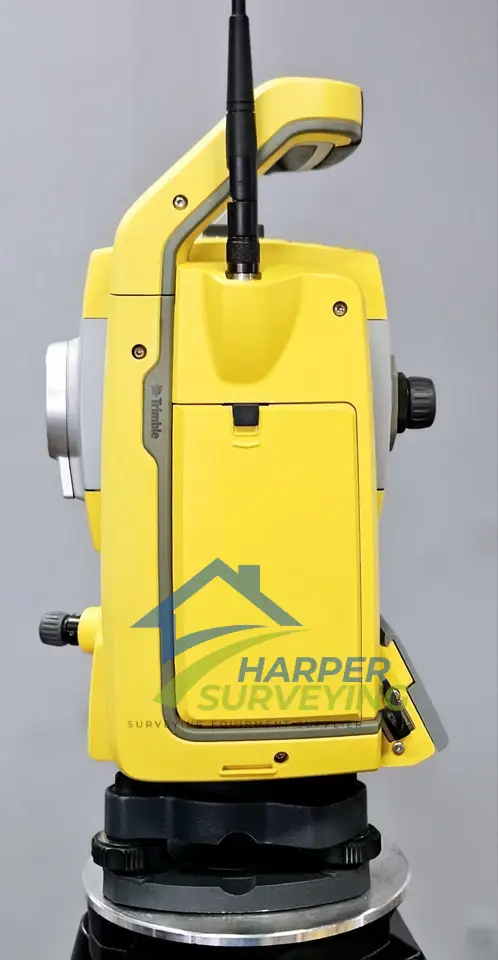

The Trimble S5 1” DR Plus Robotic Total Station Kit TSC7 Access MT1000 DR+ is built upon proven Trimble technologies like SurePoint, MagDrive and our DR Plus EDM, helping you work more efficiently while maintaining the highest accuracy possible. Smooth and silent, Trimble MagDrive electro-magnetic technology means fewer moving parts. Trimble SurePoint ensures accurate pointing and measurements by actively correcting for unwanted movements like winds, handling, and sinkage. The Trimble DR Plus EDM allows you to measure with fewer instrument set-ups and enahnce your direct reflex performance.
The Trimble S5 robotic total station is a reliable and efficient tool for surveying professionals. It is built with proven Trimble technologies, including Trimble MagDrive, SurePoint, and the DR Plus EDM, which ensure high accuracy and precision.
Trimble S5 1” DR Key Features
- Angular accuracy: 1″, 2″, 3″, or 5″
- EDM technology: DR Plus EDM accuracy 1.0 mm + 2 ppm Prism/2.0 mm + 2 ppm DR
- Silent Rotation: Built with Trimble MagDrive, it can turn-to points with lightning-fast speeds, rotating at 115 degrees per second with precision Trimble MagDrive technology.
- Active Tracking: Add Active Tracking technology to reliably track your prism in the most challenging environments.
- Trimble Sentinel: Add our optional device tracking software to keep tabs on your S5 total station and know where it is all day, every day.
Trimble S5 1” DR Specification
- BrandTrimble
- Product TypeRobotic Total Station
- Active TrackingYes
- Angular Accuracy1″
- Autolock TechnologyAutolock®
- EDM Range5500 m (18000 ft)
- EDM Reflectorless Accuracy2 mm + 2 ppm
- EDM TechnologyDR Plus
- IP RatingIP55
- Laser PointerStandard Red Laser Pointer
- Plummet TypeOptical
- Scanning CapabilityNo
- Total Station TypeS5 1″
- Warranty 3 years
The Trimble TSC7 controller has Trimble Access 2024.xx and is a perpetual license. The Trimble EM120 2.4GHz robotic radio is also included.

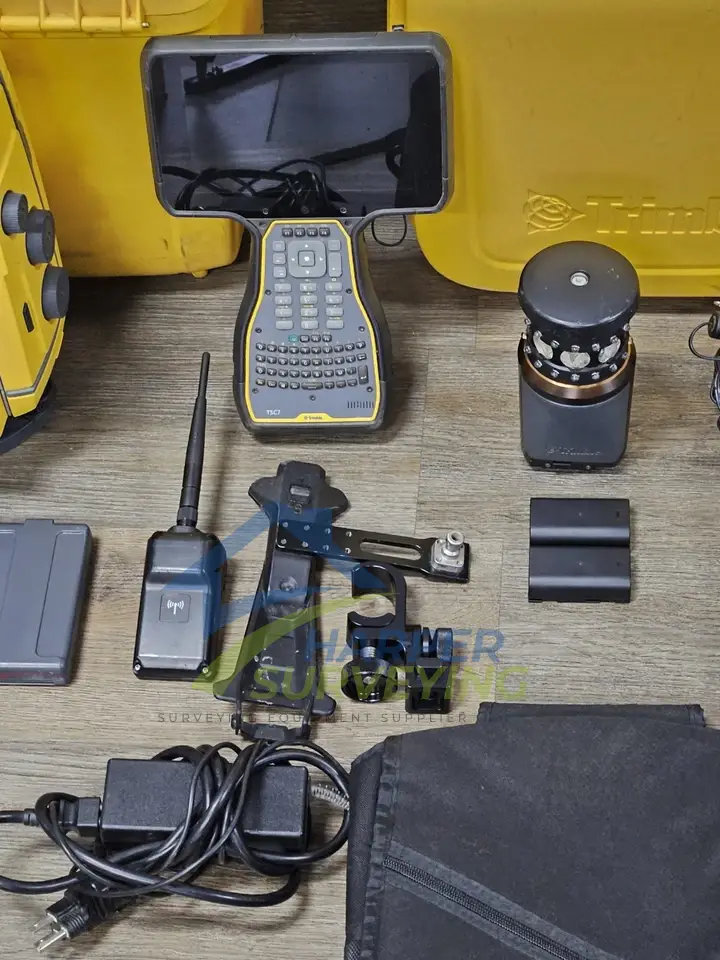

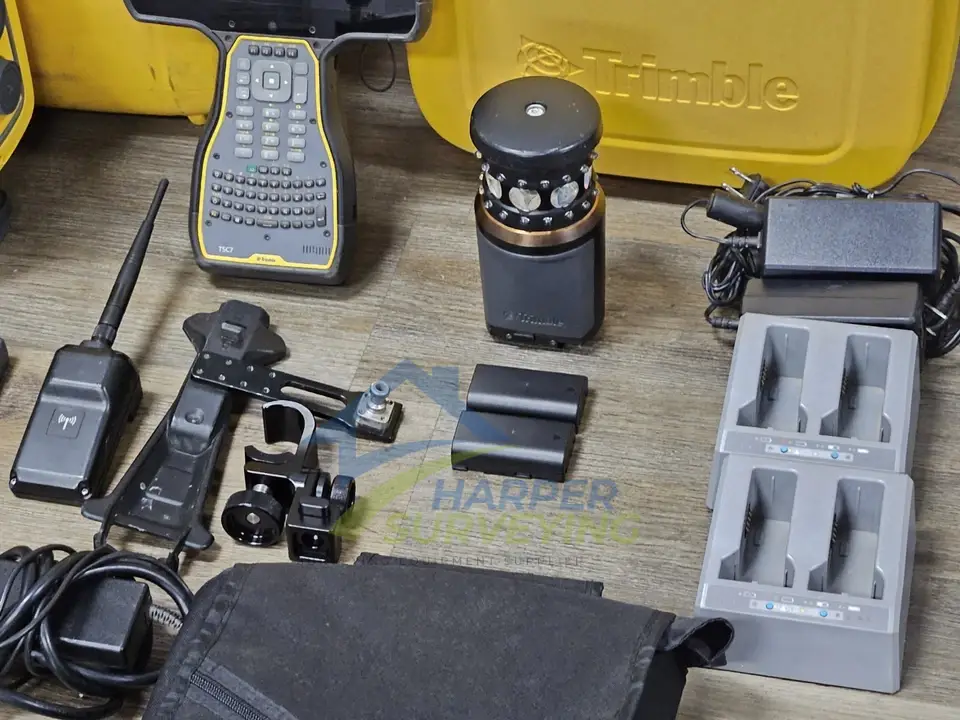

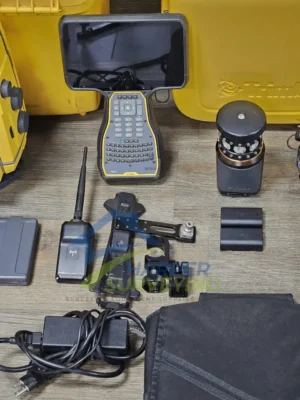

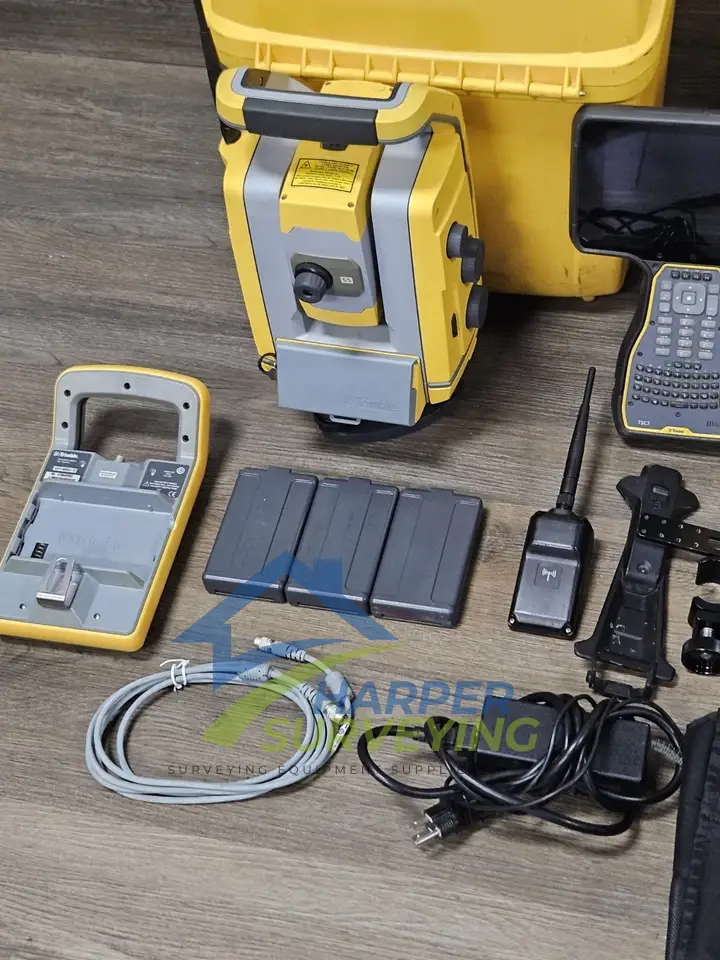

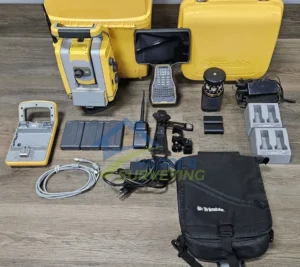

Includes:
- Trimble S5 1″ DR Plus Robotic Total Station
- Trimble TSC7 Data Collector w/ Access 2024.xx
- Trimble EM120 2.4GHz Radio
- Trimble MT1000 360degree Active Track Prism
- Two Trimble 2-Bay Battery chargers
- Three S5 Battery Packs
- Trimble Battery Cradle w/ Hirose cable
- Two 2.4GHz Radio Antennas
- Trimble TSC7 Bracket/Pole Mount
- Trimble TSC7 Charger
- Trimble TSC7 Case/Pouch
- Two TSC7 Battery Packs
- Original Trimble Carrying Case for Instrument
- New Tripod and Prism Pole
