The Emlid Reach RS2+ GNSS Receiver is a high-performance GNSS receiver for land surveying and construction, offering real-time centimetre accuracy with multi-constellation support. Built for durability with IP67 protection, it features an exceptional 22-hour battery life and seamless global connectivity. Ideal for professionals seeking reliable, precise, and efficient land surveying equipment or a robust GPS set for construction.
The latest RS2+ features an LTE Modem, dual diversity LTE antennas and a range of design improvements to deliver Emlid’s most user-friendly and durable GNSS receiver yet. The Reach RS2+ is a versatile GNSS receiver that can be used for surveying, mapping, and navigation. It offers centimetre-level accuracy in both RTK and PPK mode, has a battery life of up to 22 hours and is engineered to be tough.
The Emlid Flow mobile app enables you to control the RS2+ receivers with iOS and Android devices.
- LTE modem
- Baseline up to 100 km
- Update rate 10 Hz
Reach RS2+ gets a fixed solution in just seconds and maintains robust performance even in challenging conditions. Centimeter accuracy can be achieved on distances up to 60 km in RTK, and 100 km in PPK mode.
The Emlid Flow mobile app enables you to control the RS2+ receivers with iOS and Android devices.

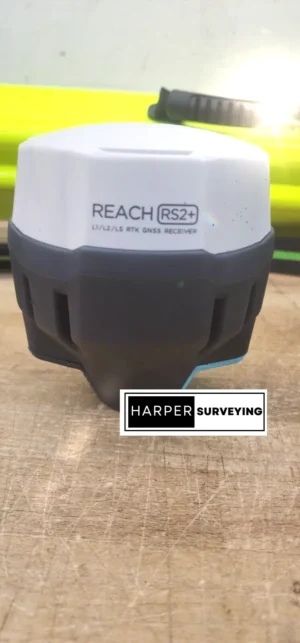

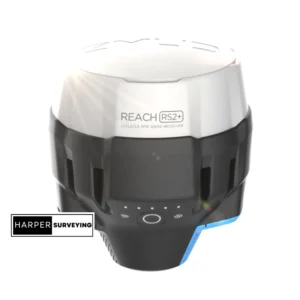

The Emlid Reach RS2+ is a high-precision, multi-band RTK GNSS receiver designed for surveying, mapping, and navigation. Offering centimeter accuracy in less than a second, it operates in any environment, with 22 hours of battery life and a rugged, water-resistant design.
Reach RS2+ Featured
- High performance dual-feed antenna with large ground plane
- Comes with the Emlid Flow app for iOS and Android
- 868/915 MHz LoRa for up to 8 km connectivity
- Broad connectivity: Wi-Fi, Bluetooth, RS-232, USB
- Logs RINEX at update rate up to 14 Hz
- Polycarbonate body
- 30 hours on 1 charge
- FCC and CE certified
Emlid REACH RS2+ Multi-band RTK GNSS receiver Specifications
Mechanical
- Ingress protection IP67
- Dimensions 145 x 145 x 85mm
- Weight 690g
- Operating temperature -20 °C to +65 °C
Electrical
- Autonomy up to 30 hours
- Charging Micro USB 5V
- External power input 6–40V
- Certification FCC, CE
- Battery LiFePO4 3.2V
GNSS
- Signals GPS/QZSS L1, GLONASS G1,
- BeiDou B1, Galileo E1, SBAS
- GPS / GNSS 14Hz / 5Hz
- Number of channels 72
- IMU 9DOF
Positioning
- Static horizontal 5mm + 1ppm
- Static vertical 10mm + 2ppm
- Kinematic horizontal 7mm + 1ppm
- Kinematic vertical 14mm + 2ppm
Data
- Corrections NTRIP, RTCM3
- Position output NMEA, LLH/XYZ
- Data logging RINEX with events up to 14 Hz
- Internal storage 8 GB
Connectivity
- LoRa radio up to 8km
- Frequency range 868 / 915MHz
- Wi-Fi 802.11 b/g/n
- Bluetooth 4.0/2.1 EDR
- Ports RS-232, Micro USB
Communications And Data Storage
- 9PIN port – RS-232, PPS, Event
- USB OTG
- Internal Radio Modem:
* LoRa technology
* Reliable link on up to 19 km baseline
* Transmit power up to 100 mW
* Configurable 863-928 MHz carrier - Built-in short-range Wi-Fi 802.11 b/g/n, WEP, WPA,WPA2 encryption
- Built-in short-range Bluetooth 4.0/2.1 EDR
- Data storage 8 GB internal memory
- Raw logs in RINEX, UBX
- External Radio Modem connectivity over RS-232/USB OTG
- External Cellular Modem connectivity over USB OTG
- RTCM 2.x, RTCM 3.x input over Wi-Fi, Bluetooth, LoRa, USB, RS-232, NTRIP, external cellular modem. VRS (RTN) supported
- RTCM 3.x output over Wi-Fi, Bluetooth, LoRa, USB, RS-232, NTRIP, external cellular modem
- NMEA-0183, ERB output over Wi-Fi, Bluetooth, LoRa, USB, RS-232, external cellular modem

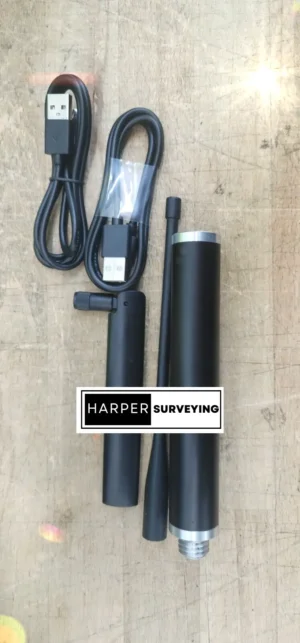

Reach RS2+ surveying package includes:
- Reach RS2+

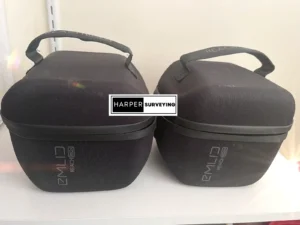

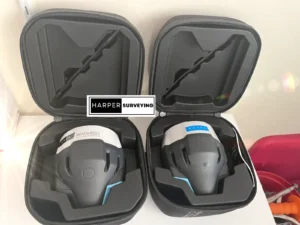

- Carrying case with a strap
- Radio antenna
- USB Type-C cable
