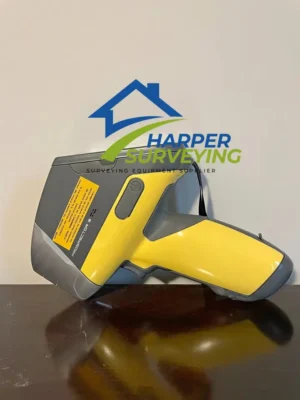

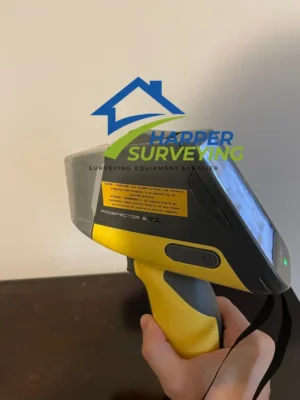

Elvatech Elvax ProSpector 3 – Handheld X-Ray Fluorescence Analyzer

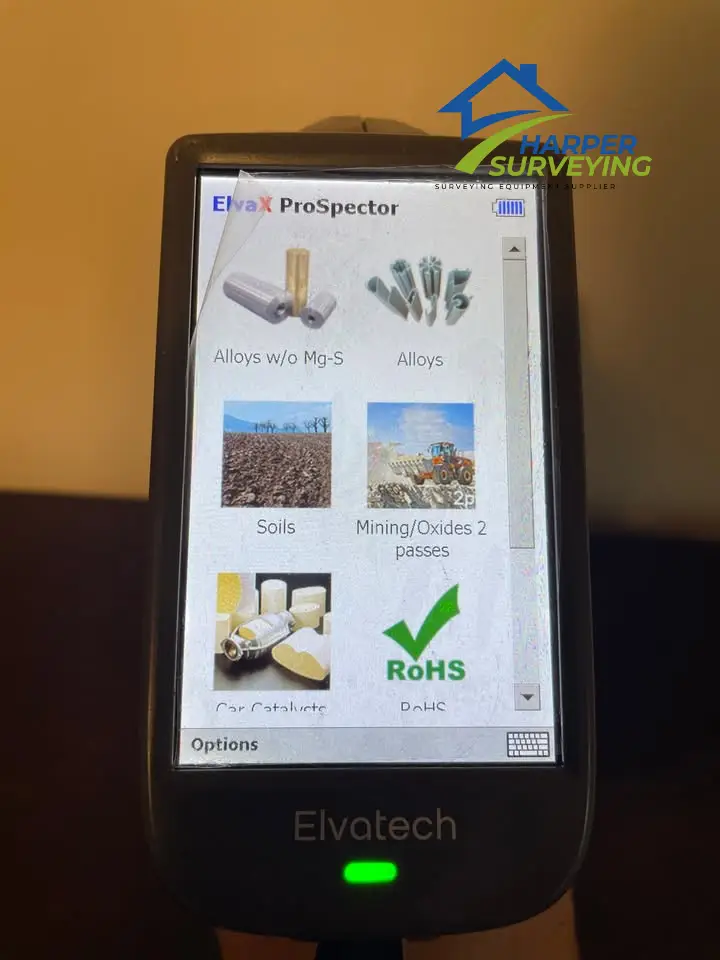

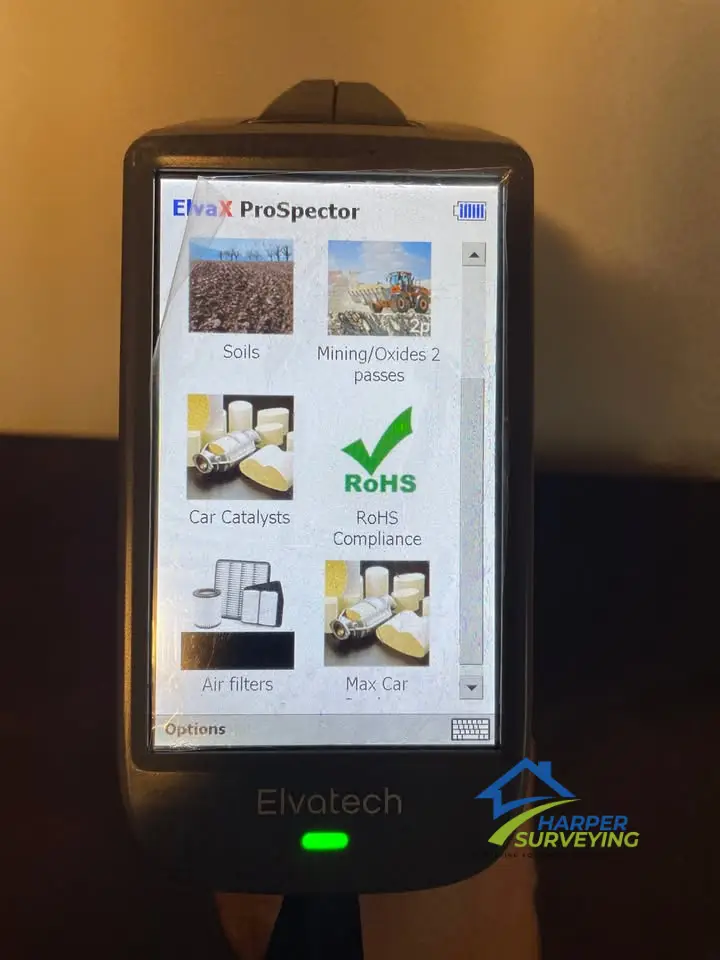

Elvatech Elvax ProSpector 3 – Handheld X-Ray Fluorescence Analyzer is the next – generation handheld X – ray fluorescence analyzer. It offers a new level of analysis accuracy, speed, and detection limits. Elvatech Elvax ProSpector 3 is the smallest and lightest XRF gun on the market with an intuitive and user – friendly software interface. Unique processing algorithms allow analyzing in various fields of application: PMI, Alloys, Precious metals, Archeometry, Petrochemical, Soils, Plastics, Automotive catalysts etc.

Data can be transferred from ProSpector 3 to a PC directly via USB, WiFi or Bluetooth connection. MicroSD socket is also available for data storage and transfer. The detector shield protects detector window, the most fragile part of the instrument, from being punctured by sharp objects like wires, shavings etc.

Elvatech Elvax ProSpector 3 Benefits

• World’s fastest XRF analyzer (throughput above 500 000 cps – more than twice as fast as any other handheld XRF) – highest accuracy within the shortest measurement time, excellent precision
• World’s smallest (236 х 193 х 68 mm), and lightest (1.05 kg with a battery) handheld analyzer – easy to operate
• Dustproof and waterproof instrument body, with IP-67 ingress protection rating – ProSpector 3 can be operated even under water!
• Automatic collimator changer for small spot analysis of jewelry, welds etc.

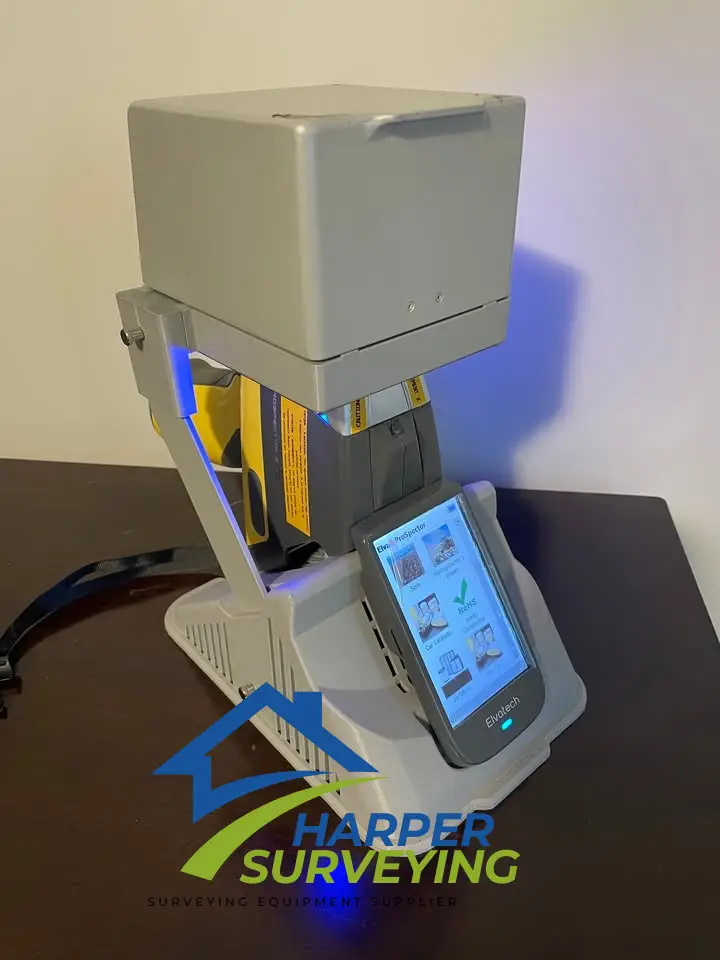

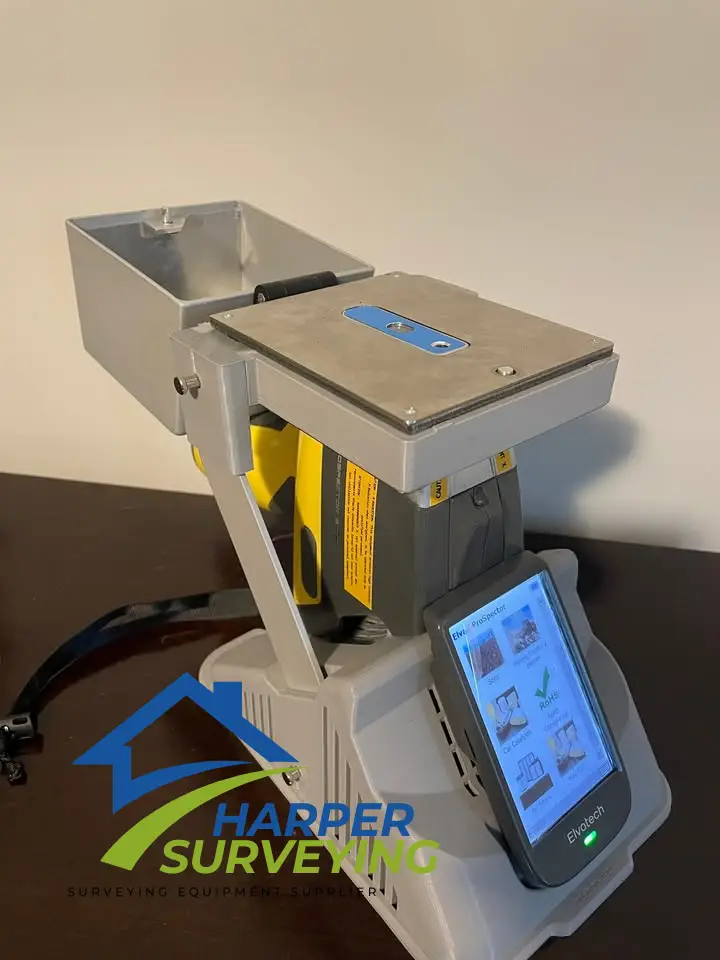

• Folding display – for easy operation in the lab stand without connecting to a PC
• Highest mobility – up to 16 hours of autonomous operation on a single battery charge, hot battery swap
• Superior calibration stability, compensation of influence of ambient temperature and pressure variations – no need to spend time for calibration
• Two CCD cameras for macro- and micro- view
• Scanning barcodes (commodity EAN and UPC codes, QR codes, book ISBN codes, Databar, Codabar, etc.) that contain information about the sample: name, number, code, etc.
• Full compatibility with ElvaX^TM PC software
• Radiation safety: proximity sensor and low count rate detection

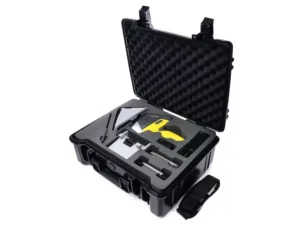

• Great choice of accessories for comfortable work.

Data can be transferred from ProSpector 3 to a PC directly via USB, WiFi or Bluetooth connection. MicroSD socket is also available for data storage and transfer. The detector shield protects detector Be window, the most fragile part of the instrument, from being punctured by sharp objects like wires, shavings etc.

Elvatech Elvax ProSpector 3 Applications

PMI
Alloy
Scrap Sorting
Mining and Exploration
Environmental analysis
RoHS and WEEE
Lead in paint
Archeometry
Clays and Oxyde
Forensics
Car catalyst
Coating thickness
Soil and sediment
Precious metals

Elvatech Elvax ProSpector 3  Specification

Digital X – Ray Source digiX – 50
Anode: Rh, W
Voltage: 50 kV
Current: 200 uАmp
Power: 5 W
8 positions filter changer
2 position collimator changer
X – Ray Detector
Type: Fast SDD
Area: 25 mm2 (option 70 mm2)
Energy resolution:
Count rate: 500,000 cps

Electronics
DPP: proprietory DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate
MCA: 4096 channels
Display: 4.3″
Connectivity: USB, Bluetooth, Wi – Fi, GPS
2 high – resolution video cameras

General
Dimensions: 236 х 193 х 68 mm
Weight: 0.82 kg, 1.05 with battery kg
Protection: IP67

Software
Operating system: Windows EC7
Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations

Characteristics:
Brand:Elvatech
Country of manufacture:Ukraine
Type:Portable
Kind:X-ray fluorescent
