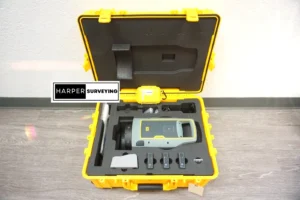

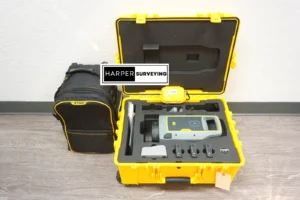

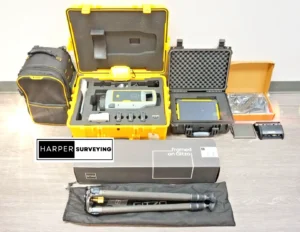

Trimble X9 3D Laser Scanning System

SKU: Trimble X9

$39,000.00

The Trimble X9 3D Laser Scanning System platform leverages proven Trimble technology to deliver the range, accuracy, speed and sensitivity you need to do more. With flexible licensing plan options, choose the scanning functionality that fits your project needs.

Product Description

The Trimble X9 3D Laser Scanning System platform leverages proven Trimble technology to deliver the range, accuracy, speed and sensitivity you need to do more. With flexible licensing plan options, choose the scanning functionality that fits your project needs.

The Trimble  X9 is a powerful and easy-to-use 3D laser scanning system that is available with two different configuration options for speed and range; X9 Core (500 kHz – 80 m) and X9 Premium (1000 kHz – 150 m). Perpetual and subscription licensing options are also available to meet your business requirements. Both configurations have the same accuracy and proven innovations like automatic calibration, self-leveling and in‑field registration to ensure data quality, simplify adoption and provide confidence in the field.

Why Choose the Trimble X9?

The Trimble X9 is more than just a 3D laser scanning system; it’s a comprehensive solution designed to enhance field productivity, accuracy and efficiency. Key benefits include:

  • Exceptional Data Quality: High-resolution scanning capabilities and extended range ensure detailed, accurate data capture.
  • Versatile Applications: Suitable for a wide range of projects, from construction and surveying to architecture and heritage preservation.
  • Rugged and Reliable: Built to withstand challenging environments, ensuring consistent performance and reliable data quality.
  • Integrated Workflow Solutions: Seamlessly integrates with Trimble software for efficient data processing and analysis.

The Trimble X9 3D laser scanning system represents the latest in 3D scanning technology. Engineered with advanced Trimble laser scanning innovations, the X9 delivers exceptional performance in terms of range, accuracy, and speed, enabling more efficient and precise scanning.

Data captured by the Trimble X9 seamlessly integrates with Trimble RealWorks software, allowing for automatic scan colourisation and registration. Additionally, the Trimble X9 works efficiently with popular CAD programs such as Recap, AutoCAD, ArchiCAD, Revit, and SketchUp, ensuring a smooth data flow for your projects.

Trimble X9

Built on proven Trimble laser scanning technologies that include automatic instrument calibration, self-leveling, and laser pointer for georeferencing, the Trimble X9 with Trimble Perspective software delivers from field to office with confidence.

Proven – Simple and efficient field workflows suitable for all users. Powerful Trimble® Perspective software to easily manage and validate projects in the field with auto-registration. Smart auto-calibration and self-leveling optimized to increase productivity and function. Laser pointer for georeferencing and single-point measurements.

Versatile – High-speed scanning to save time and effectively increase scan density. Range, accuracy, and data quality to support a wide range of applications. High sensitivity with all scan modes to capture dark and shiny surfaces fast. Flexible operation with a tablet, phone, and one-button workflow. Durable, compact, and lightweight with a backpack for safe and easy transport.

Reliable – Trusted auto-calibration and survey grade self-leveling for dependable data quality. High IP55 rating for dust and water protection. Wide operating temperature range for demanding environments. Backed by 2-year standard warranty.

For surveyors and geospatial professionals, the Trimble X9 provides fast and balanced performance in both indoor and outdoor environments and is ideal for:

• Topographic & General Surveys

• Civil Infrastructure

• Industrial Survey

• Forensics

• Cultural Heritage

• Digital Twin

• Tank Calibration & Inspection

• Shipbuilding Surveys

Trimble X9 Key Features

1. Superior Data Quality and Speed

The Trimble X9 is built to deliver high-quality data quickly, making it an invaluable tool for professionals who need accurate and reliable information:

  • High-Resolution Scanning: The Trimble X9 captures data at a resolution of up to 1.2 million points per second, providing detailed and precise 3D models that are essential for complex projects.
  • Extended Range: The X9 offers a range of up to 600 meters, allowing surveyors to capture data from a greater distance without sacrificing accuracy.
  • Advanced Processing: The onboard Trimble X-Drive technology ensures fast, efficient data capture and processing, reducing the time needed to produce high-quality deliverables.



2. Versatility Across Multiple Applications

The Trimble X9 is a versatile tool designed to handle a wide range of applications in various industries:

  • Construction: Ideal for site documentation, progress monitoring and as-built verification.
  • Surveying: Perfect for topographic surveys, volume calculations and boundary surveys.
  • Architecture and Heritage Preservation: Suitable for capturing detailed 3D models of historical sites, buildings and complex structures.

With its adaptability, the X9 allows professionals to use a single tool across different projects, enhancing efficiency and reducing equipment costs.

3. Rugged and Reliable Design for Challenging Environments

Built to withstand the rigors of fieldwork, the Trimble X9 features a robust design that ensures reliable performance in various environments:

  • Durability: With an IP65 rating, the X9 is resistant to dust and water, making it suitable for use in harsh conditions, from construction sites to remote survey locations.
  • Temperature Tolerance: Designed to operate in extreme temperatures ranging from -20°C to +50°C, ensuring that data capture continues without interruption, regardless of the weather conditions.
  • Stability and Precision: The system is built on a stable platform that minimizes vibrations and ensures consistent data quality, even in challenging field conditions.

4. Enhanced Workflow Integration with Trimble Software

The Trimble X9 integrates seamlessly with Trimble’s suite of software solutions, streamlining workflows from field to office:

  • Trimble Perspective: An intuitive field software that allows for real-time data visualization, ensuring quality control and accurate data capture.
  • Trimble RealWorks: Enables advanced processing and analysis of 3D data, facilitating the creation of high-quality deliverables such as point clouds, meshes and CAD models.
  • Compatibility with Third-Party Software: The Trimble X9 supports multiple data formats, allowing for easy integration with other industry-standard software solutions.

5. User-Friendly Operation for Increased Productivity

Despite its advanced capabilities, the Trimble X9 is designed with user experience in mind:

  • Intuitive Interface: The system features a user-friendly touchscreen interface that simplifies operation, reducing the learning curve for new users.
  • Automated Features: With automated functions like self-leveling and scan area definition, the X9 reduces manual input, allowing operators to focus on capturing high-quality data.
  • Remote Control Capabilities: The Trimble X9 can be controlled remotely via a tablet or smartphone, offering flexibility and convenience in the field.

6. Efficient Power Management for Extended Field Use

The Trimble X9 is equipped with a long-lasting battery system that supports extended field operations:

  • Extended Battery Life: The X9 provides up to 8 hours of continuous operation on a single charge, ideal for long days in the field.
  • Quick Recharge: The batteries are designed for quick recharge, minimizing downtime and keeping your projects on track.

This efficient power management system ensures that you can rely on the Trimble X9 to perform throughout the day without interruption.

7. Expandable Storage and Connectivity for Seamless Data Handling

Handling large volumes of data requires robust storage and connectivity options:

  • Expandable Storage: The Trimble X9 offers ample onboard storage, with the option to expand as needed, ensuring you can store all collected data securely.
  • Connectivity Options: The X9 supports multiple connectivity options, including USB, Ethernet and Wi-Fi, allowing for easy data transfer between the field and the office.
