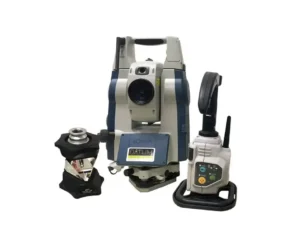

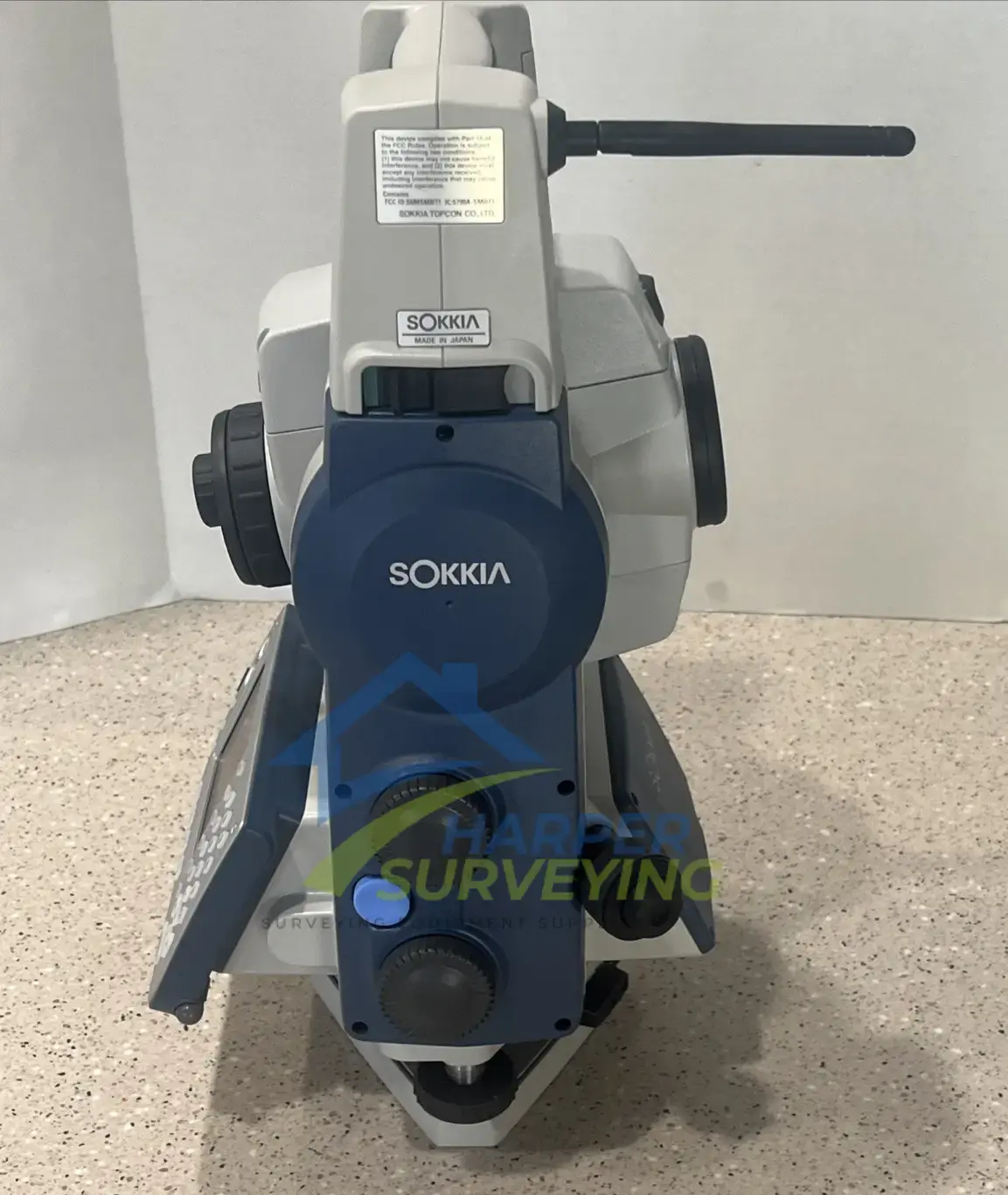

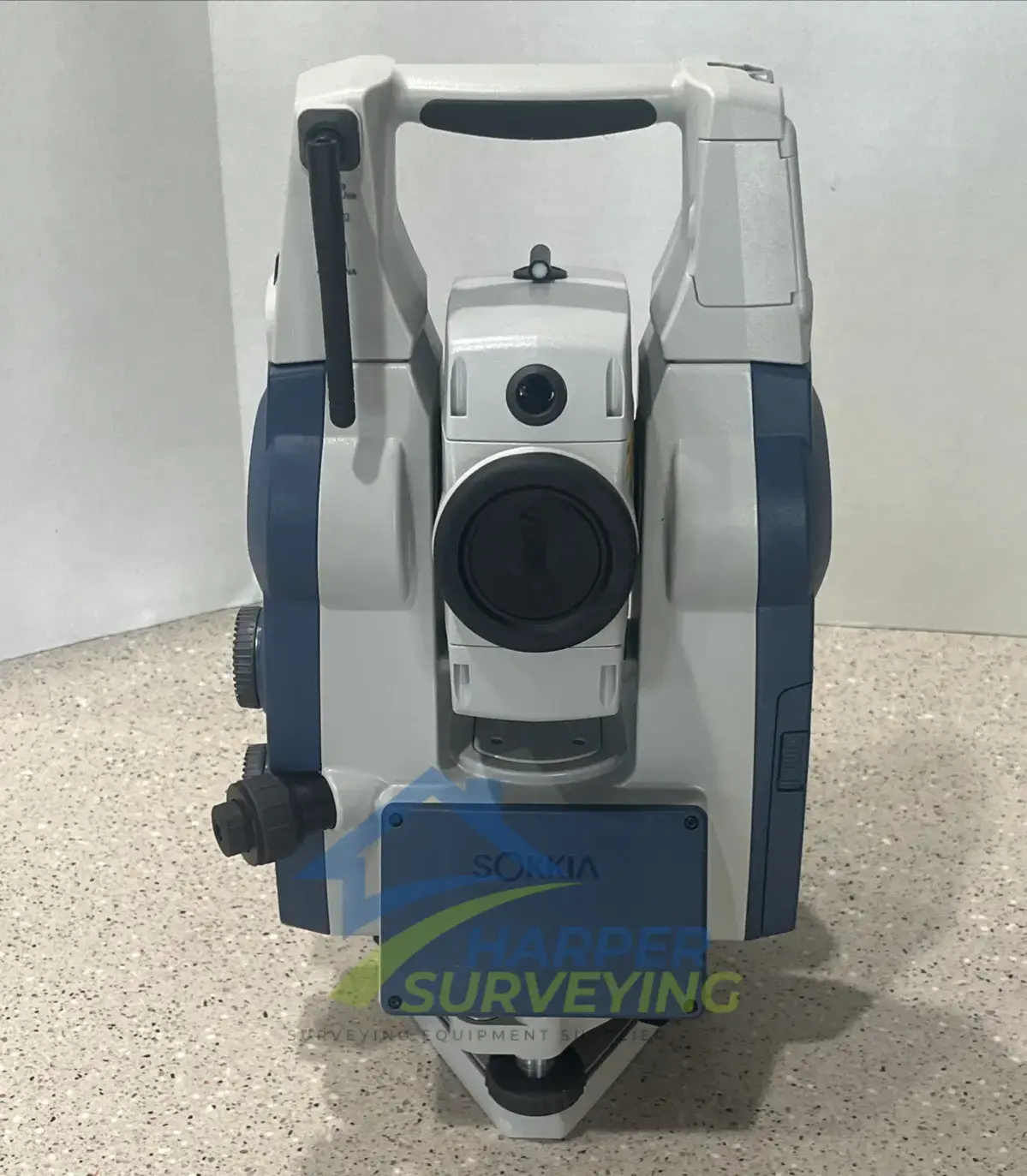

Sokkia SRX5 5″ Reflectorless Robotic Total Station with Long-Range Bluetooth Communication. The unique SRX On-Demand Remote Control System revolutionizes the way you survey with total stations. Intelligent target search and robust Auto-Tracking capability minimize downtime due to loss of target lcok or an undesired sighting of reflective objects. Unique prism systems can be optimally configured to obtain the highest work efficiency.
Sokkia SRX5 5” Robotic Total Station with Long-Range Bluetooth Communication. The unique SRX On-Demand Remote Control System revolutionizes the way you survey with total stations. Intelligent target search and robust Auto-Tracking capability minimize downtime due to loss of target lcok or an undesired sighting of reflective objects. Unique prism systems can be optimally configured to obtain the highest work efficiency.
Sokkia SRX5 Features
- Long-Range Bluetooth Link between total station and pole (300m – 980ft)- No more troublesome radios to configure.
- RED-tech EX High Precision Reflectorless EDM- Pinpoint accuracy on measurements up to 500m (1,640ft)
- Fully Functional Auto-Tracking
- False Sighting Recovery- remote control system quickly returns it to prism if SRX gets caught sighting another reflective object
- Guide Light for rough lateral positioning
The SX-Series from Sokkia is a fully-robotic, auto-tracking and auto-pointing robotic total station, with on-demand target reacquisition. The SX-Series features innovative auto-tracking and EDM technologies that maximize the robotic capability.
Sokkia’s auto-tracking SX features cutting-edge laser technology, optimized optical design, a newly-developed motor drive mechanism, and further refined tracking algorithm, to achieve extremely robust auto-tracking capability. The SRX X-Series constantly tracks a moving prism even in strong backlight or with repetitive interruptions in the line-of-sight, dramatically reducing the possibility of losing a prism lock. Even if the lock is lost, the advanced on-demand remote control system allows the SRX to instantly recover the prism lock, ensuring increased productivity in all robotic surveying and setting-out tasks.
Sokkia’s SX has Bluetooth wireless technology for cable-free use, making this single-operator Total Station even more convenient. Multiple data interfaces, including USB and Compact Flash, make data in the field easy to transport back to the office. Saving data is easier than ever before with the options of USB or compact flash.
To set this robot apart from all others, the Sokkia SX offers 1,000m (3,280 ft.) reflectorless measurement range. The new RED-tech 800 EDM provides increased accuracy and range in distance measurements with or without reflectors, incorporating the new optical design, the enhanced signal processing algorithm, as well as the ultra-high signal modulation frequencies of up to 468.75MHz. It measures up to 6,000m (19,680 ft.) distance with a single prism, and up to 800m (2,620 ft.) without a reflector. Sokkia’s developers didn’t stop there; they also enhanced the encoder with IACS technology. Groundbreaking new Independent Angle Calibration System (IACS) provides extremely reliable angle measurement with unprecedented stability.
Revolutionary Remote Control Concept
The unique SRX On-Demand Remote Control System revolutionizes the way you survey with total stations. It eliminates the drawbacks of previous systems which were often stressful and time-consuming
- Minimize downtime during target search and lock
- Instant recovery from accidental sighting of undesired reflective objects
- No more worrying about line-of-sight even while tracking the target.
SRX eliminates the problems of previous remote control systems, which were often stressful and time-consuming to use
With SRX, there’s:
- No more waiting for the total station to lock on to the prism
- No more lost targets and unreliable tracking
- No more accidental sighting of other reflective objects
SRX achieves “stress-free complete remote control” with a combination of SRX series auto-tracking and an RC-PR3 on-deman remote control system. This powerful combination eliminates operator stress and increases productivity immediately.

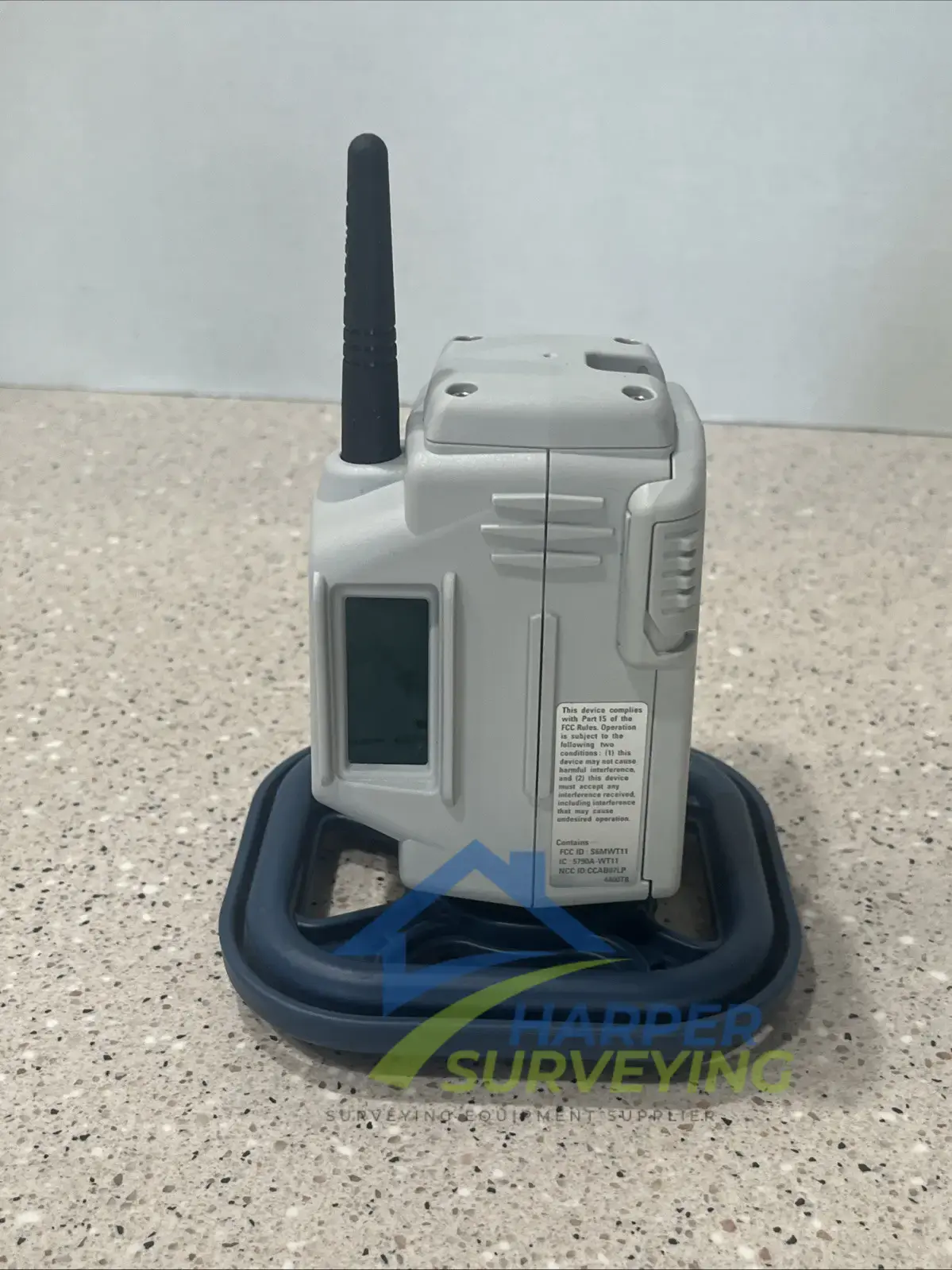

On-Demand Remote Control System
The on-demand Remote Control System emits a laser fan beam that is detected by the RC detector unit in the SRX handle. SRX quickly rotates in the direction of the prism, auto-points and starts measurement right away.
The RC-PR3 unit is equipped with a directional sensor to ensure that SRX always rotates in the shortest direction, dramatically speeding up one-touch target acquisition.
Quick Start!
Simply press the measurement key and SRX will rotate toward the prism and immediately start measurement. SRX is available in both full robotic and upgradeable auto-pointing configurations.
Focus on Where You’re Going!
With SRX, you can smoothly continue measurement even if buildings, trees or passing traffic interrupt the line of sight. Even the roughest terrain poses no problem for SRX. All you need to do is pay attention to your footing and SRX will take care of the rest. If target loss should occur, press the measurement key and the on-demand remote control unit will automatically capture the prism using the on-board directional sensor, allowing you to continue without missing a beat.
False Sighting Recovery
If SRX gets caught sighting another reflective object, the on-demand remote control system quickly calls it back to the prism. Recovery and measurement are done at the push of a button.
Ergonomic Handle
The removable, ergonomically designed handle incorporates both Bluetooth wireless technology and the RC detector in one sleek design.

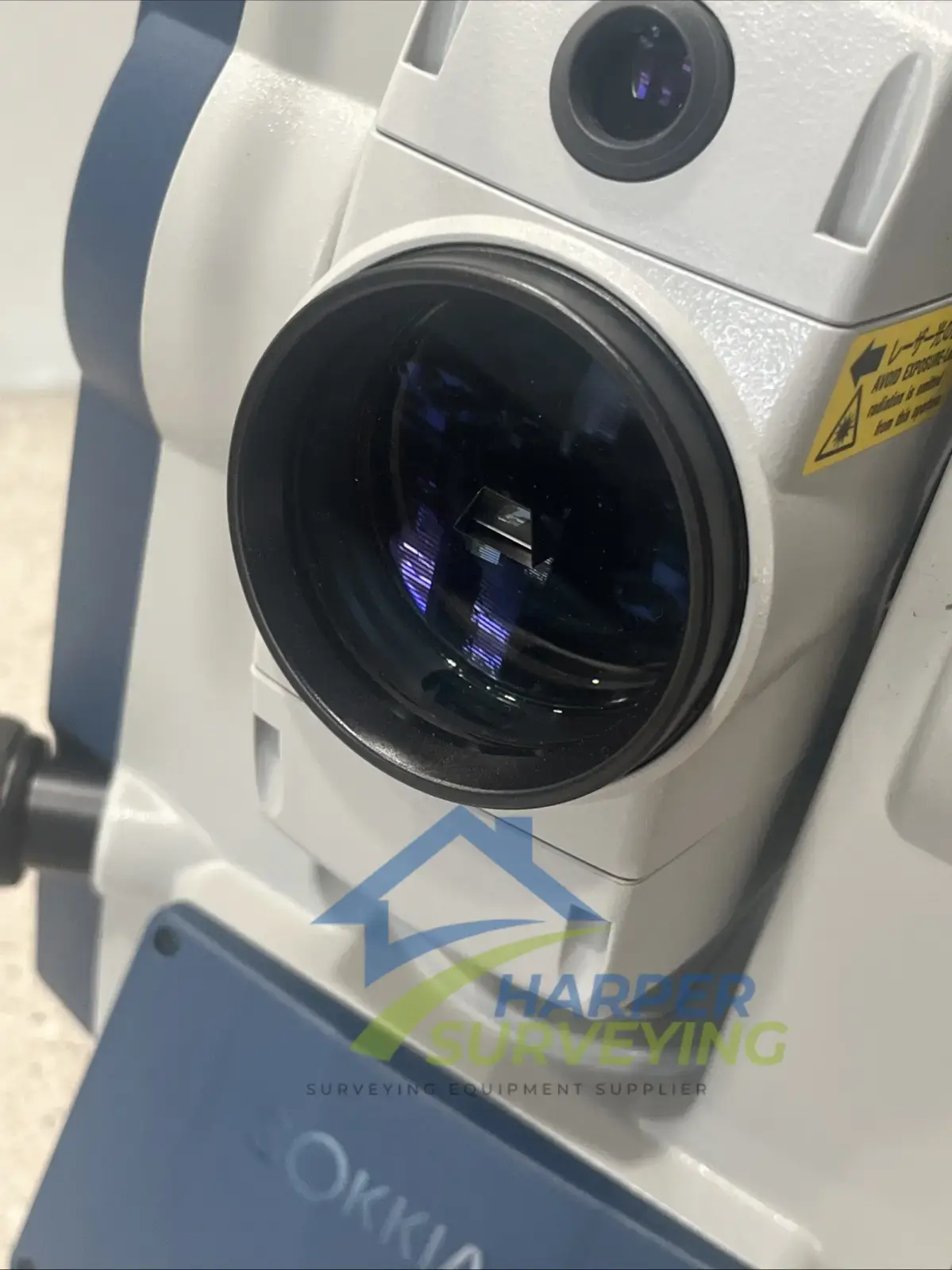

Compact Telescope Unit
SRX features a compact high performance telescope unit. Perform rough sighting easily even while wearing a hard hat.
Guide Light Unit
Sokkia’s guide light unit assists in setting out measurements. It consists of two different color LEDs emitted from a single aperture and can be easily determined at both long and short ranges. A special flashing pattern is also included to assist users with color weakness.
Rechargeable Li-ion Battery
The battery box is located for easy-access to make battery replacement efforless. SRX comes with two rechargeable large capacity Li-Ion batteries as standard.
Jog Dials / Trigger Key
Jog dials have a comfortable finger fit and change instrument rotation speed according to how fast the dials are turned. A handy trigger key lets you take a measurement without taking your eye from the telescope. The jog dials include additional customizable settings for individual applications.

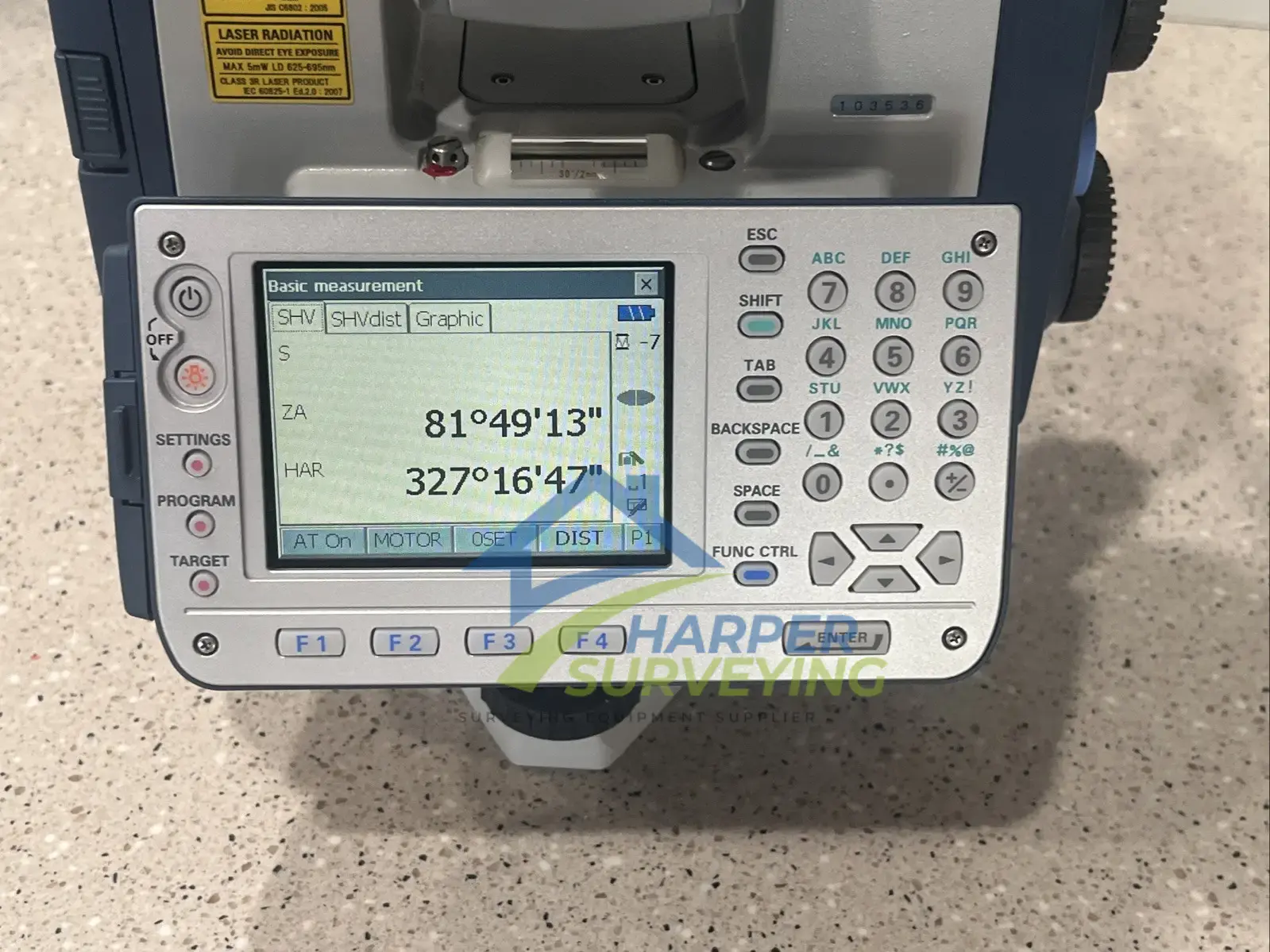

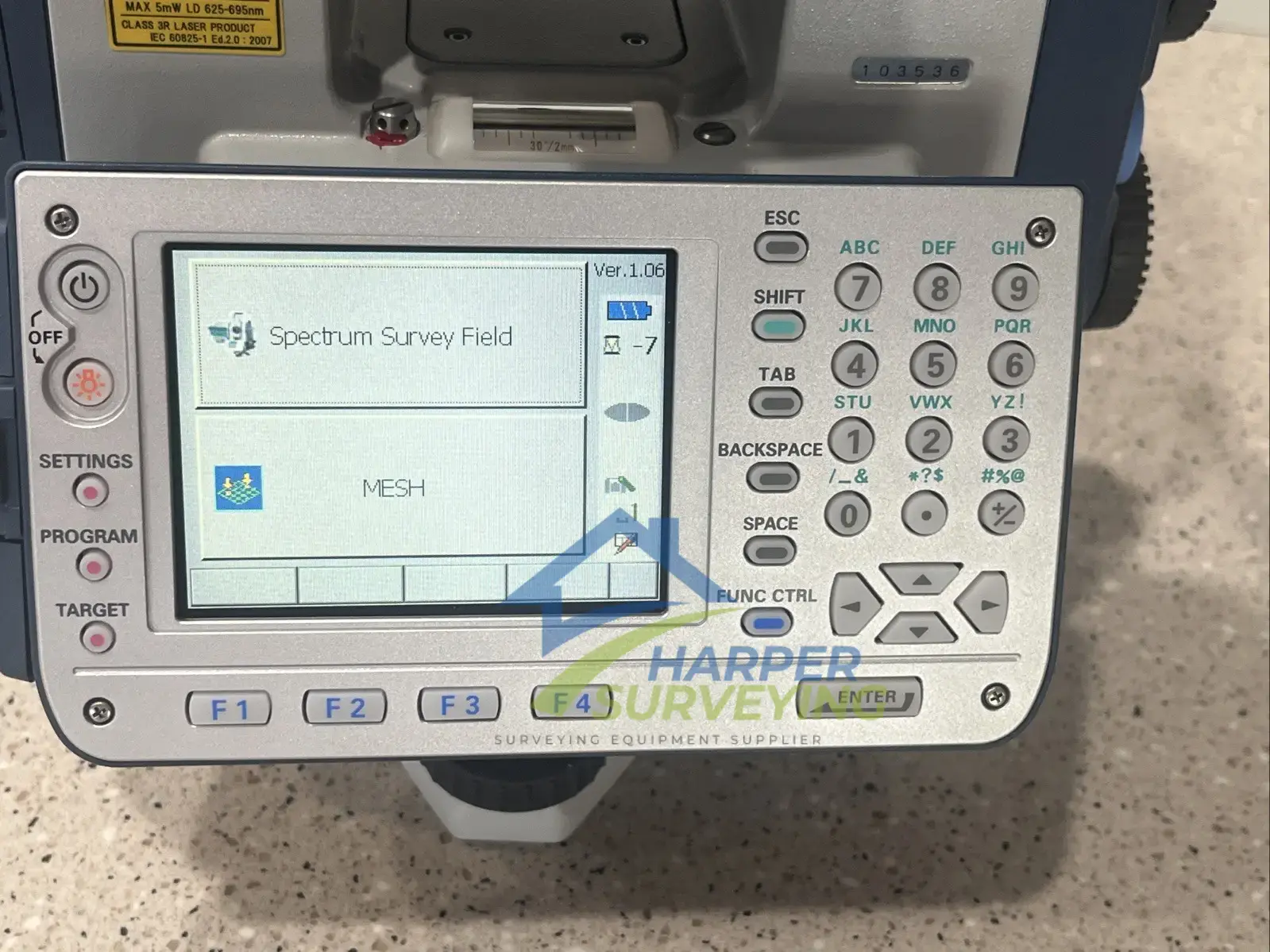

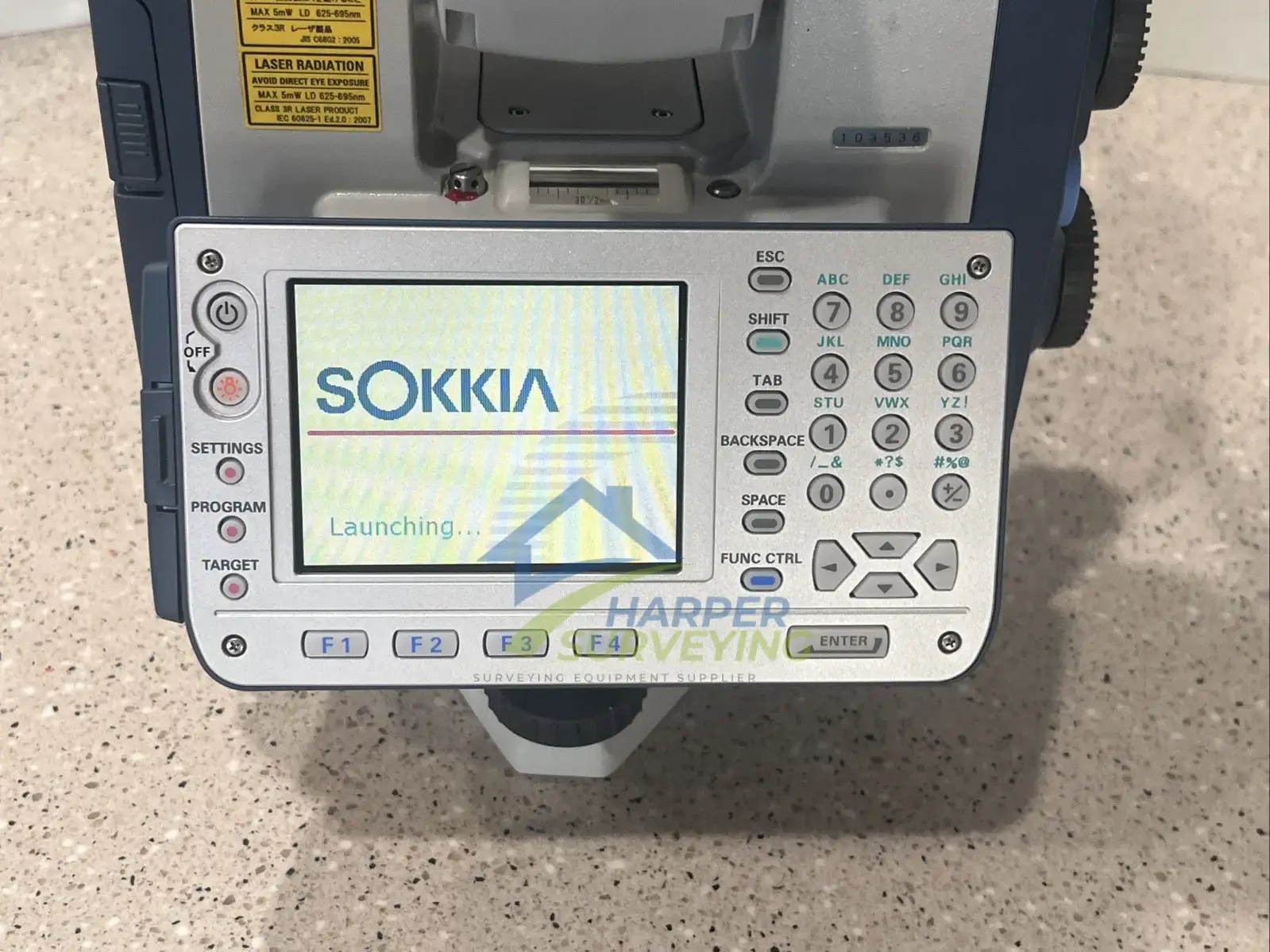

Color Display / Illuminated Keyboard
SRX features a color LCD touch panel display. The display has high angle visibility and subtle contrast for maximum visibility. The full alphanumeric keyboard has concave keys that can be easily pressed by hand or with the stylus and is illuminated to let you see what you are doing under any environmental condition.
Environmental Protection
Featuring advanced protection against dust and water, SRX is able to withstand harsh environmental conditions. IP64 compliant.
Completely Cable-Free
SRX and the RC-PR3 are 100% wireless. No more cables to untangle, trip over or forget. License-free long-range data communication is easily performed using Bluetooth Class 1 wireless technology.
Sokkia SRX5 Specifications
| Angle measurement | Photoelectrical absolute encoder scanning. Both circles adopt diametrical detection |
| Display resolutions (selectable) | 1″ / 5″, 0.2 / 1mg, 0.005 / 0.02mil |
| Accuracy (ISO17123-3) | 5″ / 1.5mg / 0.025mil |
| Automatic dual-axis compensator | Dual-axis liquid tilt sensor, Working range: +4′ (+74mg), out-of-range warning display and audio beep provided |
| Distance measurement | Modulated laser, phase comparison method with red laser diode |
| Measuring range (slope distance) | Reflectorless: 0.3 to 500m (1 to 1,640ft.) (White side, 90% reflective) |
| Accuracy (ISO 17123-4) | Reflectorless: 0.3 to 200m (1 to 650ft.): +(3 + 2ppm x D)mm |
| Auto-tracking | Pulse laser transmitter and CCD detector with co-axial optics |
| Range | With ATP1 Prism: 5 to 500m (16.4 to 1,640ft) |
| Auto-pointing | Pulse laser transmitter and CCD detector with co-axial optics |
| Range | With ATP1 prism: 2 to 600m (6.5 to 1,960ft.) With AP01 prism: 2 to 1,000m (6.5 to 3,280ft.) |

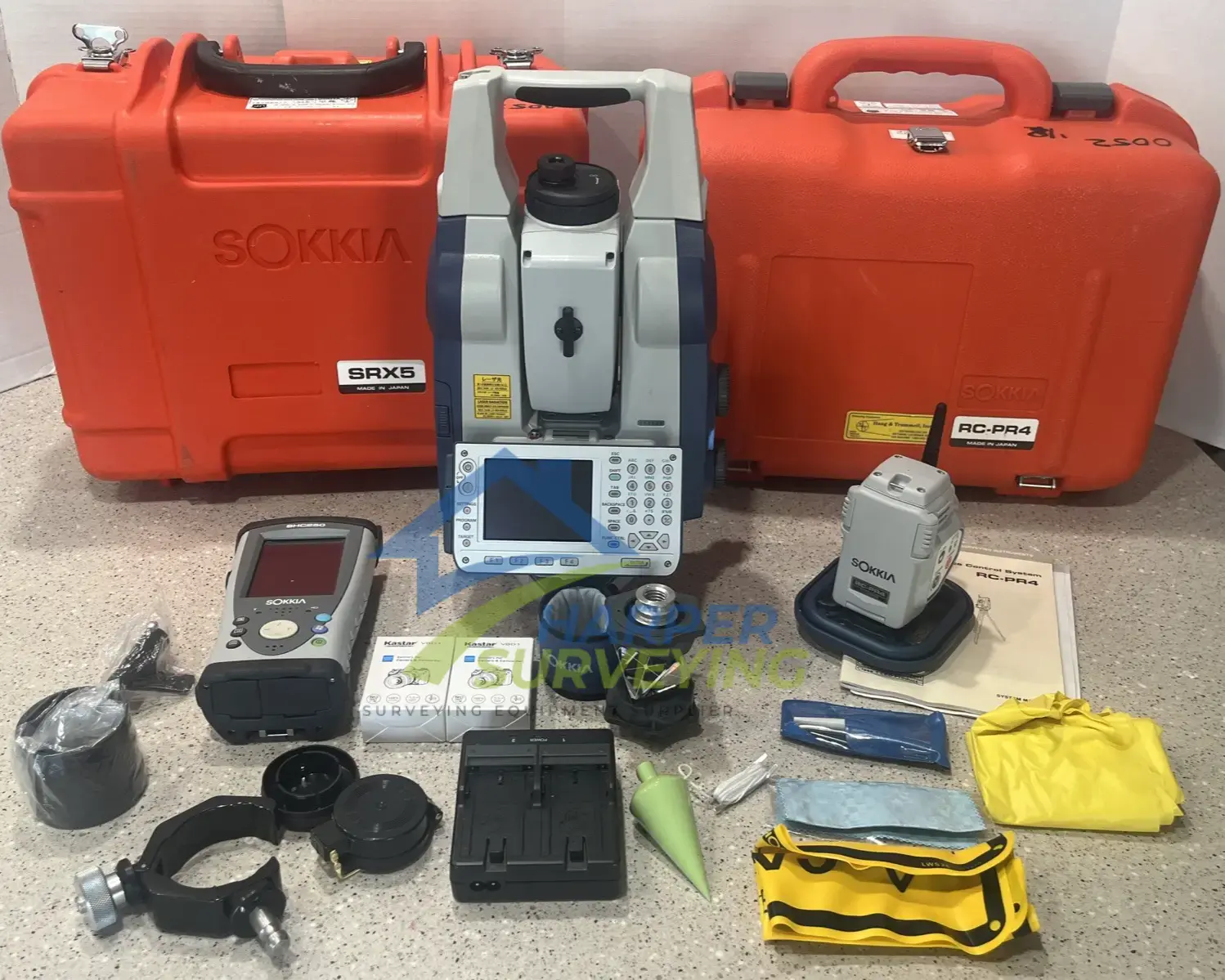

Sokkia SRX5 includes

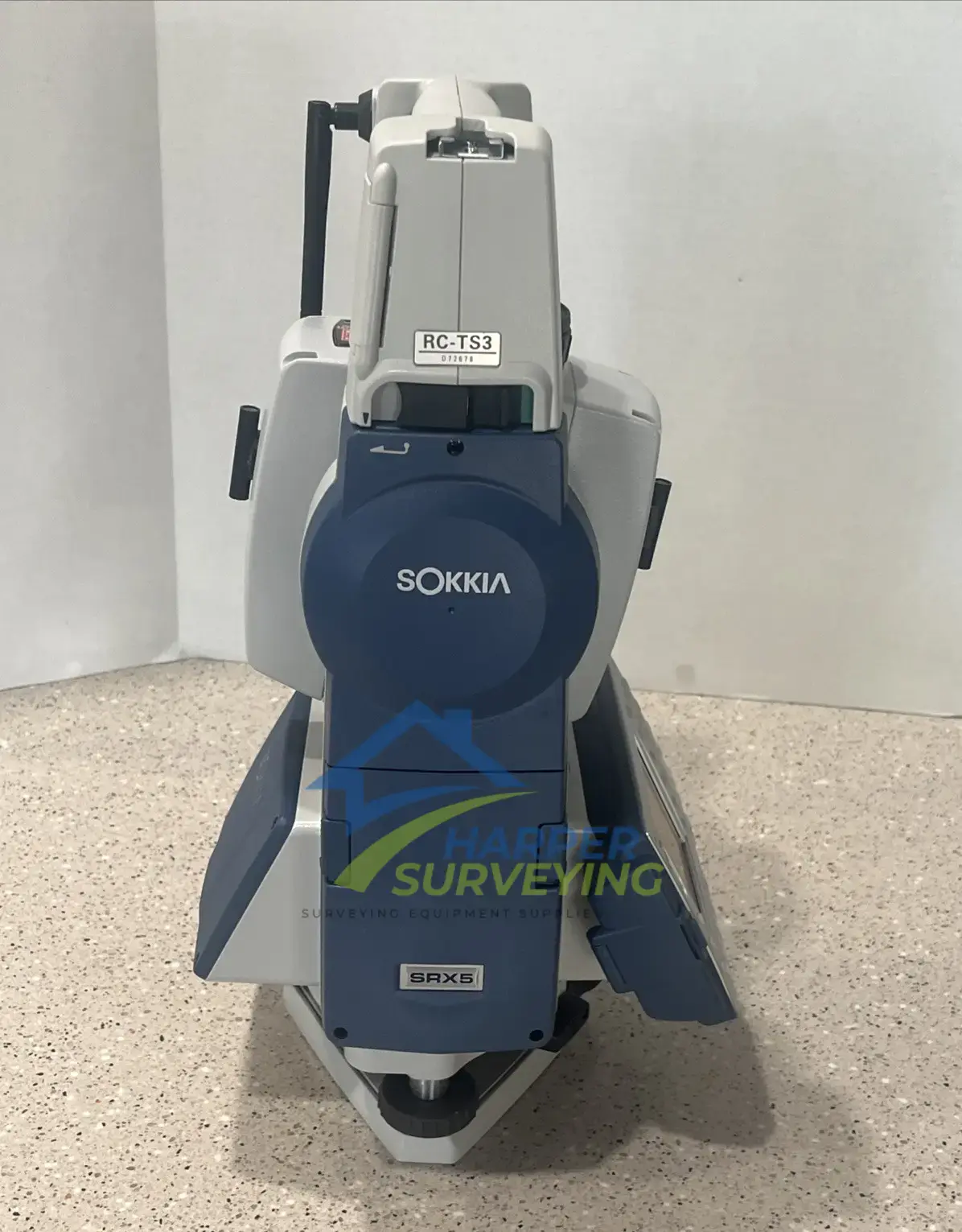

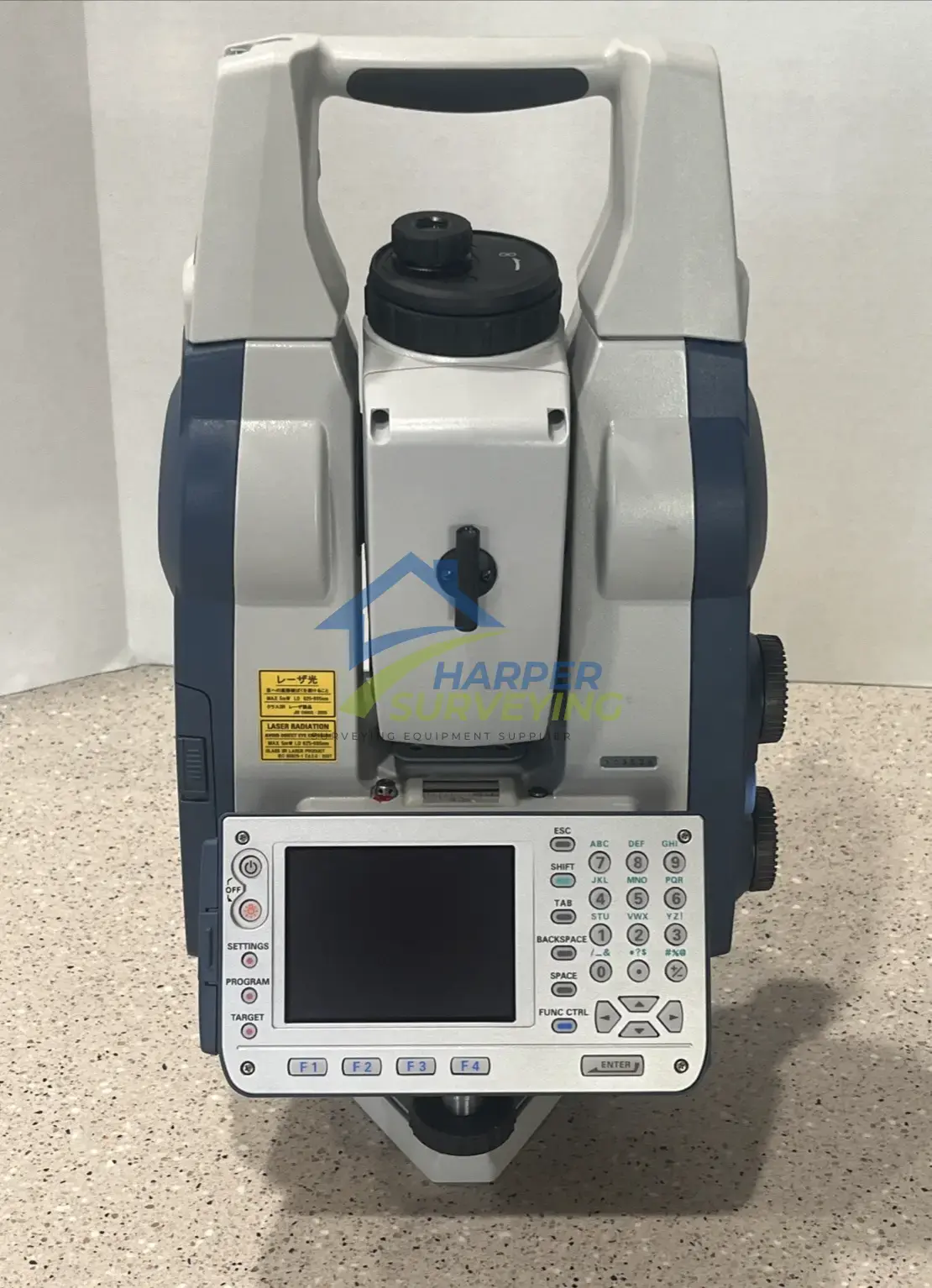

- Sokkia SRX5 5” Robotic Total Station

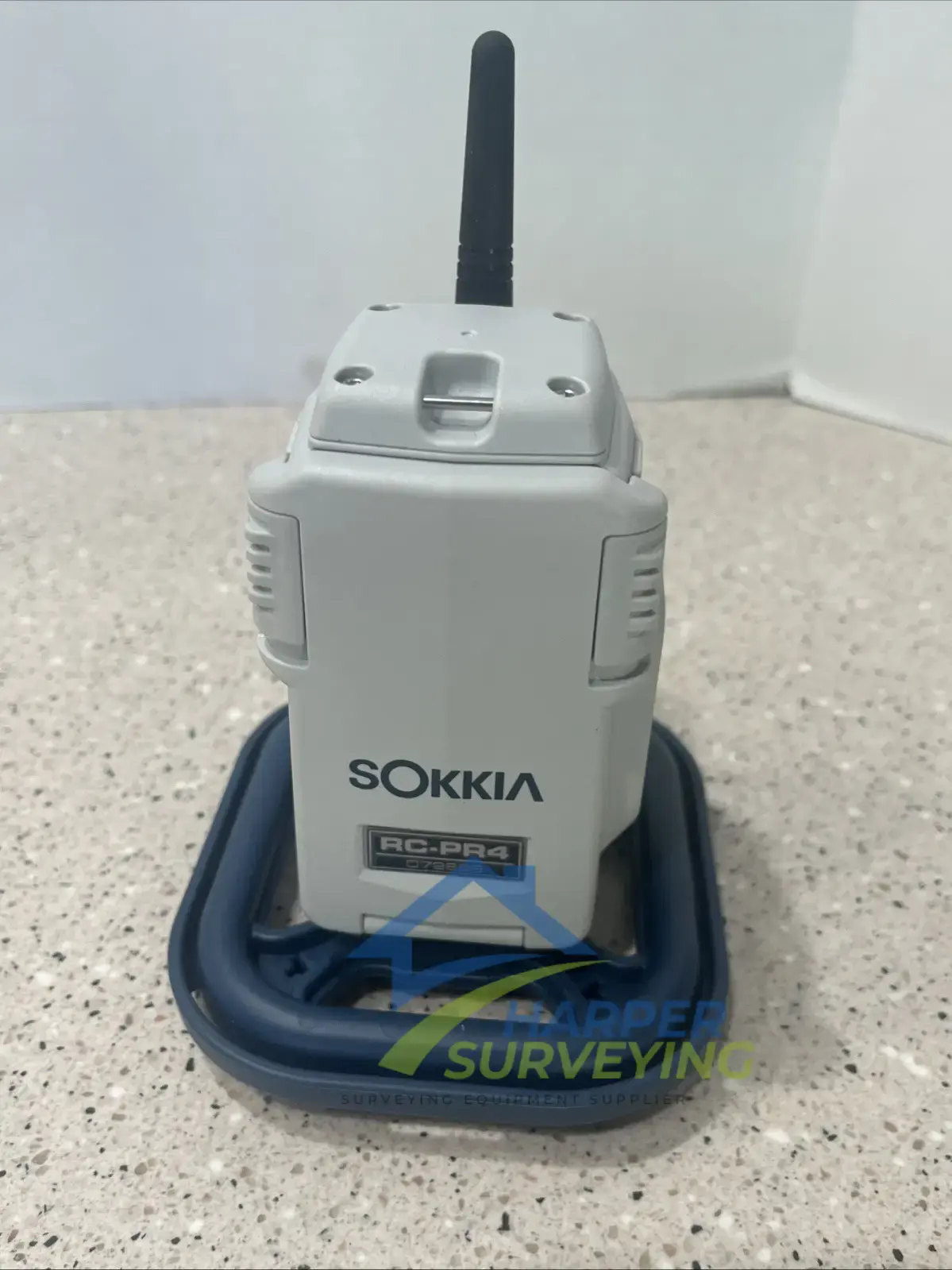

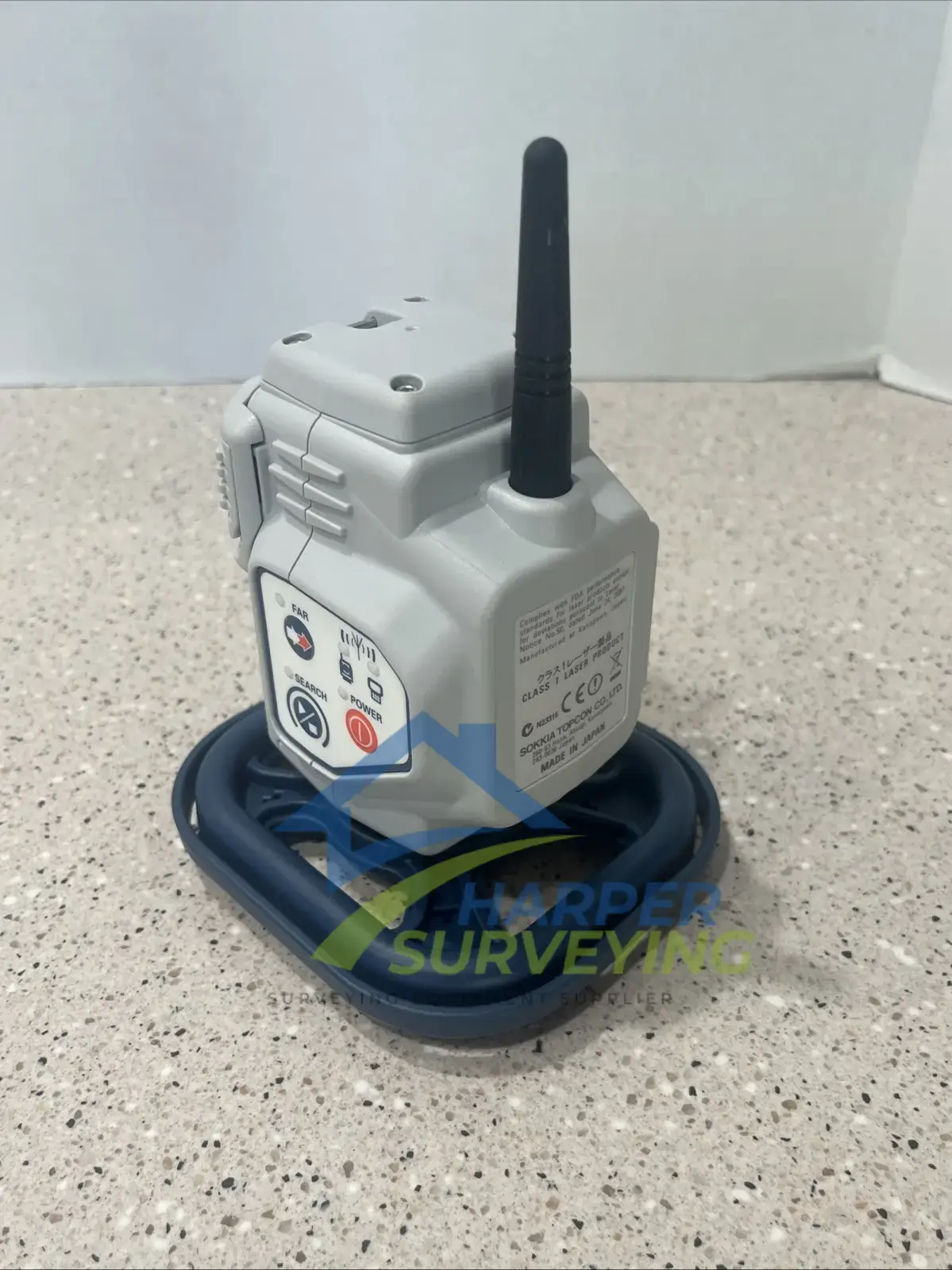

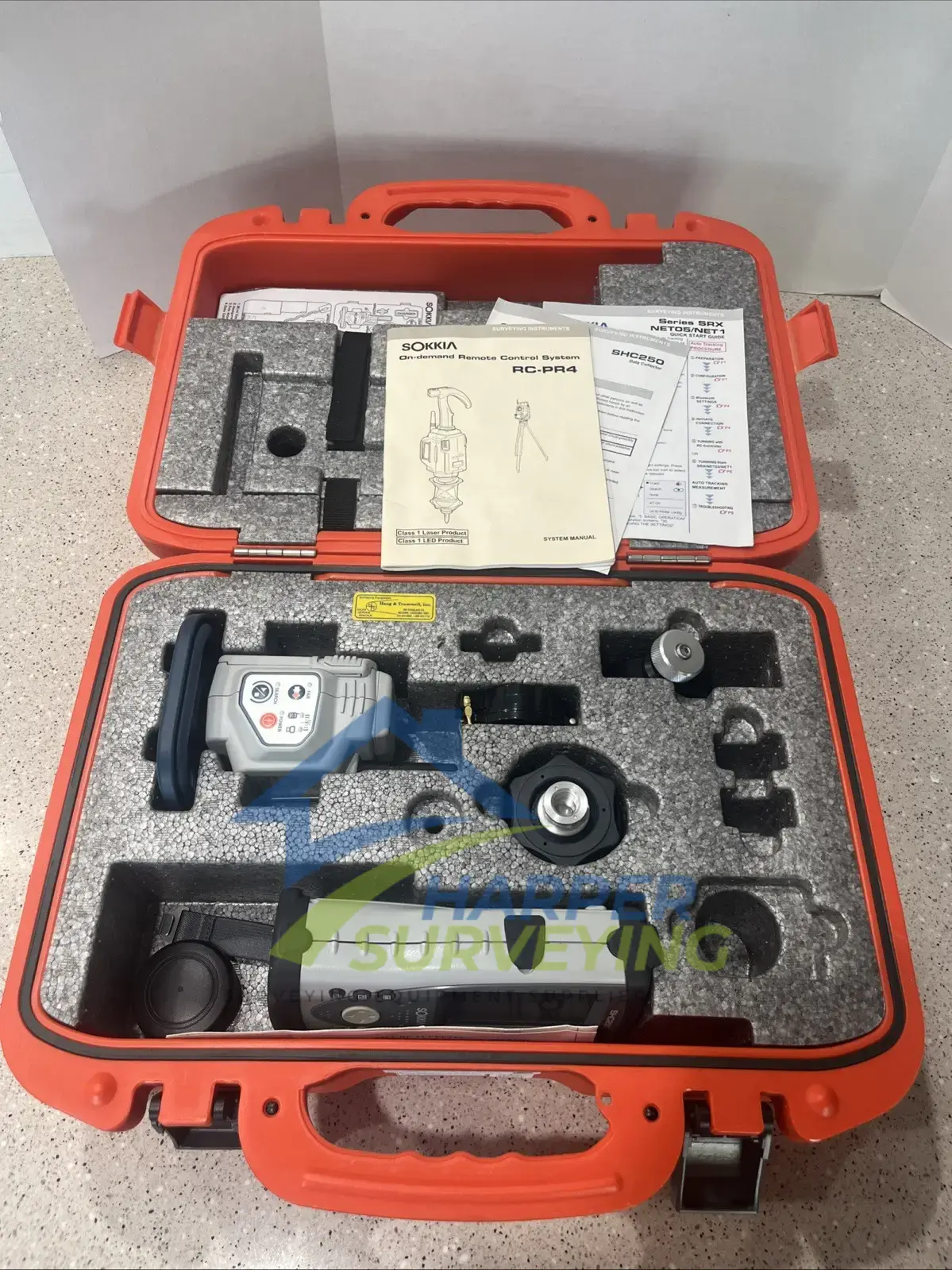

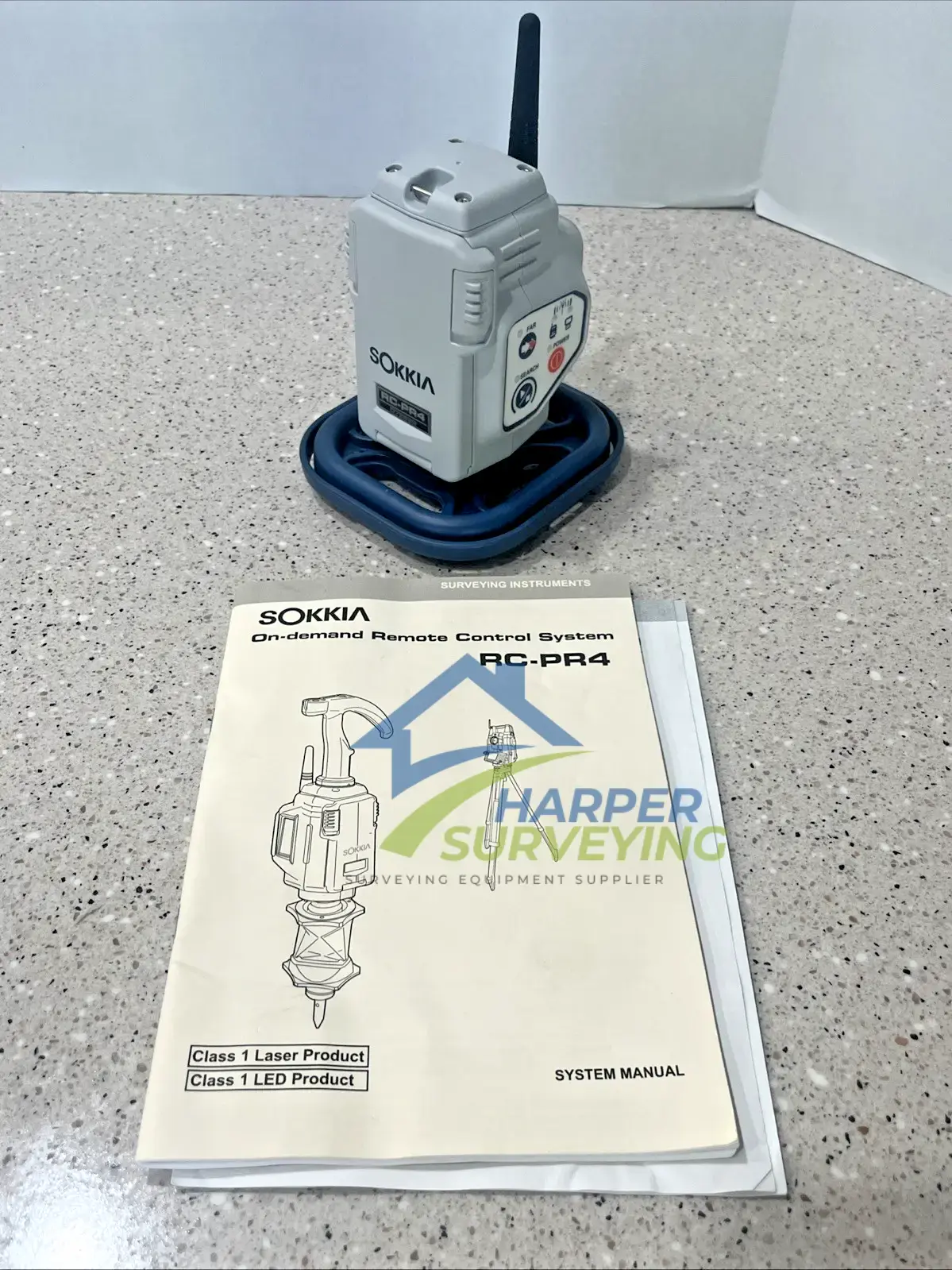

- Sokkia RC-PR4 Kit

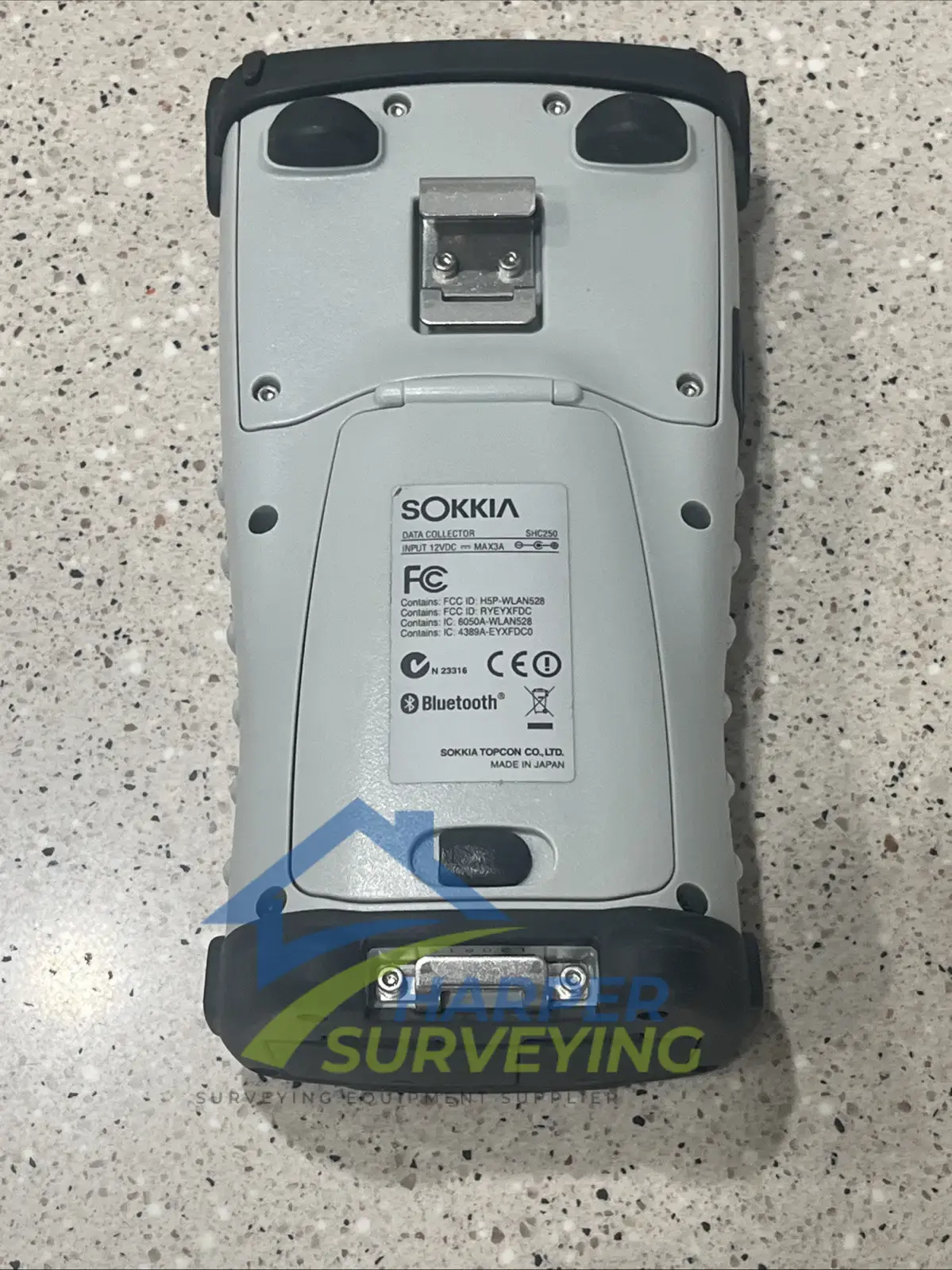

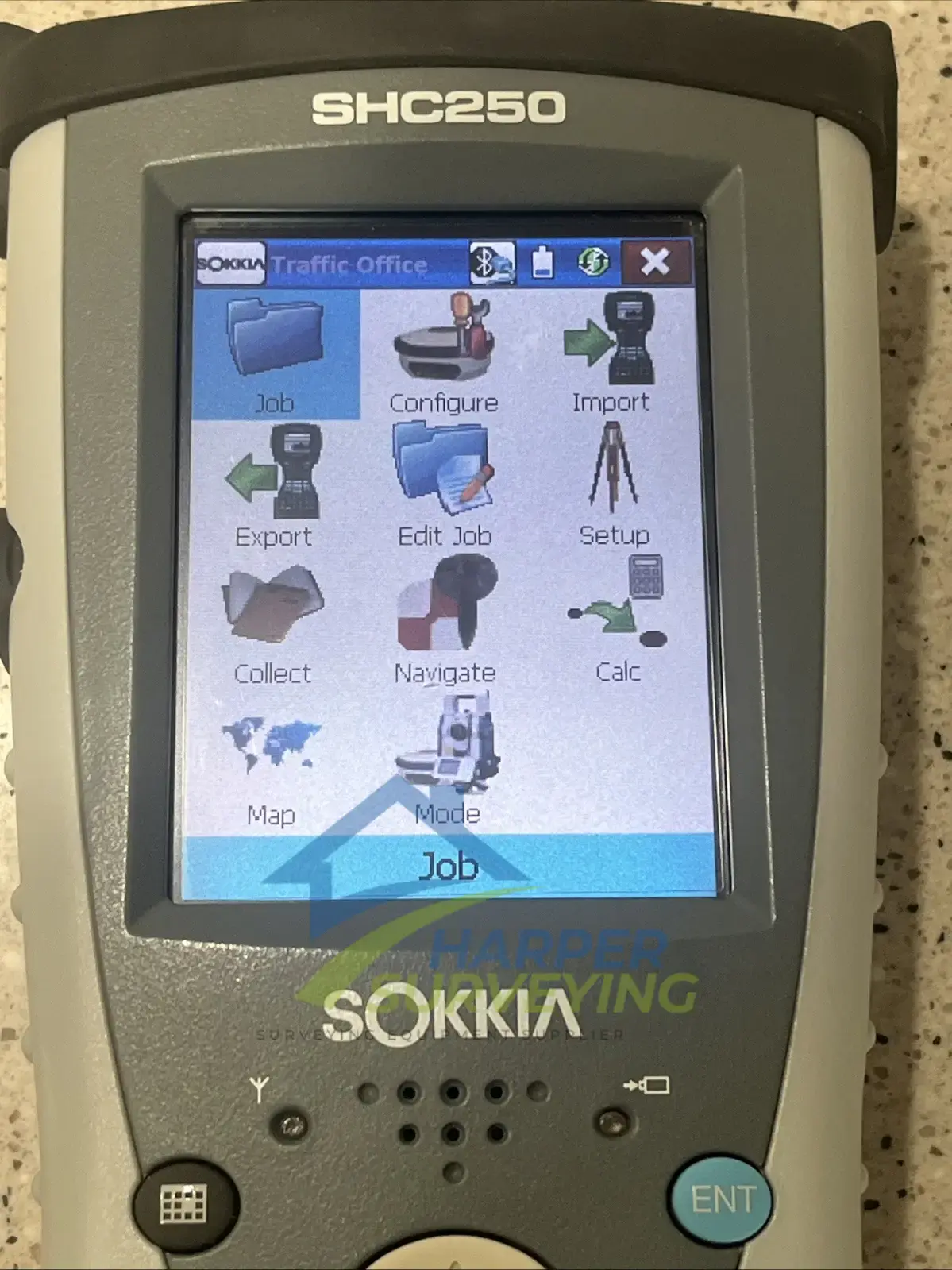

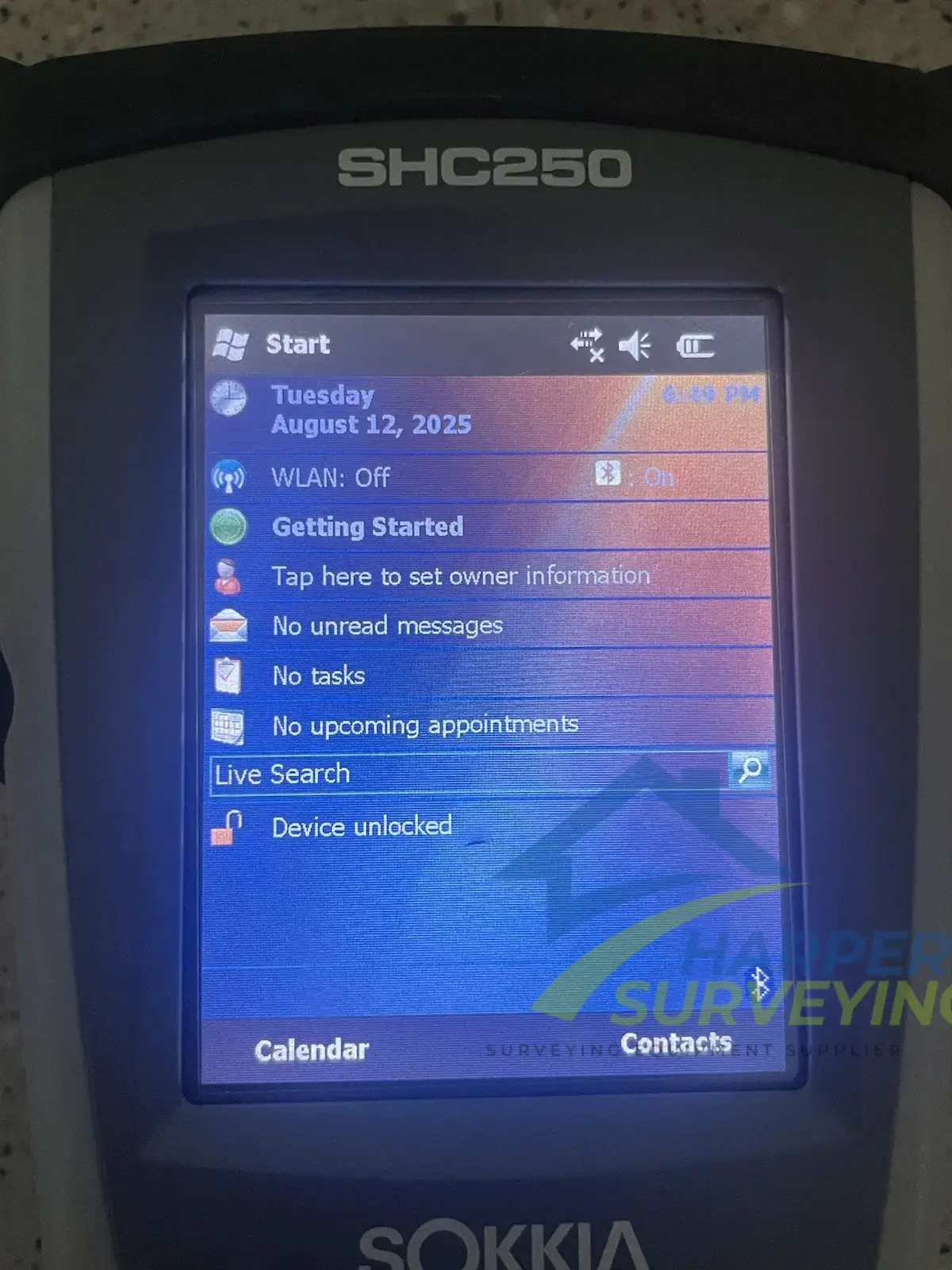

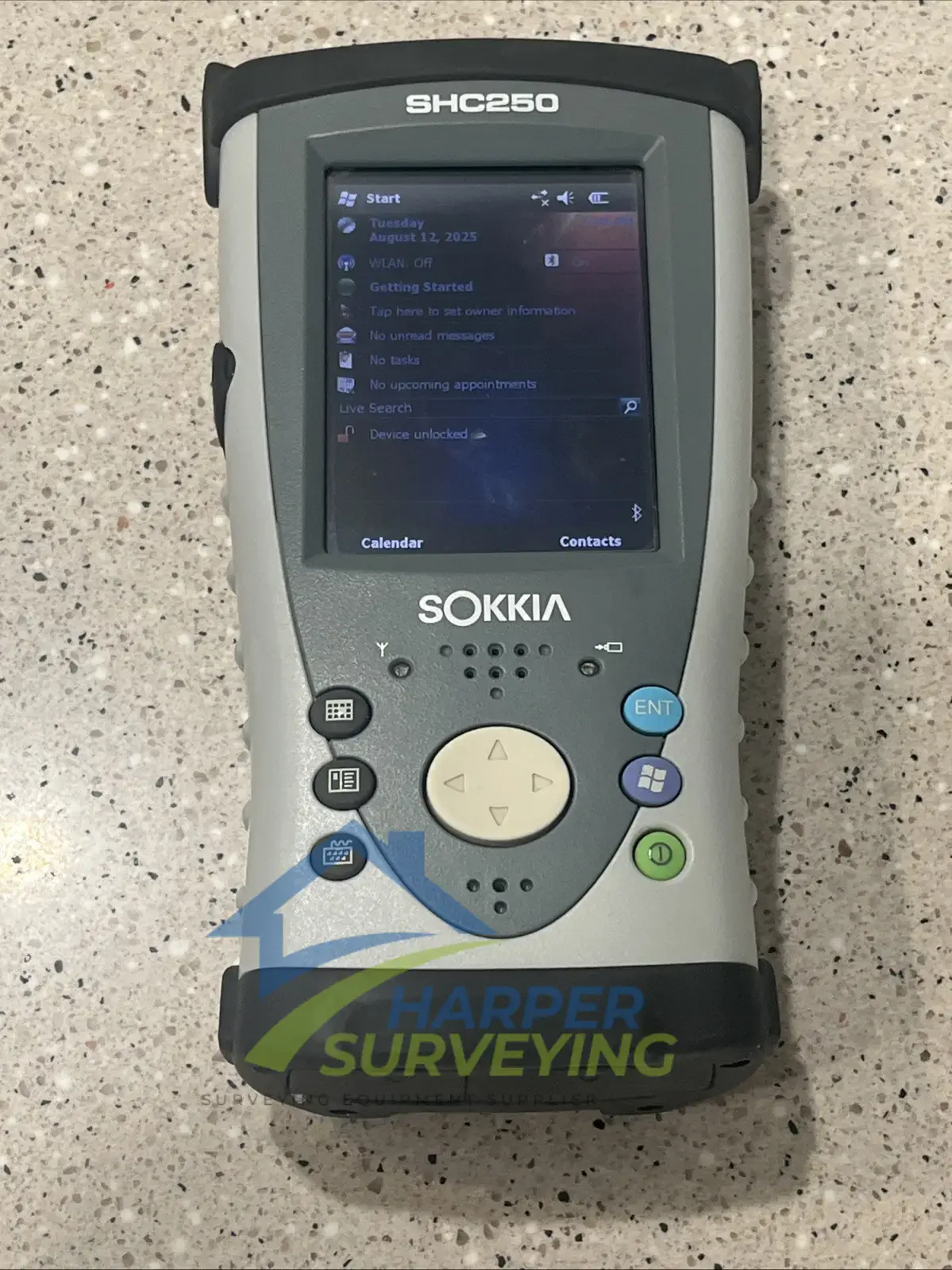

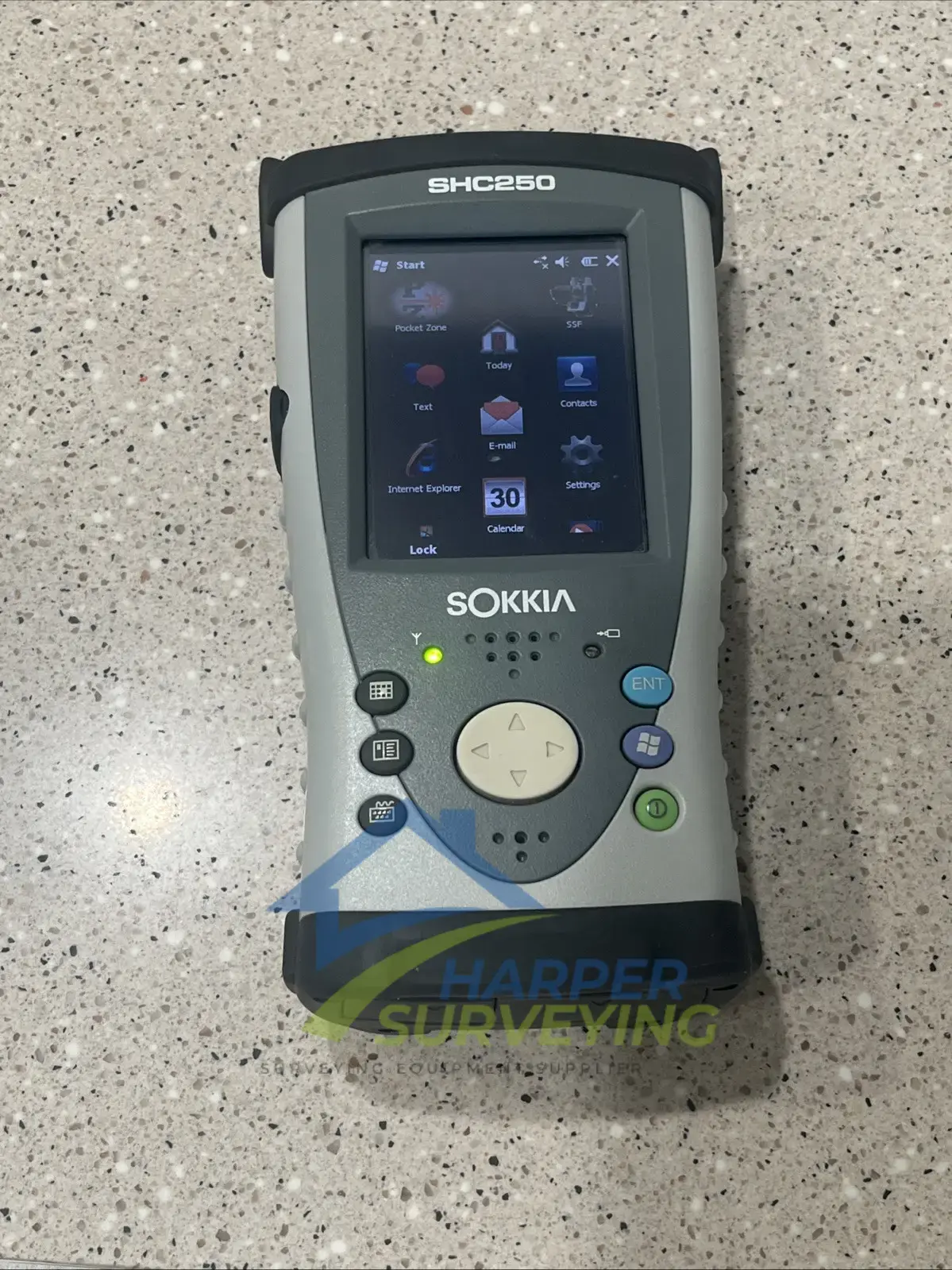

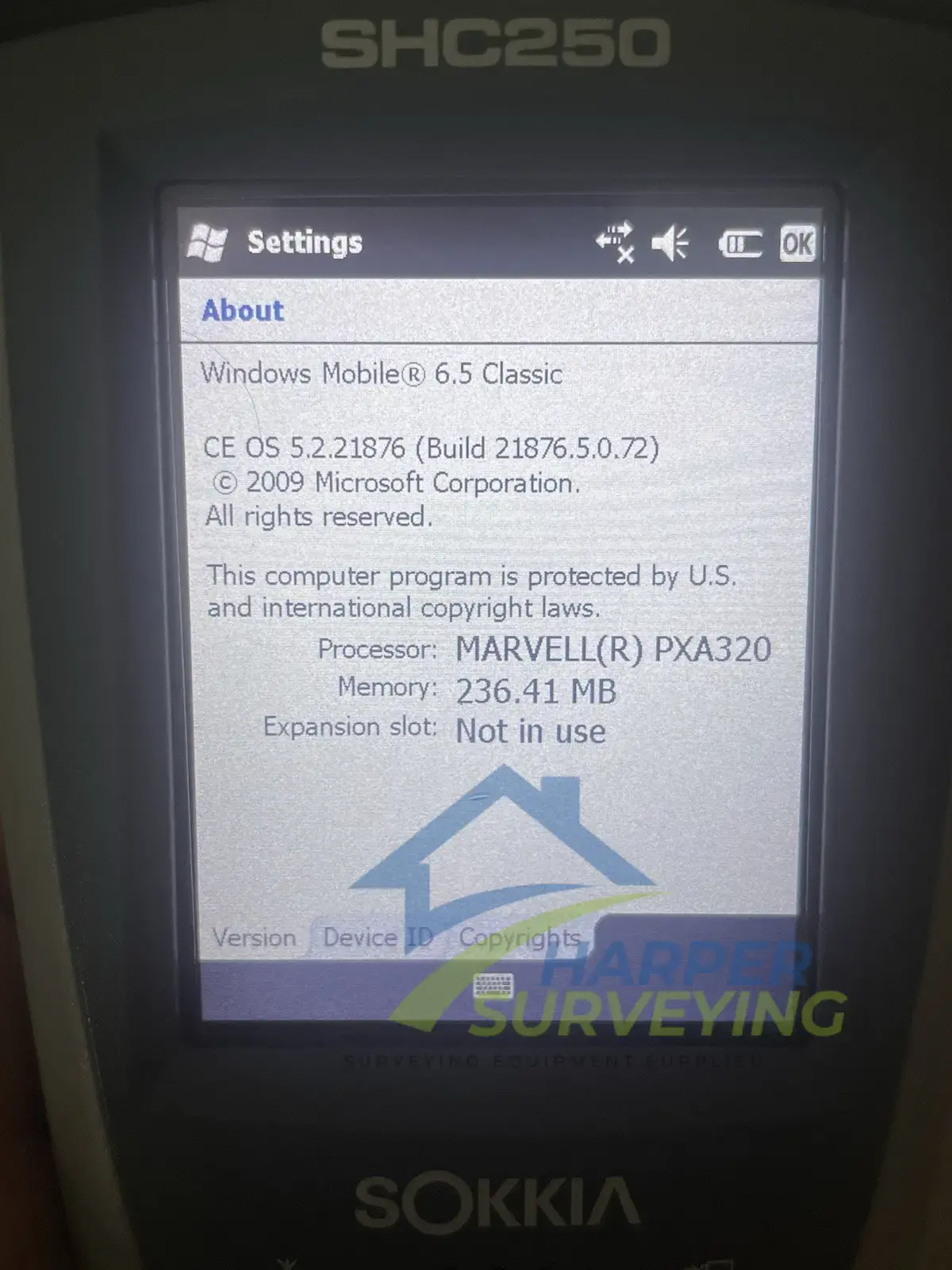

- Sokkia SHC2500 with Spectrum Survey Field Software

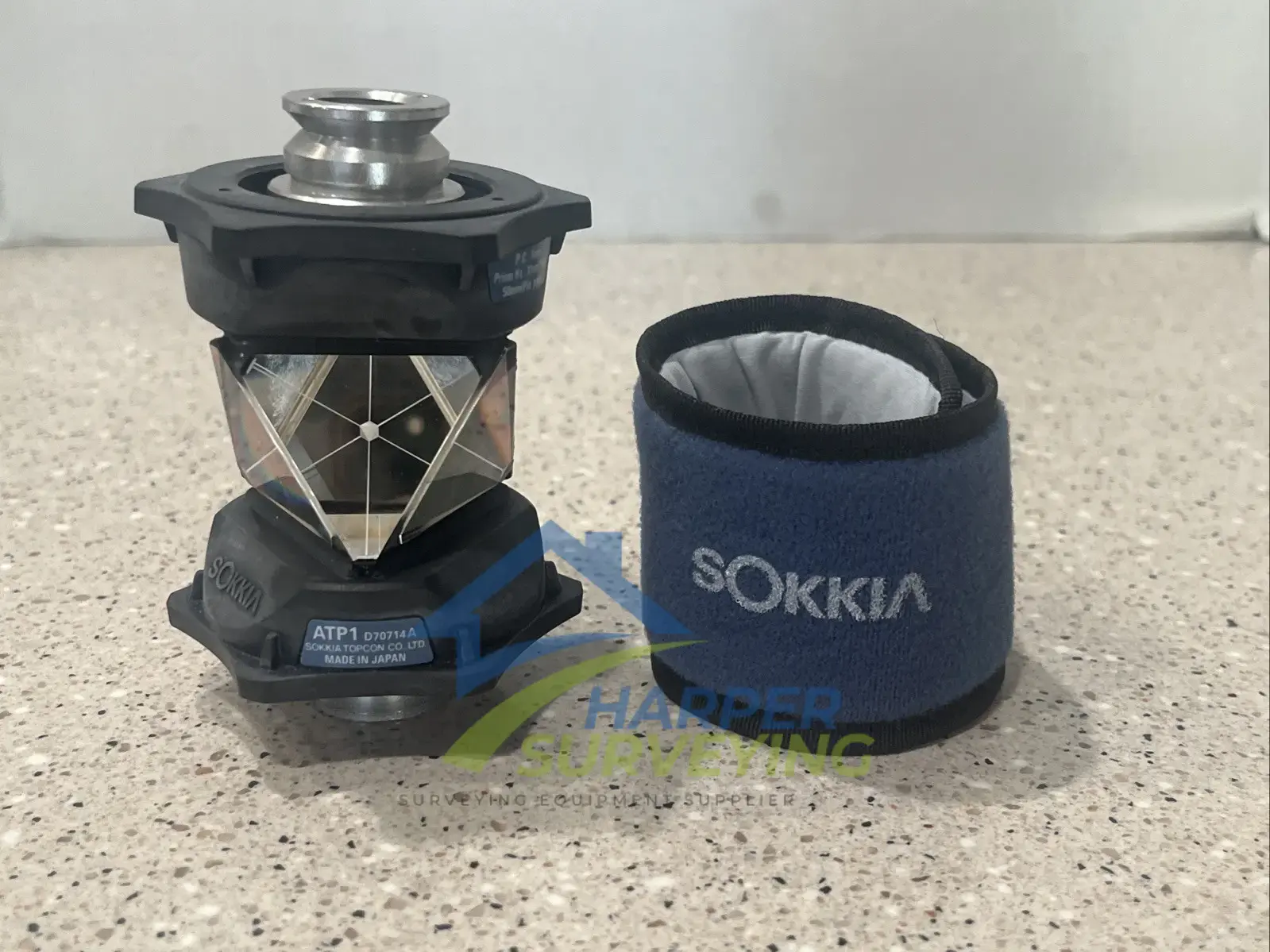

- Sokkia 360 prism
- Carbon Fiber Tripod

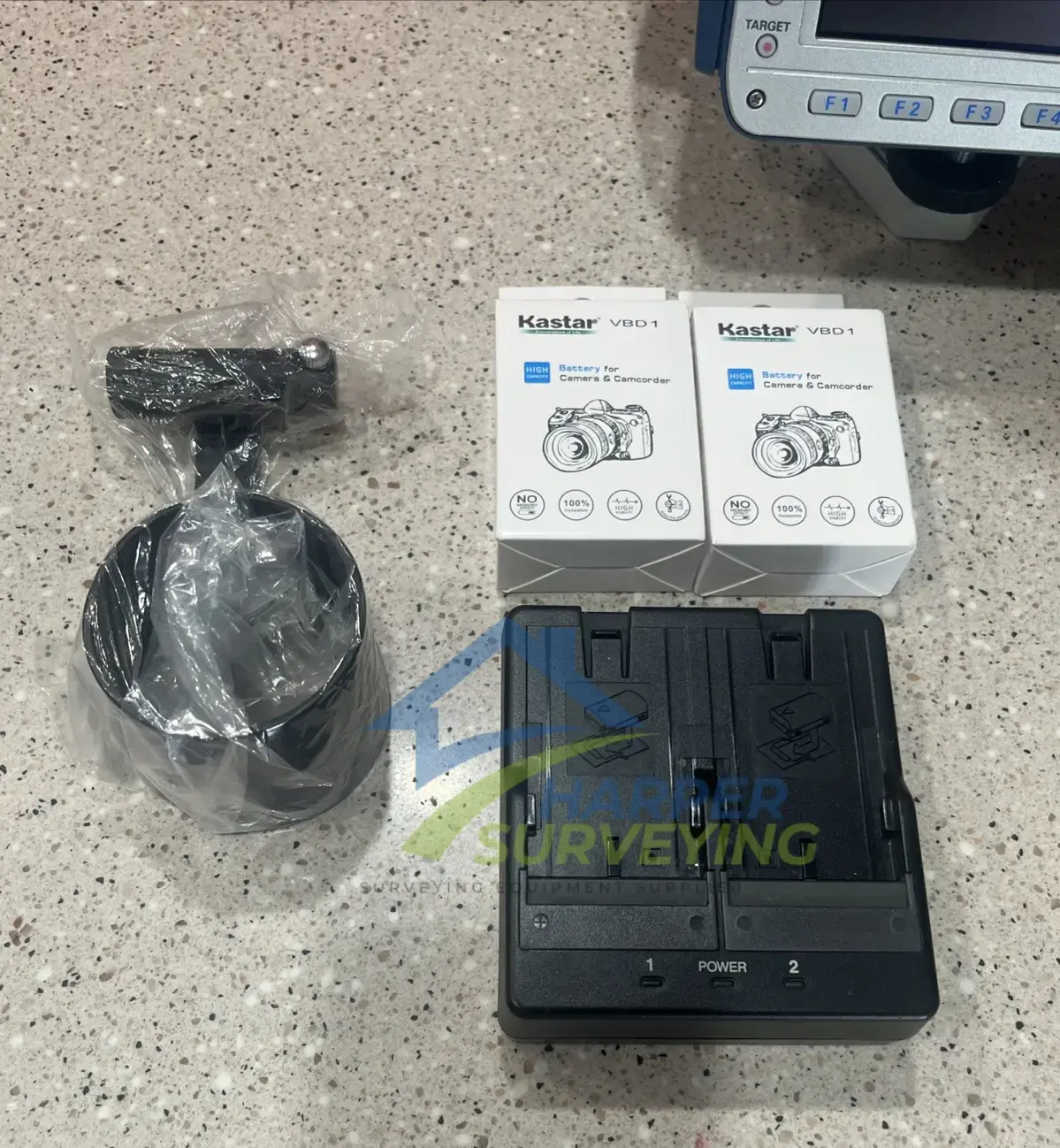

- 2X CDC68 quick charger with EDC113A/EDC113B/EDC113C power cable
- 3X BDC58 rechargeable Li-ion battery

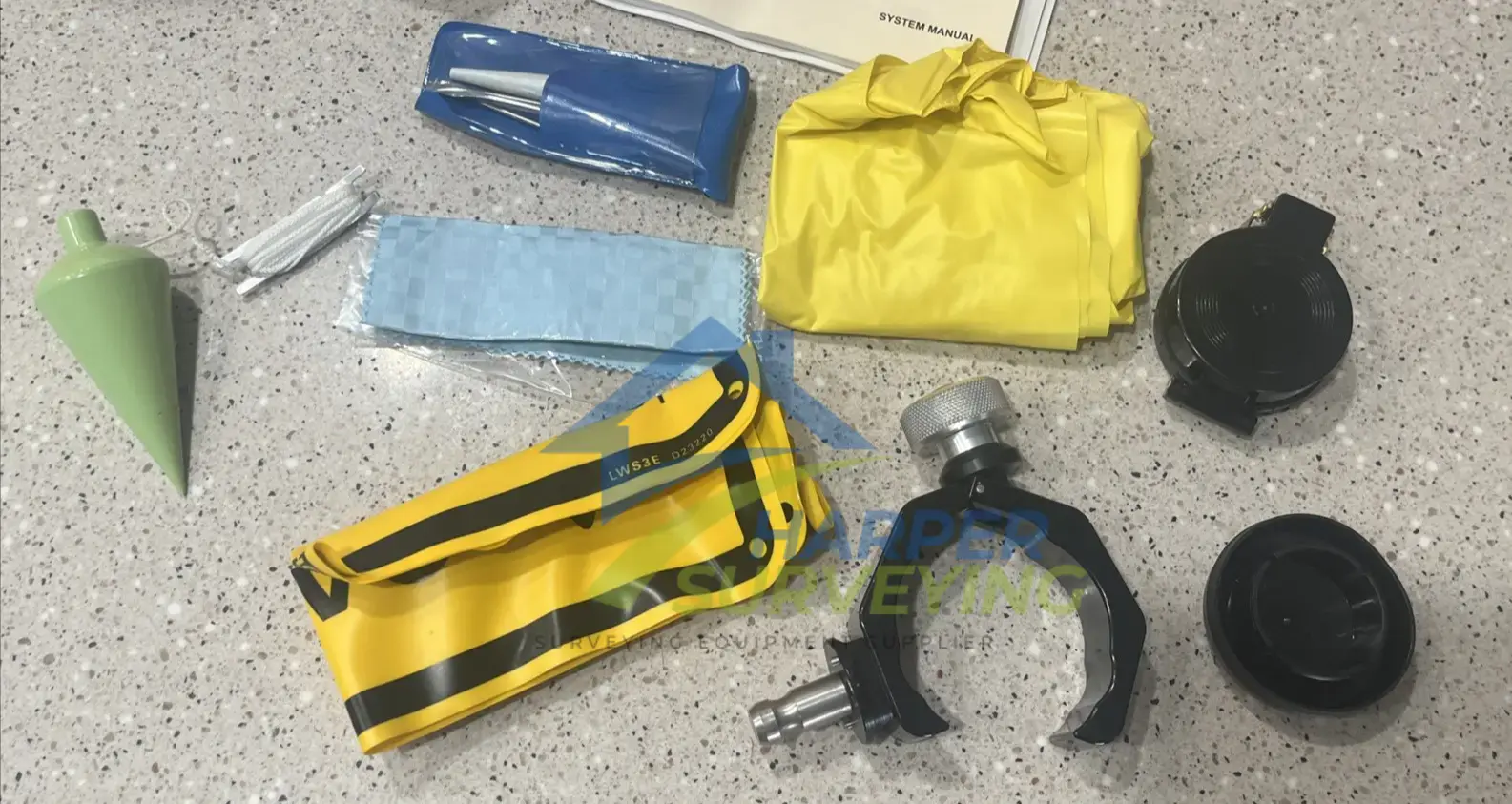

- Carrying Case and shoulder strap
