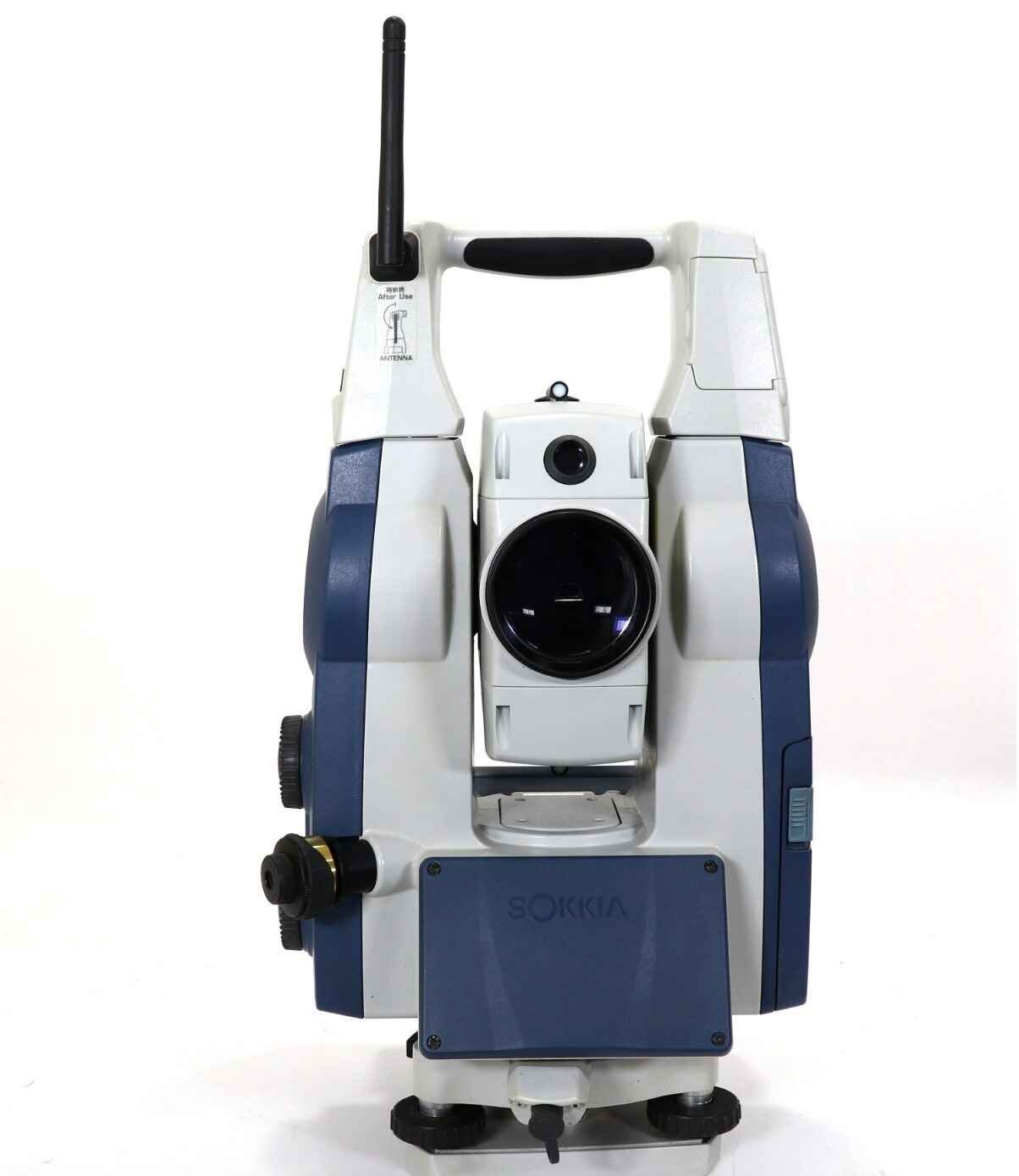

The Sokkia SRX3 3″ Reflectorless Robotic Total Station is a versatile, capable tool that comes in 1”, 2”, 3” and 5” models. The angle accuracy is per ISO17123-3 and uses an absolute encoder scanning device with diametrical detection on both circles. Sokkia calls it the ”Enhanced Encoder with IACS Technology”. Robotically it turns tighter horizon closures than my own eyes can, and a lot faster, too. It has dual axis compensation using a ”liquid” tilt sensor that has a working range of +/- 4 minutes.
For distances it uses a ”modulated laser, phase comparison method with red laser diode”. You can use it prismless, with auto-tracking prisms, reflective sheet tar-gets, or plain old vanilla prisms. Pay strict attention to your prism offsets if you mix and match, though! It will shoot prismless from 0.3 to 500 meters to a 90% reflective surface. Accuracy is 3mm+2ppm up to 200M, 5mm+10ppm from 200M up to 350M, and 10mm+10ppm from 350M up to 500M. With reflective sheet targets your range is 1.3 to 500M. Range with the ATP1 prism 1.3 to 1,000M and an accuracy of 2mm+2ppm in the fine mode. Range with one AP prism (Figure 1) is 1.3 to 5,000M and 2mm+2ppm accuracy. Under good conditions the AP
Sokkia SRX3 Total Station Features
- On-Demand Remote Control System: The System comprises the prism-side RC-Controller, a data collector and an RC-Detector in the SRX handle. As the RC-Controller projects a vertical laser fan beam, the SRX rotates horizontally until it perceives the fan beam to initiate Auto-Pointing
- Completely Cable-Free: The RC-Controller incorporates a license-free Class 1 Bluetooth modem that enables fully wireless communication for up to 300m (980ft.) between the SRX, RC-Controller and data collector.
- Fast Search and Lock: Simply press a key on the prism-side data collector. Using a built-in directional sensor, the RC-Controller detects the direction in which the prism is moving, and commands the SRX to rotate in the shortest direction to the prism. The combination of a laser fan beam, directional sensor and 360° prism dramatically reduces the time to acquire prism lock.
- Focus on Where You’re Going: With SRX, you can smoothly continue measurement even if buildings, trees or passing traffic interrupt the line of sight. Even the roughest terrain poses no problem for SRX. Just pay attention to your footing and SRX will do the rest. If prism lock should be lost, press the measurement key and the RC-Controller automatically calls the SRX and it recovers the target lock without missing a beat.
- False Sighting Recovery: If SRX gets caught sighting another reflective object, the on-demand remote control system quickly returns it to the prism. Recovery and measurement are accomplished at the push of a button.
- Dramatically Improve Setting-Out Efficiency:
- Using SRX Auto-Tracking, directions and distances are graphically and numerically displayed on the prism-side data collector for real-time point navigation.
- Speed up operation using the Guide Light for rough lateral positioning. Setting-out efficiency can also be improved using the SRX Auto-Pointing function.
Sokkia SRX3 Robotic Total Station eliminates the problems of previous remote control systems, which were often stressful and time-consuming to use
With SRX, there’s:
- No more waiting for the total station to lock on to the prism
- No more lost targets and unreliable tracking
- No more accidental sighting of other reflective objects
SRX achieves “stress-free complete remote control” with a combination of SRX series auto-tracking and an RC-PR3 on-deman remote control system. This powerful combination eliminates operator stress and increases productivity immediately.
On-Demand Remote Control System
The on-demand Remote Control System emits a laser fan beam that is detected by the RC detector unit in the SRX handle. SRX quickly rotates in the direction of the prism, auto-points and starts measurement right away.
The RC-PR3 unit is equipped with a directional sensor to ensure that SRX always rotates in the shortest direction, dramatically speeding up one-touch target acquisition.
Quick Start!
Simply press the measurement key and SRX will rotate toward the prism and immediately start measurement. SRX is available in both full robotic and upgradeable auto-pointing configurations.
Focus on Where You’re Going!
With SRX, you can smoothly continue measurement even if buildings, trees or passing traffic interrupt the line of sight. Even the roughest terrain poses no problem for SRX. All you need to do is pay attention to your footing and SRX will take care of the rest. If target loss should occur, press the measurement key and the on-demand remote control unit will automatically capture the prism using the on-board directional sensor, allowing you to continue without missing a beat.
False Sighting Recovery
If SRX gets caught sighting another reflective object, the on-demand remote control system quickly calls it back to the prism. Recovery and measurement are done at the push of a button.

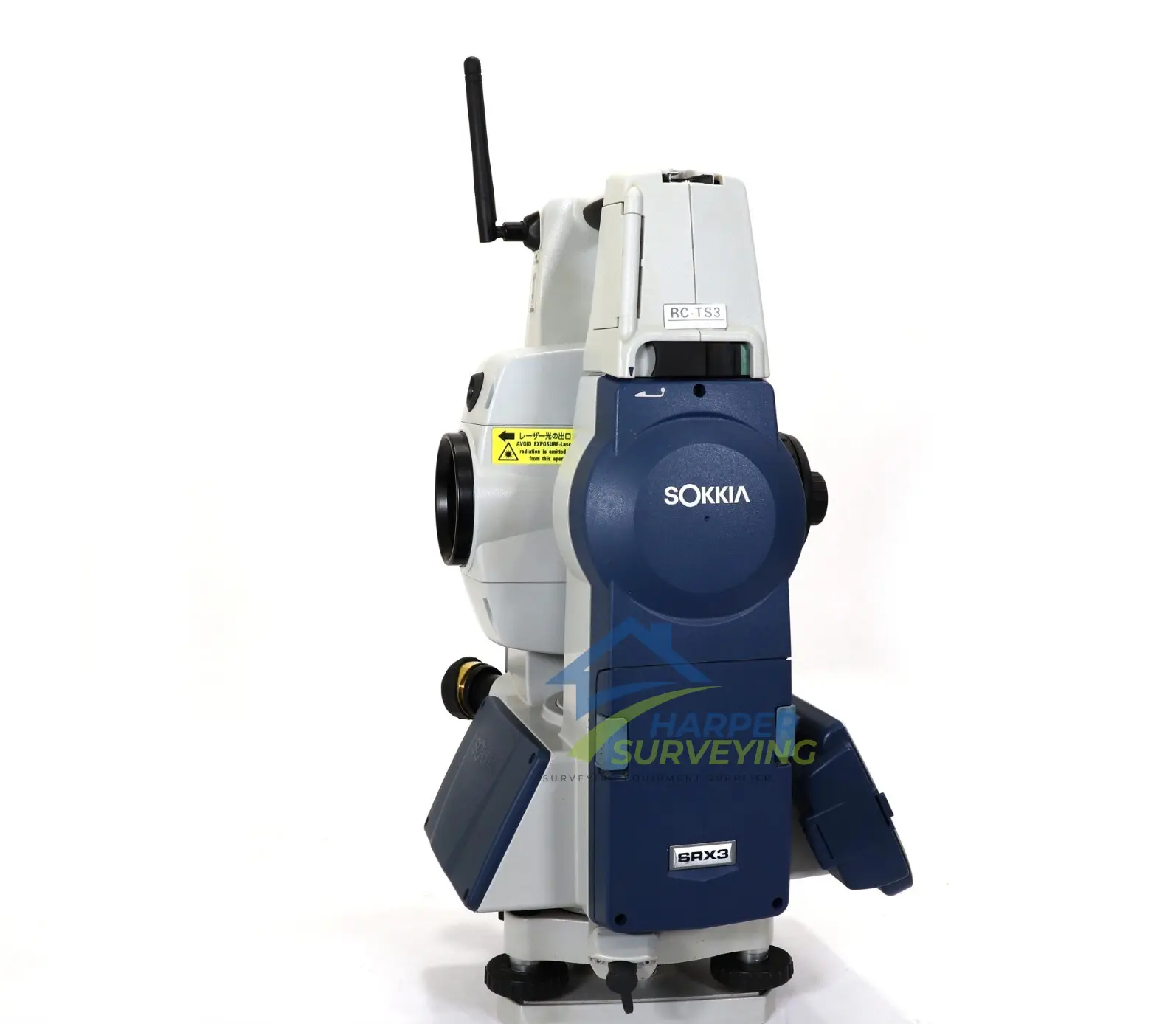

Ergonomic Handle
The removable, ergonomically designed handle incorporates both Bluetooth wireless technology and the RC detector in one sleek design.
Compact Telescope Unit
SRX features a compact high performance telescope unit. Perform rough sighting easily even while wearing a hard hat.
Guide Light Unit
Sokkia’s guide light unit assists in setting out measurements. It consists of two different color LEDs emitted from a single aperture and can be easily determined at both long and short ranges. A special flashing pattern is also included to assist users with color weakness.
Rechargeable Li-ion Battery
The battery box is located for easy-access to make battery replacement efforless. SRX comes with two rechargeable large capacity Li-Ion batteries as standard.

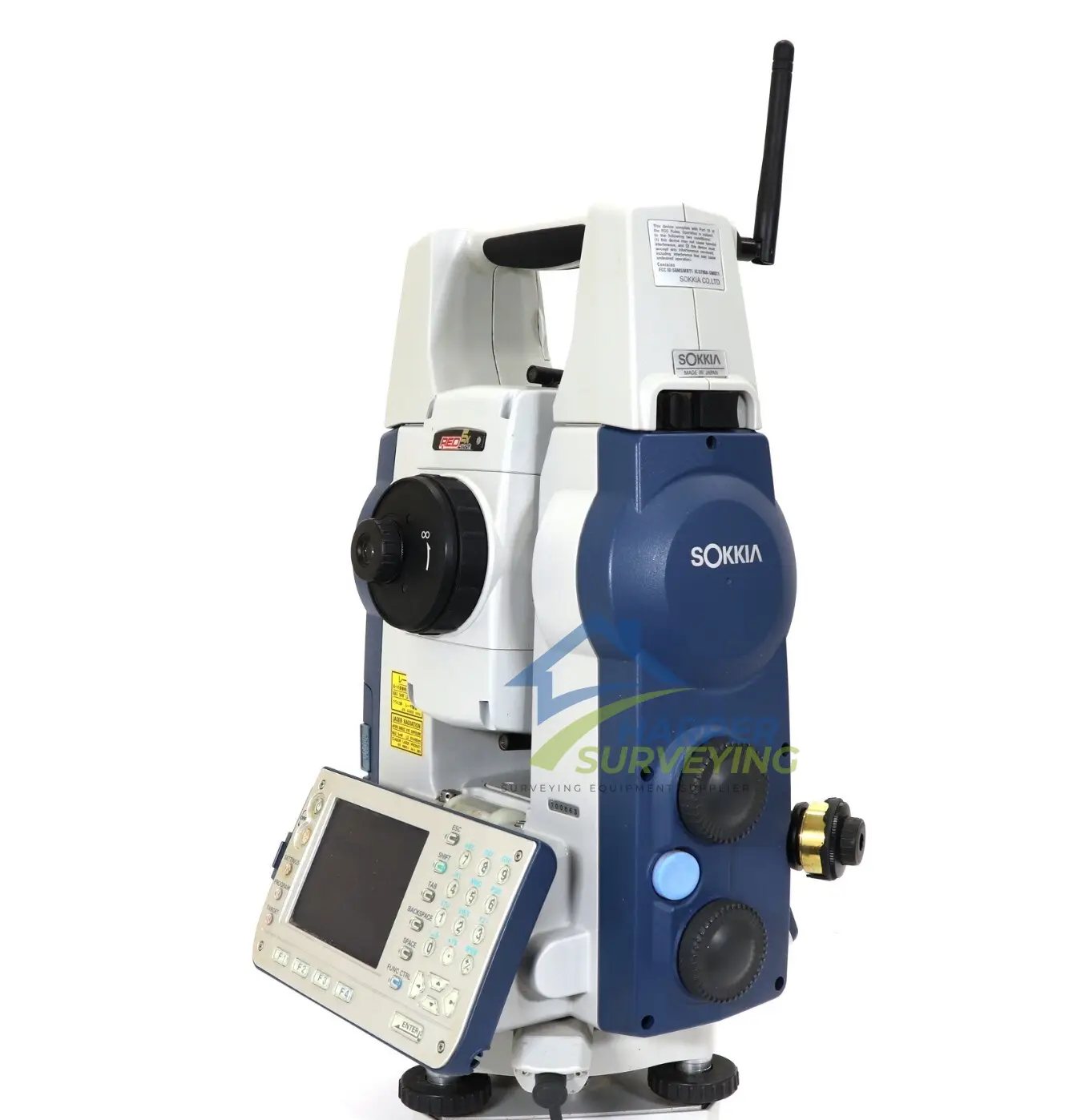

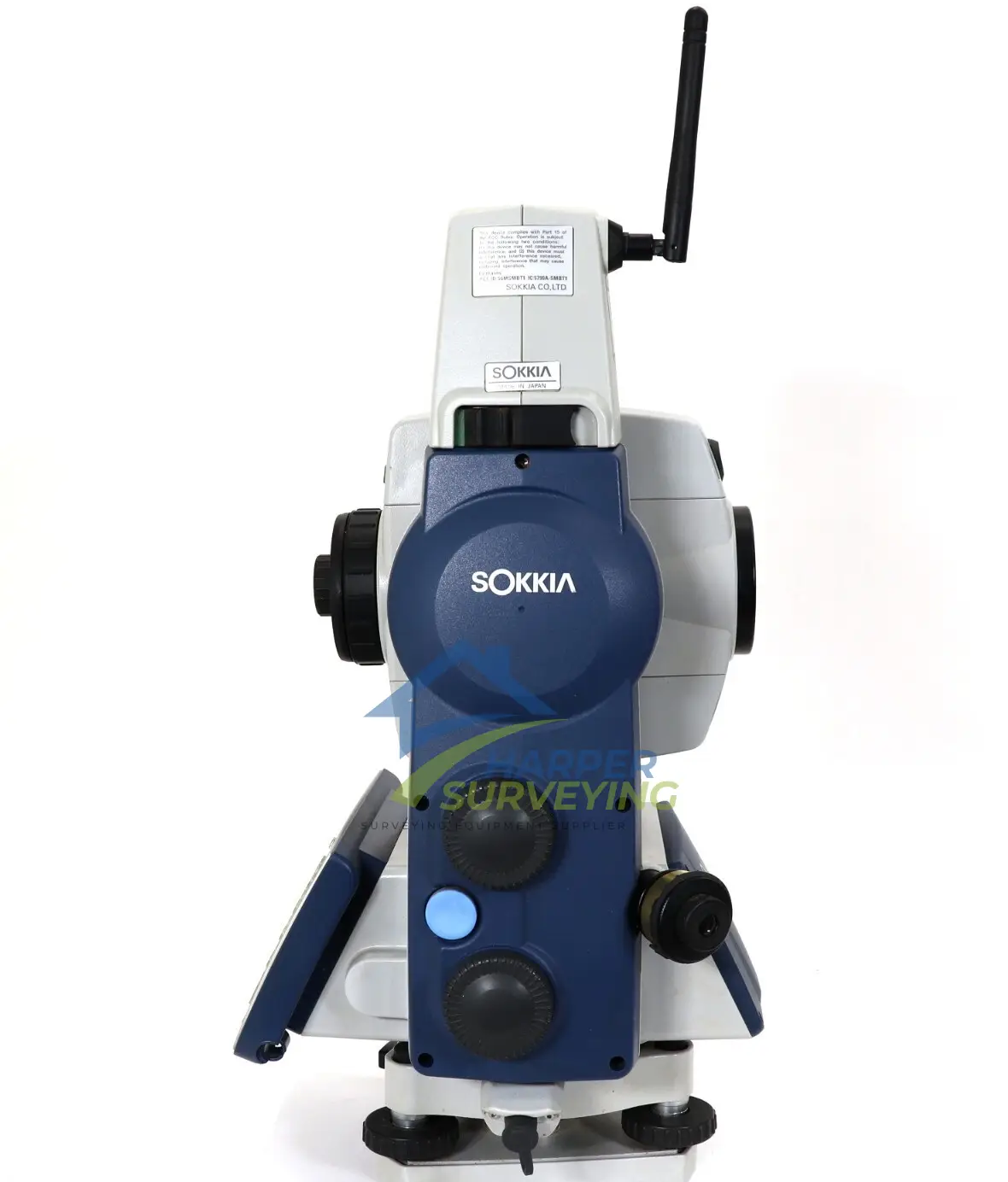

Jog Dials / Trigger Key
Jog dials have a comfortable finger fit and change instrument rotation speed according to how fast the dials are turned. A handy trigger key lets you take a measurement without taking your eye from the telescope. The jog dials include additional customizable settings for individual applications.

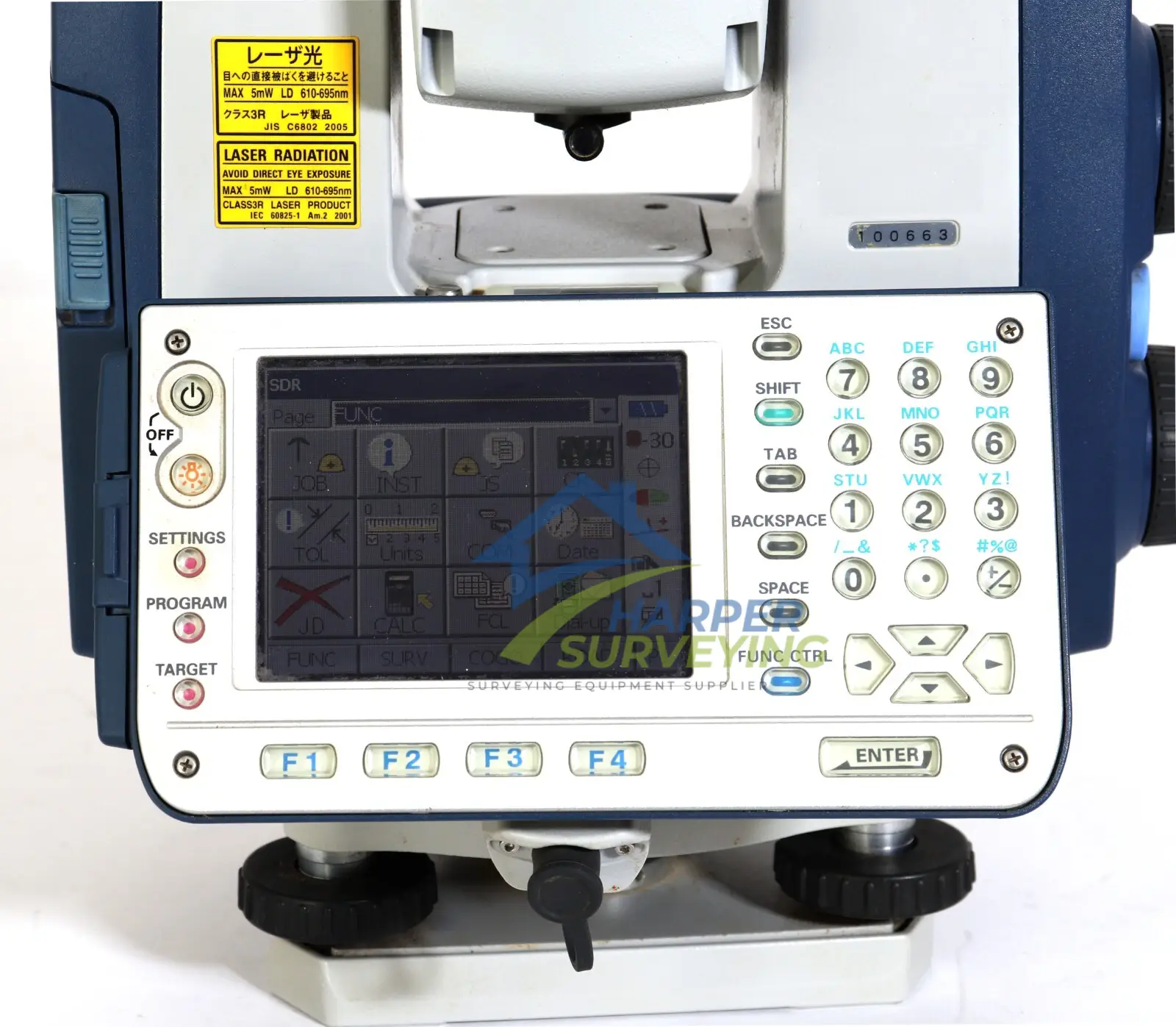

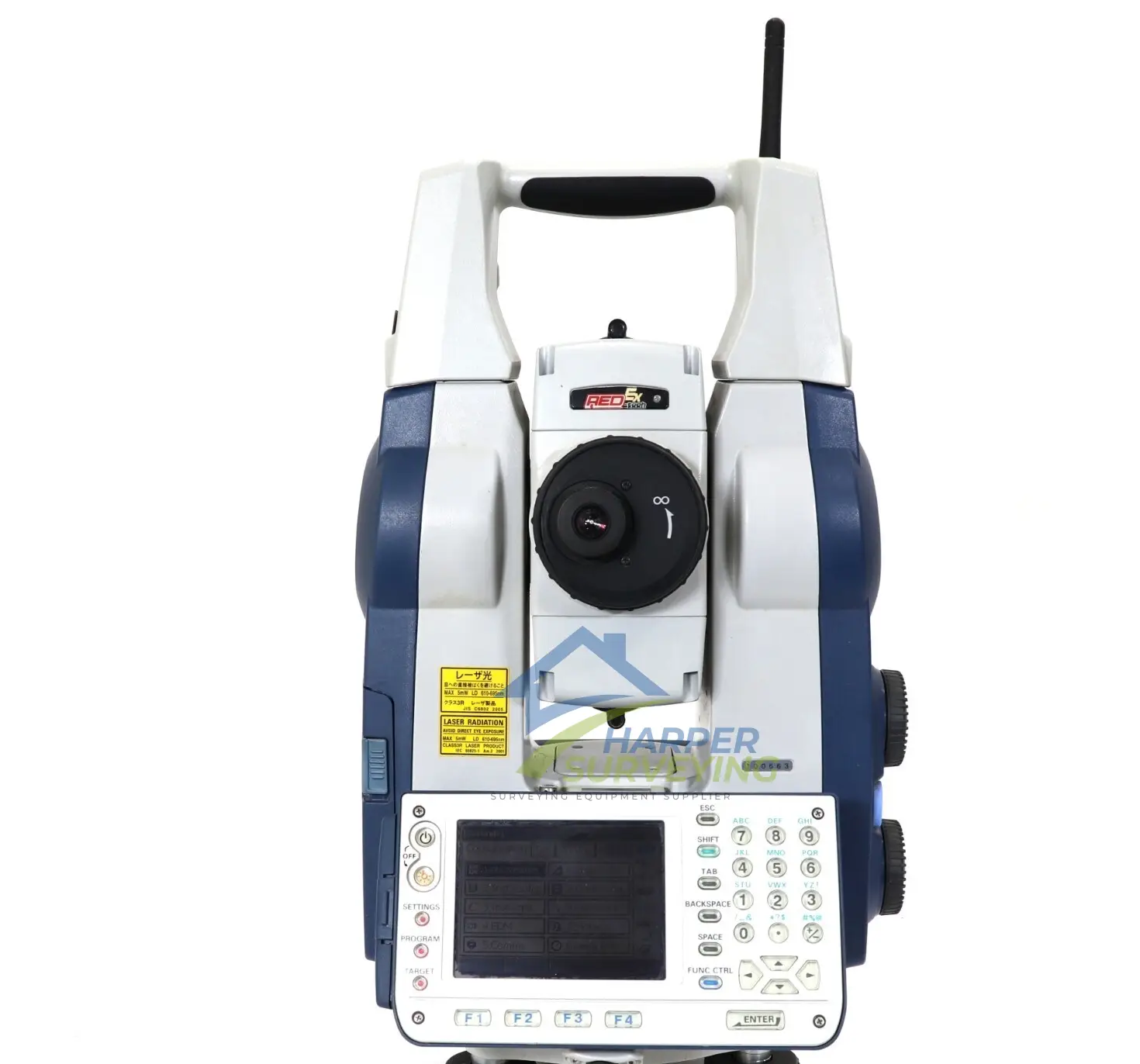

Color Display / Illuminated Keyboard
SRX features a color LCD touch panel display. The display has high angle visibility and subtle contrast for maximum visibility. The full alphanumeric keyboard has concave keys that can be easily pressed by hand or with the stylus and is illuminated to let you see what you are doing under any environmental condition.
Environmental Protection
Featuring advanced protection against dust and water, SRX is able to withstand harsh environmental conditions. IP64 compliant.
Completely Cable-Free
SRX and the RC-PR3 are 100% wireless. No more cables to untangle, trip over or forget. License-free long-range data communication is easily performed using Bluetooth Class 1 wireless technology.
Sokkia SRX3 Specifications
| Angle measurement | Photoelectrical absolute encoder scanning. Both circles adopt diametrical detection |
| Display resolutions (selectable) | 1″ / 5″, 0.2 / 1mg, 0.005 / 0.02mil |
| Accuracy (ISO17123-3) | 3″ / 1mg / 0.015mil |
| Automatic dual-axis compensator | Dual-axis liquid tilt sensor, Working range: +4′ (+74mg), out-of-range warning display and audio beep provided |
| Distance measurement | Modulated laser, phase comparison method with red laser diode |
| Measuring range (slope distance) | Reflectorless: 0.3 to 500m (1 to 1,640ft.) (White side, 90% reflective) |
| Accuracy (ISO 17123-4) | Reflectorless: 0.3 to 200m (1 to 650ft.): +(3 + 2ppm x D)mm |
| Auto-tracking | Pulse laser transmitter and CCD detector with co-axial optics |
| Range | With ATP1 Prism: 5 to 500m (16.4 to 1,640ft) |
| Auto-pointing | Pulse laser transmitter and CCD detector with co-axial optics |
| Range | With ATP1 prism: 2 to 600m (6.5 to 1,960ft.) With AP01 prism: 2 to 1,000m (6.5 to 3,280ft.) |

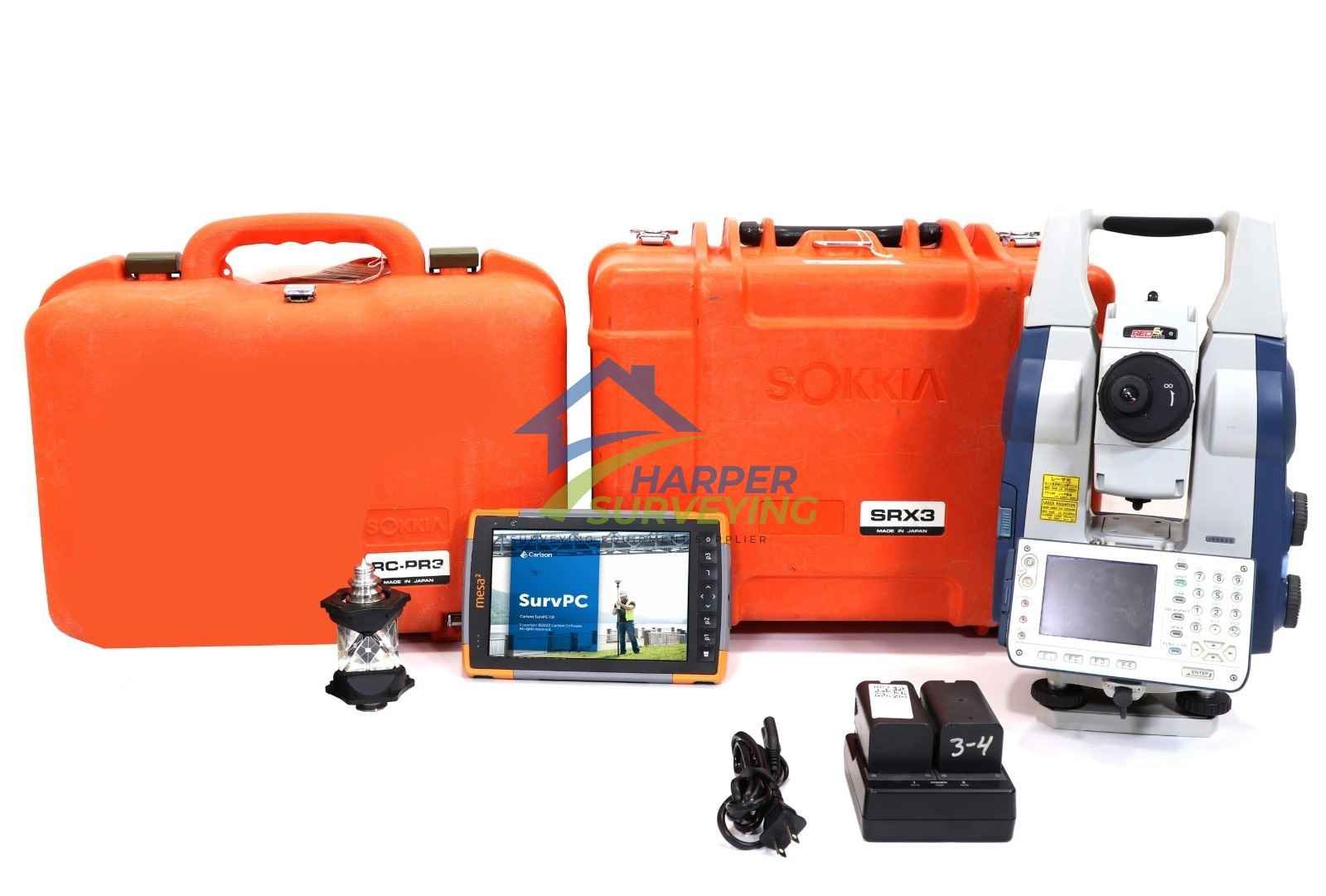

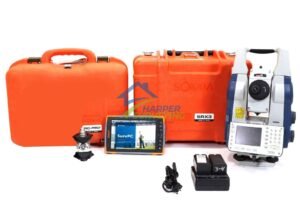

Sokkia SRX3 Include
