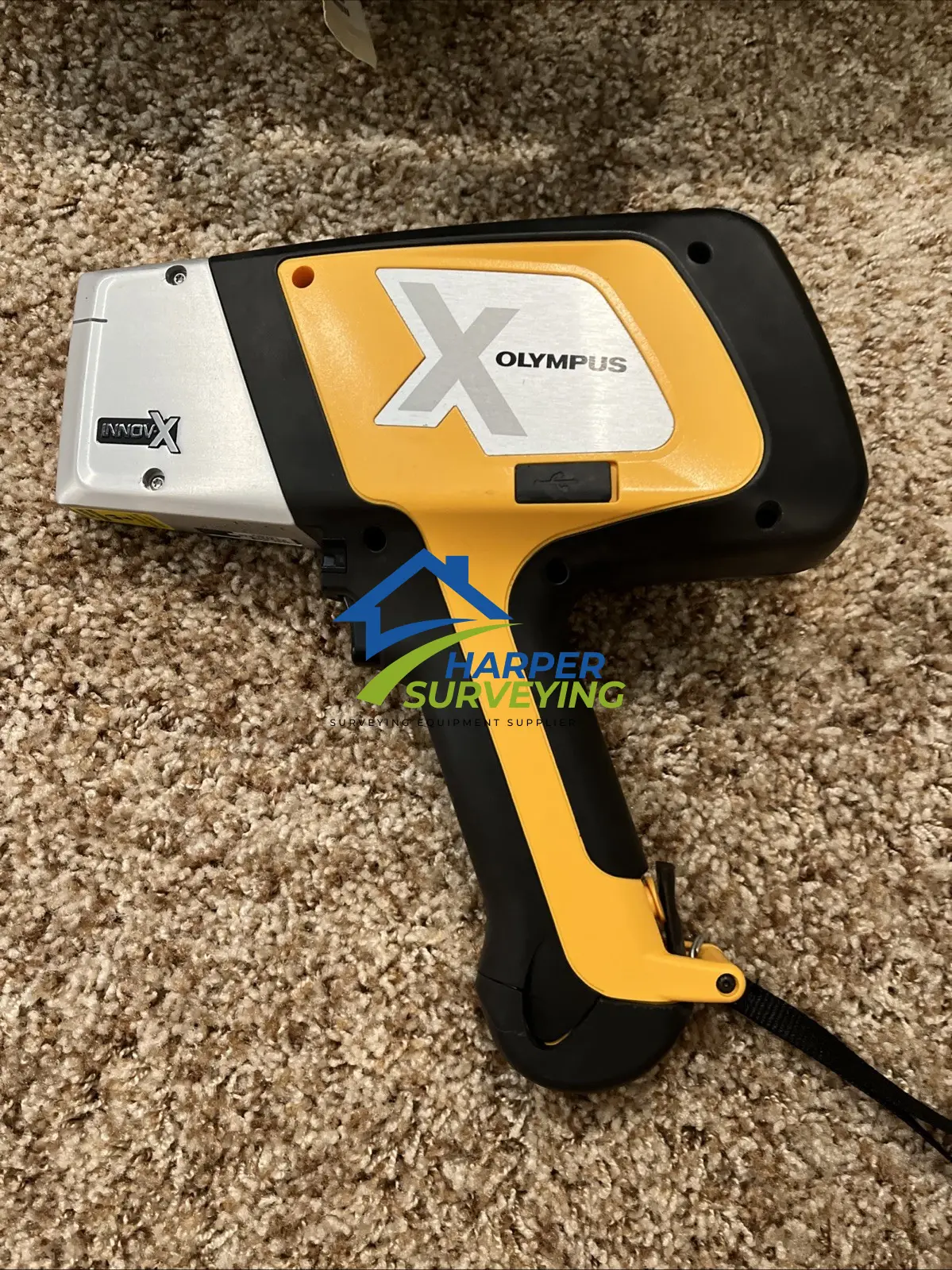

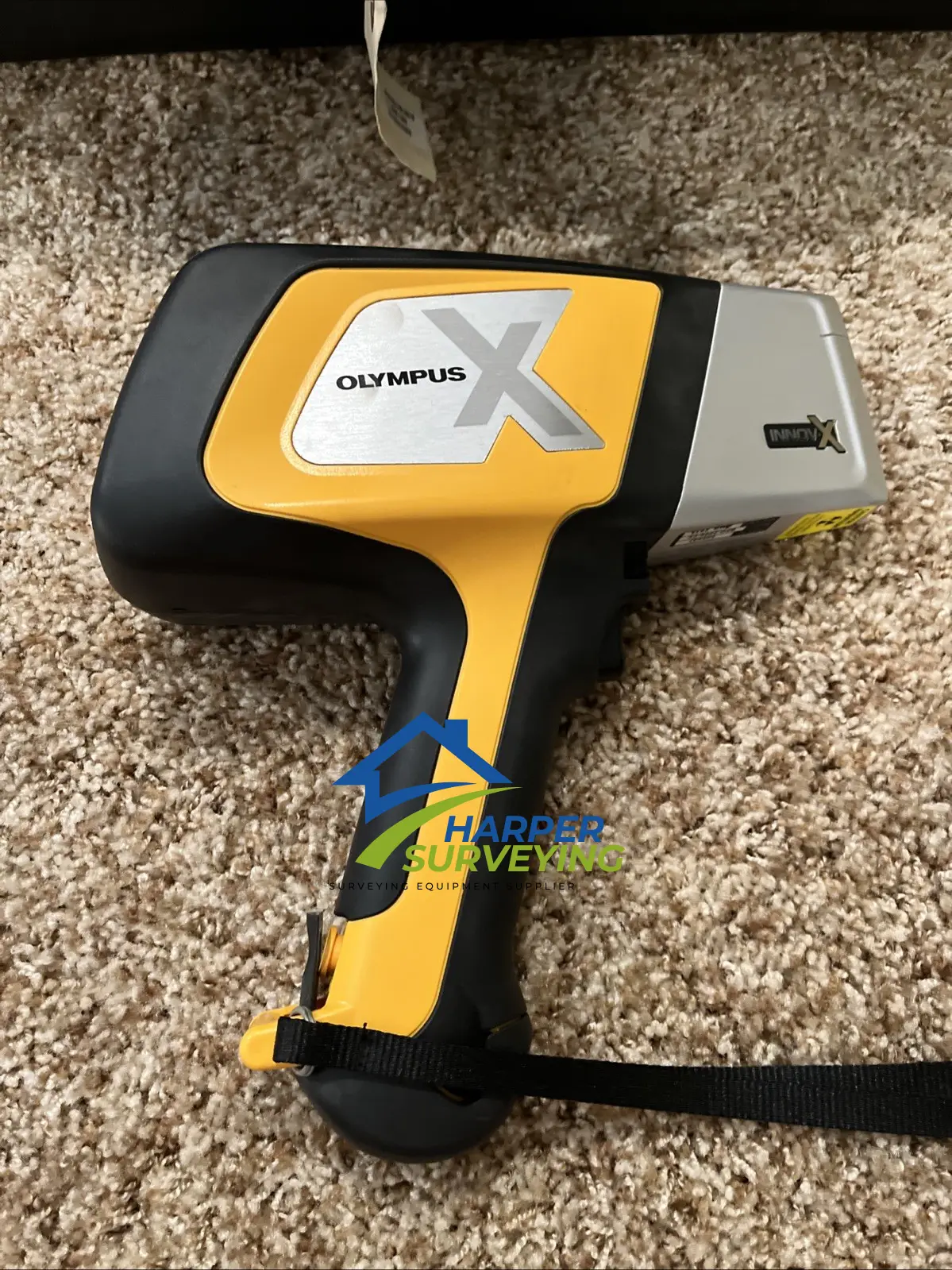

The Olympus Delta Premium DP-2000 Handheld XRF Analyzer is a handheld X-ray fluorescence analyzer designed for various industries and applications. It offers nondestructive testing with the ability to detect elements like lead, mercury, arsenic, copper, gold, silver, platinum, and more in concentrations up to 100% parts per million (PPM). With its advanced features and cutting-edge technology, this analyzer provides precise results quickly and efficiently.
The Delta Premium DP-2000 is the ideal handheld XRF analyzer for ultra quick, analytically demanding applications such as trace levels and light elements in low alloy steel, soil, mining, and metallurgical samples.
The Delta Premium DP-2000 large area SDD and advanced 4W application optimized X-ray tube provide tremendous speed and superior light element analysis in air.
Olympus Delta Premium DP-2000 Key Features
- Lightning-Fast Results: Enjoy rapid data acquisition, reducing testing time and increasing efficiency.
- Ergonomic Design: Rubberized handle and lightweight build for comfortable, extended use.
- Hot-Swap Batteries: Ensure uninterrupted operation with replaceable batteries, ideal for 24/7 use.
- Advanced Connectivity: Integrated Bluetooth® and USB for seamless data transfer and control.
- Enhanced Display: Bright, responsive color touch LCD for clear viewing in any environment.

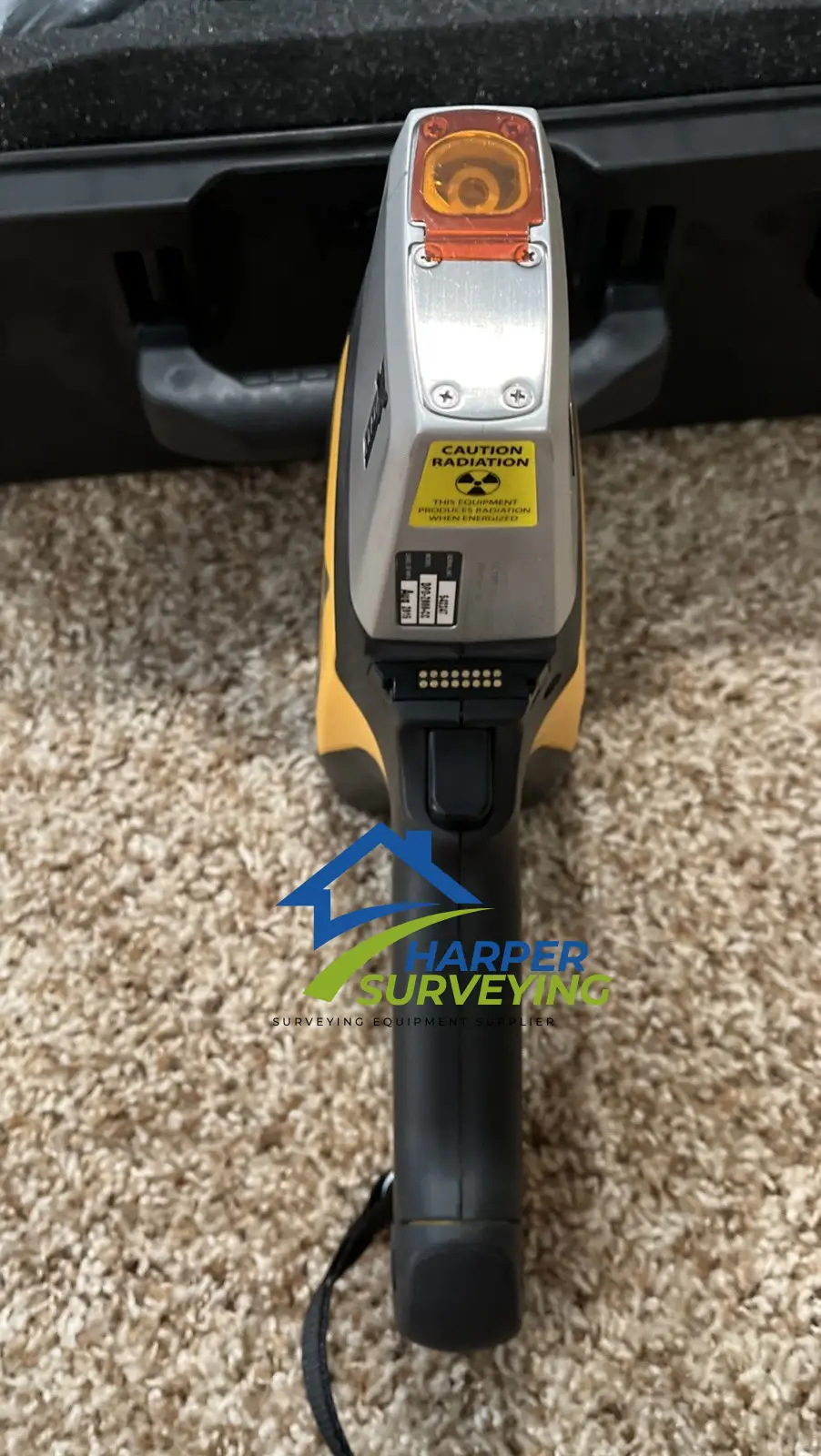

- Integrated Safety Features: 360° analysis indicator lights for safer operations.
Olympus Delta Premium DP-2000 Benefits
- Precision Analysis: Achieve accurate results even in demanding applications.

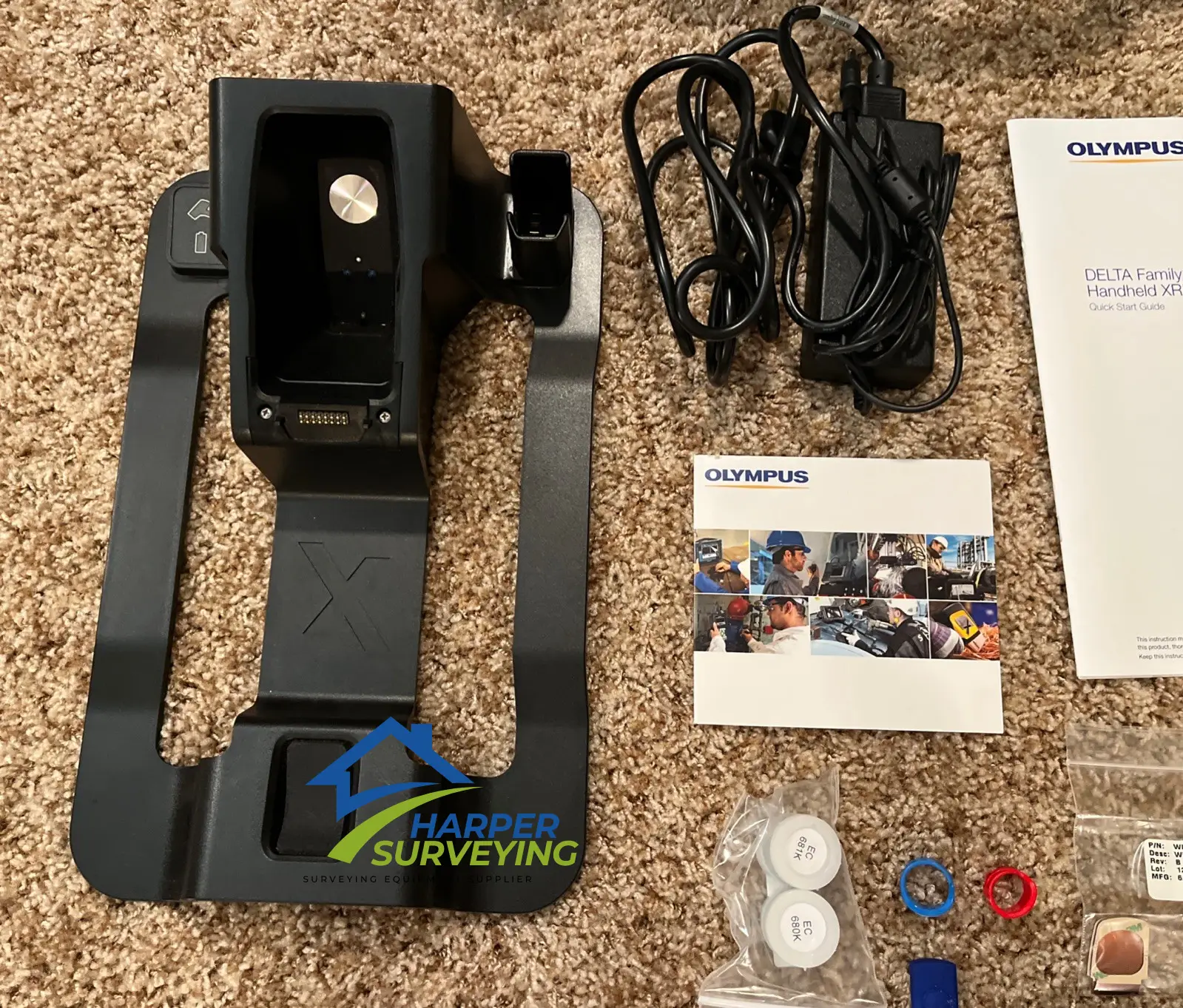

- Increased Productivity: Operate continuously with hot-swap batteries and docking station support.
- Durable & Reliable: Built to withstand rigorous use in the field or lab.
- Convenient Operation: Easy-to-use interface and intuitive controls streamline workflows.
- Versatile Applications: Ideal for alloy, light metals, and mining analysis, delivering superior results every time.
Olympus Delta DP-2000 Specifications
| Display | 32 bit Color QVGA resolution, Blanview transmissive backlit touchscreen; 57 x 73 mm (2.25 x 2.9 in.) |
| Detector | Silicon Drift Detector |
| Excitation Source | 4W Ag, Rh, Au, or Ta anode (per application) X-ray tube |
| Processing Electronics | 530 MHz CPU with integrated FPU with 128 MB RAM; Proprietary Olympus X-act Count Digital Pulse Processor (DPP) |
| Analytical Range | Alloy and Mining: Mg and up for Rh/Ag and Al and up for Ta/Au; Soil: P and higher |
| Data Transfer | USB, Bluetooth |
| Data Storage | 1 GB microSD (stores ~75,000 readings) |
| Power | Rechargeable Li-ion battery; Hot-swap maintains analyzer power during battery change |
| Dimensions | 260 × 240 × 90 mm (10.25 × 9.5 × 3.5 in.) |
| Weight | 1.5 kg (3.25 lbs) without battery |

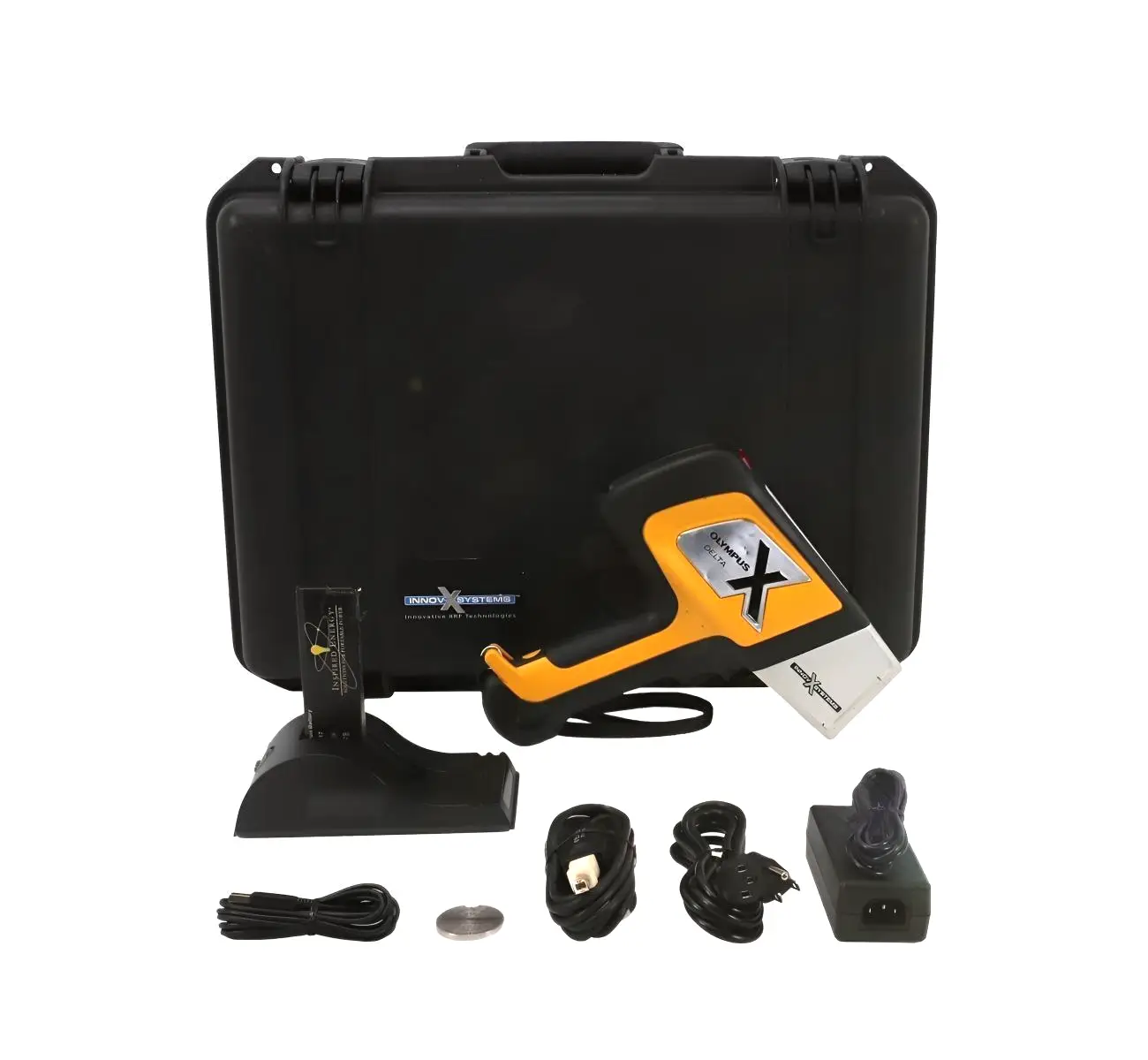

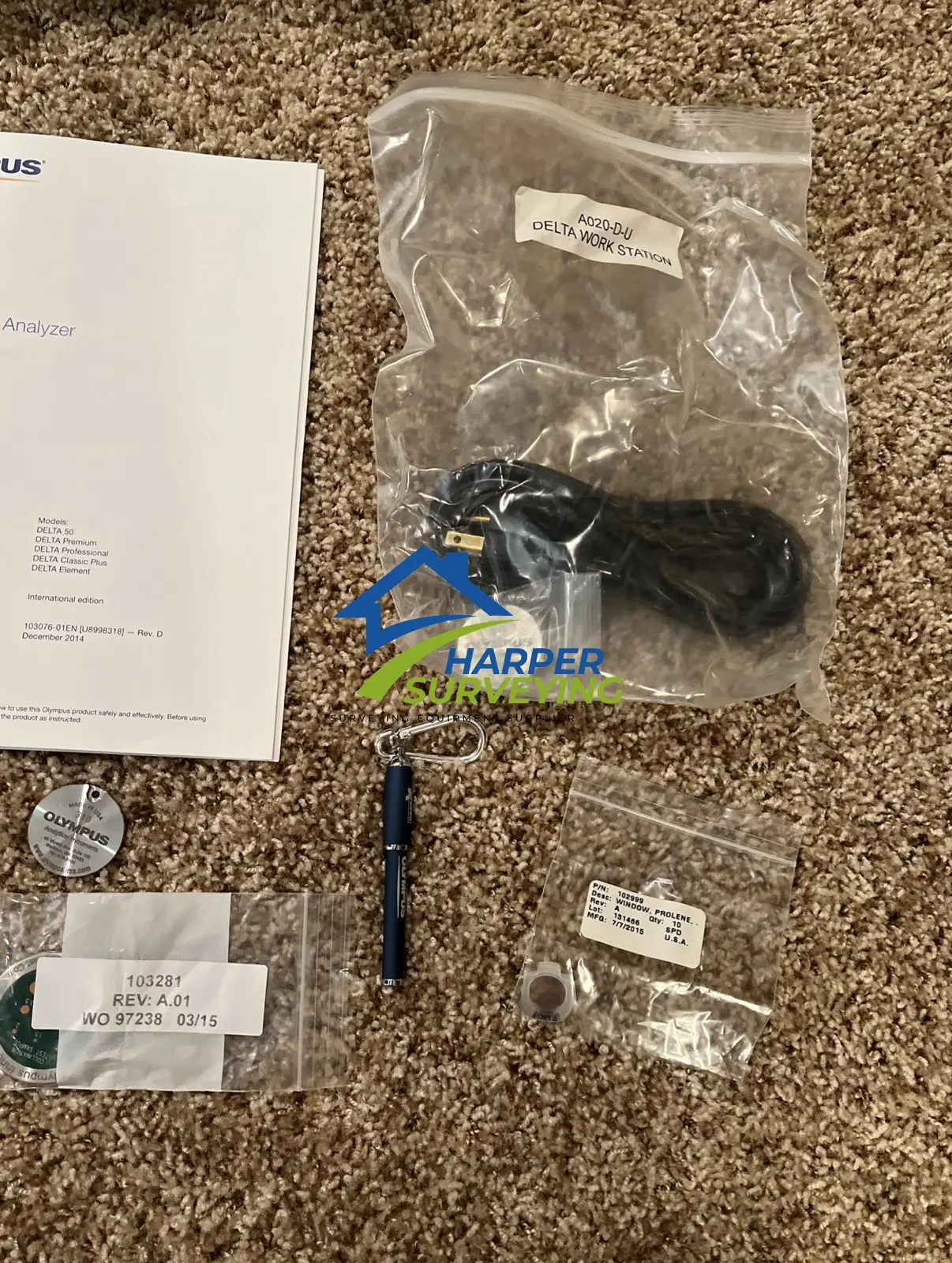

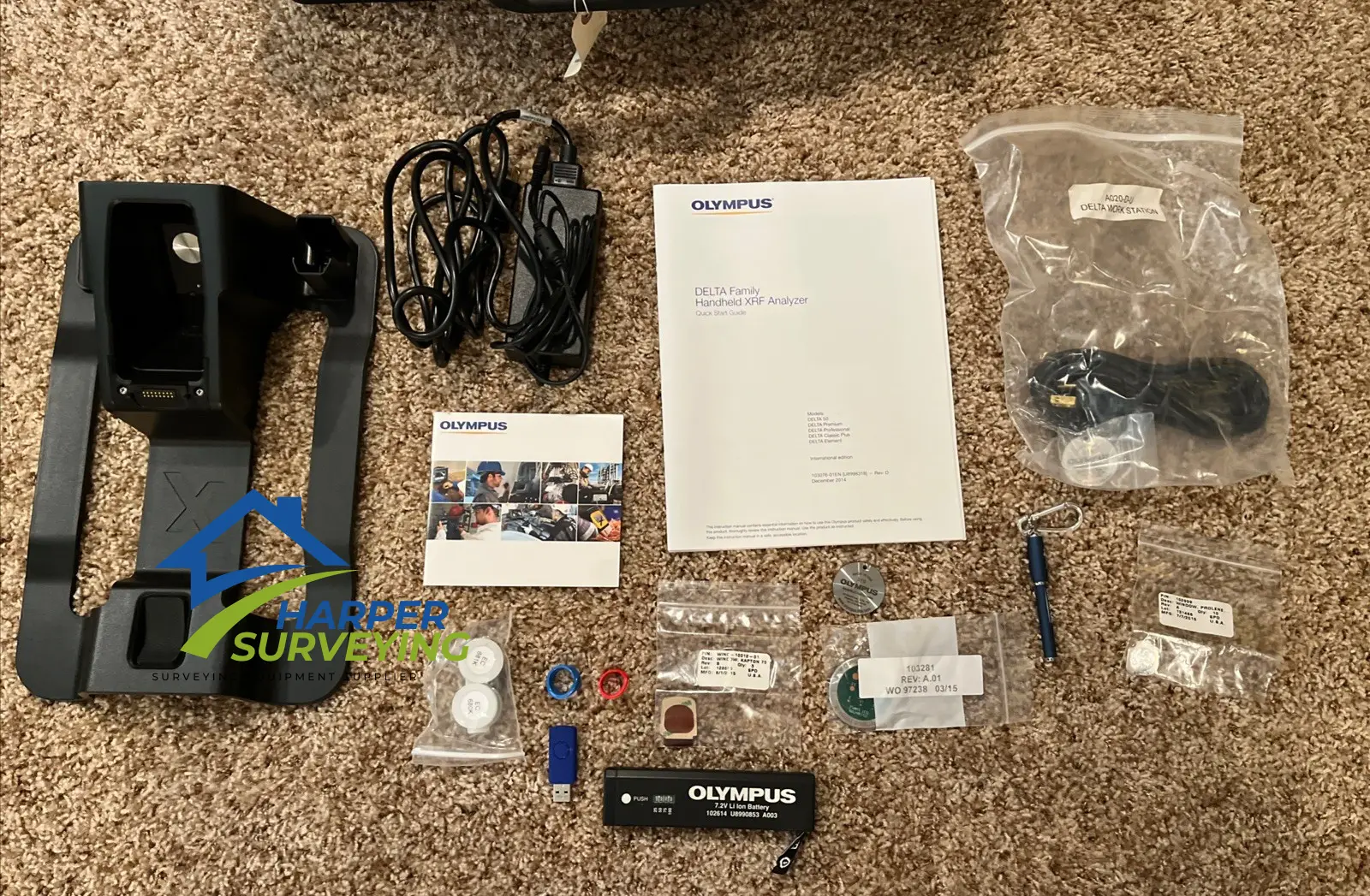

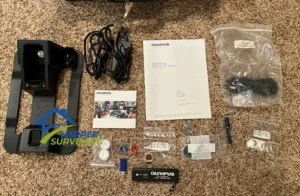

Olympus DP-2000 includes:
- Olympus DP-2000 Delta Premium XRF Analyzer DP2000 with Alloy Plus
- Factory Calibration Certificate
- Smart Battery Charger
- AC Adapter

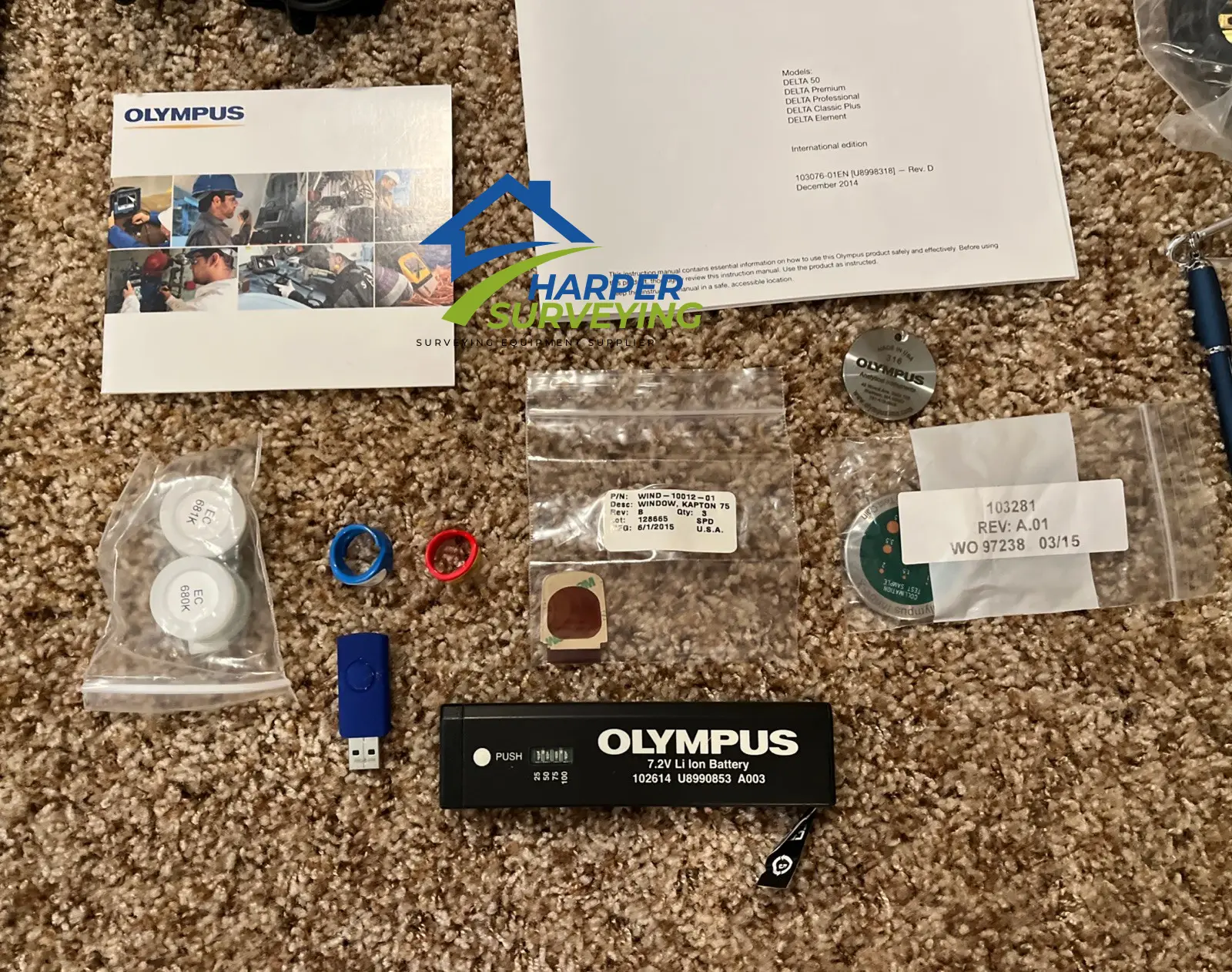

Olympus 316 SS Standardization Coin - 102999 Window, Prolene
- 3x Plastic Spacers For Smart Charger
- 2x Battery Packs
- Power Cord

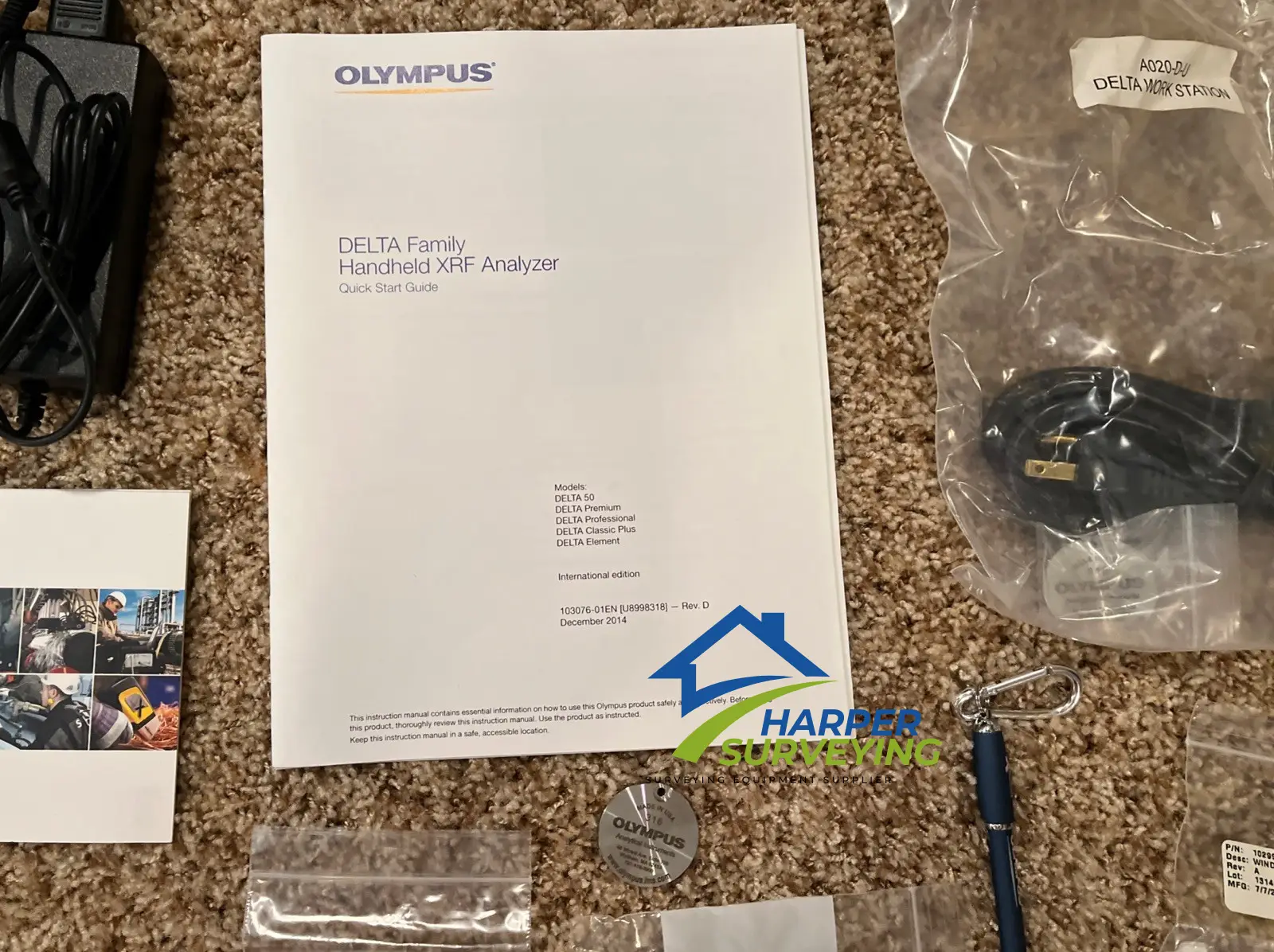

- User Manual On CD-ROM

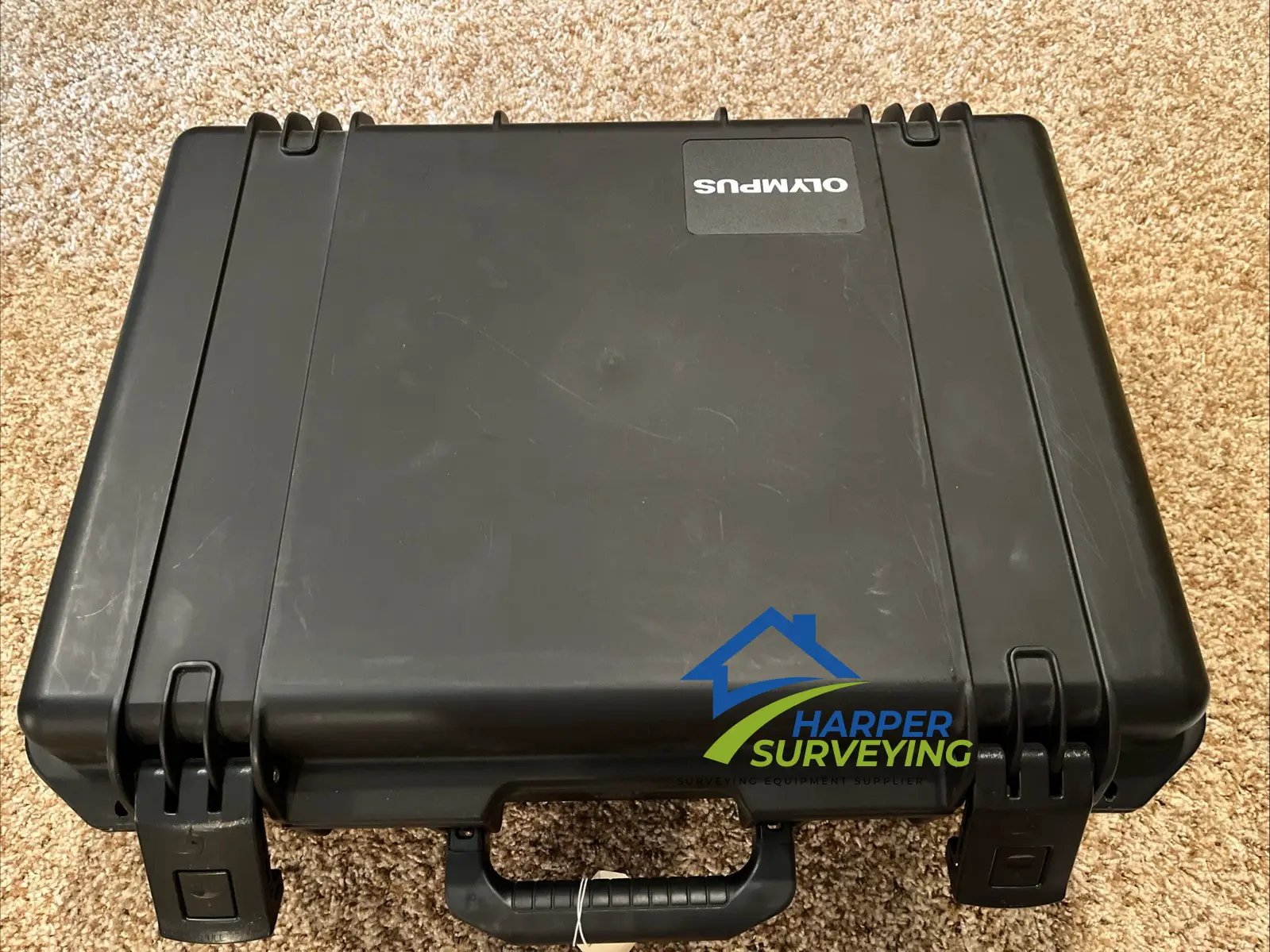

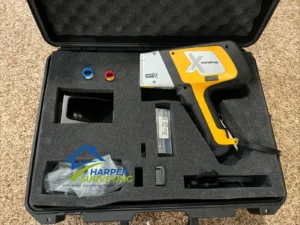

- Hard Carrying Case
