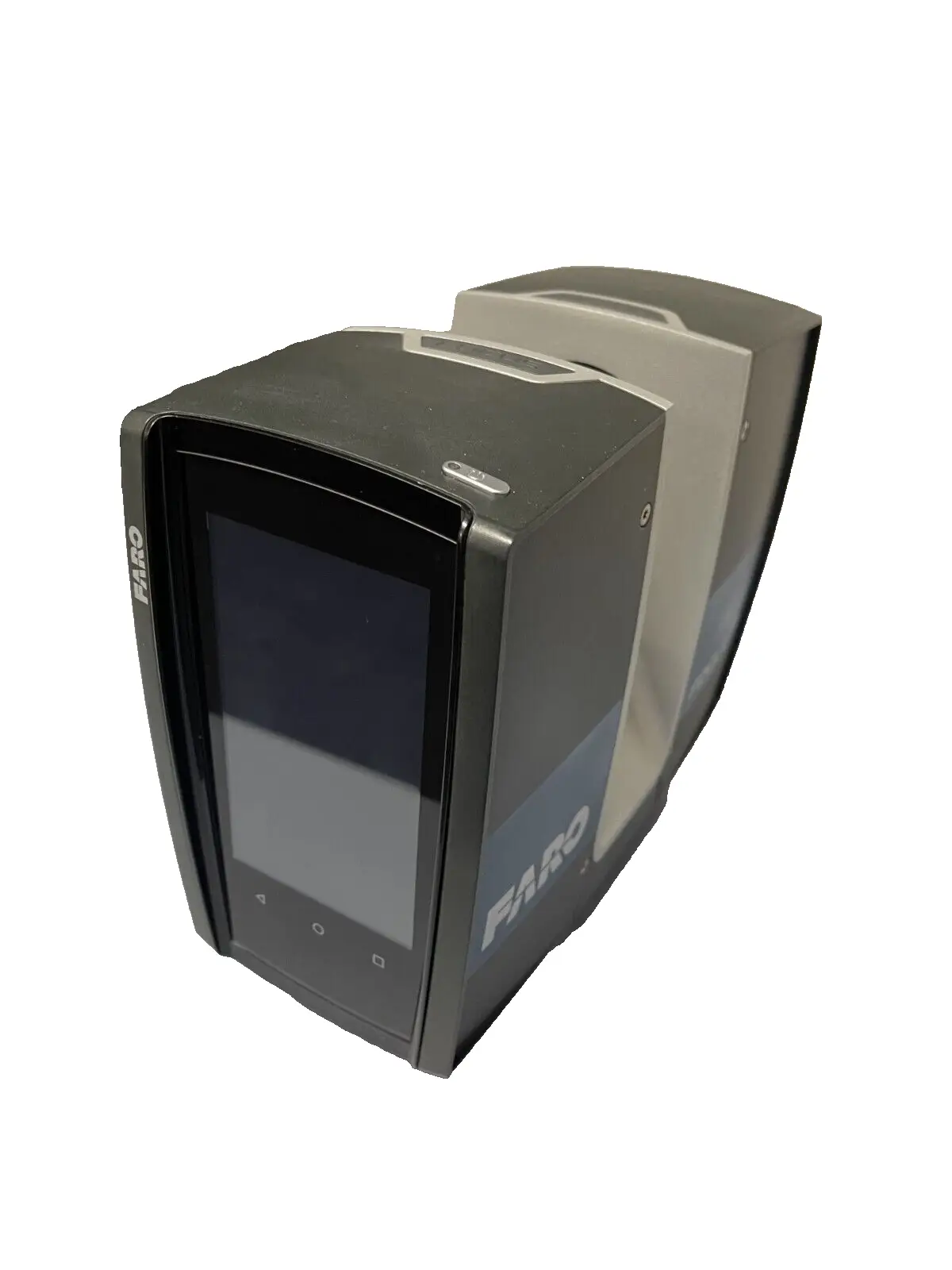

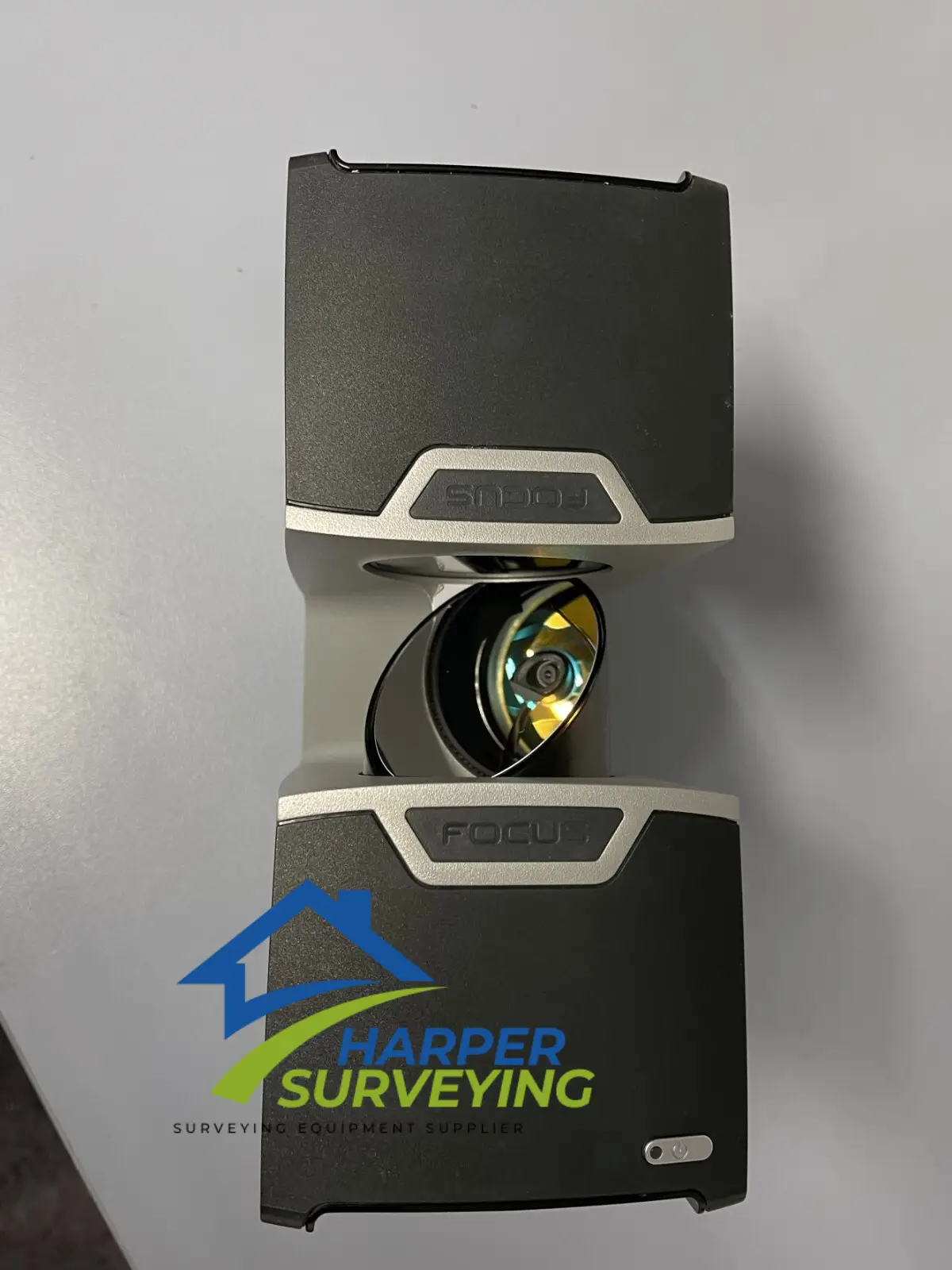

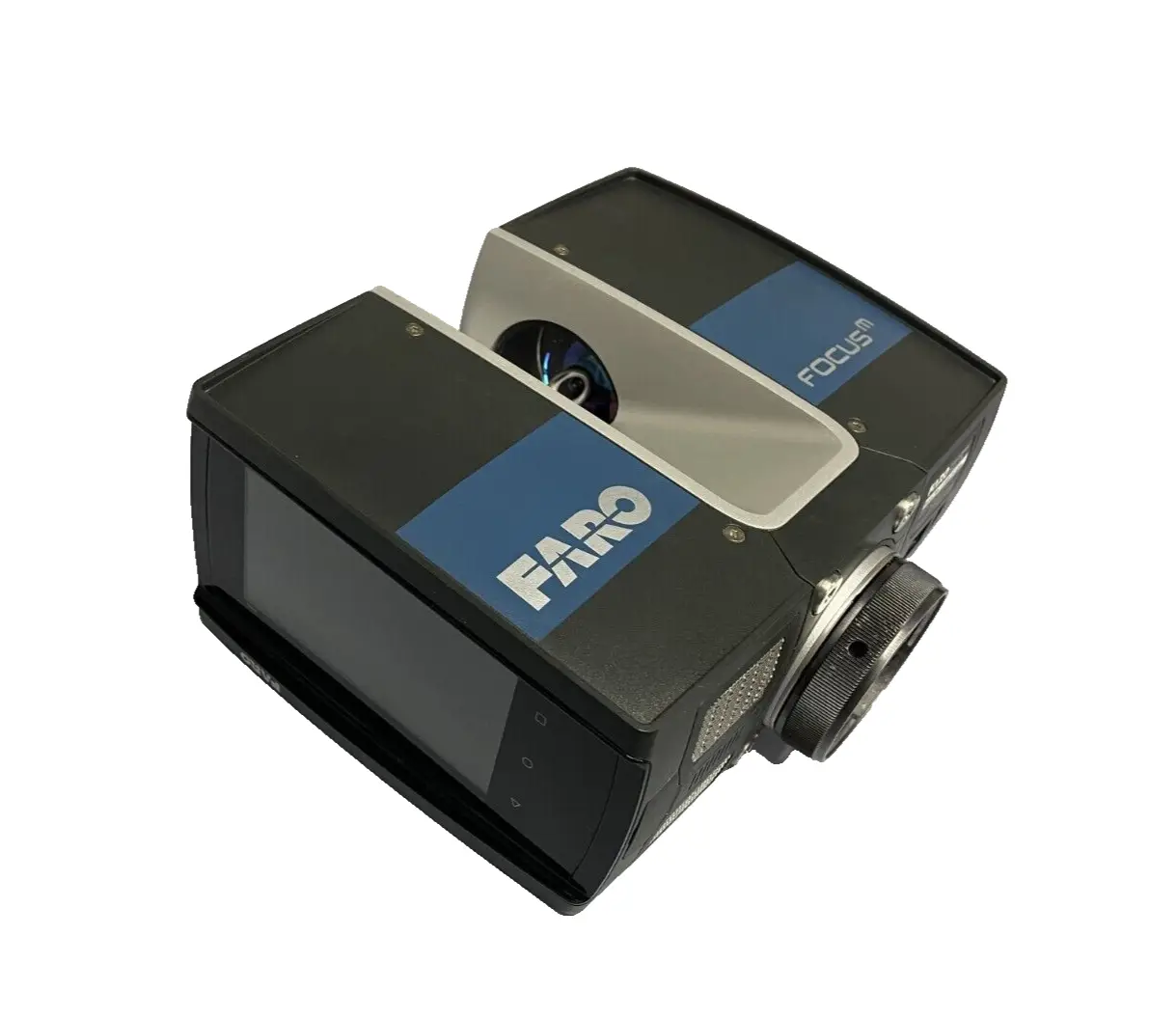

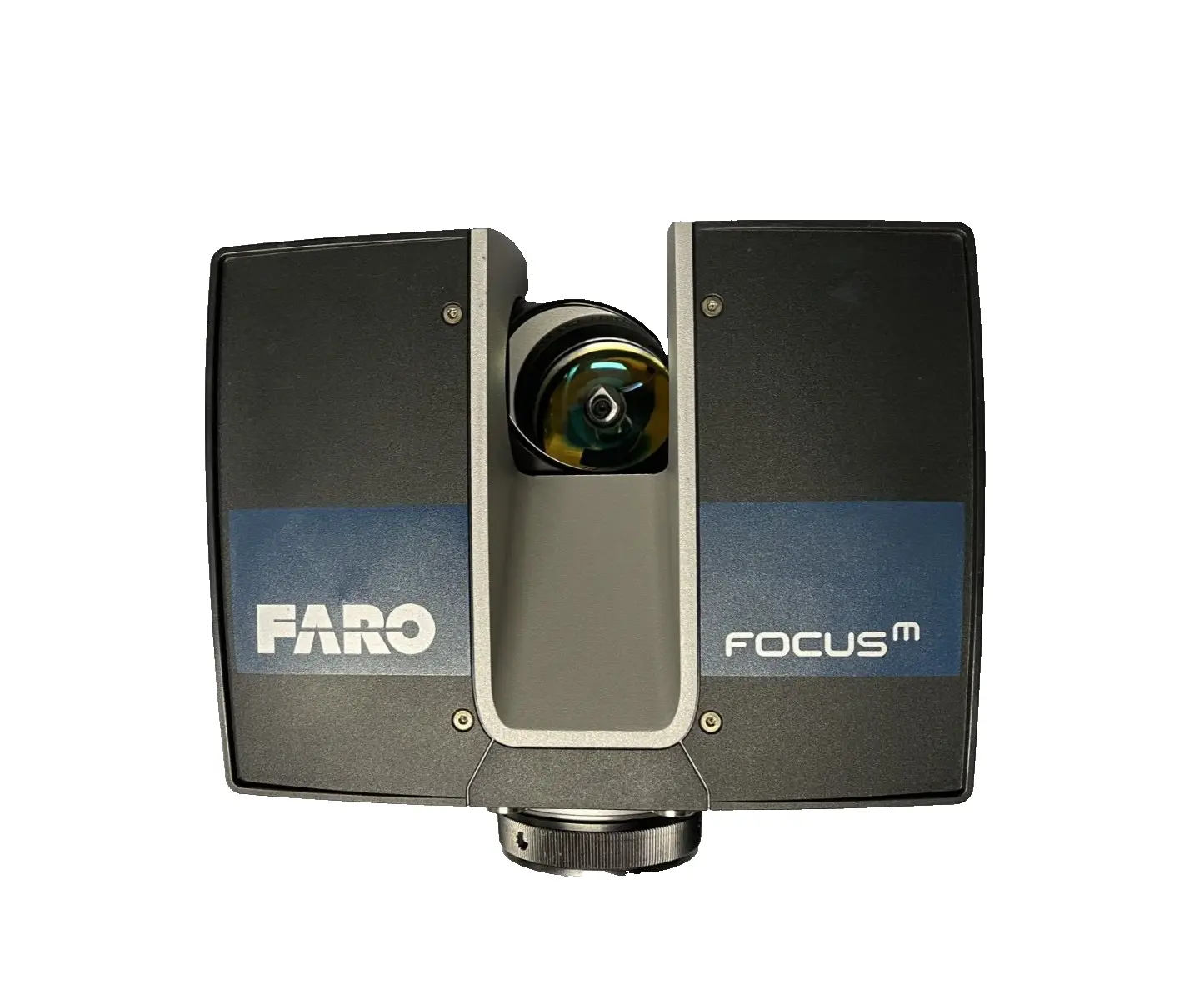

FARO Focus M70 Laser Scanner, short-range professional grade laser scanner, a powerful 3D laser scanner specifically designed for both indoor and outdoor applications that require scanning up to 70 meters.

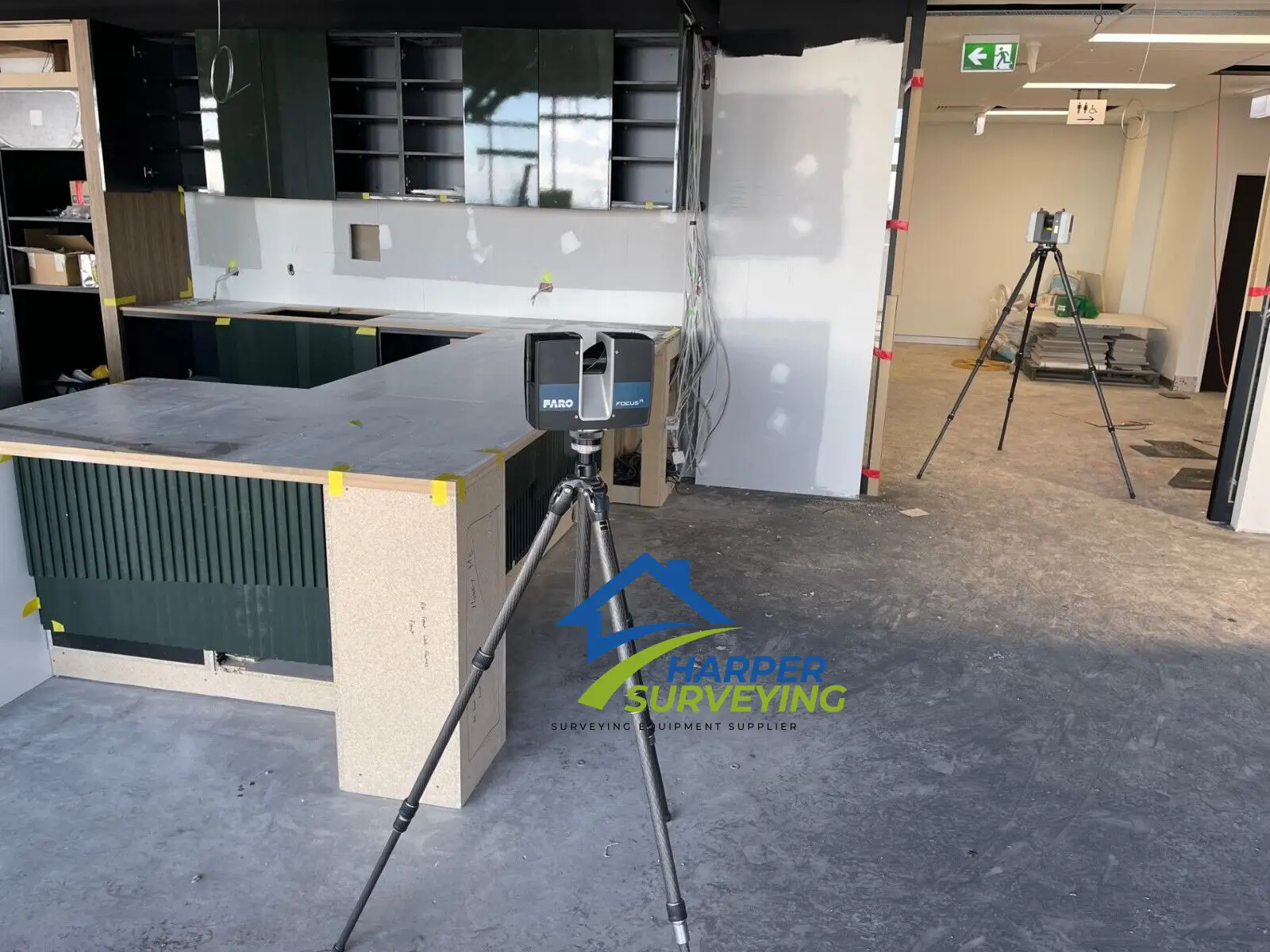

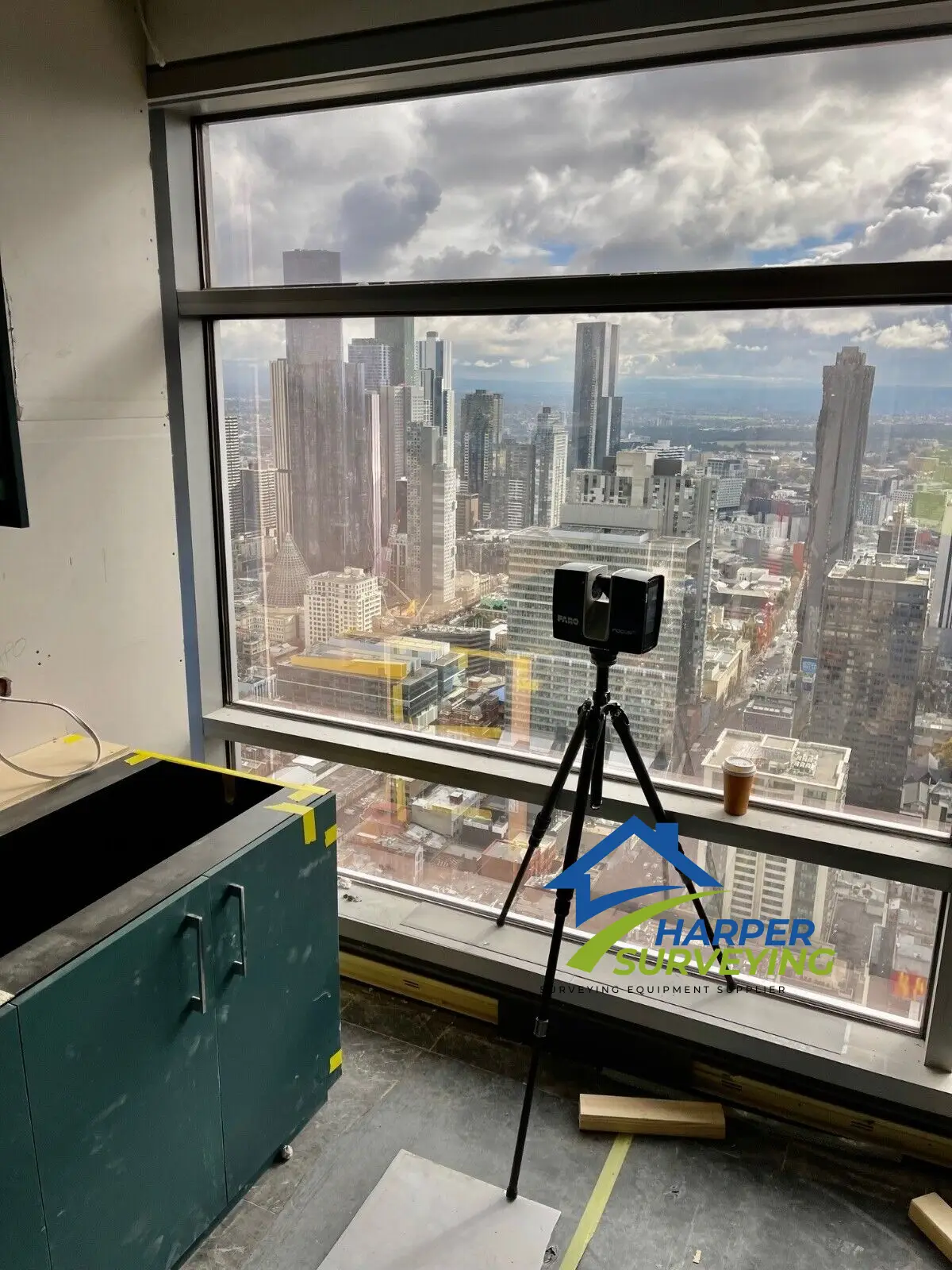

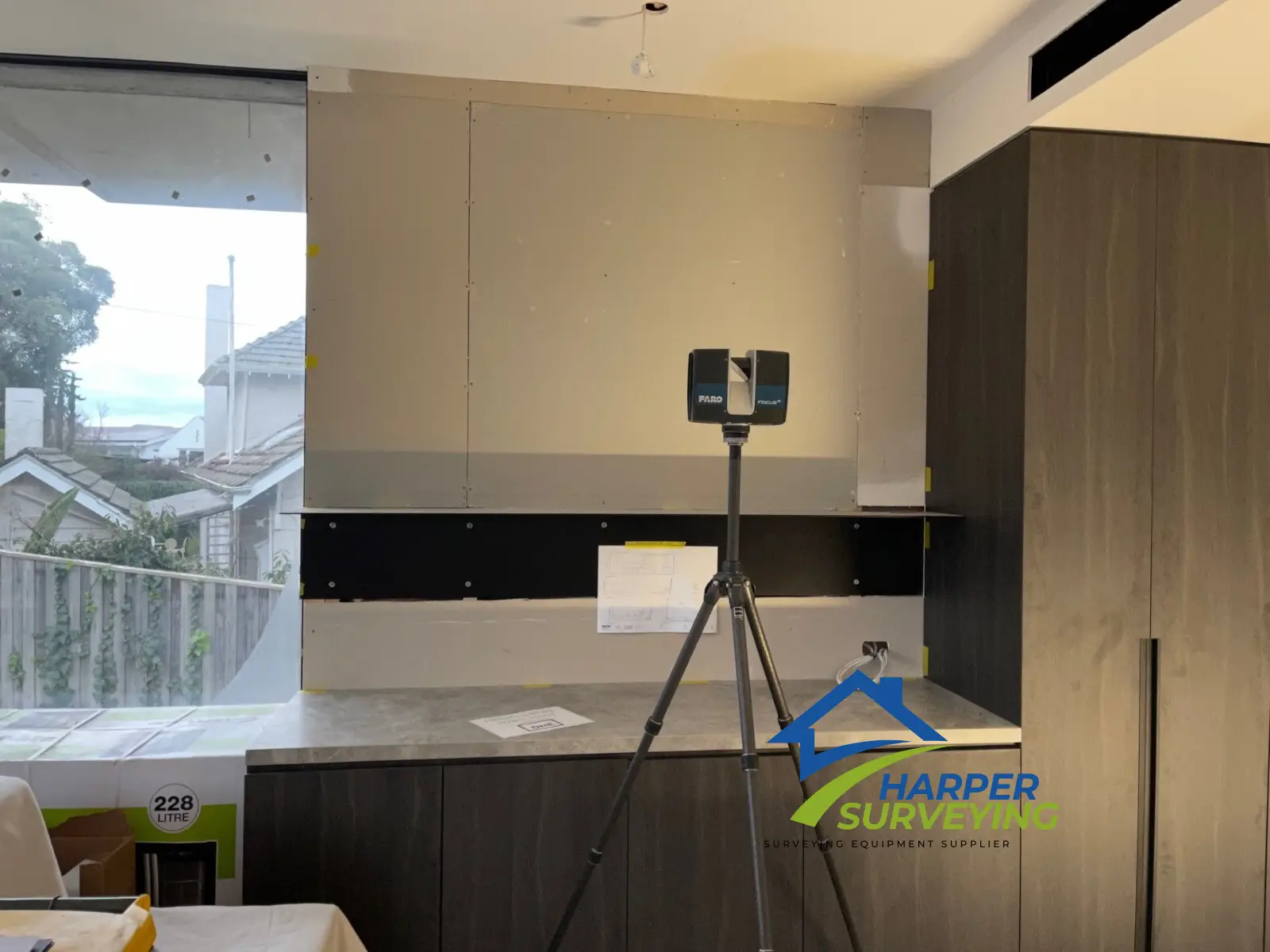

The ultra-portable Faro Focus M70 enables fast, straight-forward and accurate measurements of small construction sites, small-scale facades, complex structures, production and supply facilities and manageable crime and accident scenes.
Combining professional grade scanning technology with authentic mobility and ease-of-use, the new device offers reliability, flexibility, and real-time views of recorded data. The 3D scan data can easily be imported into all commonly used software solutions for architecture and construction, forensics and accident reconstruction or industrial manufacturing.
Faro Focus M70 3D Laser Scanner ultra-portable device enables fast, straight-forward and accurate measurements of small construction sites, small-scale facades, complex structures, production and supply facilities and manageable crime and accident scenes. Combining professional grade scanning technology with authentic mobility and ease-of-use, the new device offers reliability, flexibility, and real-time views of recorded data.
The HDR camera provides a natural color overlay to scan data that was captured within extreme dark and bright environments to provide high quality imagery.
Faro Focus M70 Feature
SHORT RANGE SCANNING – UP TO 70M
The Focus M 70 can record data up to 70 meters making it ideal for short-range measurements and small area job applications.
COMPACT AND PORTABLE
The Focus M 70 has the size of only 23.0 x 18.3 x 10.3cm and a weight of just 4.2kg. The device is provided with a waterproof transportation and ergonomic carrying case for true portability.
BEST VALUE FOR MONEY
The Focus M 70 provides customers with an affordable alternative for a professional grade scanning solution.
IP RATING – CLASS 54
With the sealed design, the Focus M 70 is certified with the industry standard Ingress Protection(IP) Rating and classified in class 54 against environmental influences.
TEMPERATURE
With an extended temperature range the Focus M70 can be used in extreme climates.
Faro Focus M70 Benefits
- Work with familiar high-class FARO quality
- Improved productivity by driving projects simultaneously with same investment in comparison to a FARO mid-range scanner
- Conveniently manage and/or register scan data in various software packages
- Best price/performance ratio for short- range construction and public safety forensics applications
- Easily navigate the scanner controls using the large and luminous touch-screen
Faro Focus M70 Specifications
| Ranging unit | |
| Range Focus M 70: | 0.6m – 70m 90% (white) 0.6m – 70m 10% (dark-gray) 0.6m – 50m 2% (black) |
| Measurement speed (pts/sec): | 122,000 / 244,000 / 488,000 |
| Ranging error | ±3mm |
| Colour unit | |
| Resolution: | Up to 165 megapixel color |
| High Dynamic Range (HDR) | Exposure Bracketing 2x, 3x, 5x |
| Parallax: | Minimized due to co-axial design |
| Deflection unit | |
| Field of view (vertical/horizontal): | 300° / 360° |
| Step size (vertical/horizontal): | 0,009° (40,960 3D-Pixel on 360°) / 0,009° (40,960 3D-Pixel on 360°) |
| Max. vertical scan speed: | 97Hz |
| Laser (optical transmitter) | |
| Laser class: | Laser class 1 |
| Wavelength: | 1550nm |
| Beam divergence: | 0.3mrad (1/e) |
| Beam diameter at exit: | 2.12mm (1/e) |
| Data handling and control | |
| Data storage: | SD, SDHC™, SDXC™; 32GB card |
| Scanner control: | Via touchscreen display and WLAN |
| Integrated Sensors | |
| Dual axis compensator: | Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2° |
| Height sensor: | The height relative to a fixed point can be detected and added to a scan via electronic barometer |
| Compass: | The electronic compass gives the scan an orientation. |
| GNSS: | Integrated GPS & GLONASS |
| General | |
| Power supply voltage: | 19V (external supply) 14.4V (internal battery) |
| Power consumption: | 15W idle, 25W scanning, 80W charging |
| Battery life: | 4.5 hours |
| Ambient temperature: | 5° – 40°C |
| Humidity: | Non-condensing |
| Weight: | 4.2kg |
| Size: | 230 x 183 x 103mm |
| Maintenance / calibration: | Annual |
Faro Focus M70 Includes
- Faro FocusM 70 Laser Scanner with HDR photography, GPS, Compass, Altimeter (Barometer), Dual-axis
- Compensator, WLAN, IP rating 54, Calibration Certificate, Quick Start Guide, Rugged Transport Case
- Battery Power Block, Battery Power Dock, 90W Power Supply
- AC power cable
- External power supply unit with cable
- Optic Cleaning Fluid, Optic Cleaning Tissues
- 32GB SD Card, SD Card Reader, SD Card Cover
- Allen Wrench
- Faro Scene Licence (USB stick with SCENE software and manual)

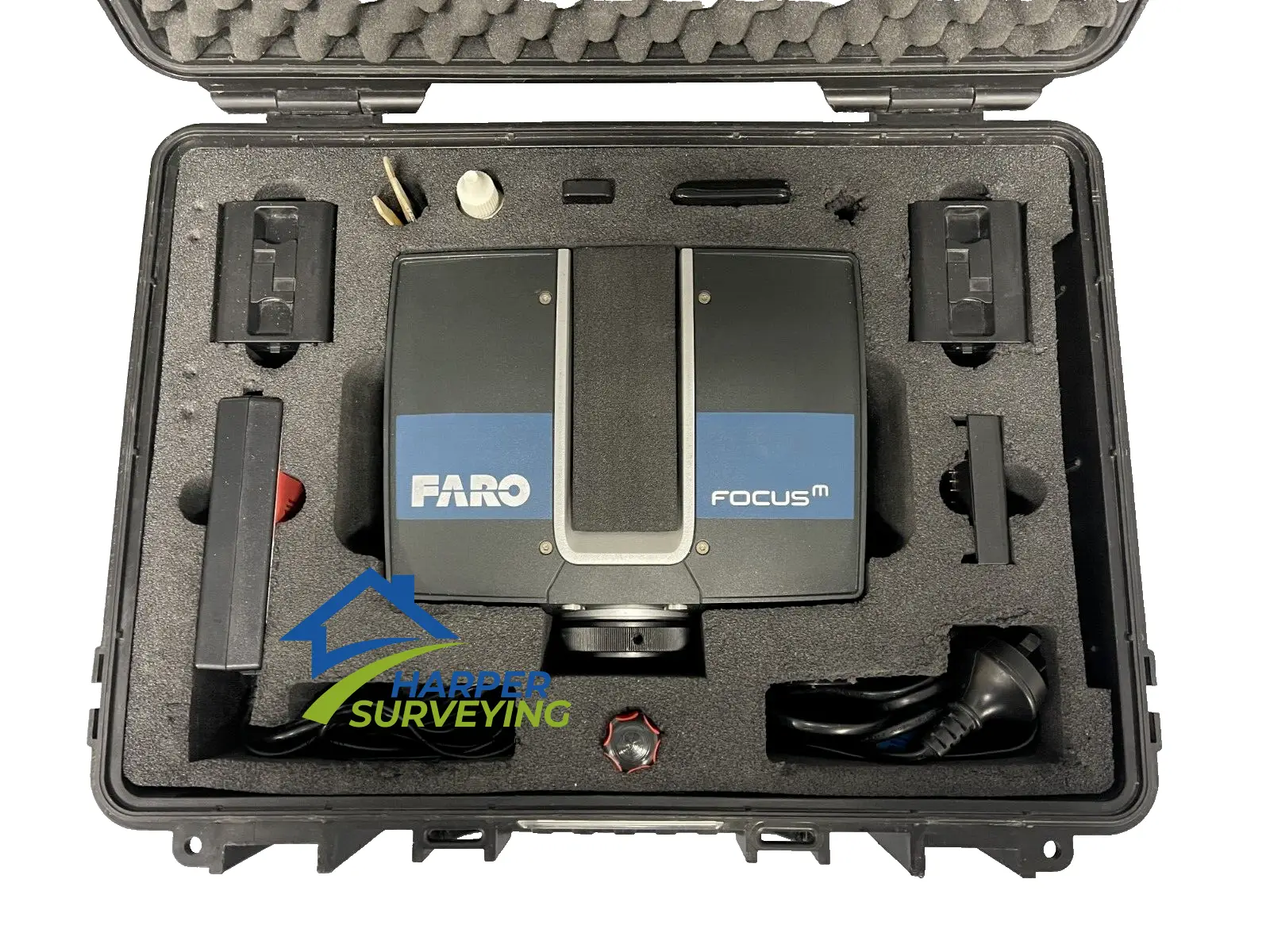

- Scanner transport and carry case

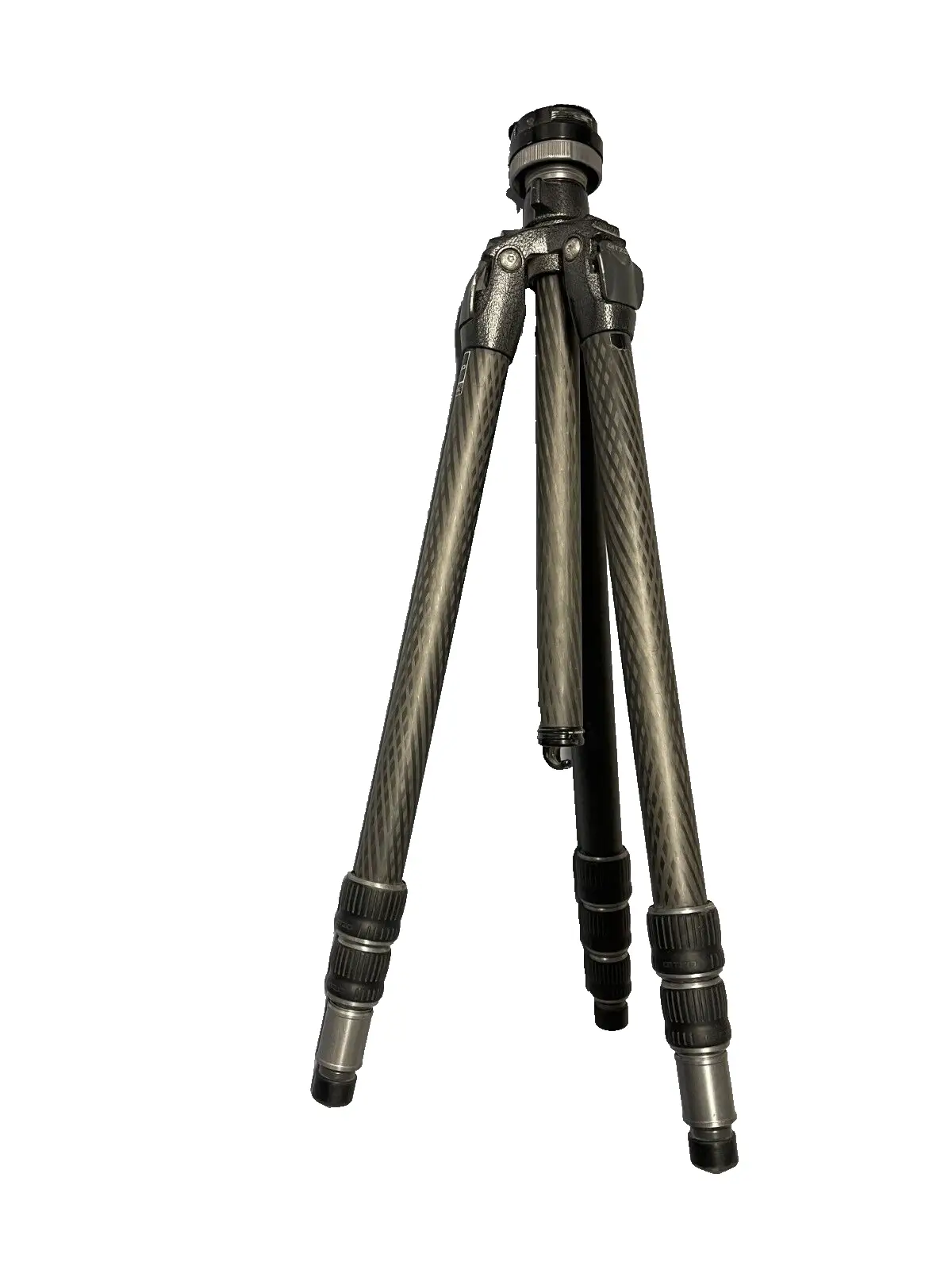

- Tripod
- 3 Years Faro warranty
