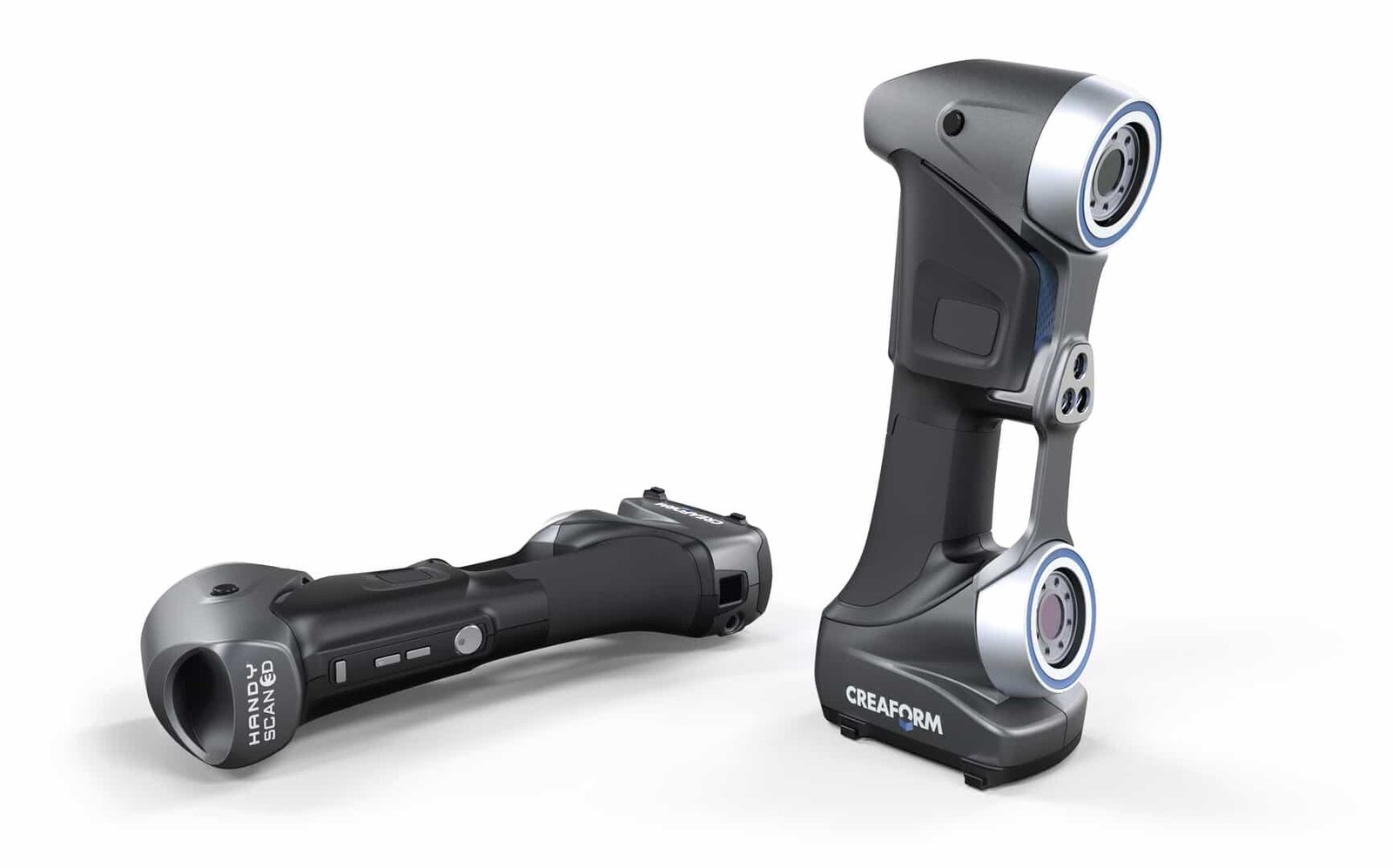

The HandySCAN 700 is a portable, accurate, high-resolution 3D scanner. This is the optimal tool for product development and engineering professionals seeking effective, reliable 3D measurements of physical objects.
The HandySCAN 700 requires no external positioning system, arm, tripod or fixture in order to operate. This is a user-friendly scanner with a very short learning curve, regardless of the user’s experience level.
The HandySCAN 700 has a volumetric accuracy of 0.0008 in., which makes it one of the most accurate and versatile 3D scanners.
Benefits of Creaform 3D Scanner:
- In comparison with the previous model, it has higher accuracy and speed of work, while being more compact and weighs less;
- Repetition of the original with accuracy up to 0.03 mm;
- The measurement is independent of external conditions;
- Portable case;
- Autonomous work;
- Clear management;
- Convenient and clear user interface;
- Displaying results in real time;
- Absolutely safe for the eyes.

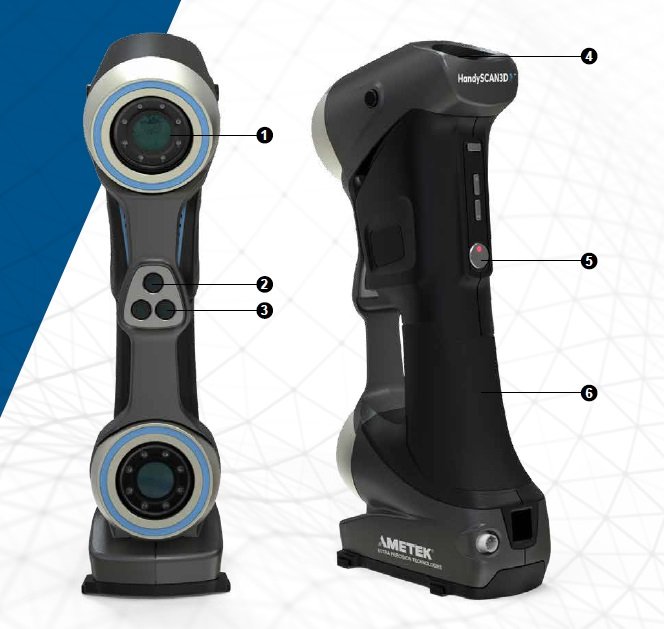

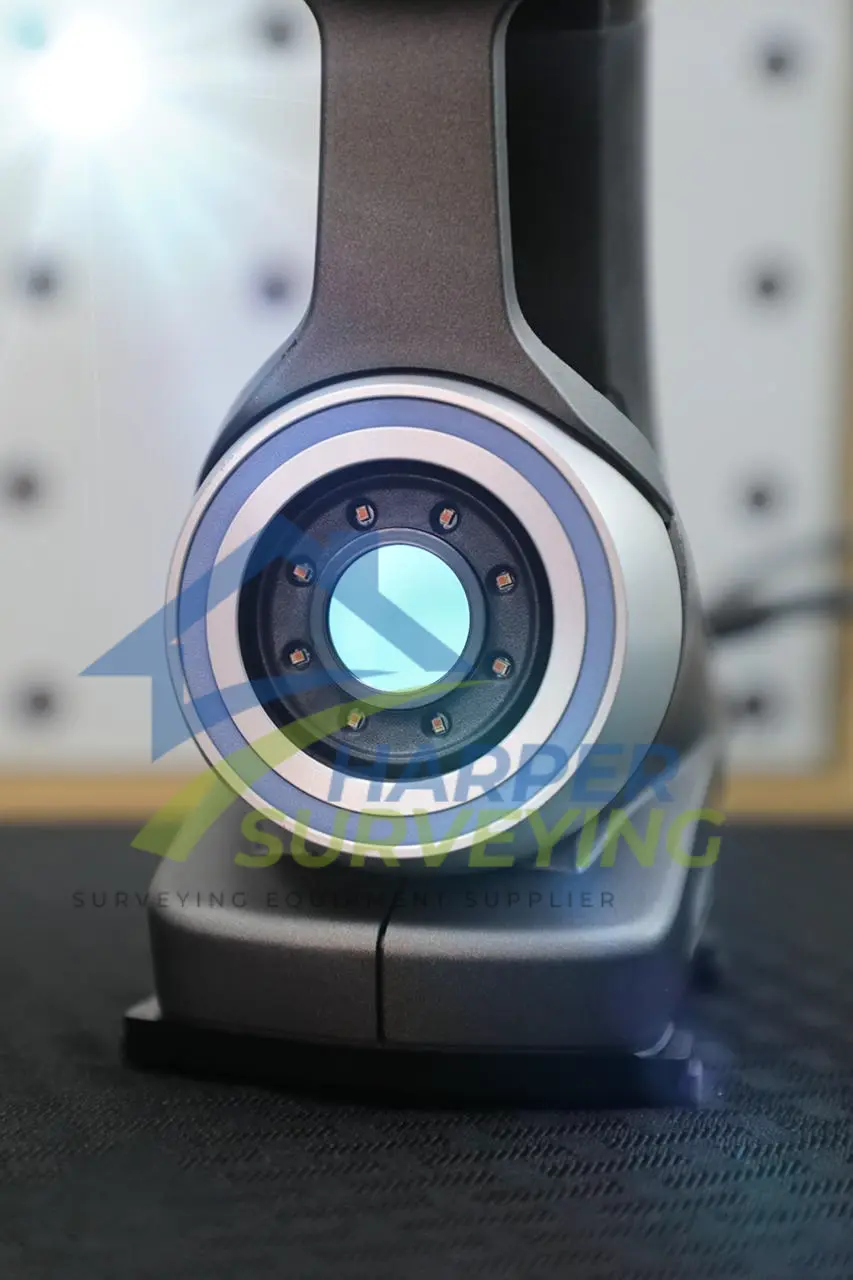

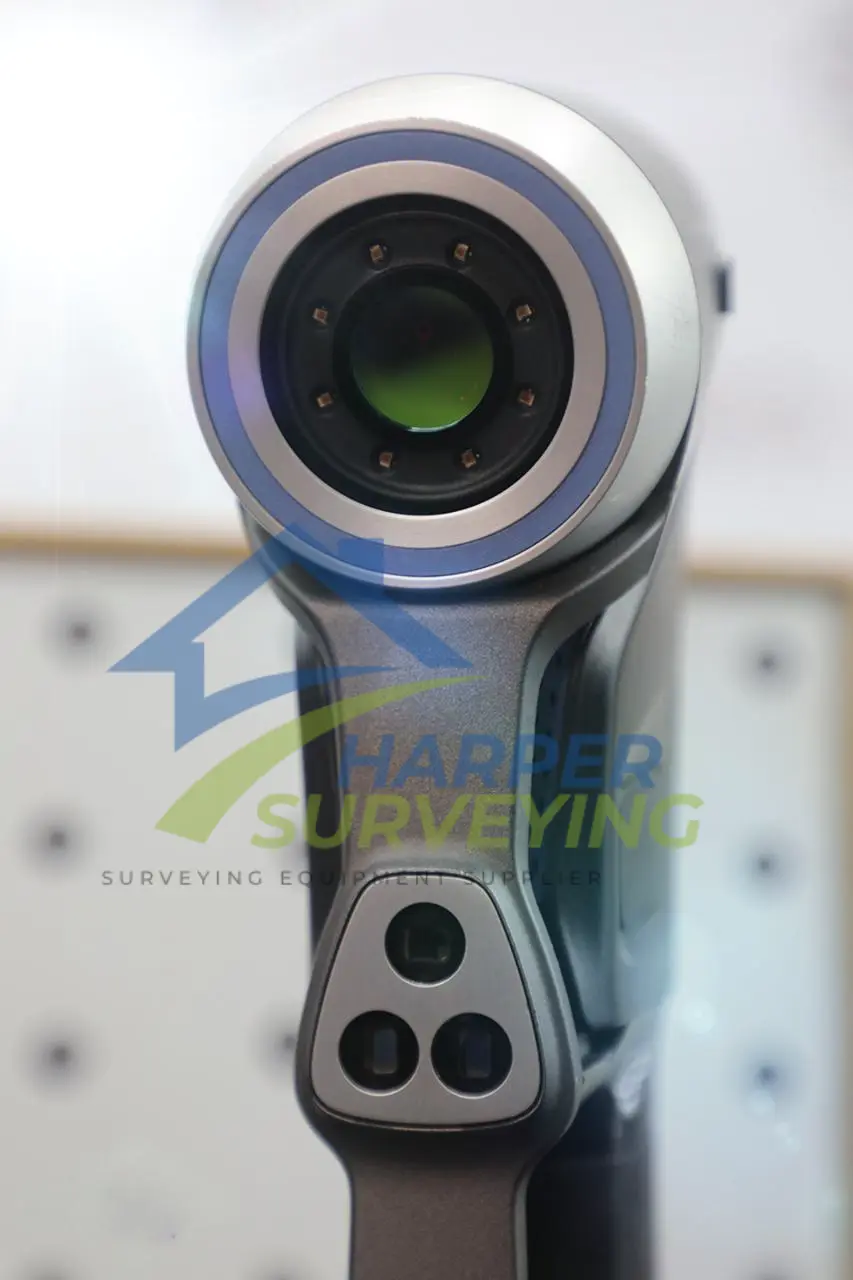

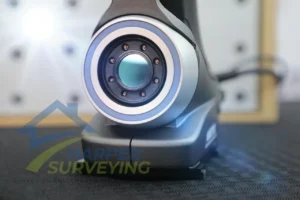

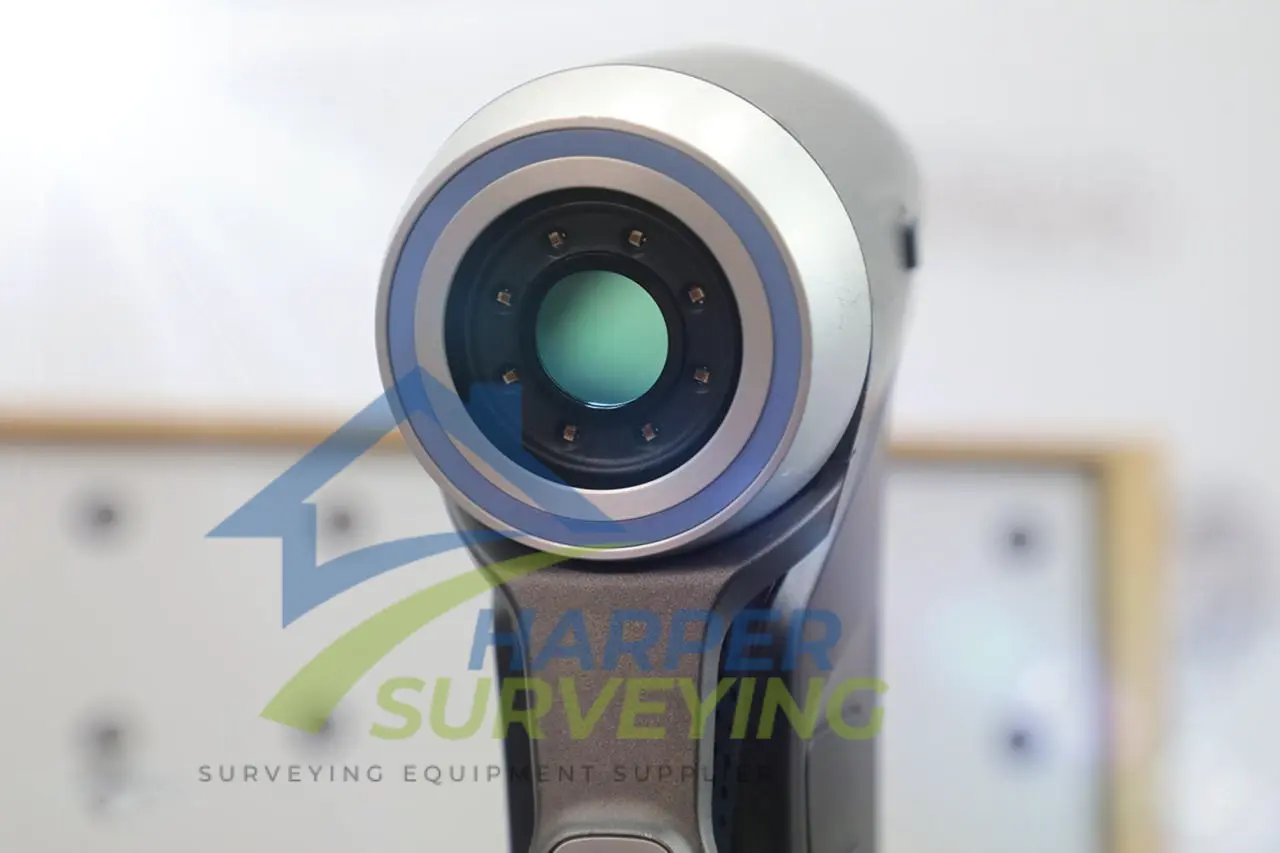

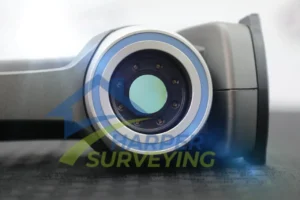

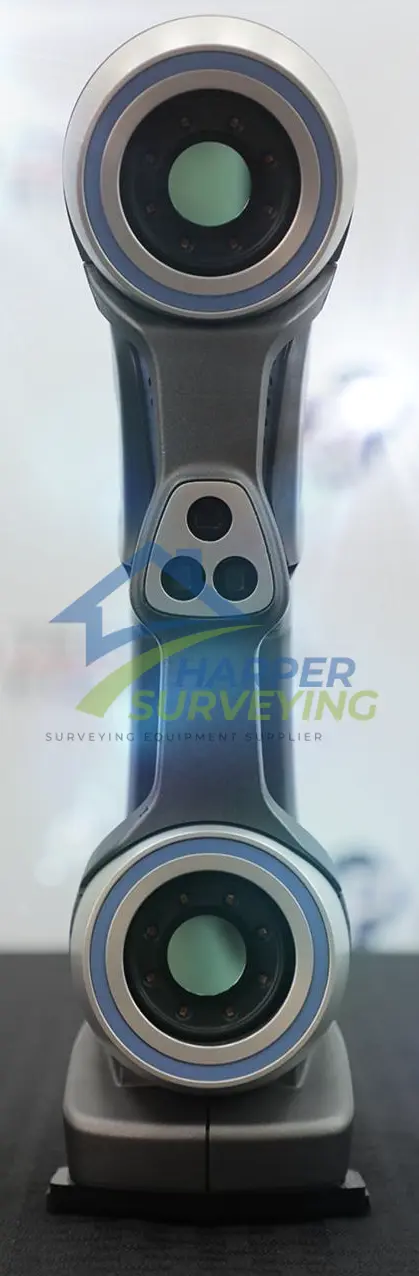

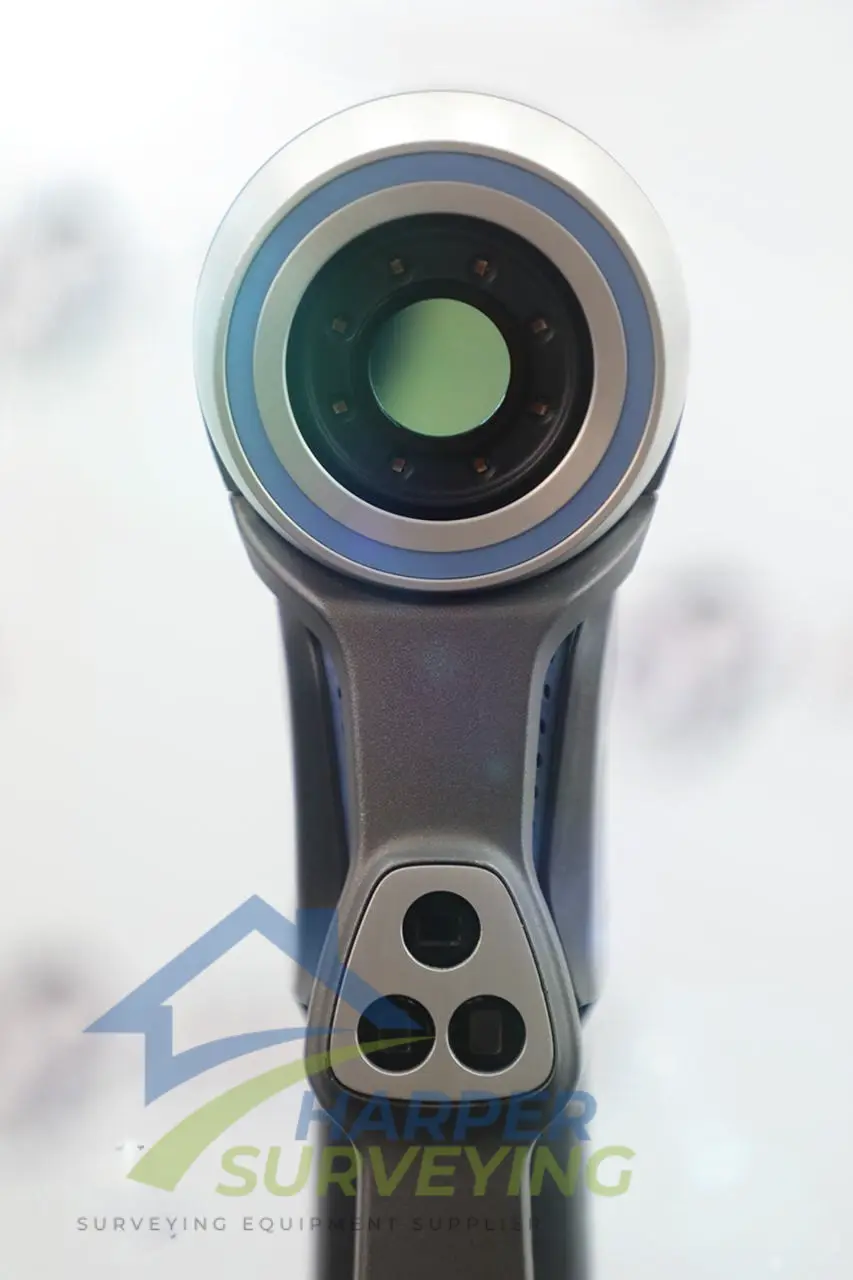

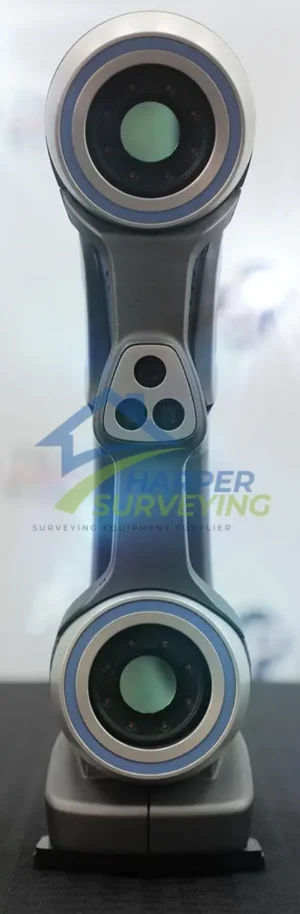

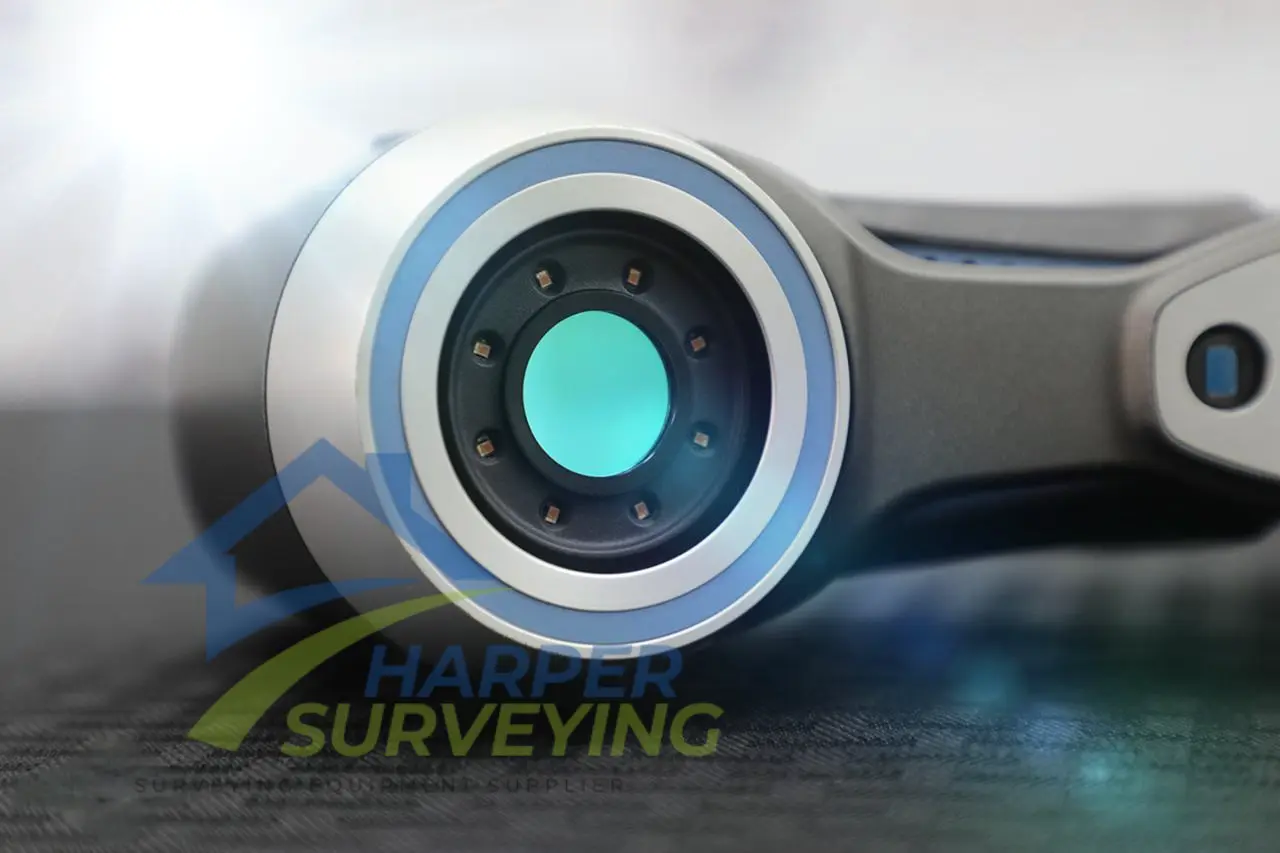

3D scanner HandySCAN 700

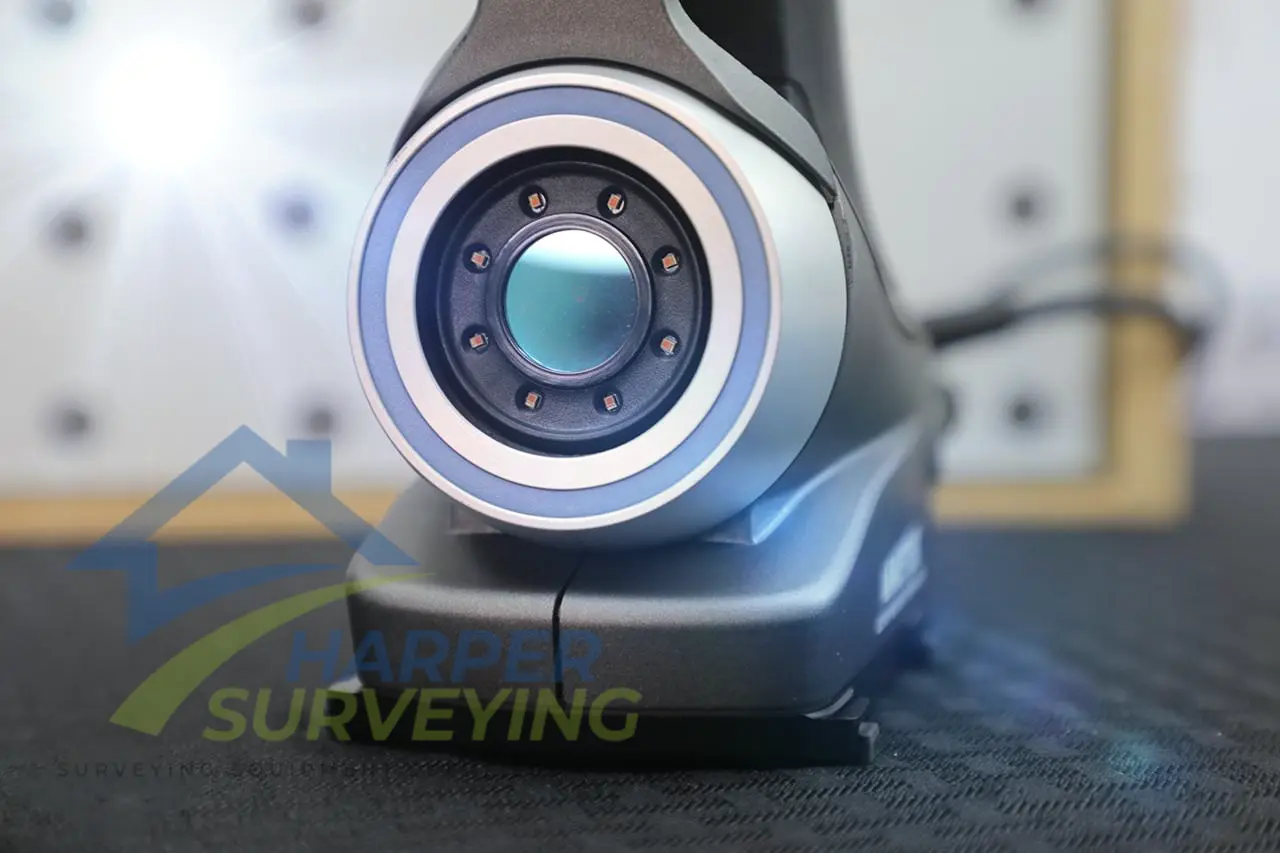

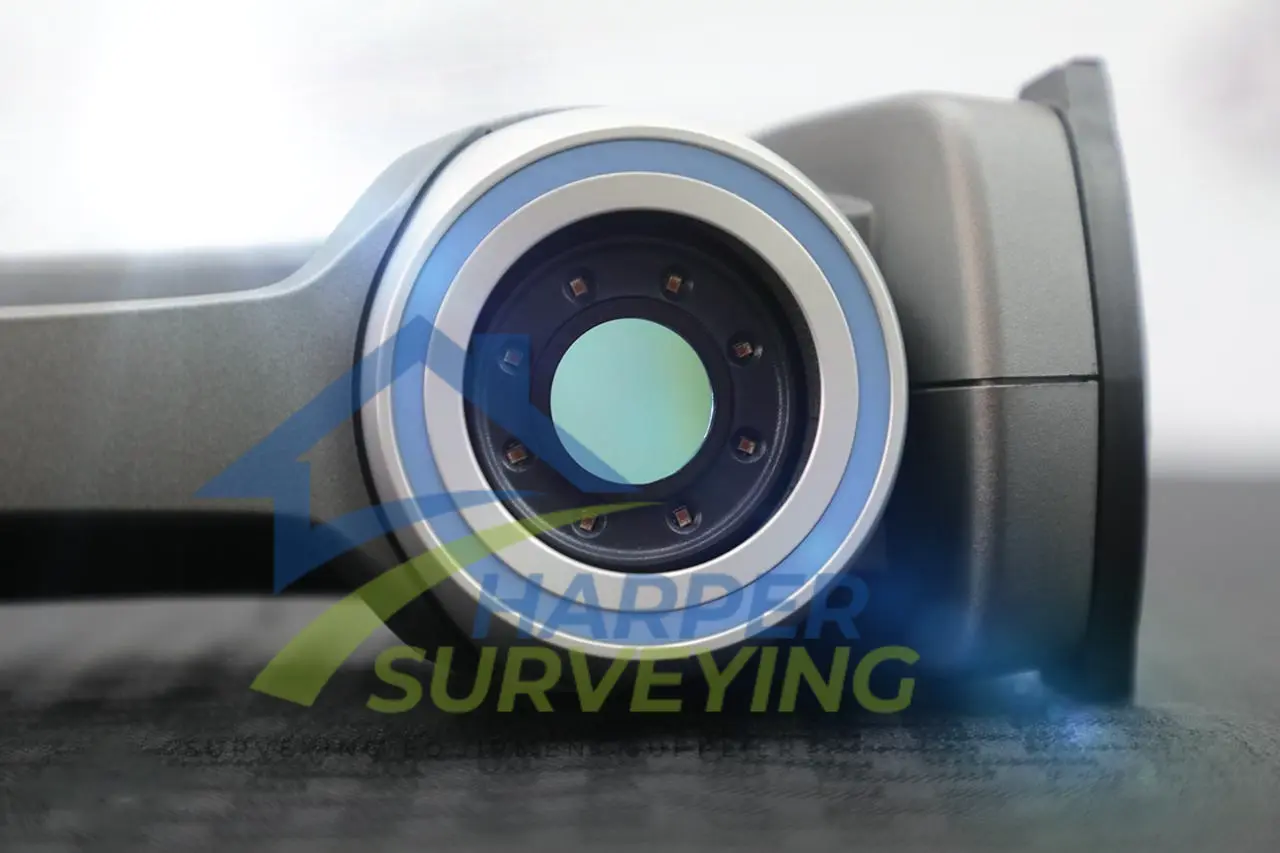

- Quality optics. Reliable and maximum scan quality.
- One additional laser line. Use to easily grab hard to reach places.
- 7 laser crossed lines. Quickly capture the entire field of view for fast scanning.
- Color indicator of distance to the surface. For maximum scanning performance.
- Multifunction buttons. Simple user-computer interaction.
- Ergonomics and design. Lightweight, well balanced weight for comfortable use.
Computer configuration
For all the software and hardware to operate smoothly, Creaform recommends the following computer configuration:
- Operating System: Windows 10, 64-bit
- Graphics card: ≥NVIDIA QUADRO T1000
- Video memory: ≥4Gb
- Processor: ≥I7-8700
- RAM: ≥32Gb
Creaform lent us an even more powerful PC with monstrous, gaming-grade specifications:
- Operating System: Windows 10, 64-bit
- Graphics card: NVIDIA QUADRO P5200
- Video memory: 16Gb
- Processor: I7-8850
- RAM: 64Gb
HandySCAN 700 specifications
| Light source | 7 red laser crosses (+ 1 extra line) |
| Volumetric Accuracy (mm/m) | 0,020 + 0,060 |
| Scan Range (mm) | 275 x 250 |
| Stand-off distance (mm) | 300 |
| Scanner type | Handheld |
| Additional extensions | MaxSHOT 3D™, Portable Workstation |
| Color scanning | No |
| Scan with marks | Yes |
| Part size range (m) | 0,1 – 4,0 |
| Scanning speed (points/s) | 480000 |
| Scan Accuracy (mm) | Up to 0,03 |
| Volumetric Accuracy with MaxSHOT Next™ | Elite (mm/m) | 0,020 + 0,015 |
| Scan Depth (mm) | 250 |
| Point distance (mm) | 0,2 |

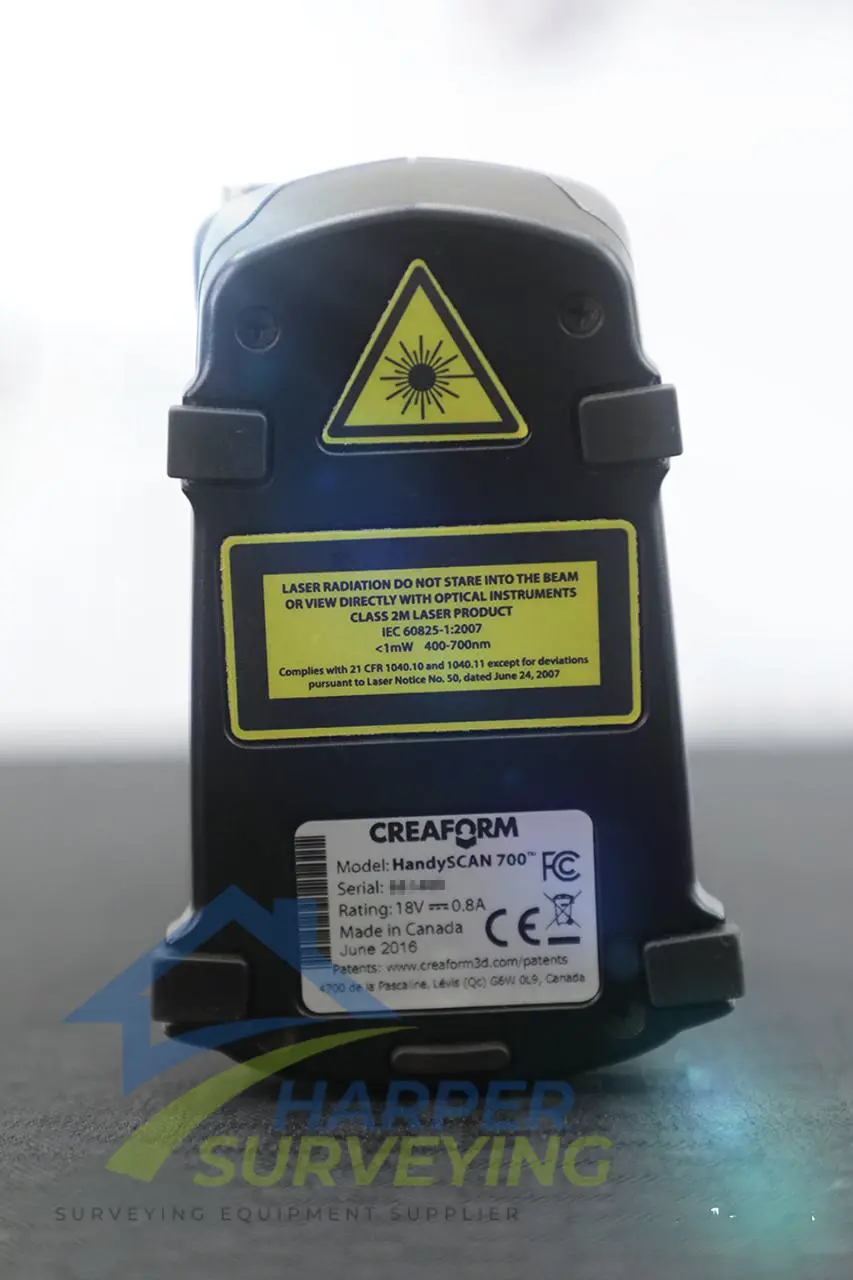

| Laser Class | 2M (safe for eyes) |
| Supported file types | .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf |
| Software | VXelements |
| Compatible Software | 3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT) |
| Connectivity | USB 3.0 |
| Weight Netto (kg) | 0,85 |
| Dimensions Netto (mm) | 77 x 122 x 294 |
| Manufacturer country | Canada |
| Certifications | EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE |
| Patents | CA 2,600,926, CN 200680014069.3, US 7,912,673, CA 2,656,163, EP (FR, UK, DE) 1,877,726, AU 2006222458, US 8,032,327, JP 4,871,352, US 8,140,295, EP (FR, UK, DE) 2,278,271, EP (FR, UK, DE) 2,230,482, IN 266,573, US 7,487,063, CA 2,529,044, EP (FR, UK, DE) 3,102,908, US 15/114,563, CN 201580007340X |
| Operating Temperature Range (°C) | 5 – 40 |
| Operating Humidity Range (%) | 10 – 90 |

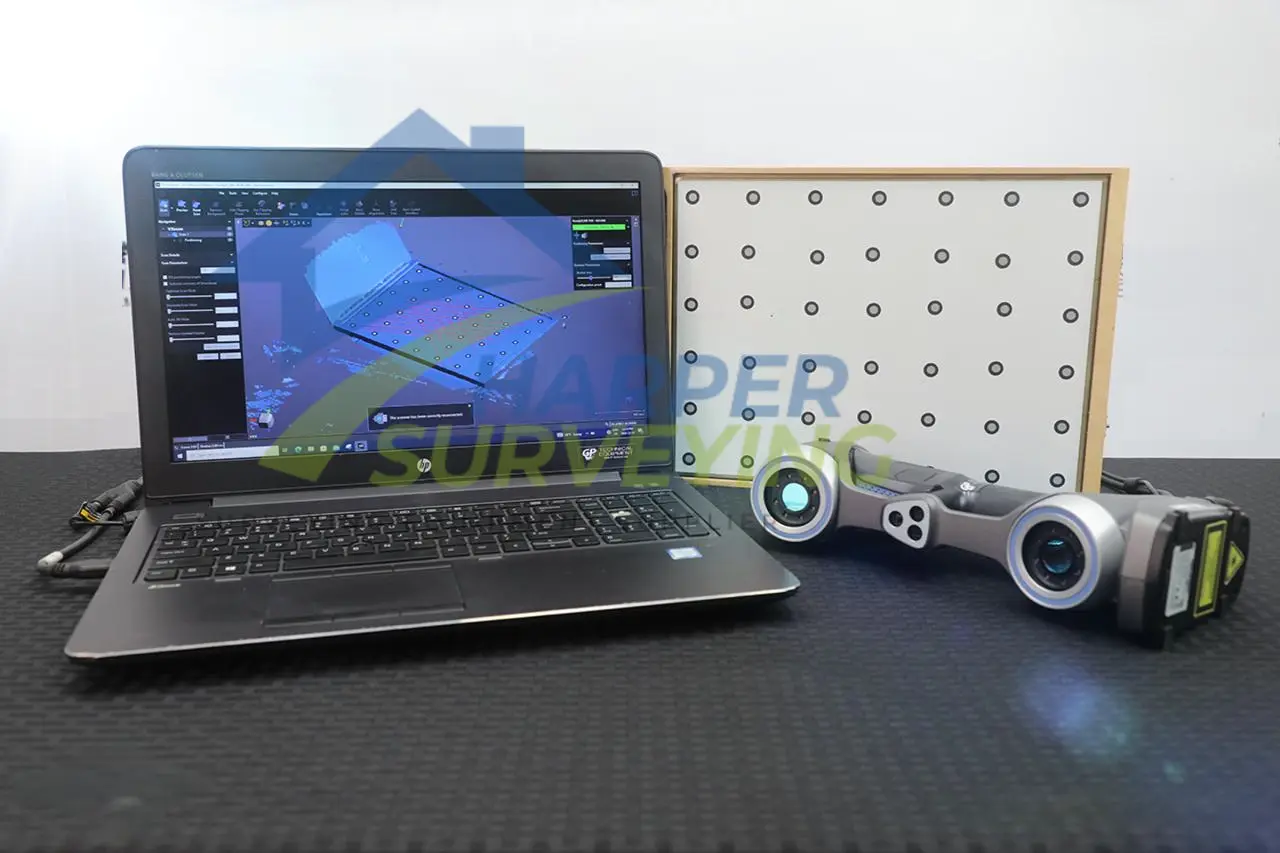

Included with Sale:
- -HandyScan 700 Scanner Unit
- -Hard Padded Transport Case

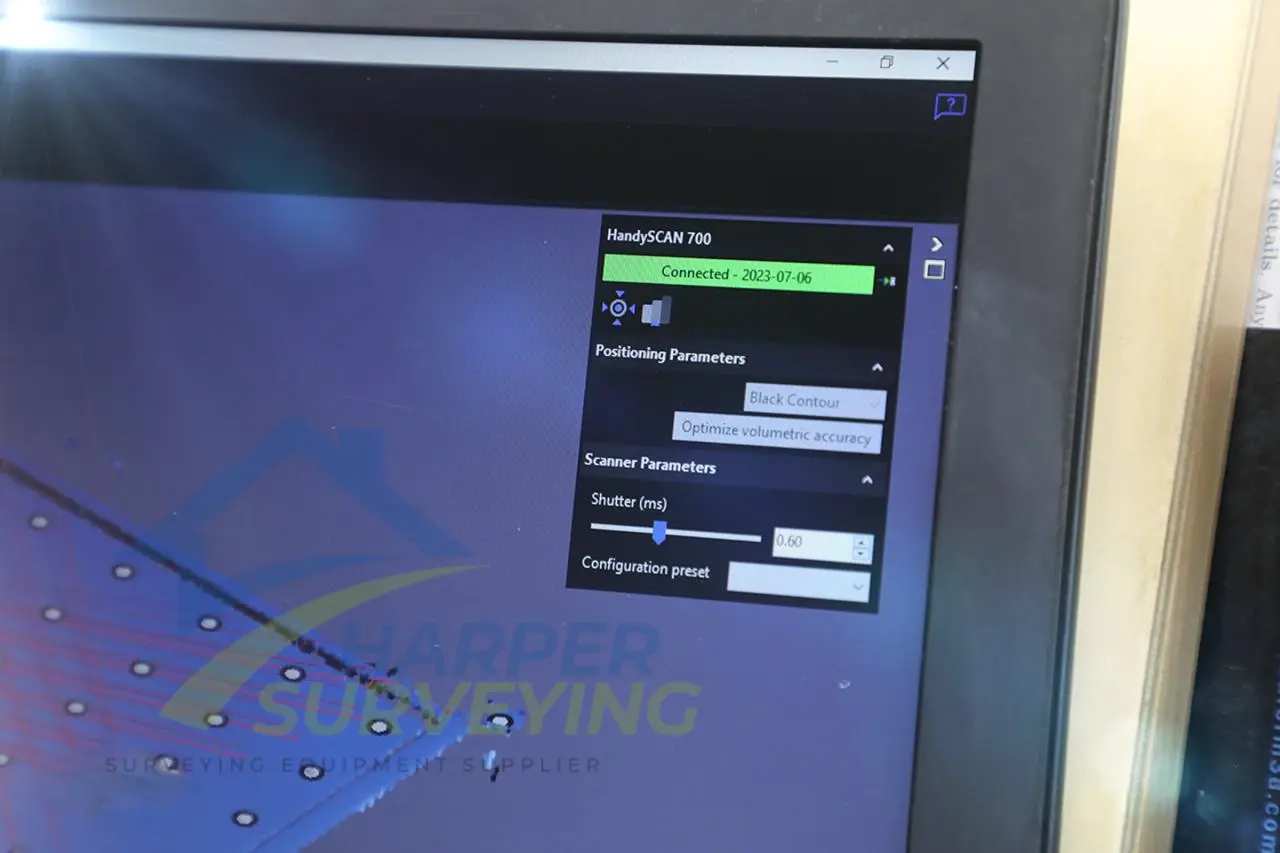

- -VXElements License+Software

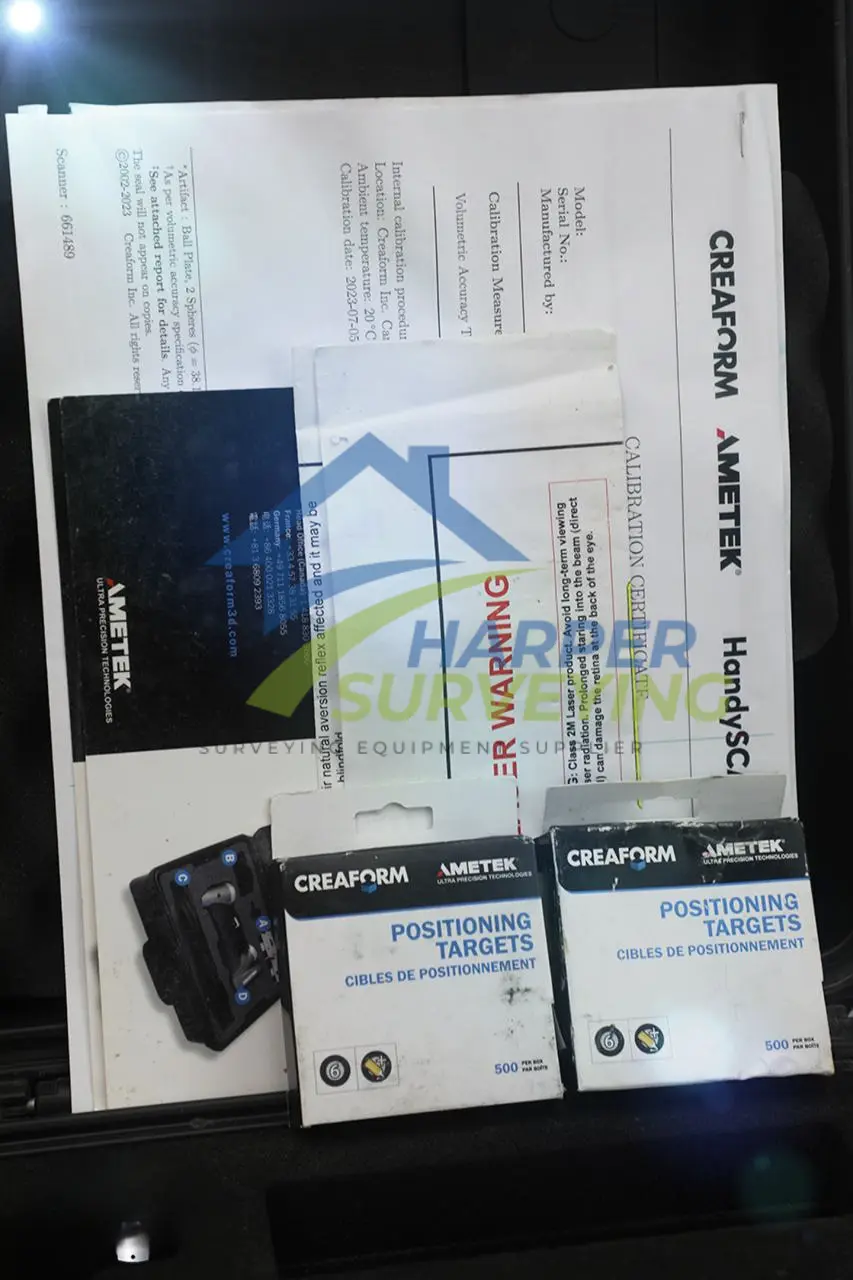

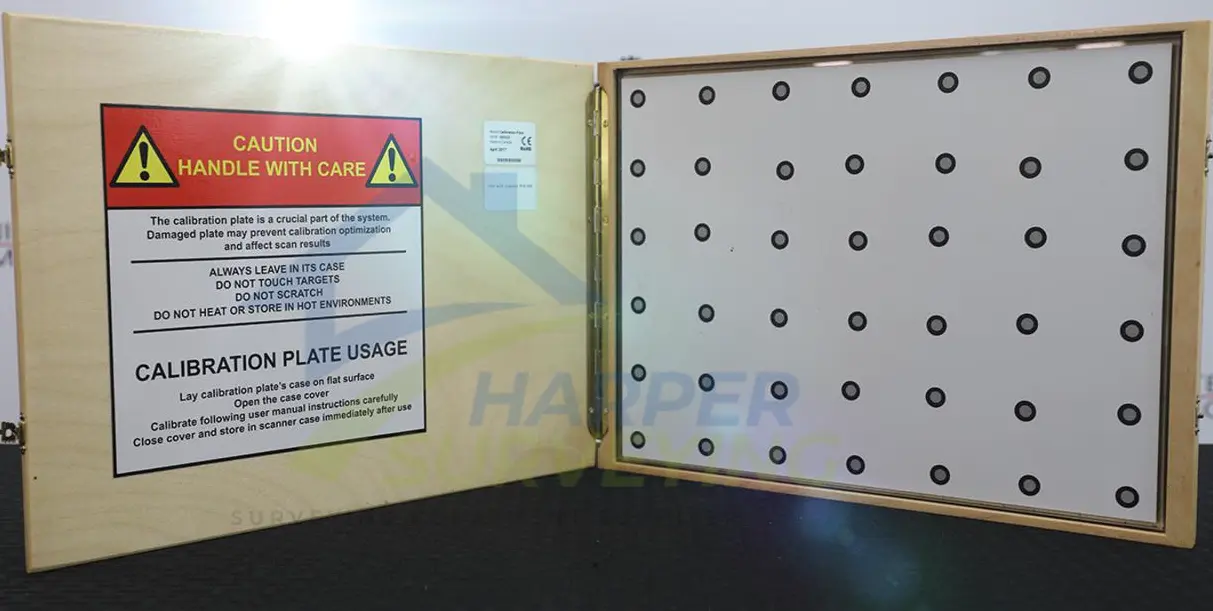

- -Calibration Plate+Paperwork

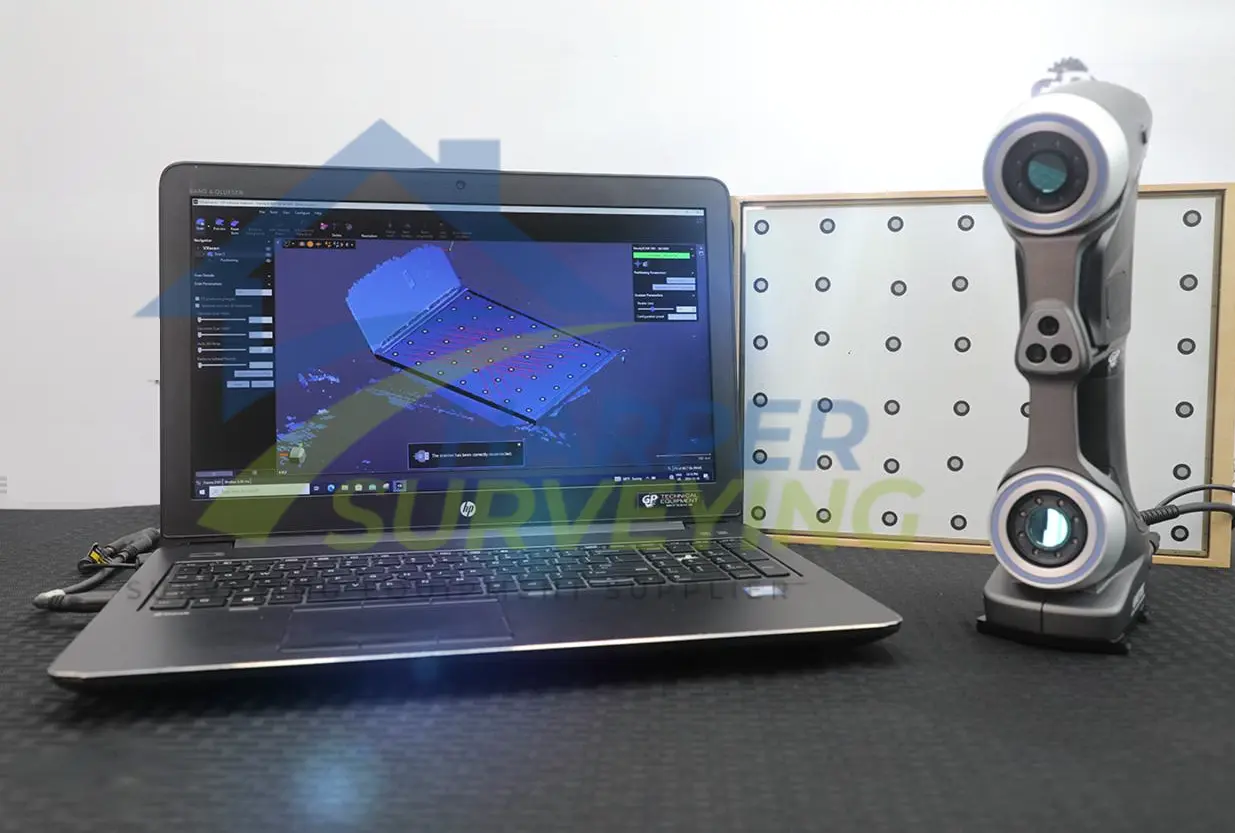

- -HP ZBook Mobile Workstation

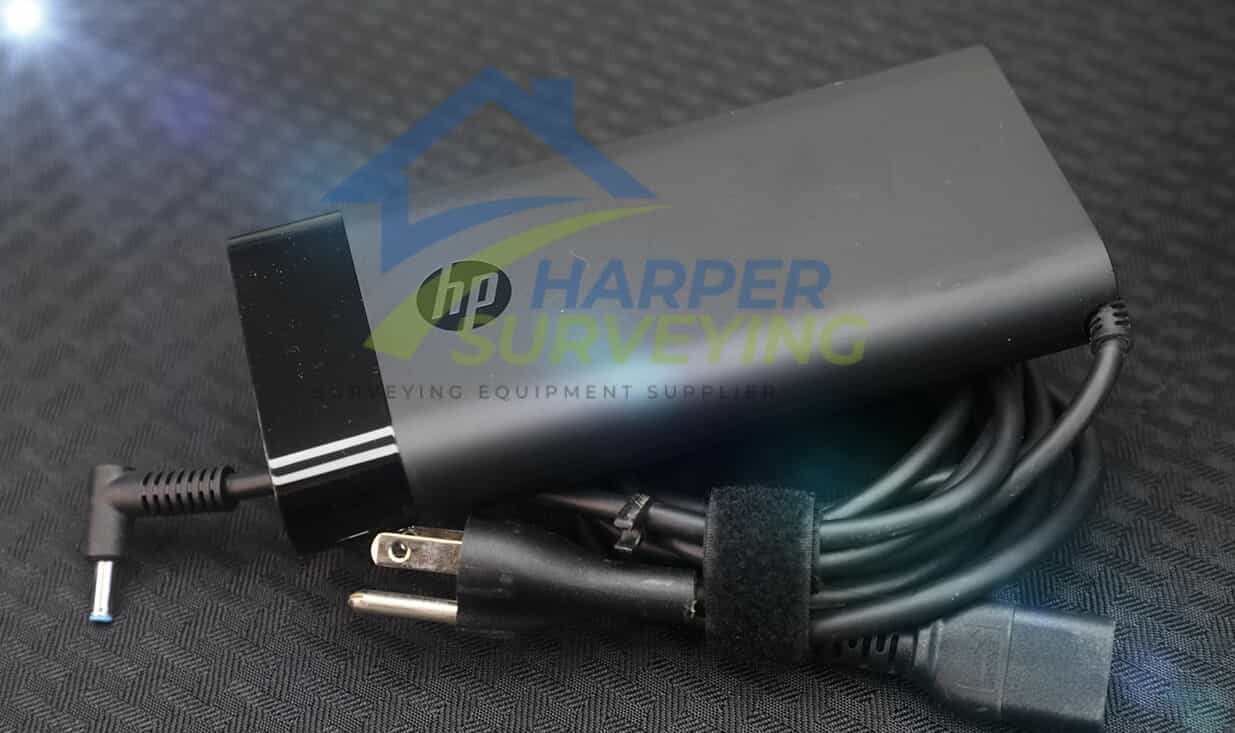

- -Laptop Power Supply
- -Umbilical Cables
- -Positioning Targets
- USB cable
- Charger
- 3 additional sockets
- 4 labeled packs
- Flash drive with software
- Wiping cloth
- Mark scraper
- Reference pointer and VXelements software
