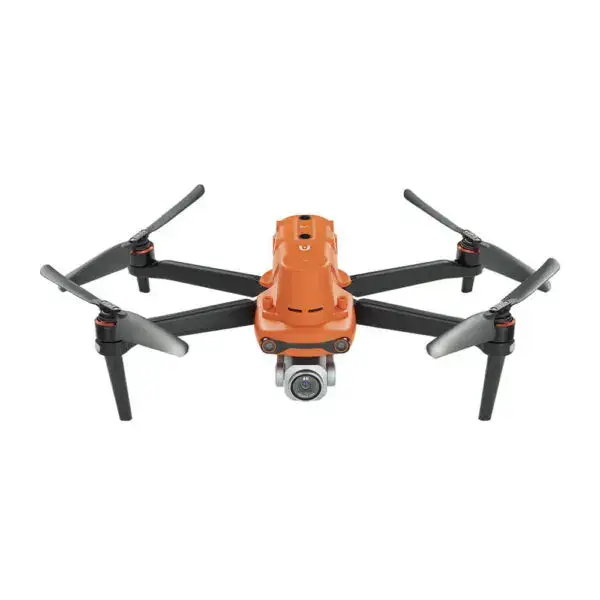

The Autel Robotics EVO II Pro RTK V3integrates an entirely new RTK module for 2022, which provides real-time centimeter-level positioning data in three minutes and supports Post-Processing Kinematic (PPK).
The aircraft can record the original satellite observation data, camera exposure parameters, and more. The positioning system supports the RTK base station and NTRIP RTK network, which helps to achieve accurate and stable data acquisition in complex operating environments.
Autel Robotics EVO II Feature
- · EVO II RTK Series V3 connects to the NTRIP network and does not need GCPs to provide centimeter-grade accuracy.
- EVO II RTK Series V3 supports all NTRIP-compatible base stations.
- The Explorer app allows the user to create and save multiple NTRIP profiles for different locations without having to manually input account info for every travel.
- For repeatable data acquisition missions, you can record the drone’s previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.
- The EVO II Dual 640T RTK V3 has equipped with a high-resolution thermal imaging camera and an all-new Sony .8″ 50-megapixel RYYB sensor.
- The sensor features an industry-leading 640*512 high-definition thermal imaging resolution of 30hz.
Autel Robotics EVO II Specification
| Aircraft | |
| Weight (with propeller and battery) | 1250g±0.5g（EVO II Dual 640T RTK V3） 1237g±0.5g（EVO II Pro RTK V3) |
| Size(L*W*H) | 230*130*143mm（folded） 457*558*143mm（unfolded） |
| Wheelbase | 397 mm |
| Maximum Service Ceiling Altitude | 7000 m |
| Max ascent speed | 8 m/s (Ludicrous) |
| Max descent speed | 4 m/s (Ludicrous) |
| Max horizontal flight speed | 20m/s (Ludicrous) |
| Max flight distance (no wind) | 21 km |
| Max angular velocity | 120°/s |
| Max tilt angle | 33° (Ludicrous) |
| Max flight time | 36 min |
| Max hovering time (no wind) | 32 min |
| Operating temperature range | -10℃ ~ 40℃ |
| Maximum resistance to wind | Level 8 |
| Operating frequency | 902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only) |
| Transmission power | 900M FCC/ ISED：≤31dBm 2.4G FCC/ ISED：≤32dBm SRRC/CE/MIC/RCM：≤20dBm 5.8G (non-Japan) ; 5.7G (Japan) FCC/ISED/SRRC/MIC：≤33dBm CE/ RCM：≤14dBm |
| Hovering accuracy | When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m |
| Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GPS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GPS works normally) | |
| Image position compensation | The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively. |
| Internal storage | 8GB |
| SD storage | max. support 256GB (UHS-3 or Class 10) |
| GNSS | |
| Single frequency high sensitivity GNSS | GPS+BeiDou+Galileo（Asia） GPS+GLONASS+Galileo（Other areas） |
| Multi-frequency multi-system high-precision RTK GNSS | Frequency points used： GPS：L1/L2； GLONASS：L1/L2； BeiDou：B1/B2； Galileo：E1/E5 |
| First positioning time: <50 s | |
| Positioning accuracy: vertical 1.5 cm + 1 ppm (RMS); Horizontal 1 cm + 1 ppm (RMS) 1 ppm means that the error increases by 1 mm for every 1 km the aircraft moves | |
| Gimbal | |
| Gimbal | 3-axis stabilization |
| Mechanical range | Tilt: -135° to +45°; Pan: -100° to +100° |
| Controllable rotation range | Tilt: -90° to +30°; Pan: -90° to +90° |
| Max control speed (Tilt) | 300°/s |
| Angular Vibration Range | ±0.005° |
| Remote controller and image transmission | |
| Operating frequency | 902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only) |
| Transmission power | FCC：≤33dBm CE：≤20dBm@2.4G，≤14dBm@5.8G SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G |
| Max Transmission Distance (unobstructed, free of interference) | FCC：15km CE：8km |
| Display screen | 2048×1536 60fps |
| Battery | 5800mAh |
| Operating time | ~3 hours (Max. Brightness) ~4.5 hours (50% Brightness) |
| Charging time | 120 minutes |
| Internal Storage | ROM 128GB |
| Sensing system | |
| Sensing system type | Omnidirectional sensing system |
| Forward | Accurate measurement range: 0.5-18 m Effective sensing speed: <12m/s Viewing angle: Horizontal: 60°, Vertical: 80° |
| Backward | Accurate measurement range: 0.5-16 m Effective sensing speed: <12m/s Viewing angle: Horizontal: 60°, Vertical: 80° |
| Upward | Accurate measurement range: 0.5-10 m Effective sensing speed: <5m/s Viewing angle: Horizontal: 65°, Vertical: 50° |
| Downward | Accurate measurement range: 0.5-10 m Effective sensing speed: <5m/s Viewing angle: horizontal: 100°, vertical: 80° |
| Left and right | Accurate measurement range: 0.5-10 m Effective sensing speed: <5m/s Viewing angle: horizontal: 65°, vertical: 50° |
| Operating Environment | Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) |
| EVO II Pro RTK V3 visual camera | |
| Sensor | 1 inch CMOS; 20M pixels |
| Lens | FOV: 82° 35 mm format equivalent focal length: 29 mm Aperture: f/2.8 – f/11 Focus range: 0.5 m to infinity |
| ISO range | Video: 100-44000 Photos: 100-6400 |
| Shutter speed | Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates |
| Zoom | 1-16x (up to 3x lossless zoom) |
| Photo mode | Single shot/Burst shooting/AEB/Time Lapse/HDR |
| Maximum photo size | 5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9) |
| Image Format | JPG (default) / DNG / JPG+DNG |
| Photo mode | 5472x3076P30/P25/P24 3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24 |
| Video format | MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) |
| Max bitrate | 120Mbps |
| Supported file system | FAT32/exFAT |
| EVO II Dual 640T RTK thermal camera | |
| Sensor | Uncooled VOx Microbolometer |
| Lens | FOV H33°V26° |
| Focal length 13mm | |
| Zoom | 1-16x |
| Sensor resolution | 640*512 |
| Pixel size | 12μm |
| Wavelength range | 8 – 14μm |
| Temperature range | High gain mode: -20° to +150° Low gain mode: 0° to +550° |
| Temperature measurement accuracy | ±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃ |
| Accurate temperature measurement distance | 2-20 meters |
| Video resolution | 640×512@30fps |
| Video format | MOV / MP4 (Support H.264/H.265) |
| Camera resolution | Infrared mode: 640*512 Picture-in-picture mode: 1920*1080, 1280*720 |
| Photo mode | Single shot Burst shooting: 3/5 frames, 3 is the default Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s |
| Photo format | JPG (with irg file) |
| EVO II Dual 640T RTK V3 visual camera | |
| Sensor | 1/2 inch CMOS; 48M effective pixels |
| Lens | FOV: 79° 35 mm format equivalent focal length: 25.6 mm Aperture: f/1.8 Focus range: 0.5 m to infinity (with auto focus) |
| ISO range | Video: 100-64000 Photos: 100-6400 |
| Shutter speed | Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates |
| Zoom | 1-16x (up to 4x lossless zoom) |
| Photo mode | Single shot/Burst shooting/AEB/Time Lapse/HDR imaging |
| Maximum photo size | 8192*6144（4:3） 4096*3072（4:3） 3840×2160（16:9） |
| Image Format | JPG (default) / DNG / JPG+DNG |
| Video format | MOV / MP4 |
| Video resolution | 3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24 |
| Max bitrate | 120Mbps |
| Supported file system | FAT32/exFAT |
| Battery | |
| Capacity | 7100 mAh |
| Voltage | 11.55 V |
| Battery type | LiPo 3S |
| Energy | 82 Wh |
| Weight | 365 g |
| Charging temperature range | 5℃ to 45℃ |
| Storage temperature and humidity | -10~30℃，65±20%RH |
| Recommended storage temperature | 22-28℃ |
| Max charging power | 93W |
| Charging time | 90 minutes |
| Charger | |
| Input | 100-240 V, 50/60 Hz, 1.5A |
| Output | 13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A |
| Voltage | 13.2±0.1V |
| Rated power | 66W |
| Multi-Charger | |
| Voltage | 13.2 V |
| Charging temperature range | 5℃ to 45℃ |

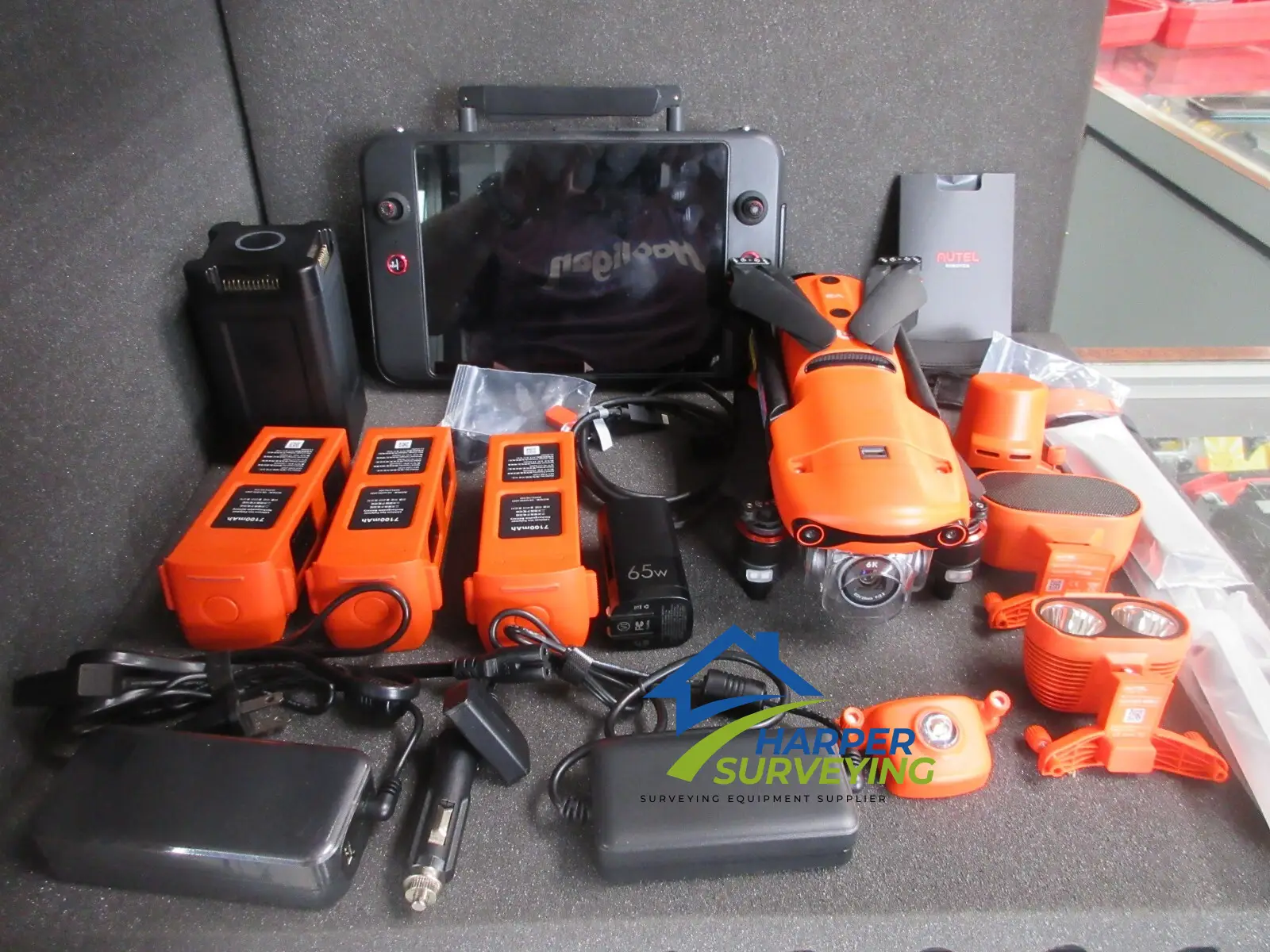

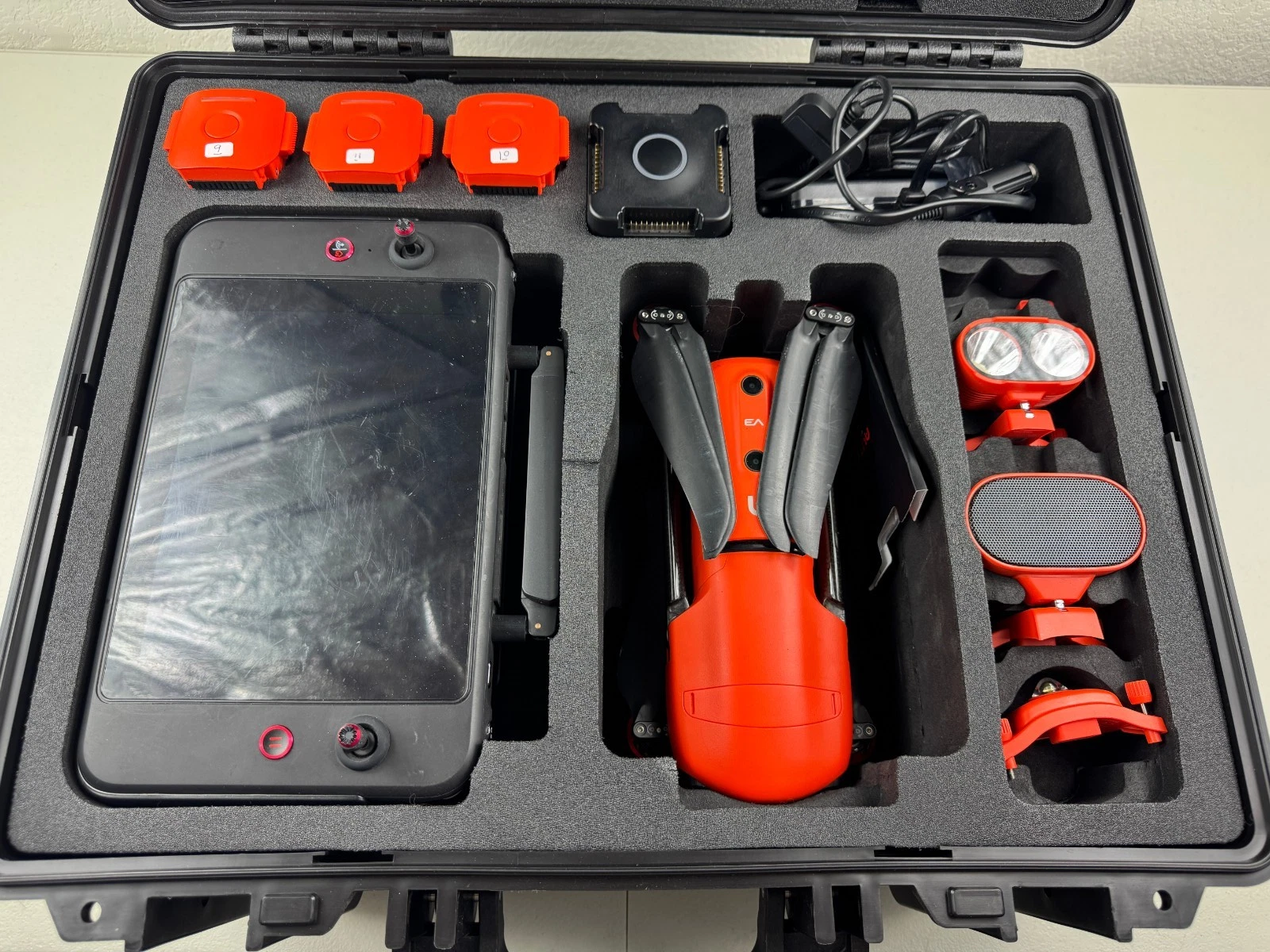

Autel Robotics EVO II include
- 1x Aircraft (including battery, propellers, gimbal cover, and 32G SD Card)

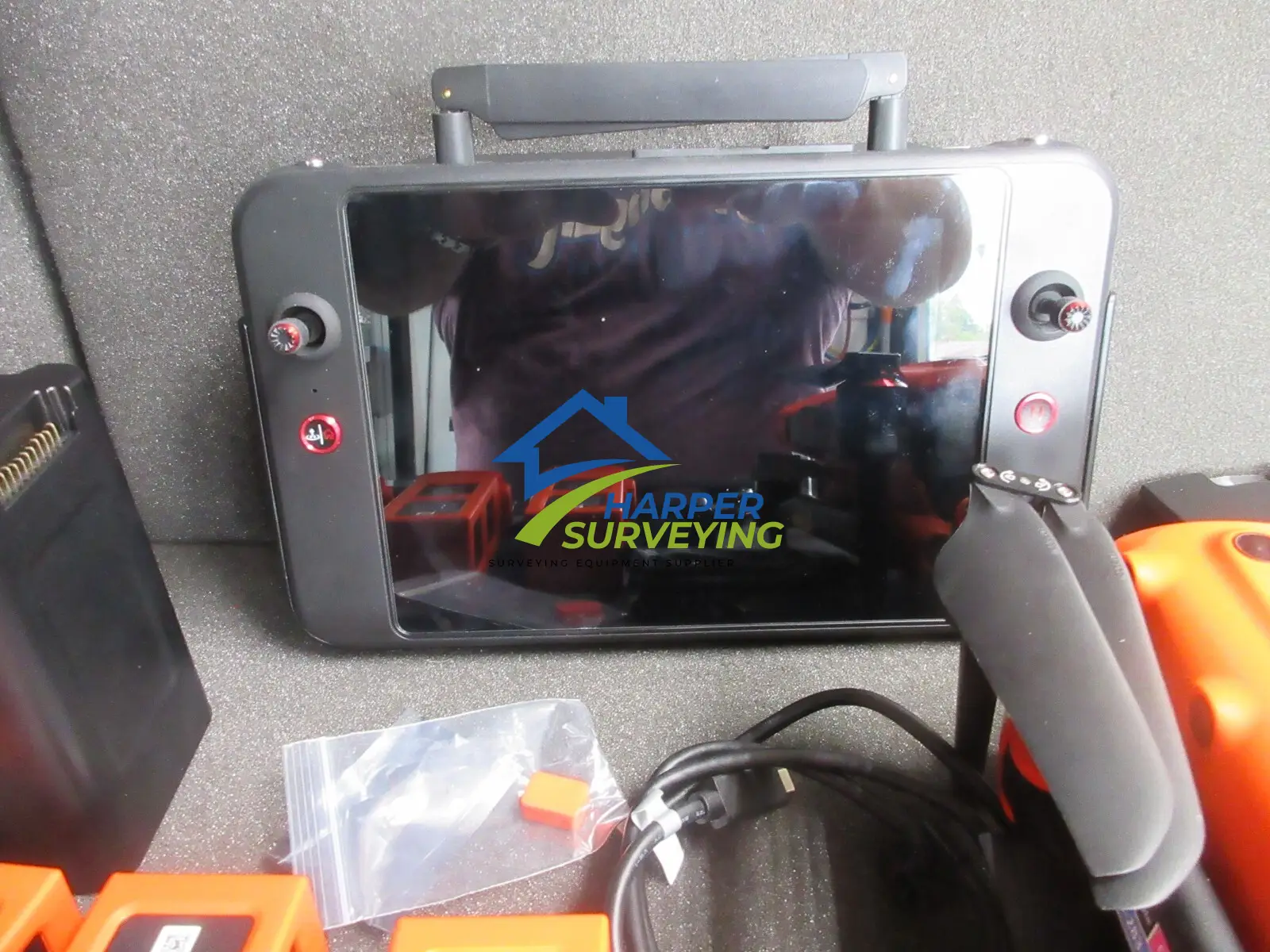

- 1x Remote Controller (sticks included)

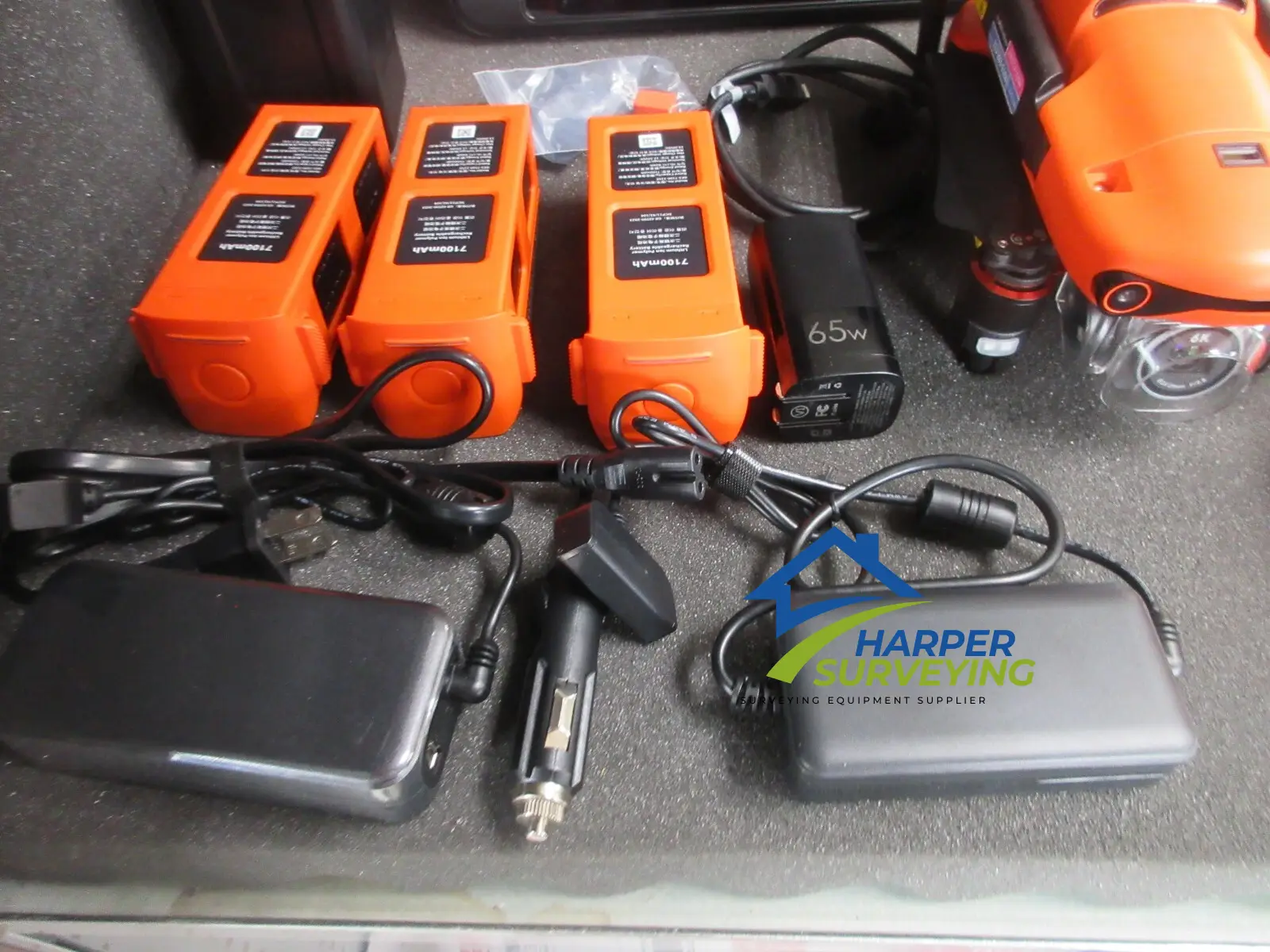

- 2x Spare batteries
- 2x Spare propellers (pair)
- 1x Battery charger + power cable
- 1X Car charger
- 1x Multi-charger
- 1x RC charger
- 1x RC charging cable
- 1x RC lanyard
- 1x RC protective case
- 1x Spare control stick (pair)
- 1x Extended port cover

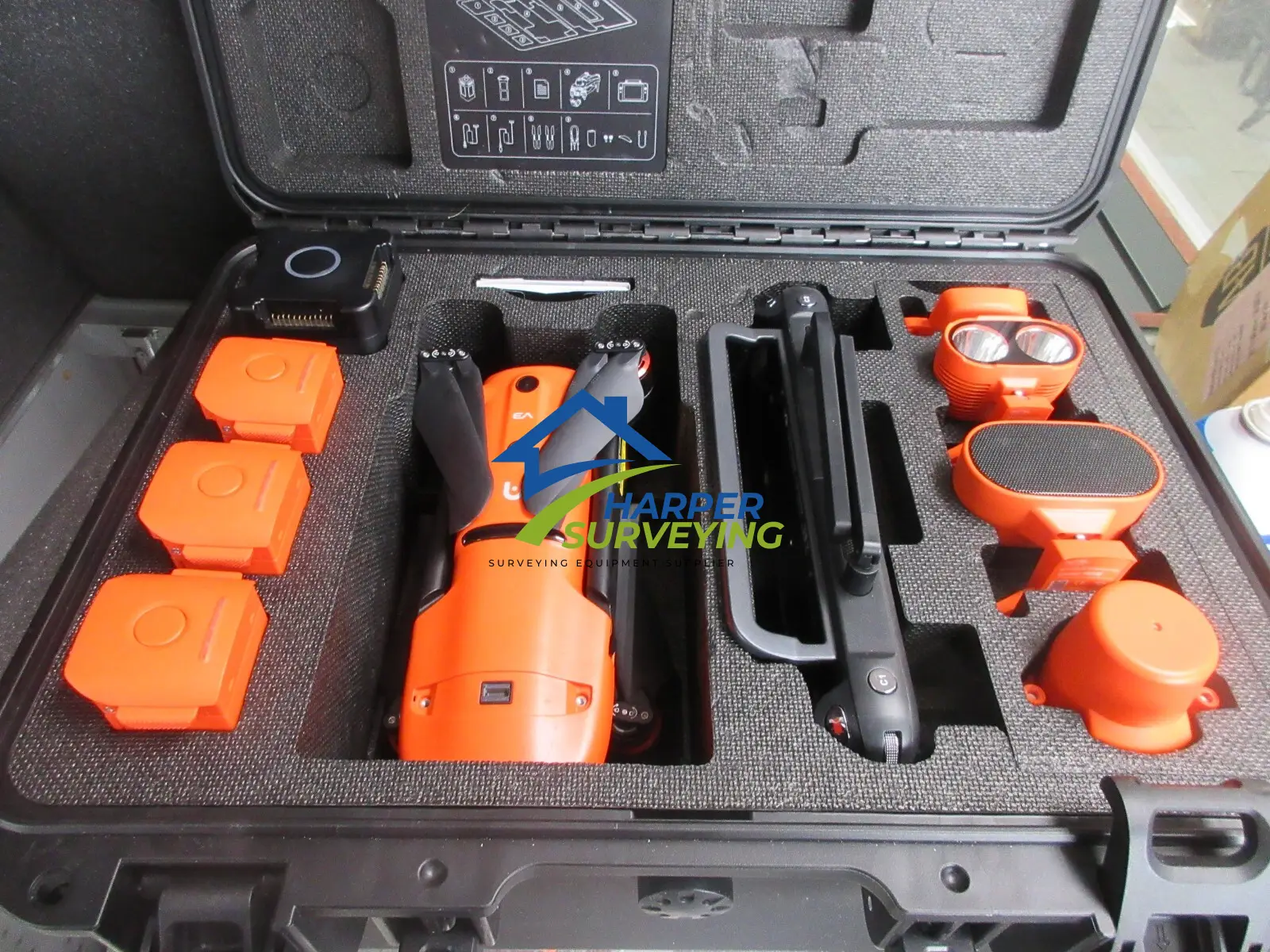

- 1x Protector case

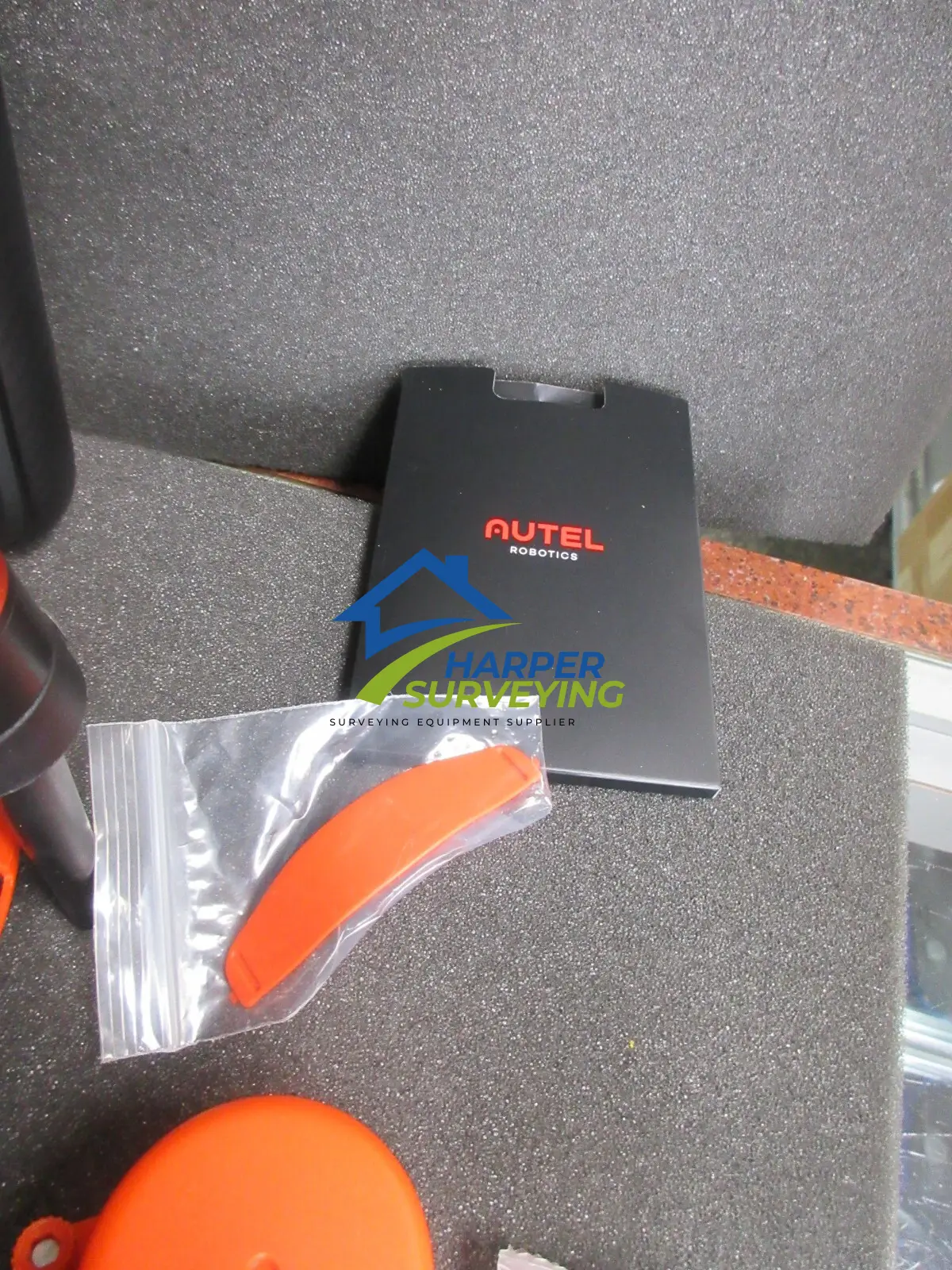

- 1x Manual (Packing List, Quick Guide, Disclaimer & Safety Instructions, Battery Safety Instructions, Car Charger Quick Guide, and Multi-Charger Quick Guide)
