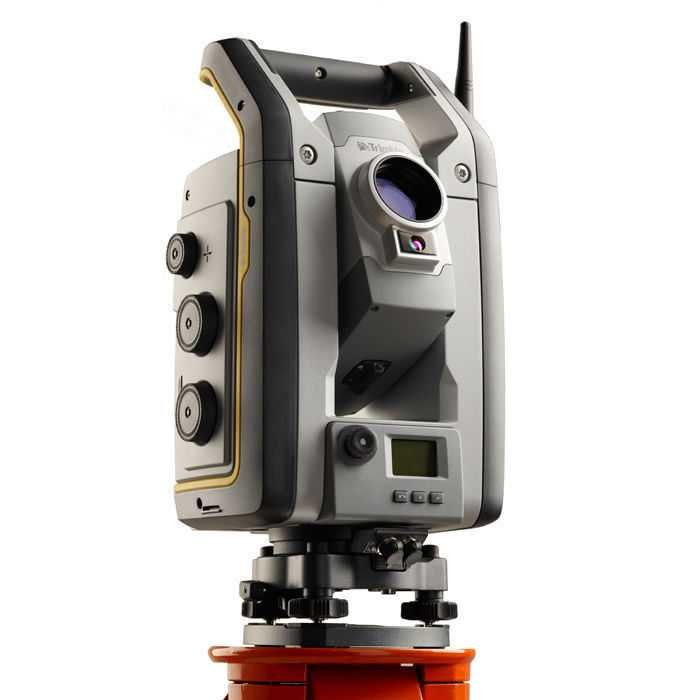

Trimble S7 Robotic Total Station combines scanning, photo, and measurement in one and the same powerful solution.
Now you only need to have one instrument at the workplace to collect all kinds of data. Create 3D models, high-accuracy visual documentation, point clouds, and more using Trimble S7, Trimble Access field software, and Trimble Business Center office software.
Trimble S7 Robotic Total Station enables crews to remain productive and efficient, collecting data quickly and accurately on various jobs.
Replacing the S6, the S7 was introduced in 2015 as part of a new lineup (including the S5 and S9). The Trimble S7 Robotic Total Station promotes the”all-in-one” model with all the newest updated VISION technology, Locate2Protect assistance, and 3D scanning as standard options.

THE MOST PRODUCTIVE TOTAL STATION
Le Trimble S7 Robotic Total Station is the ultimate system for efficient surveying, letting you adapt to almost any situation and increasing your productivity in the field. The combination of SureScan, Trimble VISION™, FineLock™, and DR Plus engineering, along with some different features, means you’ll be able to collect information faster and more precisely than ever.
Integrated 3D Scanning
Now you have the flexibility to carry out feature-rich scans daily. Efficiently capture the information you want to create digital terrain models (DTMs), execute volume calculations, and make topographic measurements quicker than traditional surveying methods. SureScan technology enables you to gather and process data faster by focusing on collecting the right points, not just more points.
Improved Trimble VISION Technology
Trimble VISION technology allows you to direct your survey with live video images on the control and create a vast array of deliverables from collected imagery. Instantly document your site and add notes straight to the pictures from the area to ensure you never miss this crucial information.
Superior Accuracy with Trimble DR Plus
DR Plus, range measurement technology, offers an extended assortment of Direct Reflex dimensions without a prism. You can quantify further with fewer tool set-ups and enhance your scanning functionality. DR Plus, together with the smooth and silent MagDrive™ servo technology, creates the unmatched capability for quick dimensions without compromising accuracy.
Stay On Point
Reduce aiming error, avoid costly re-measurement and be confident in your results using Trimble SurePoint™. The Trimble S7 Robotic Total Station aims and stays on goal through wind, handling, and sinkage, knowingly adjusting for unwanted movement, and ensuring precise pointing and dimension every moment.
With its exclusive MultiTrack™ engineering and Target ID capacities, surveyors can decide on the sort of goal, passive or active, that best suits the job site conditions and be confident that they’ll find and lock into the proper target.
Manage Your Assets
Know where your total stations are 24 hours daily with Trimble Locate2Protect technology. See where your gear is at any given moment and receive alarms if your device leaves a job site or experiences unexpected equipment abuse or shock. Trimble InSphere™ Equipment Manager lets you see usage and keep up-to-date on firmware, applications, and maintenance requirements. Using Trimble Locate2Protect and InSphere Equipment Manager, you can rest assured knowing your gear is up-to-date and where it ought to be.
Pick from various Trimble controls operating the characteristic rich, intuitive Trimble Access area computer software. Streamlined workflows like Roads, Utilities, and Pipelines manual crews through common job types, helping to get the job done quicker with fewer distractions. Trimble Access workflows may also be customized to satisfy your needs. Back in the office, expect Trimble Business Center to assist you to check, process, and adjusting your mind and GNSS data in 1 software solution.
Powerful Field and Office Software
Choose from a variety of Trimble controllers operating the feature rich, intuitive Trimble Access field software. Streamlined workflows like Roads, Utilities and Pipelines guide crews through common project types, helping to get the job done faster with less distractions. Trimble Access workflows can also be customized to fit your needs. Back in the office, trust Trimble Business Center to help you check, process and adjust your optical and GNSS data in one software solution.
Trimble S7 Features
- Topographie, imagerie et numérisation 3D en une seule solution puissante
- Improved Trimble VISION technology for video robotic control, scene documentation and photogrametric measurements
- Locate2Protect real-time equipment management
- Trimble DR Plus for long range and superior accuracy
- Intuitive Trimble Access Field Software
- Trimble Business Center Offi ce Software for quick data processing
Trimble S7 Compatible
- TSC7, TSC5, TSC3 and TCU5 Controllers
- R12, R10 and R8S Integrated GNSS Systems
- T10 and T7 Tablets
Trimble S7 Specifications
| PERFORMANCE | |
| Mesure d'angle | |
| Type de capteur | Codeur absolu avec lecture diamétrique |
| Accurateurité (écart-type basé sur la norme DIN 18723) | 1″ (0.3 mgon) 2″ (0.6 mgon), 3″ (1.0 mgon), or 5″ (1.5 mgon) |
| Display (least count) | 0.1″ (0.01 mgon) |
| Compensateur automatique de niveau | |
| Type | TypeCentered dual-axis |
| Exactitude | 0.5″ (0.15 mgon) |
| Range . | ±5.4’ (±100 mgon) |
| Mesure de distance | |
| Accurateurité (RMSE) Mode Prism | Standard: 1 mm + 2 ppm (0.003 ft + 2 ppm) Tracking: 4 mm + 2 ppm (0.013 ft + 2 ppm) |
| Mode DR | Standard: 2 mm + 2 ppm (0.0065 ft + 2 ppm) Tracking: 4 mm + 2 ppm (0.013 ft + 2 ppm) Extended range: 10 mm + 2 ppm (0.033 ft + 2 ppm) |
| Mesurer le temps | |
| Mode Prism | Standard: 1.2 sec Tracking: 0.4 sec |
| Mode DR | Standard: 1–5 sec Tracking: 0.4 sec |
| Measurement range | |
| Mode Prism | 1 prism: 2,500 m (8,202 ft) 1 prism Long Range mode: 5,500 m (18,044 ft) (max. range) Shortest possible range: 0.2 m (0.65 ft) |
| Scanning | |
| Gamme | from 1 m up to 250 m (3.28 ft–820 ft) |
| Vitesse | up to 15 points/sec |
| Minimum point spacing | 10 mm (0.032 ft) |
| Standard deviation | 1.5 mm @ ≤50 m (0.0049 ft @ ≤164 ft) |
| Single 3D point accuracy | 10 mm @ ≤150 m (0.032 ft @ ≤492 ft) |
| EDM SPECIFICATIONS (DR PLUS) | |
| Source lumineuse | Pulsed Laser diode 905 nm; Laser class 1 |
| Divergence du faisceau | Horizontal: 2 cm/50 m (0.06 ft/164 ft) Vertical: 4 cm/50 m (0.13 ft/164 ft) |
| SYSTEM SPECIFICATIONS | |
| Régulation | |
| Niveau circulaire dans le tribrach | 8’/2 mm (8’/0.007 ft) |
| Electronic 2-axis level in the LC-display with a resolution of | 0.3″ (0.1 mgon) |
| Système servo | |
| MagDrive servo technology | Integrated servo/angle sensor electromagnetic direct drive |
| Vitesse de rotation | 115 degrés/s (128 gon/s) |
| Temps de rotation Face 1 à Face 2 | 2,6 secondes |
| Vitesse de positionnement : 180 degrés (200 gon) | 2,6 secondes |
| Clips et mouvements lents | Commande servo, réglage fin infini |
| Centration | |
| Système de centrage | Trimble 3 broches |
| Plombimètre optique | Plombimètre optique intégré |
| Magnification focusing distance | 2.3×/0.5 m to infinity (1.6 ft to infinity |
| Télescope | |
| Magnification | 30× |
| Ouverture | 40 mm (1,57 po) |
| Angle de vue à 100 m (328 pieds) | 2,6 m à 100 m (8,5 ft à 328 ft) |
| Focusing distance | 1.5 m (4.92 ft) to infinity |
| Viser lumineux | Variable (10 étapes) |
| Autofocus | Standard |
| Caméra | |
| Chip | Capteur d'image numérique couleur |
| Résolution | 2048 x 1536 pixels |
| Longueur focale | 23 mm (0.09 ft) |
| Profondeur de champ | 3 m jusqu'à l'infini (9,84 pieds jusqu'à l'infini) |
| Champ de vision | 16,5° x 12,3° (18,3 gon x 13,7 gon) |
| Zoom numérique | .4-step (1x, 2x, 4x, 8x) |
| Exposition | Spot, HDR, Automatic |
| Luminescence | Personnalisable par l'utilisateur |
| Stockage d'images | jusqu'à 2048 x 1536 pixels |
| Format du fichier | JPEG |
| Compression ratio | Personnalisable par l'utilisateur |
| Video streaming | . 5 frames/sec |
| AUTOLOCK AND ROBOTIC SURVEYING | |
| Autolock et gamme robotisée | |
| Prismes passifs | 500–700 m (1,640–2,297 ft) |
| Trimble MultiTrack Target | 800 m (2 625 pieds) |
| Trimble ActiveTrack 360 Target | 500 m (1,640 Ft) |
| Précision de la positionnement automatique à 200 m (656 pieds) (Deviateur standard) | |
| Prismes passifs | <2 mm (0,007 po) |
| Trimble MultiTrack Target | <2 mm (0,007 po) |
| Trimble ActiveTrack 360 Target | <2 mm (0,007 po) |
| Distance de recherche la plus courte | 0,2 m (0,65 ft) |
| Type de radio interne/externe | Radiofréquences à 2,4 GHz, avec un large spectre d'utilisation |
| Temps de recherche (typique) | 2 à 10 secondes |
| FINELOCK | |
| Précision de pointage à 300 m (980 pieds) | <1 mm (0.003 ft) |
| Range to passive prisms (min–max) | 20 m–700 m (64 ft–2,297 ft) |
| Minimum spacing between prisms at 200 m (656 ft) | 0.8 m (2.625 ft) |
| GPS SEARCH/GEOLOCK | |
| Suche par GPS/GeoLock | 360 degrees (400 gon) or defined horizontal and vertical search window |
| Temps d’acquisition de la solution | 15–30 sec |
| Temps de rétablissement de la cible | <3 sec |
| Gamme | Autolock & Robotic range limits |
Trimble S7 Comprend
- Trimble S7 3” DR Plus Robotic Total Station w/ TSC7 & DDIN DNCT40-160 Sagometer
- TSC3 with Access 2016.02 software and 2.4 GHz radio
- MT1000 Active Prism
- Back Sight Kit
- Charging Kit
- Chargeurs
- Cables (Hirose to Hirose)
- 3 Batteries
- Trimax Tripod
- Seco Carbon Fiber Prism Rod
- Crain Bipod
- Dutch Hill Tripod
- Includes only what you see in the pictures.
- Software Business Center Advance is already loaded onto the system.
